(2PC) 2N4859A SOLITRON Small Signal JFET Transistor, 1-Element, N-Channel, TO-18
Tax included.

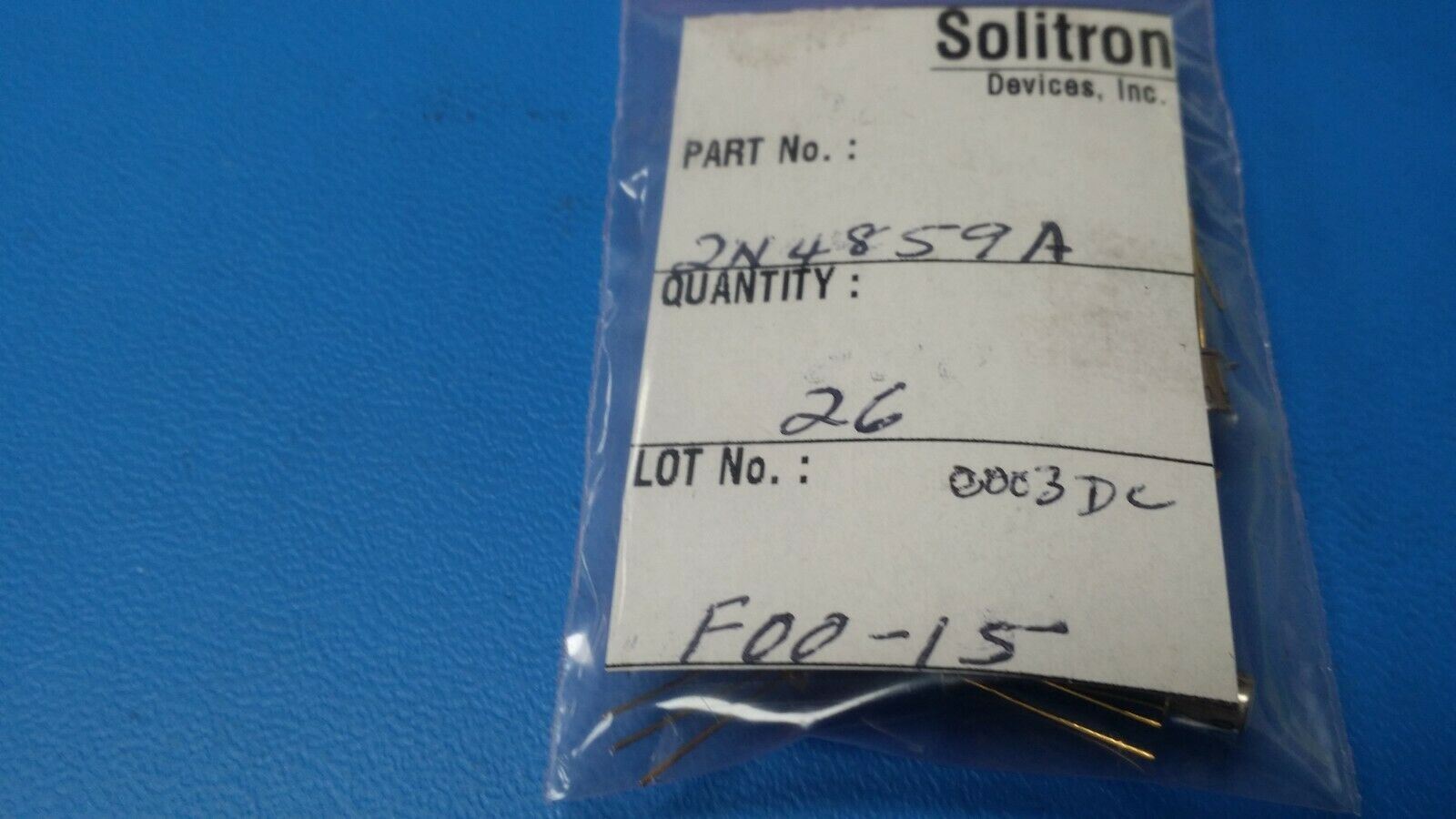

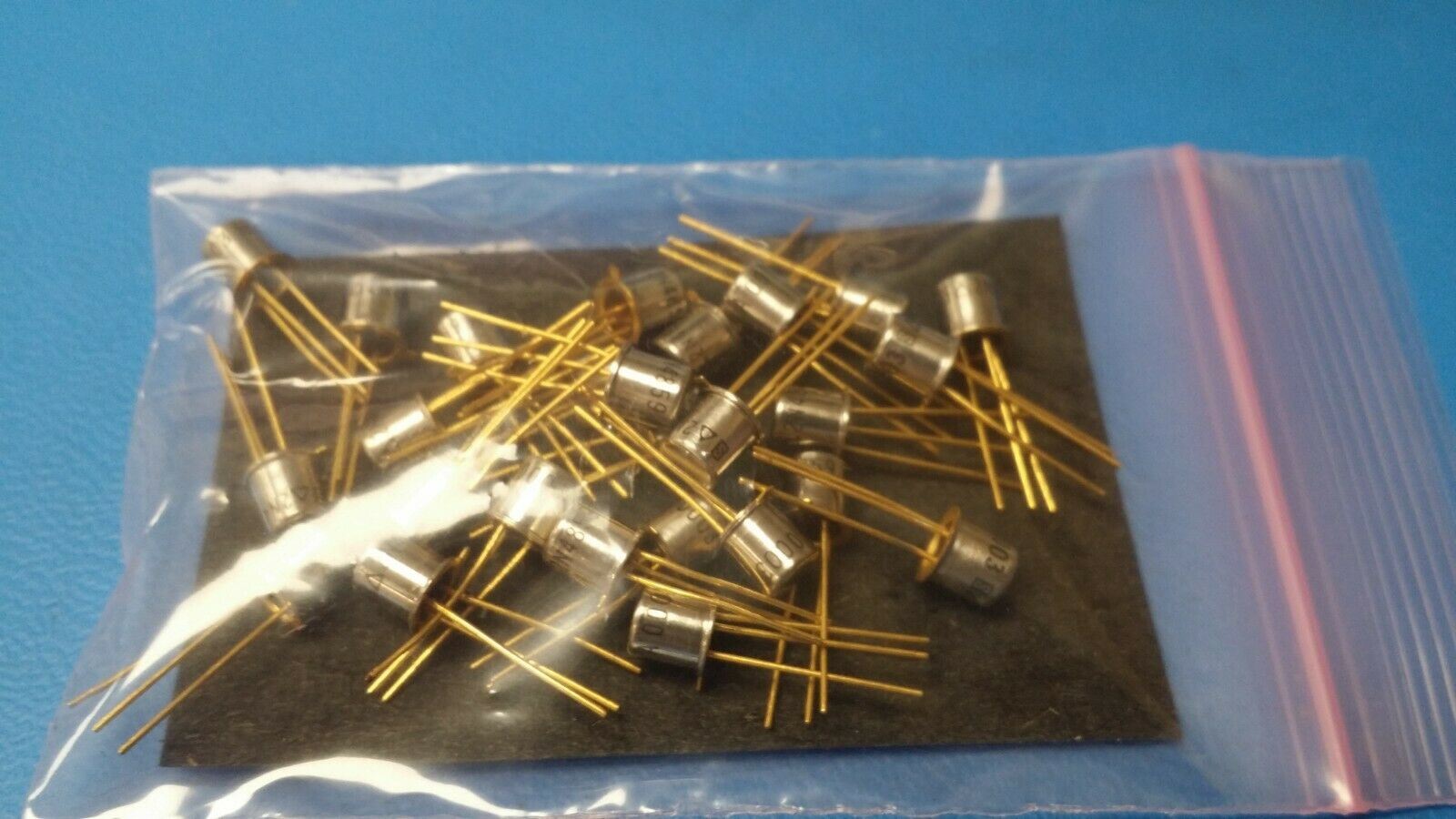

THIS IS FOR (2PCS) OF 2N4859A BY SOLITRON
Small Signal JFET Transistor, 1-Element, N-Channel, TO-18
Part #: 2N4859A
Part Category: Transistors
Manufacturer: Solitron Devices, Inc.
Description: Small Signal Field-Effect Transistor, 1-Element, N-Channel, Silicon, Junction FET, TO-18
Status Active-Unconfirmed
Configuration SINGLE
Drain-source On Resistance-Max 25.0 ohm
Feedback Cap-Max (Crss) 4.0 pF
FET Technology JUNCTION
JEDEC-95 Code TO-18
JESD-30 Code O-MBCY-W3
Number of Elements 1.0
Number of Terminals 3
Operating Mode DEPLETION MODE
Operating Temperature-Max -888.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 0.36 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Form WIRE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
