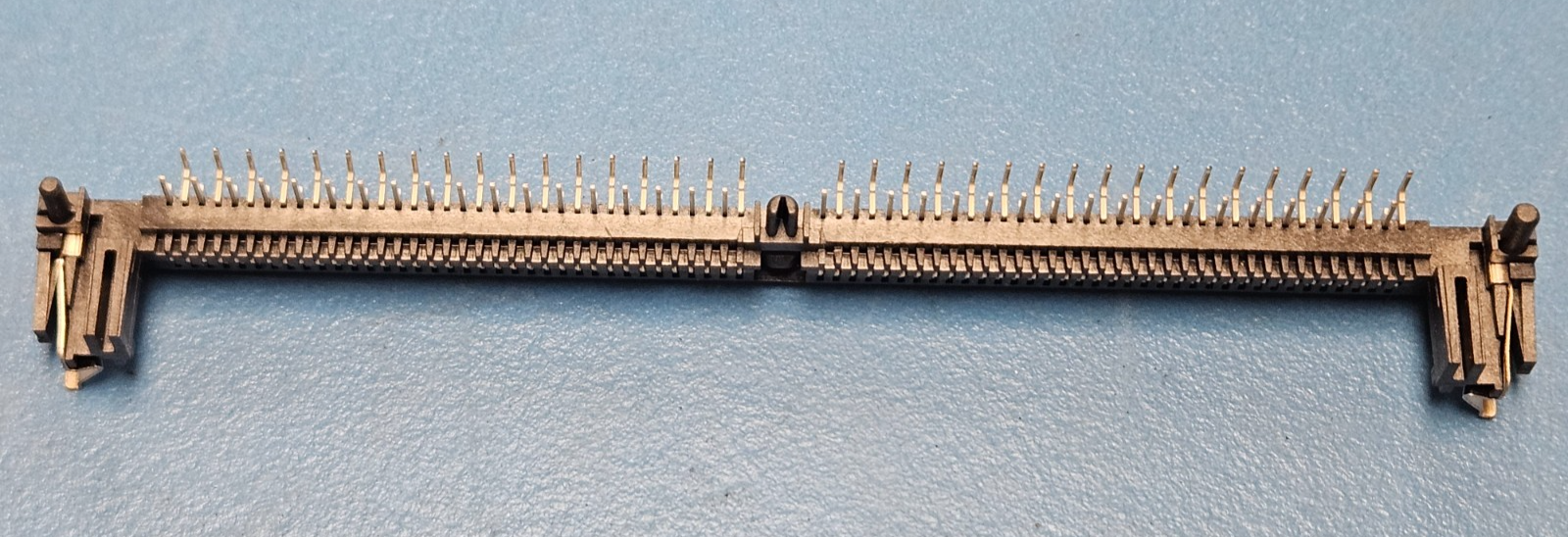

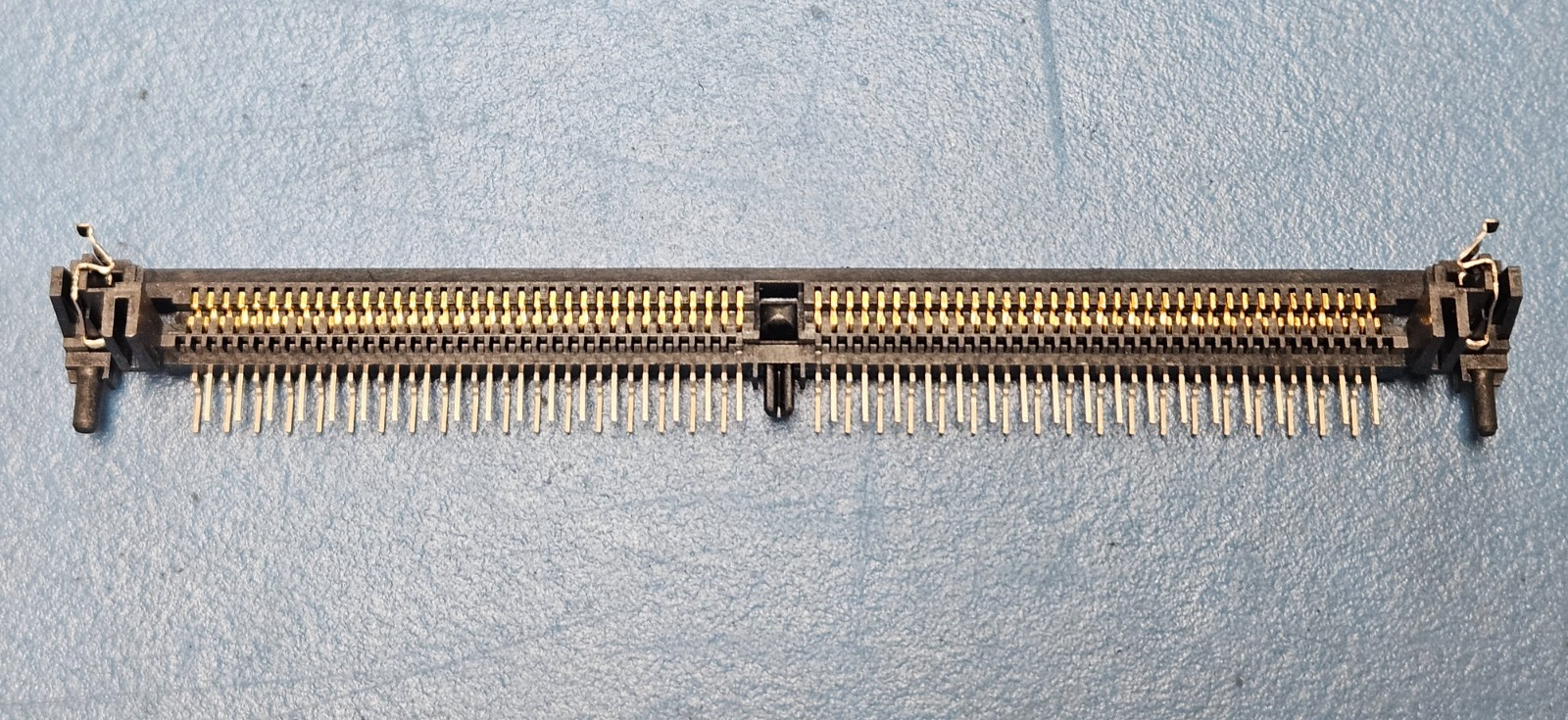

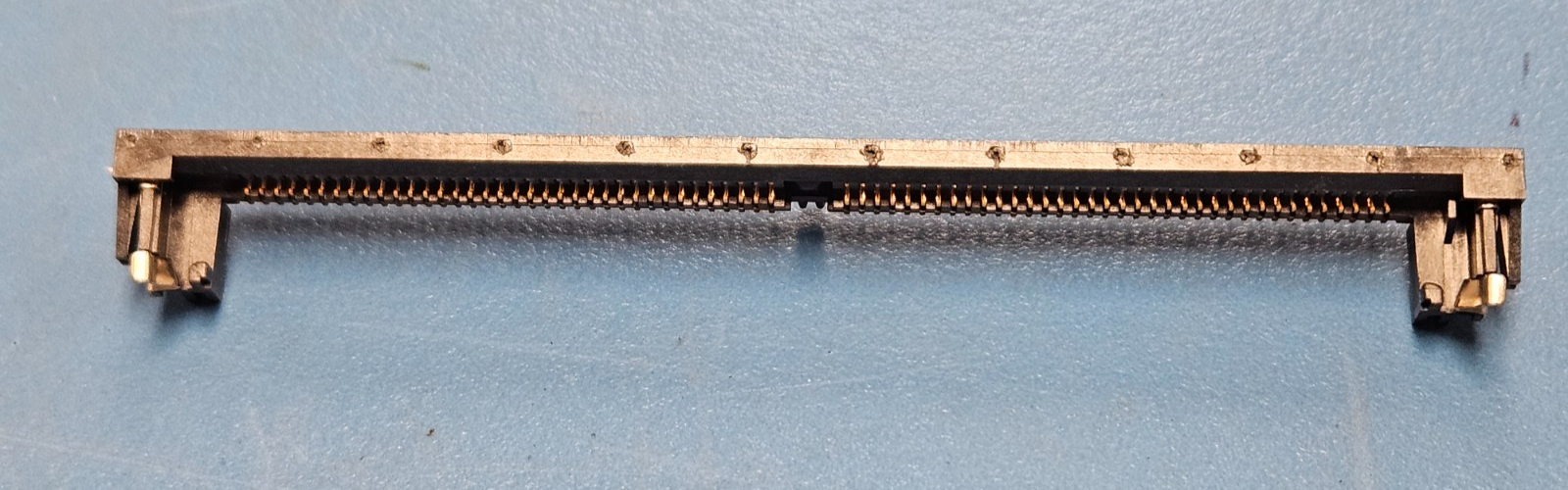

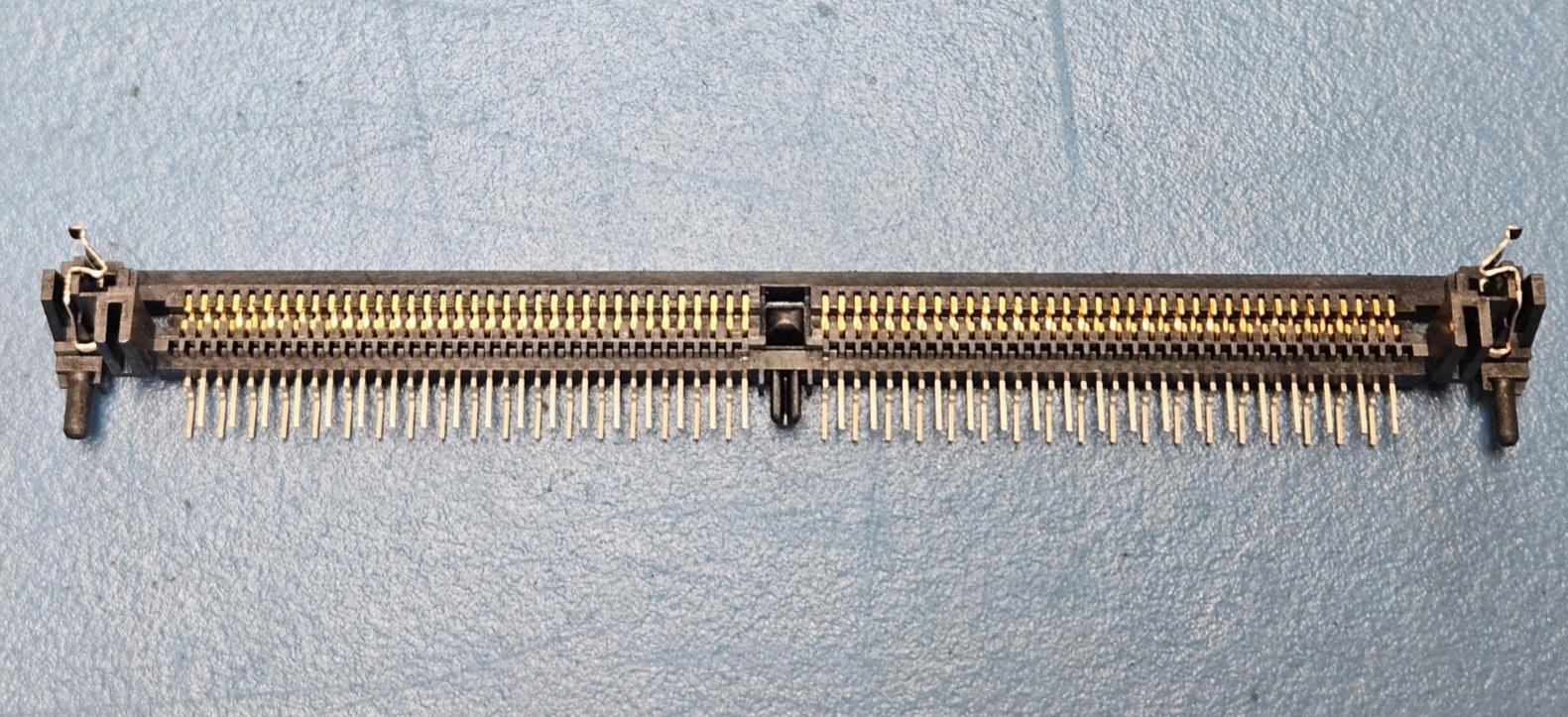

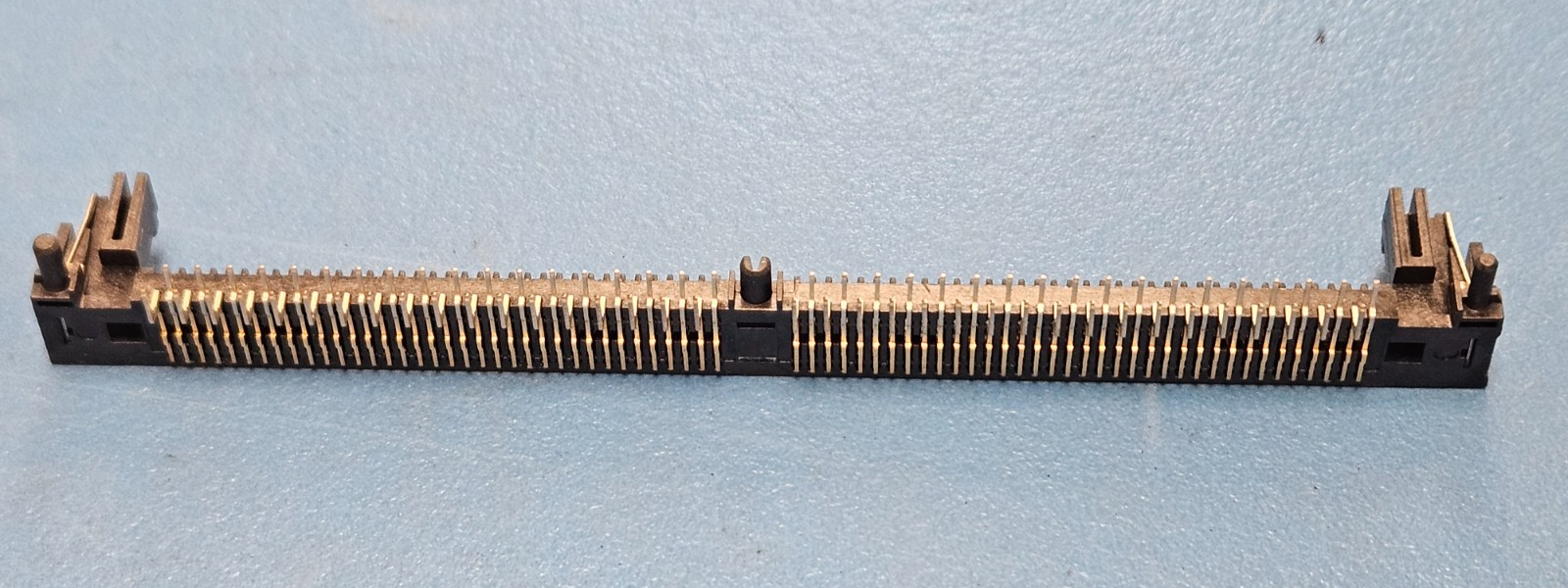

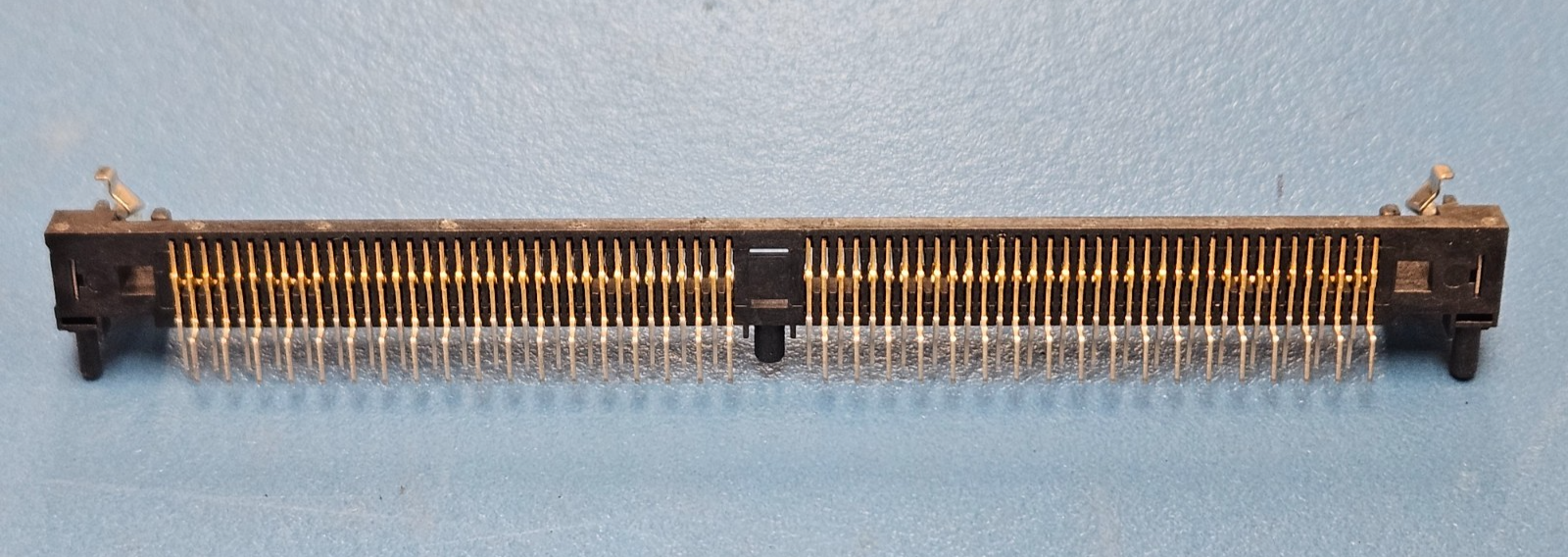

(2PC) 15-82-1473 Card Edge Connector, 72 Contact, Female, Right Angle,
Tax included.
This listing is for (2PCS) of 15-82-1473 by Molex
Status Discontinued
Additional Feature MODULE ORIENTATION: RIGHT ANGLE
Board Mounting Option POLARIZATION POST
Body Breadth (inch) 0.388000
Body Length (inch) 4.550000
Body/Shell Style SOCKET
Connector Type CARD EDGE CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Resistance (mohm) 30.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 1000VAC
Durability (Cycles) 25
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) ZIF
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch (inch) 0.05
Mixed Contacts NO
Mounting Option 1 LATCH
Mounting Option 2 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 1
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 0.1
Plating Thickness (inch) 30u
Polarization Key SHRD LEFT
Rated Current (Signal) (A) 1.0000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.110000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 72
UL Flammability Code 94V-0
Withdrawl Force-Min (N) ZIF
