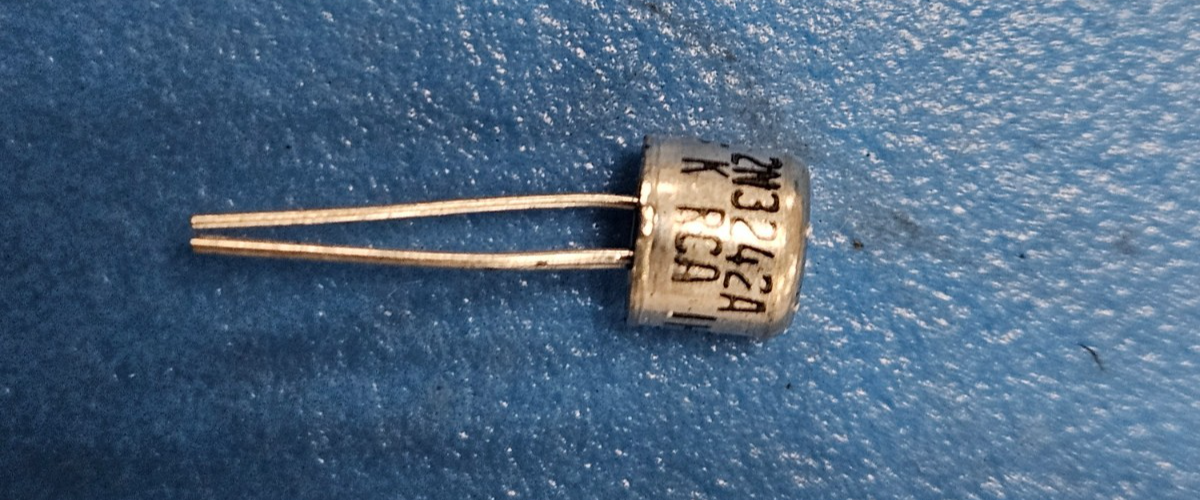

2N3242A Solid State Transistor TO-18
Tax included.
This listing is for (1) 2N3242A
Status Active
Collector Current-Max (IC) (A) 0.3000000000000000
Collector-emitter Voltage-Max (V) 40.0000000000000000
Configuration SINGLE
DC Current Gain-Min (hFE) 125.0000000000000000
JEDEC-95 Code TO-18
JESD-30 Code O-MBCY-W3
J-STD-609 Code e0
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max (Cel) 175
Package Body Material METAL
Package Shape ROUND
Package Style CYLINDRICAL
Polarity/Channel Type NPN
Power Dissipation-Max (W) 0.500000000000000
DLA Qualification Not Qualified
Surface Mount NO
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position BOTTOM
Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) (MHz) 50.0000000000000000
