(275PCS) MMBT2222A-TP DIODES TRANS NPN 40V 0.6A SOT23
Tax included.

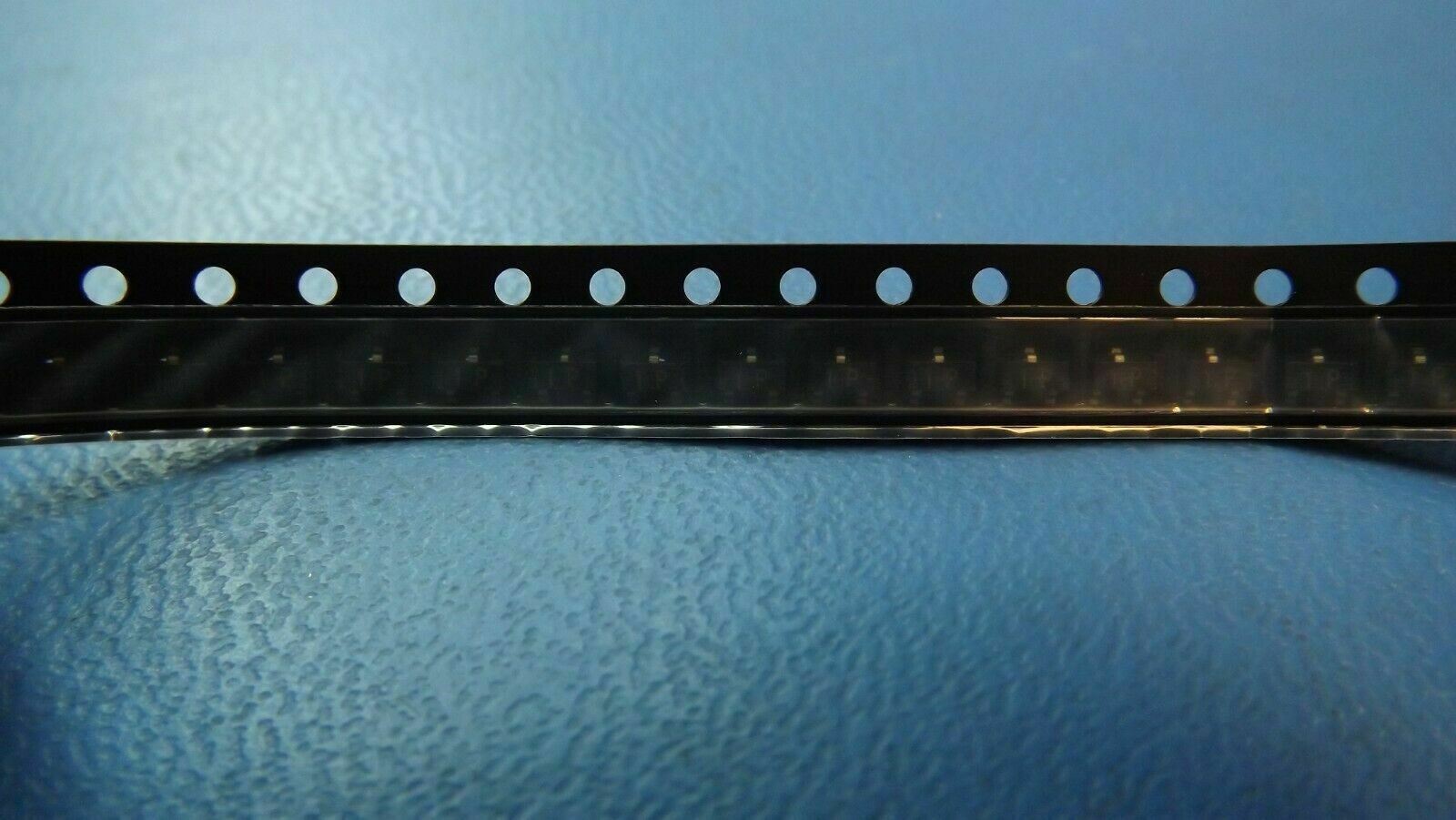

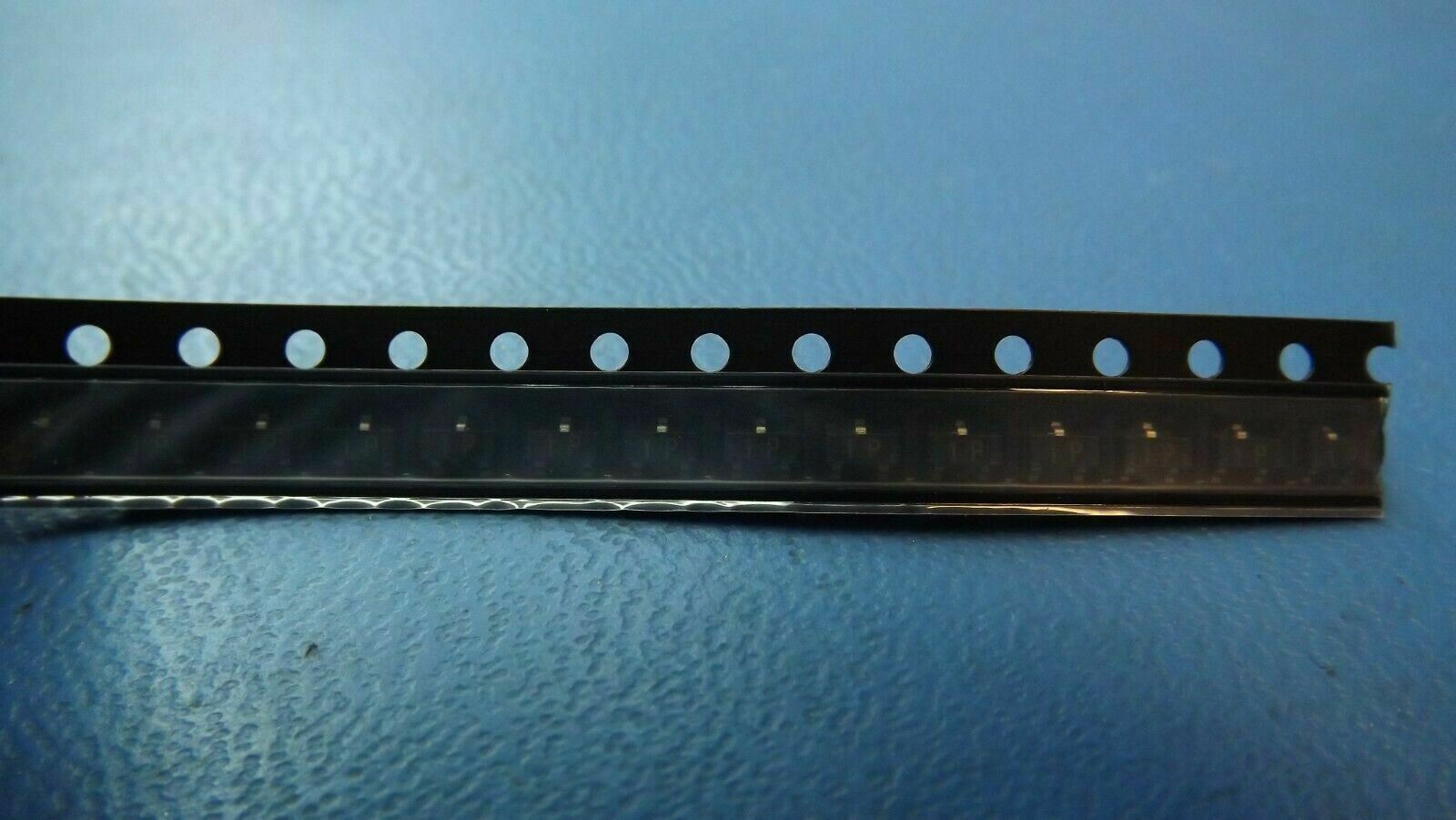

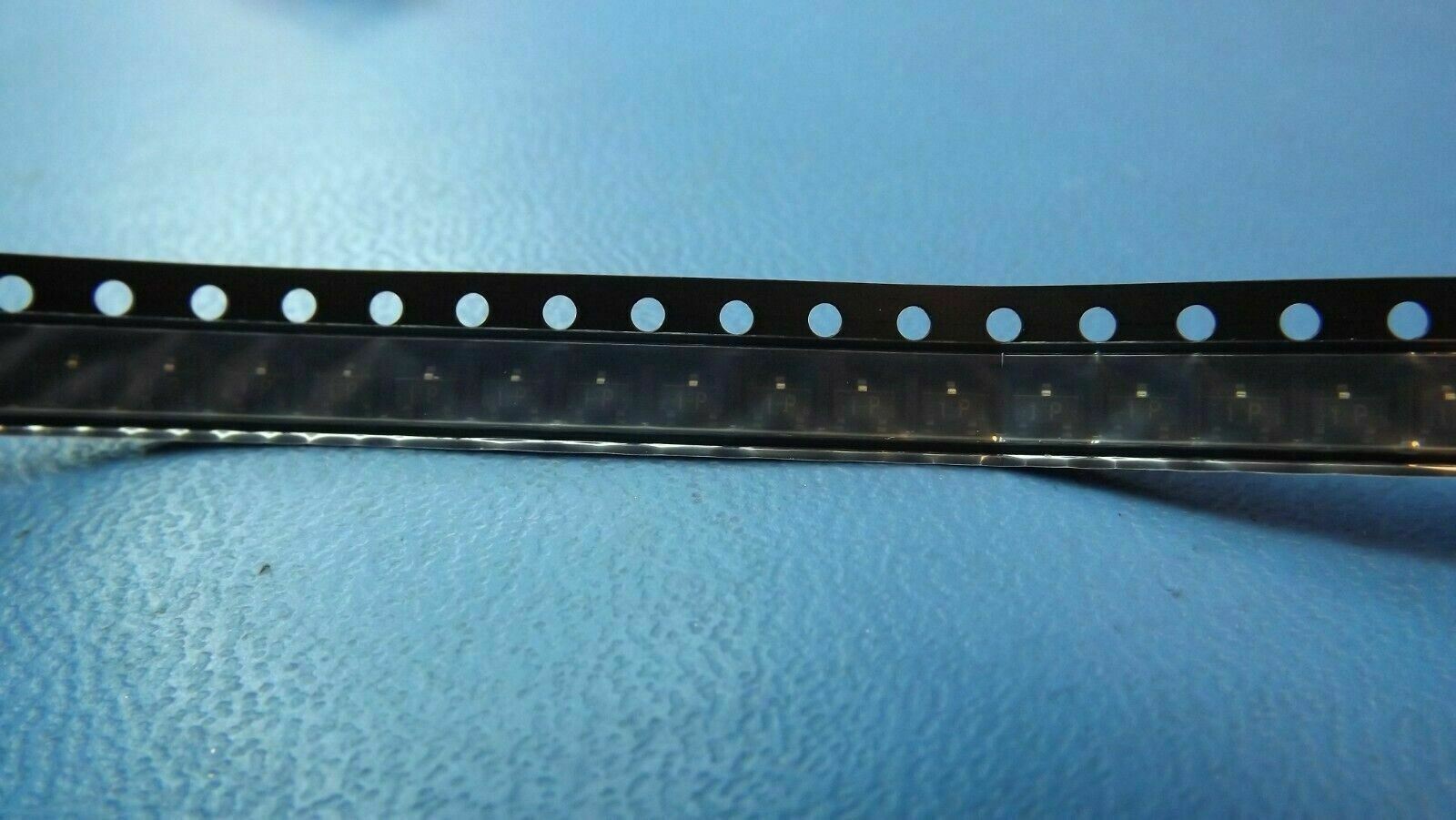

THIS LISTING IS FOR (25PCS) OF MMBT2222A-TP BY MCC
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, PLASTIC PACKAGE-3 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Collector Current-Max (IC) | 0.6 A |
| Collector-emitter Voltage-Max | 40.0 V |
| Configuration | SINGLE |
| DC Current Gain-Min (hFE) | 40.0 |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | NPN |
| Power Dissipation-Max (Abs) | 0.35 W |
| Qualification Status | Not Qualified |
| Sub Category | Other Transistors |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Transistor Application | AMPLIFIER |
| Transistor Element Material | SILICON |
| Transition Frequency-Nom (fT) | 300.0 MHz |
| Turn-off Time-Max (toff) | 285.0 ns |
| Turn-on Time-Max (ton) | 35.0 ns |
