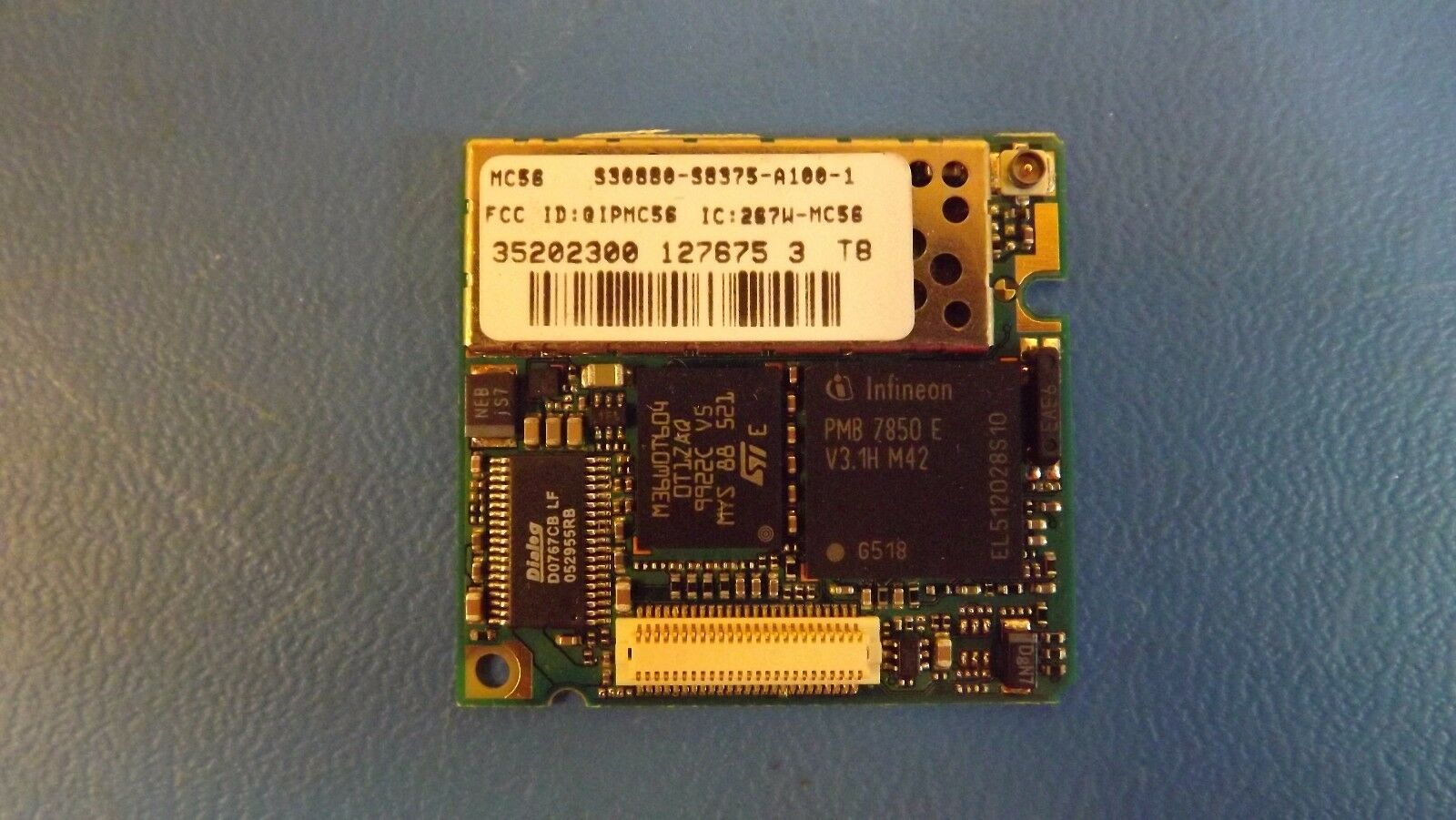

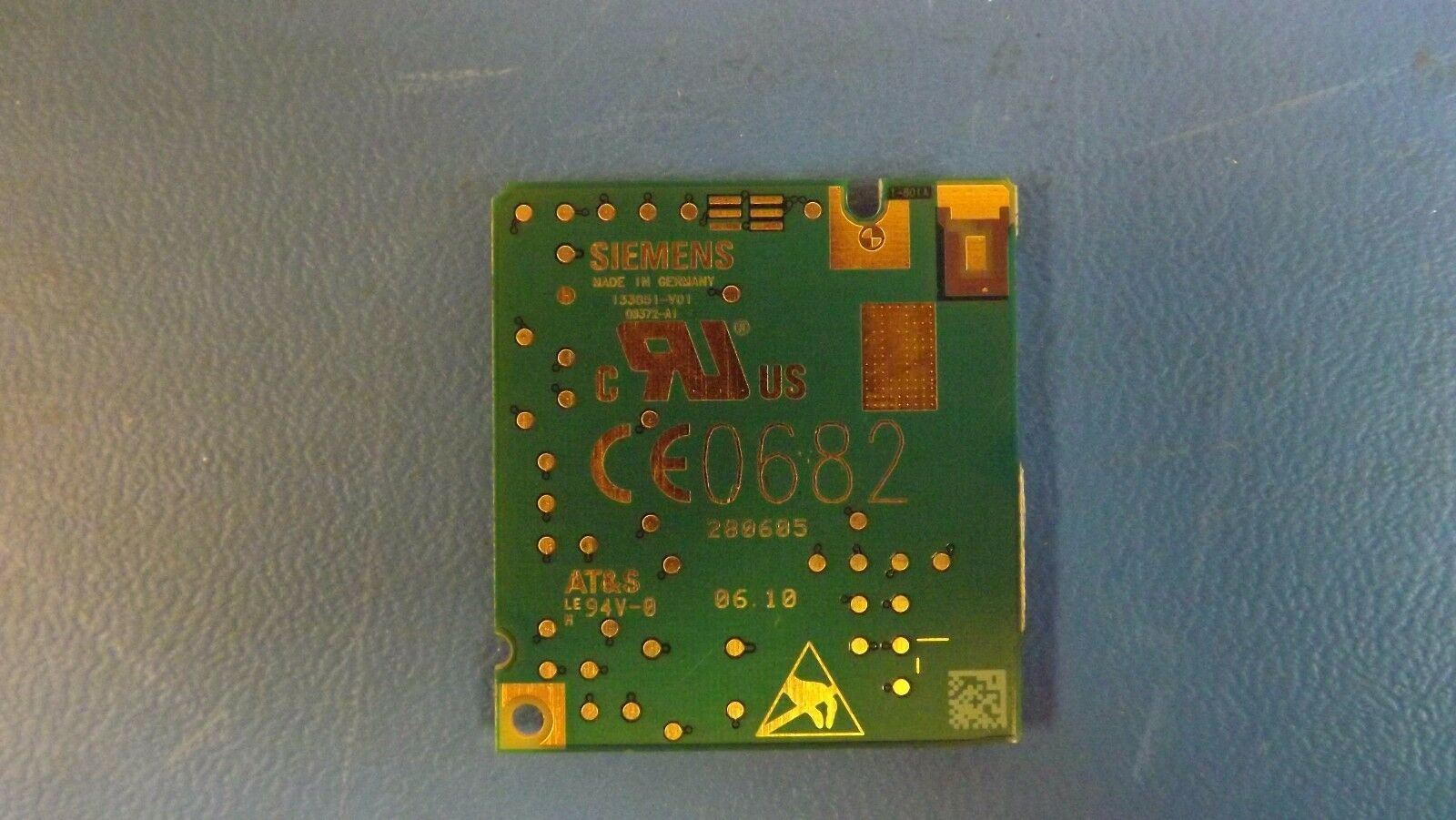

267W-MC56 MC56 Siemens Cellular Engine
Tax included.

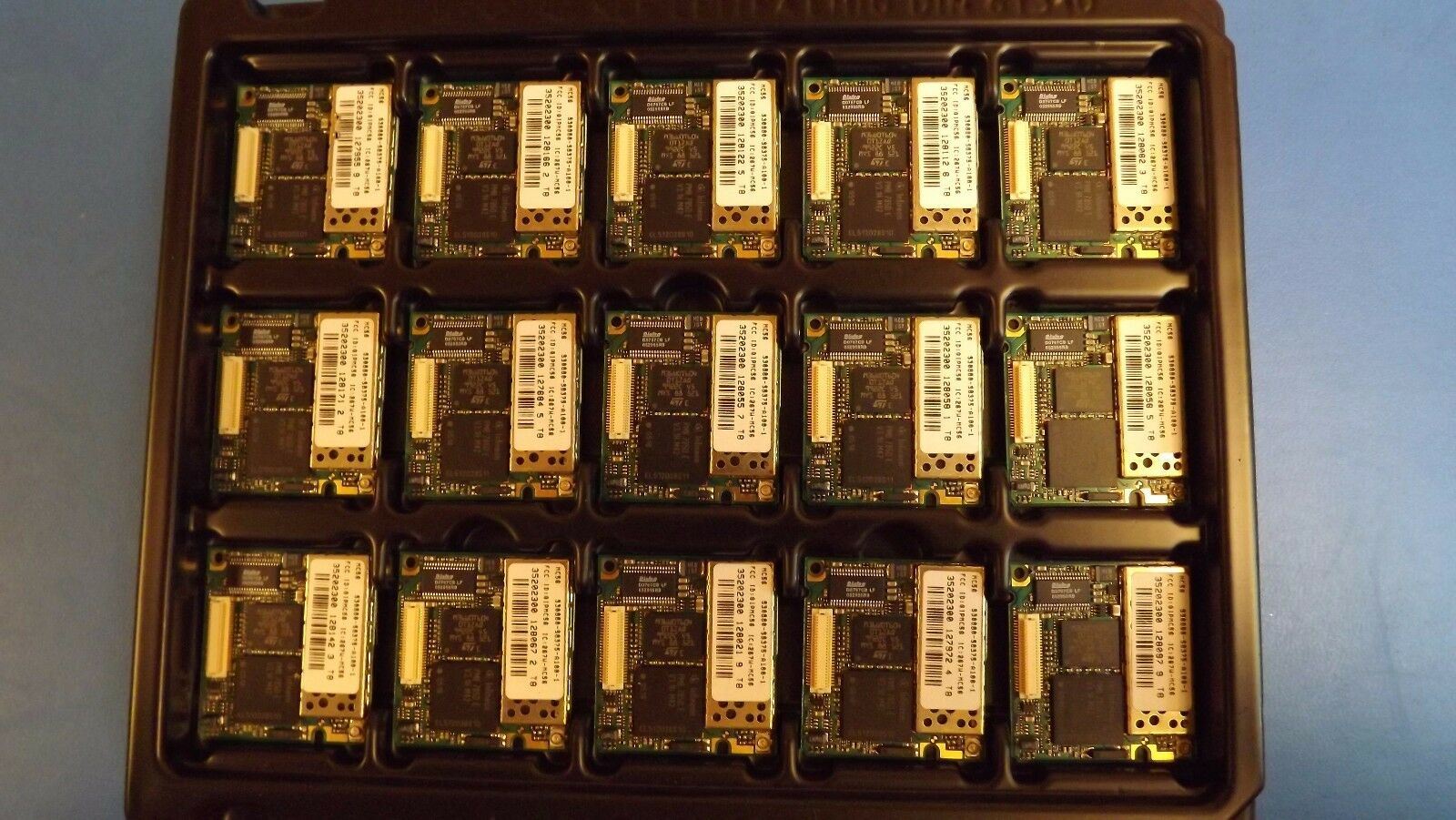

THIS LISTING IS FOR (1PC) OF 267W-MC56 BY SIEMENS
IC 267W-MC56 by SIEMENS AG for --
IC ID: 267W-MC56 / 267WMC56
Model: MC56
Company Number: 267W
Company Name: SIEMENS AG
Certification Number: 267W-MC56
Approval Date: 2004-02-10
Type of Radio Equipment: Cellular Mobile GSM (824-849 MHz) PCS Mobile (1850-1910 MHz) Receiver
Equipment Type: Radio Equipment (RE)
Certified By: Cetecom Ict Services Gmbh
Model: MC56
Spec. Iss. From
Freq. To
Freq. Emission
Designation Min.
Power Max.
Power Field
Strength Dis.
(m)
RSS132 0.0 824 M 849 M 300KG7W 302 mW 302 mW
RSS133 0.0 1.85 G 1.91 G 300KGXW 550 mW 550 mW
Note:The above model table is generated based on information received from Certification Bodies, Manufacturers or Suppliers at time of certification.
Manufactured By: SIEMENS AG
Equipment Description: --
Equipment Class: Cellular Mobile GSM (824-849 MHz) Receiver PCS Mobile (1850-1910 MHz)
Hardware Version Number: MC56
Product Model Number: --
Hardware Model Number: --
Firmware Version Number: --
Approval Agent:
Certified On: 2004-02-10
Certified By:
Cetecom Ict Services Gmbh
Wireless Lab: CETECOM ICT SERVICES GmbH
3463A
Wireless Test Site: --
Spicific Absorbsion Test Lab: --
SAR Test Results: --
Frequency and Wireless Emission Stats
Rule Specificaiton Issue No. Frequency Range Emission Designator Power Range Field Strength Distance
RSS132 -- 824.0 MHz - 849.0 MHz G7W-- up to 302.0 mW -- --
RSS133 -- 1850.0 MHz - 1910.0 MHz GXW-- up to 550.0 mW -- --
RSS133 -- 1850.0 MHz - 1910.0 MHz 300KGXW-- up to 550.0 mW -- --
An IC ID is the product ID assigned by Industry Canada to identify wireless products in the Canadian market. IC typically assigns businesses 3 to 5 character codes to identify the business that created the product. For example, the business code for IC 267W-MC56 is 267W. This particular IC Certification was filed for by SIEMENS AG for implementation in their product model # --. Under "Similar Applications" below, you will find the other application and models this Industry Canada Certification ID has been filed with.
Approved Models for this IC ID:
Application ID IC ID Date Model
100840 267W-MC56 2004-02-10 MC56
Related FCC ID Filings
FCC ID : Device
QIPMC56: Transmitter module for mobile applications
2005-09-26 - Gemalto M2M GmbH
QIPMC56: Transmitter module for mobile applications
2004-10-04 - Gemalto M2M GmbH
QIPMC56: Transmitter module for mobile applications
2004-02-13 - Gemalto M2M GmbH
SEKMC56: Dual-Band GSM Mobile Transmitter Module
2006-07-31 - Worldline s.a./n.v.
