(26 PCS) ETC9344N ST MICRO 4-BIT, MROM, 4MHz, MICROCONTROLLER, PDIP28
Tax included.

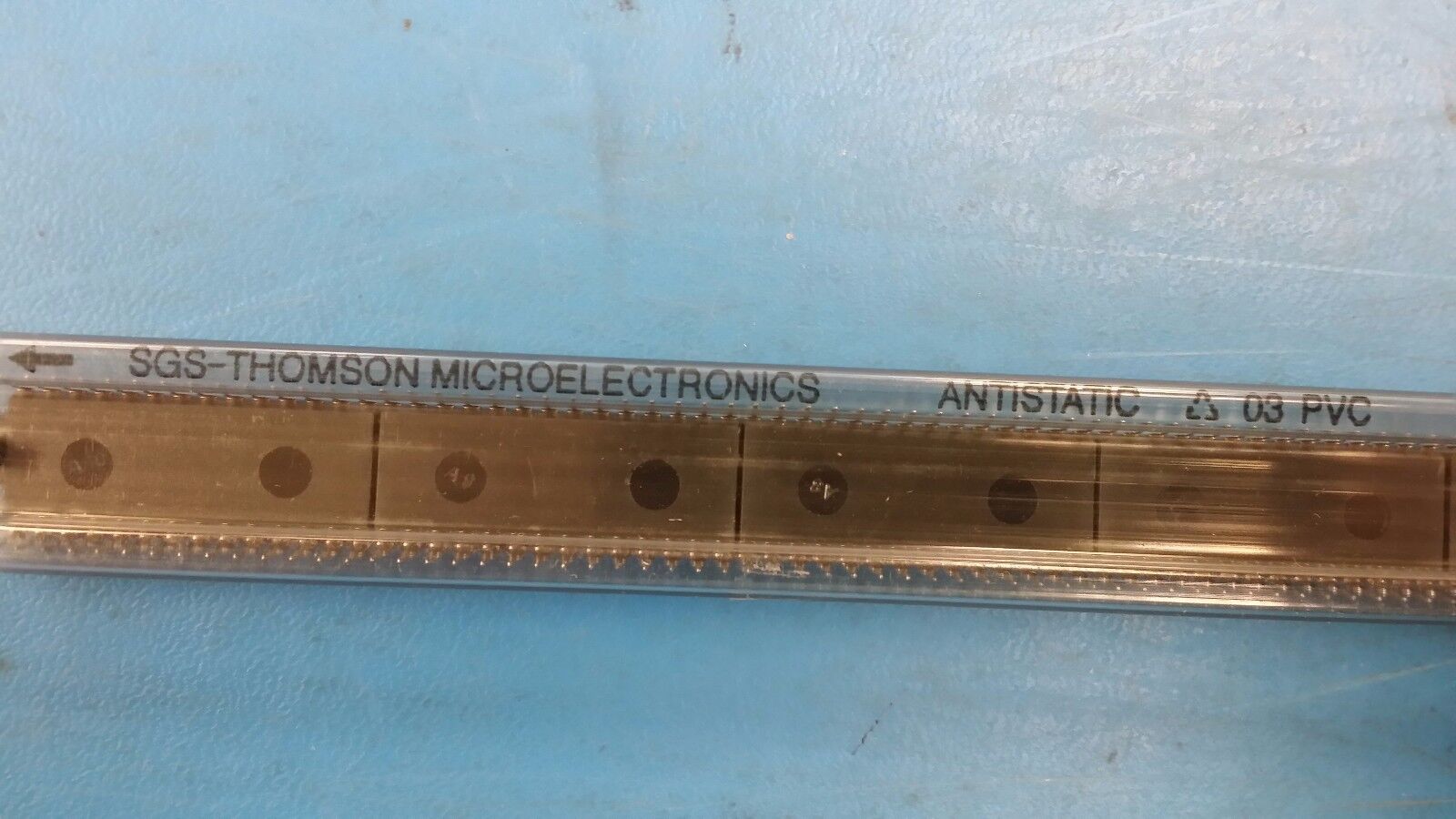

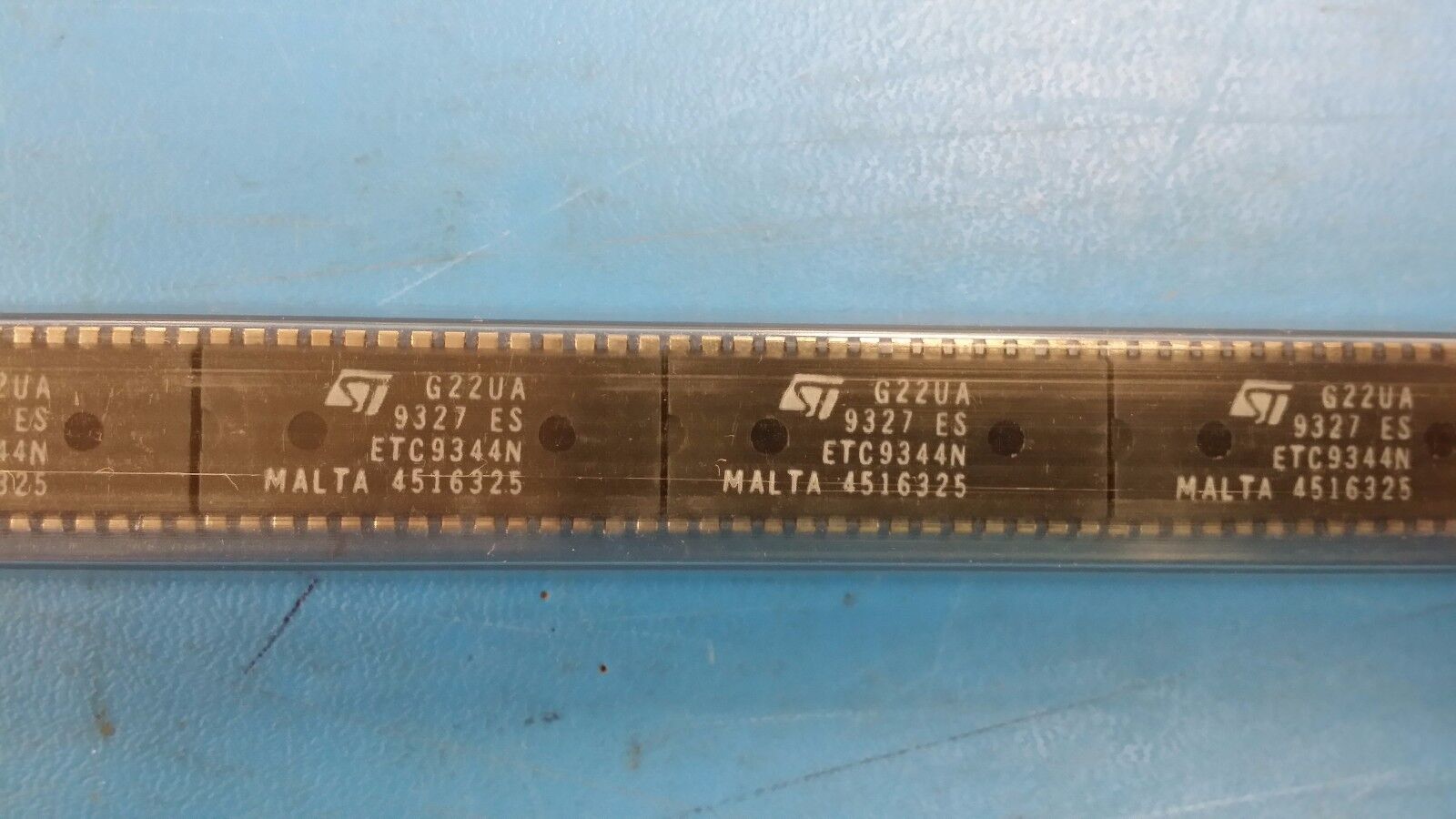

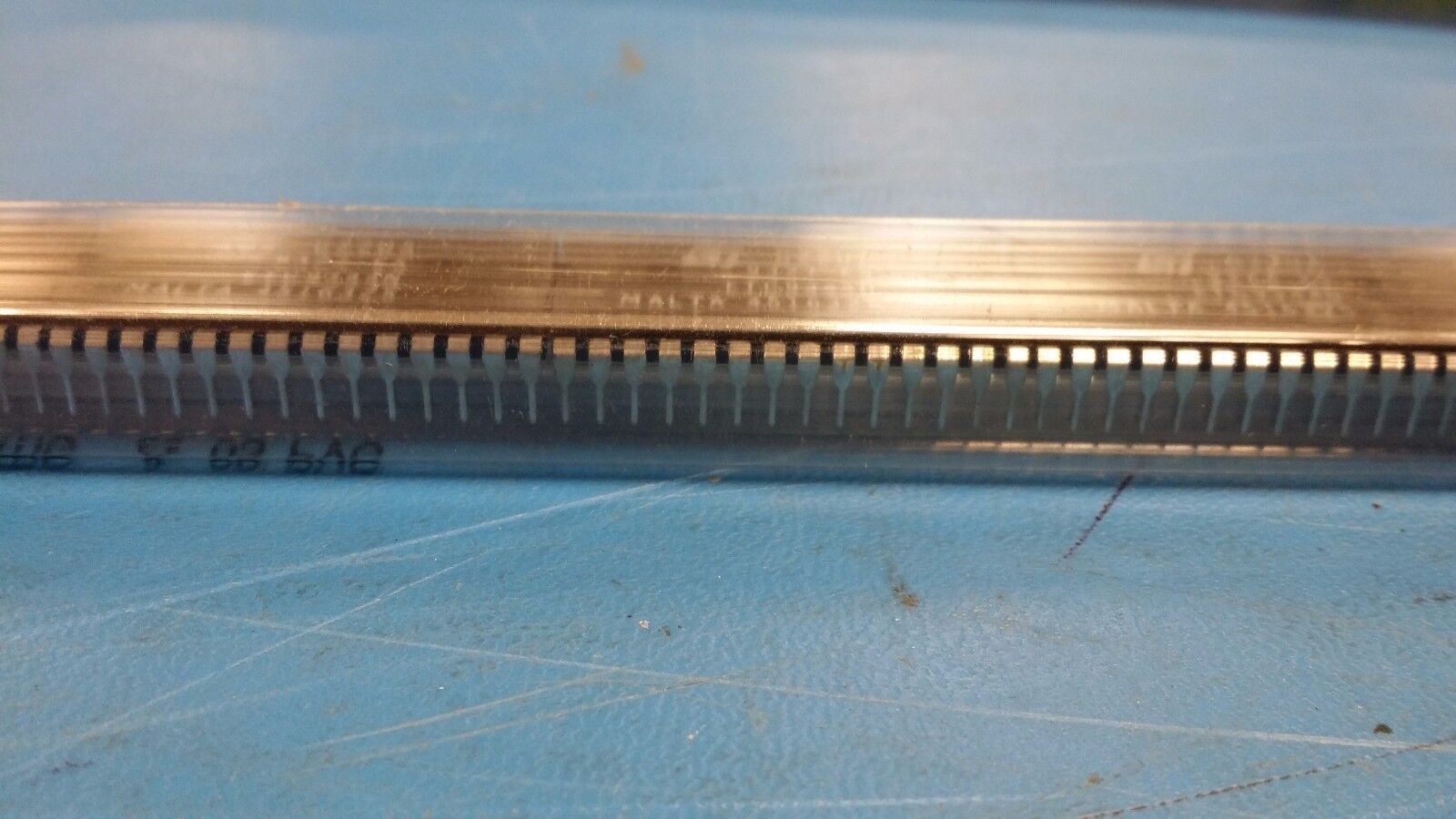

THIS LISTING IS FOR (26 PCS) OF ETC9344N BY ST MICRO
4-BIT, MROM, 4MHz, MICROCONTROLLER, PDIP28
Part #: ETC9344N
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: STMicroelectronics, Inc.
Description: Microcontroller, 4-Bit, MROM, COP400 CPU, 4MHz, CMOS, PDIP28
Mfr Package Description PLASTIC, DIP-28
Status Discontinued
ADC Channels NO
Address Bus Width 0.0
Bit Size 4
Boundary Scan NO
Clock Frequency-Max 4.0 MHz
CPU Family COP400
DAC Channels NO
DMA Channels NO
External Data Bus Width 0.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDIP-T28
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 1.0
Number of I/O Lines 22.0
Number of Serial I/Os 1.0
Number of Terminals 28
Number of Timers 1.0
On Chip Data RAM Width 4
On Chip Program ROM Width 8.0
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 3/5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 64.0
RAM (words) 128
ROM Programmability MROM
ROM (words) 2048
Speed 4.0 MHz
Sub Category Microcontrollers
Supply Current-Max 3.6 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 5.3 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
