| EU RoHS |
Compliant with Exemption
|
| ECCN (US) |
EAR99 |
| Part Status |
Active |
| HTS |
8541.10.00.80 |
| Configuration |
Single |
| Direction Type |
Bi-Directional |
| Number of Elements per Chip |
1 |
| Minimum Breakdown Voltage (V) |
7.78 |
| Maximum Clamping Voltage (V) |
12 |
| Maximum Reverse Stand-Off Voltage (V) |
7 |
| Peak Forward Surge Current (A) |
60 |
| Maximum Peak Pulse Current (A) |
33.3 |
| Maximum Reverse Leakage Current (uA) |
400 |
| Test Current (mA) |
10 |
| Peak Pulse Power Dissipation (W) |
400 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
150 |
| Operating Junction Temperature (°C) |
-65 to 150 |

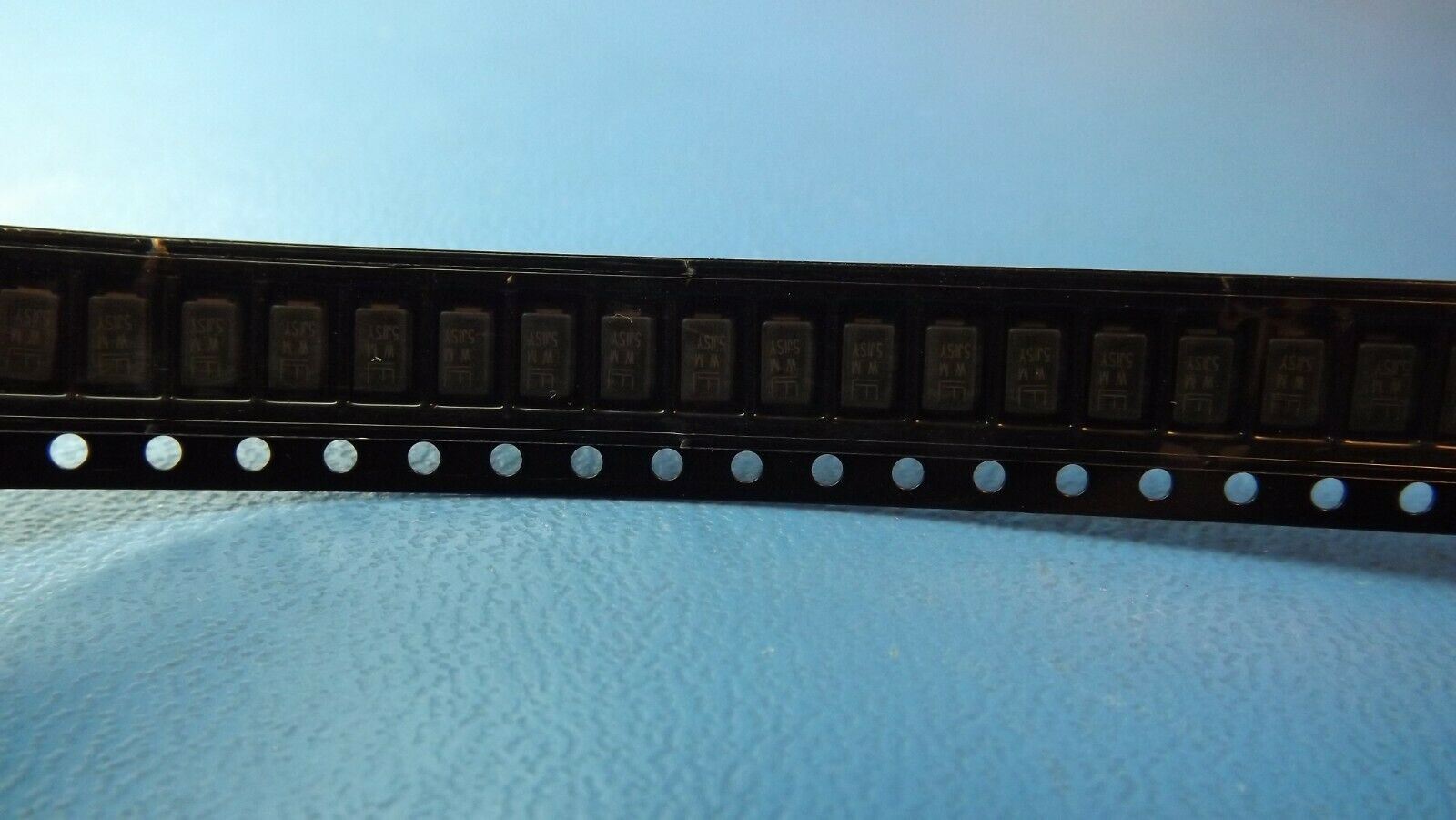

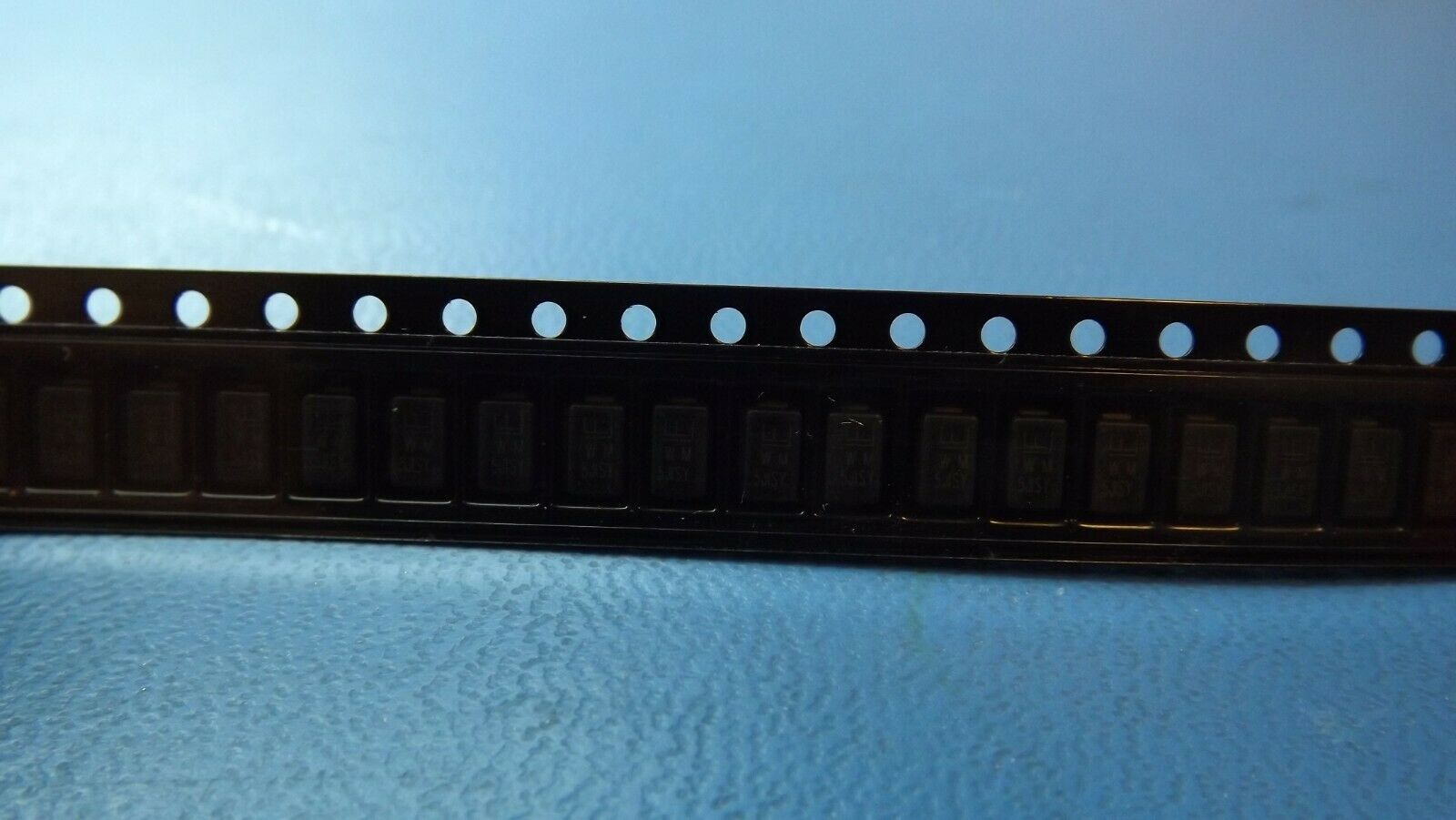

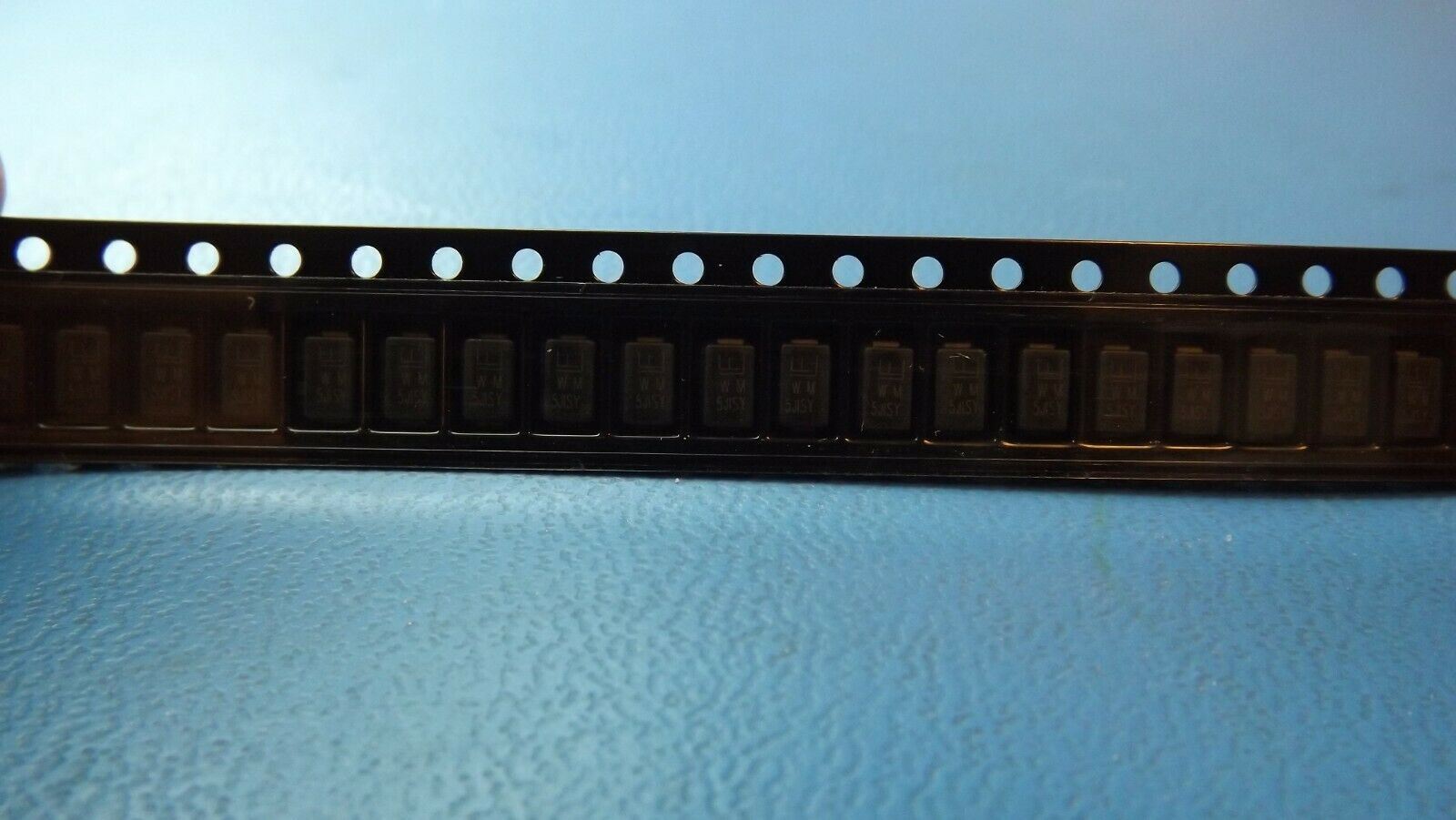

| Packaging |
Tape and Reel |
| Supplier Package |
SMA |
| Standard Package Name |
DO-214-AC |
| Pin Count |
2 |
| Mounting |
Surface Mount |
| Package Height |
2.09(Max) |
| Package Length |
4.6(Max) |
| Package Width |
2.79(Max) |
| PCB changed |
2 |
| Lead Shape |
J-Lead |
