(25PCS) SMAJ350A-E LITTELFUSE TVS Diodes 400W 350V 10% Uni-Directional
Tax included.

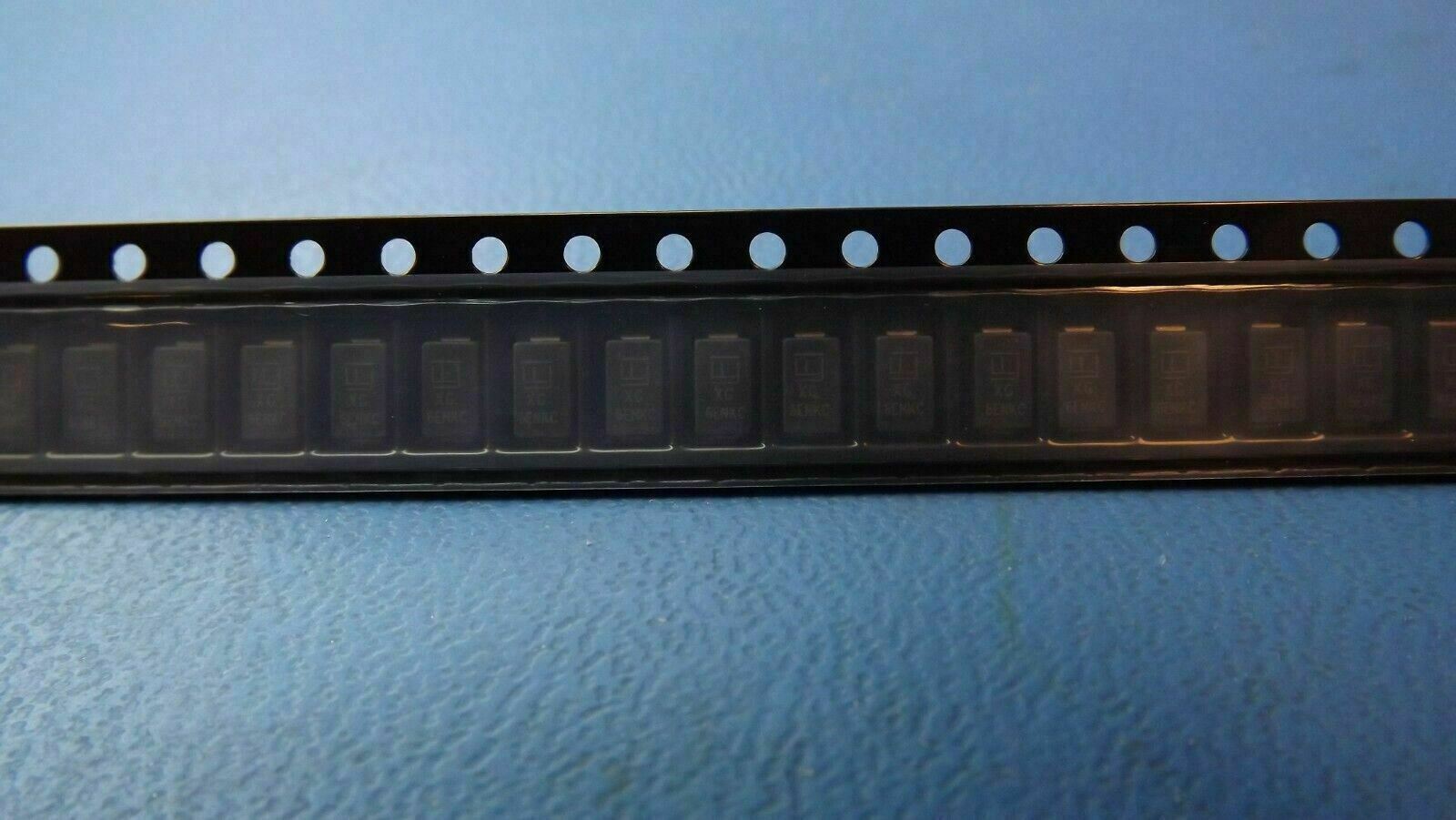

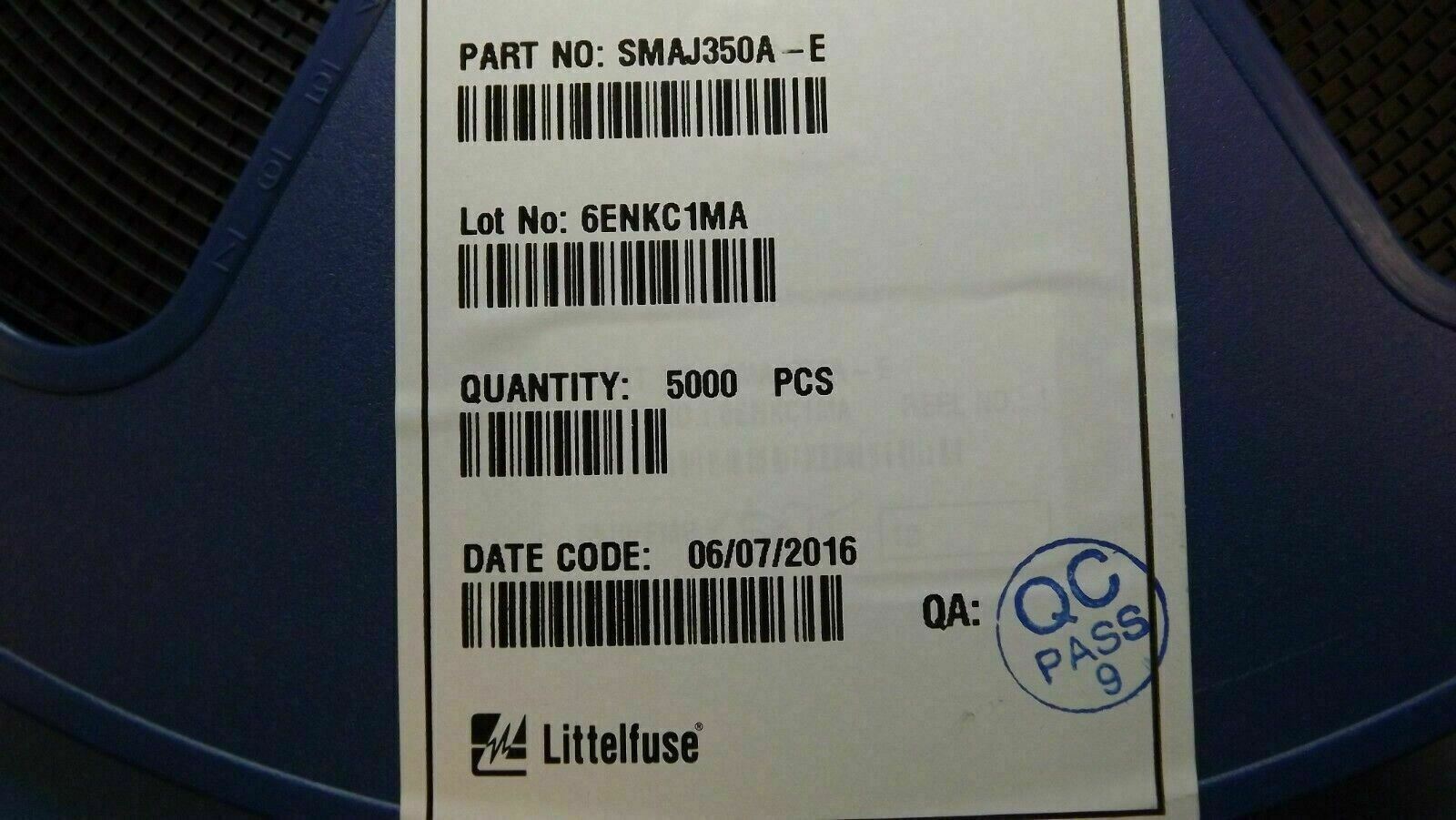

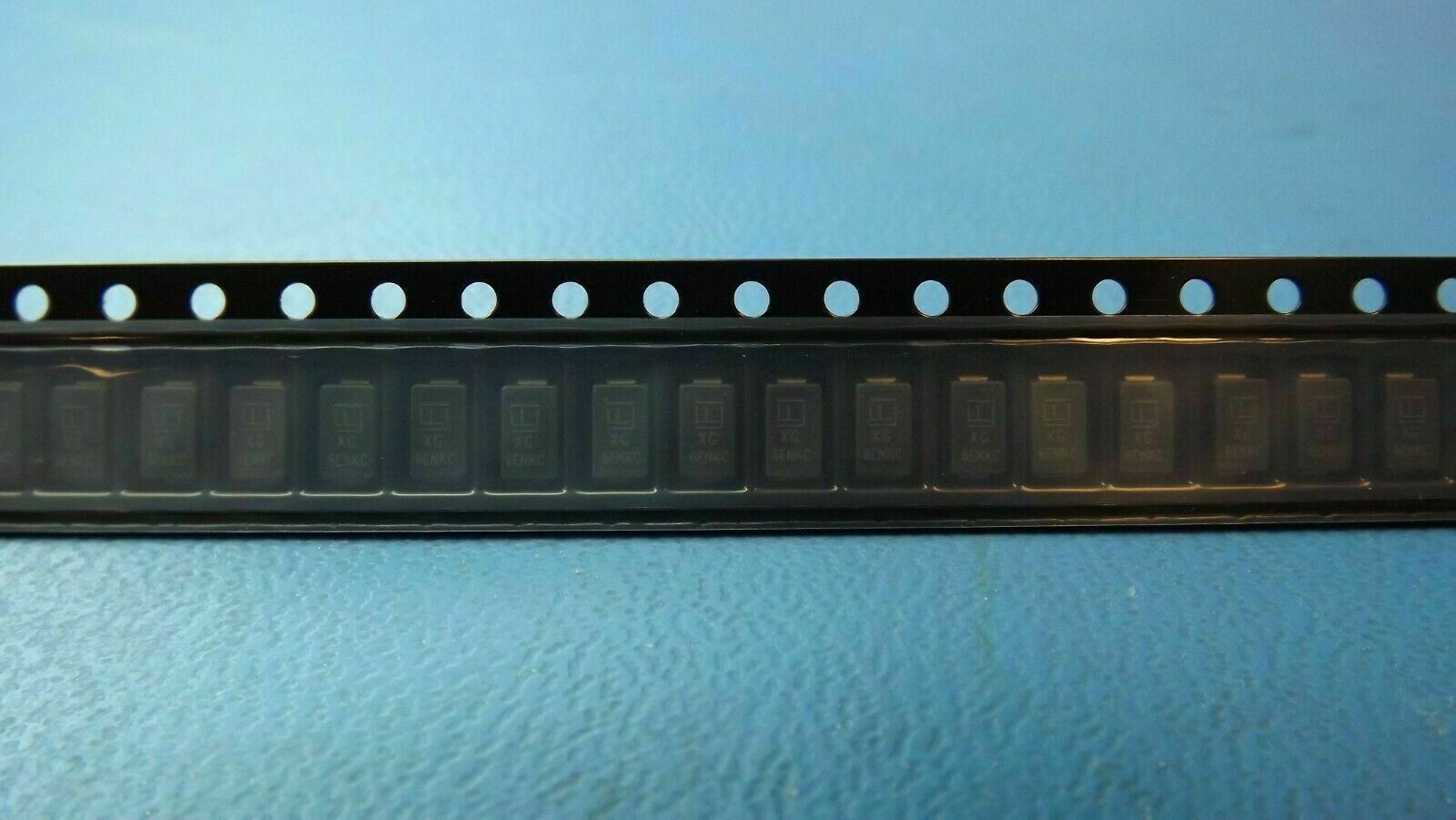

THIS LISTING IS FOR (25PCS) OF SMAJ350A-E BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | SMA, 2 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Min | 391.0 V |
| Breakdown Voltage-Max | 432.0 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-214AC |
| JESD-30 Code | R-PDSO-C2 |
| Non-rep Peak Rev Power Dis-Max | 400.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity | UNIDIRECTIONAL |
| Power Dissipation-Max | 3.3 W |
| Reference Standard | IEC-61000-4-2; IEC-61000-4-4 |
| Rep Pk Reverse Voltage-Max | 350.0 V |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY |
