(25PCS) SMA6L17A LITTELFUSE TVS DIODE 17V 27.6V DO221AC
Tax included.

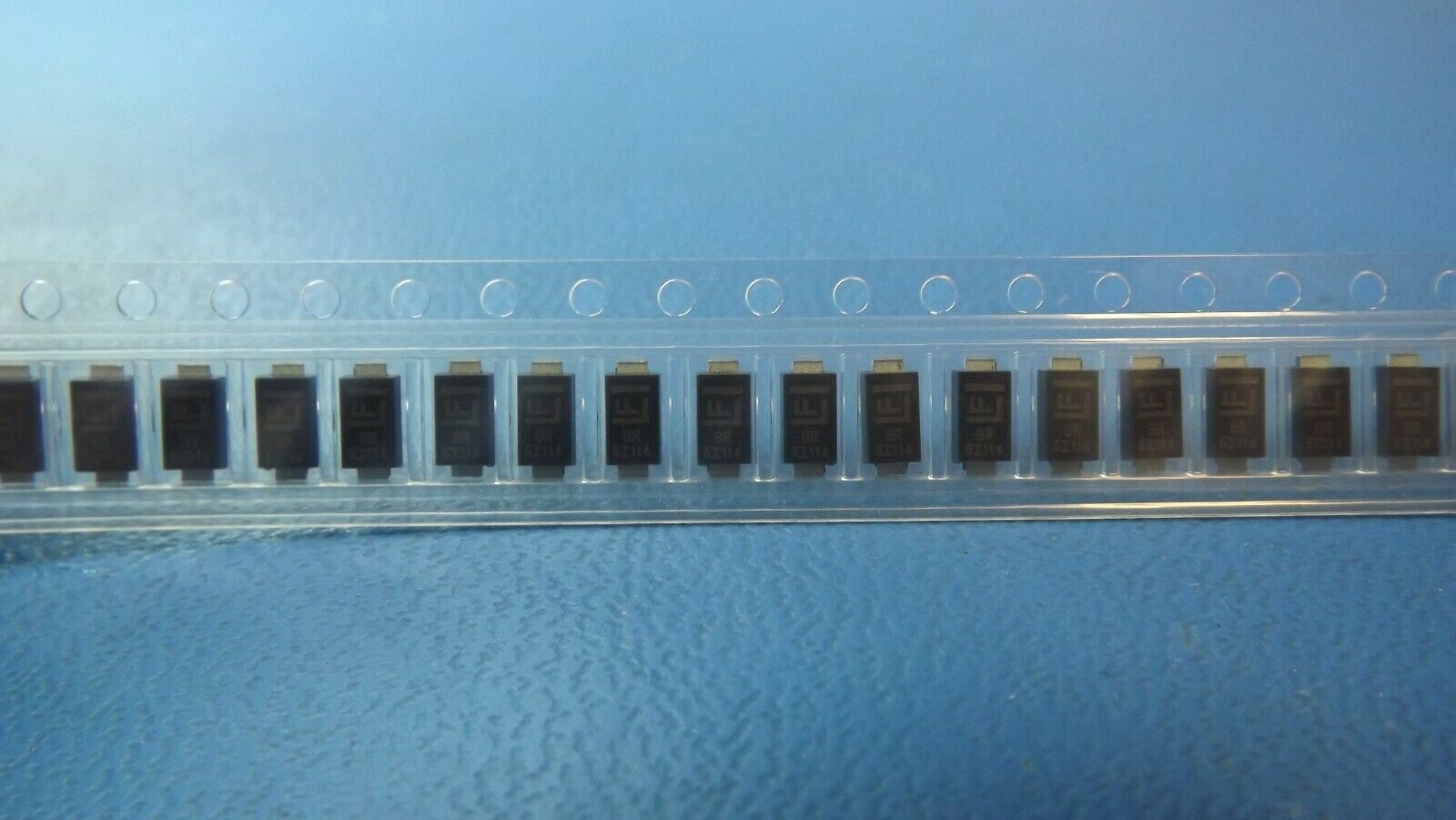

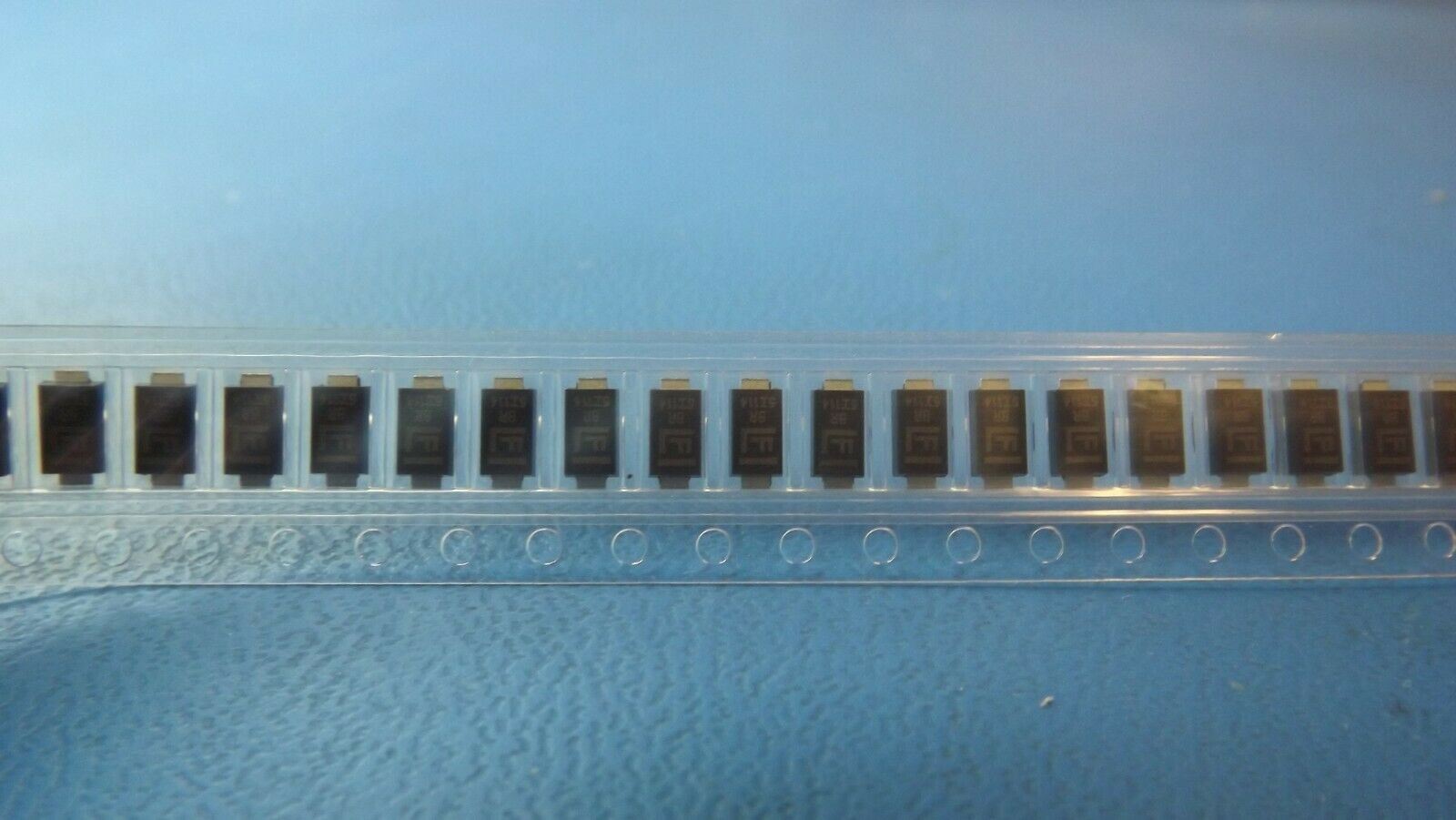

THIS LISTING IS FOR (25PCS) OF SMA6L17A BY LITTELFUSE
Product Type: ESD Suppressors
Vesd - Voltage ESD Contact: 30 kV
Vesd - Voltage ESD Air Gap: 30 kV
Polarity: Unidirectional
Number of Channels: 1 Channel
Termination Style: SMD/SMT
Breakdown Voltage: 20.9 V
Working Voltage: 17 V
Clamping Voltage: 27.6 V
Ipp - Peak Pulse Current: 21.8 A
Package / Case: DO-221AC-2 (SMA)
Pppm - Peak Pulse Power Dissipation: 600 W
Pd - Power Dissipation: 3 W
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 150 C
