(25PCS) PMBZ5242B Zener Diode, 12V, 5%, 0.25W, Silicon, Unidirectional, TO-236AB
(25PCS) PMBZ5242B Zener Diode, 12V, 5%, 0.25W, Silicon, Unidirectional, TO-236AB

(25PCS) PMBZ5242B Zener Diode, 12V, 5%, 0.25W, Silicon, Unidirectional, TO-236AB

Tax included.
Only 110 left!

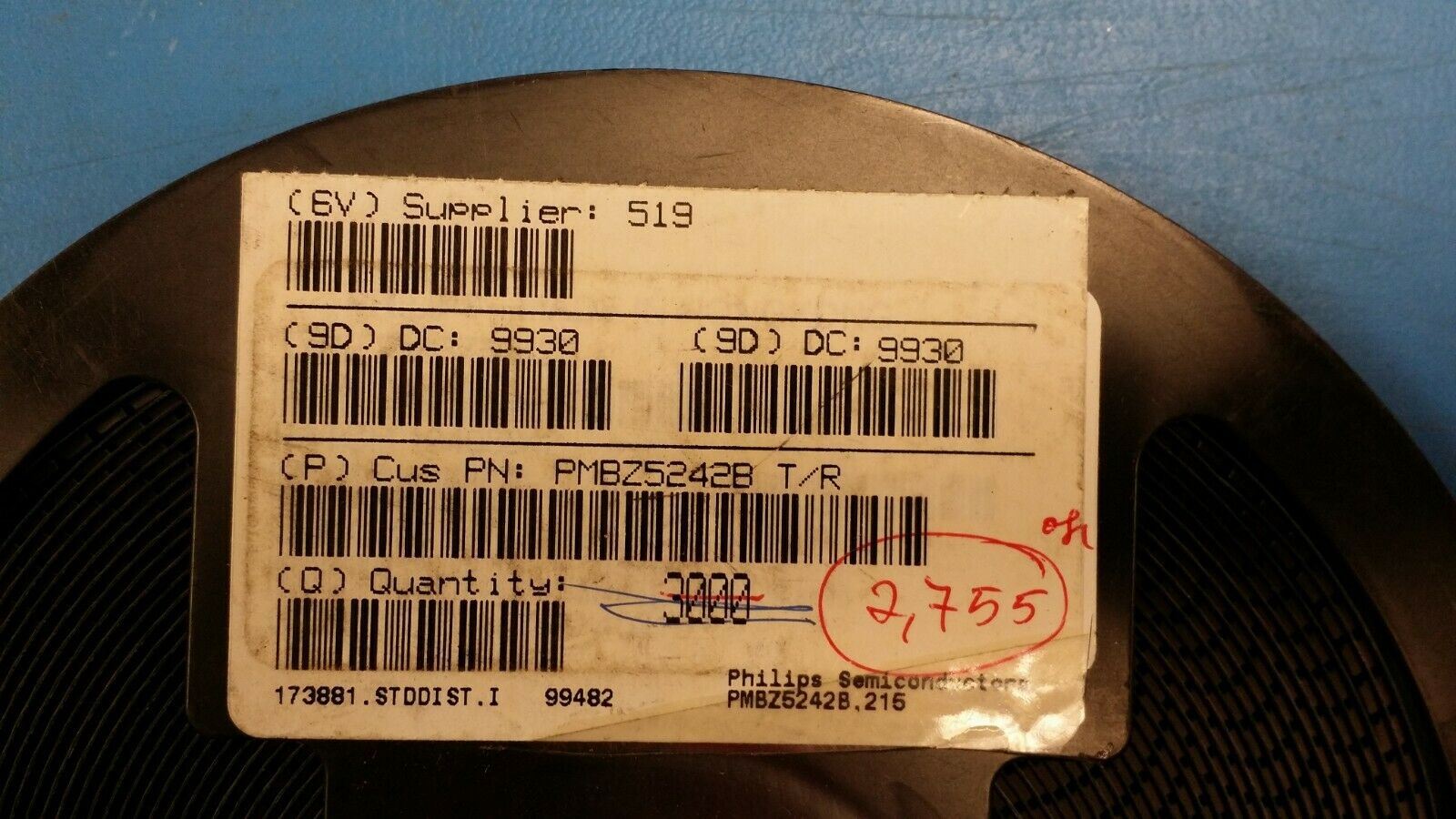

THIS IS FOR 25 PCS OF PMBZ5242B BY PHILIPS
(25PCS) PMBZ5242B Zener Diode, 12V, 5%, 0.25W, Silicon, Unidirectional, TO-236AB

Status Discontinued
Diode Type ZENER DIODE
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code TO-236AB
JESD-30 Code R-PDSO-G3
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.25  W
Qualification Status Not Qualified
Reference Voltage-Nom 12.0  V
Reverse Current-Max 1.0  µA
Sub Category Voltage Reference Diodes
Surface Mount YES
Technology ZENER
Terminal Form GULL WING
Terminal Position DUAL
Voltage Temp Coeff-Max 7.44  mV/Cel
Voltage Tol-Max 5.0  %
Working Test Current 20.0  mA
Additional Feature TEMPERATURE COEFFICIENT IS TYPICAL
