(25PCS) MM74HC08M AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, SOIC14
(25PCS) MM74HC08M AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, SOIC14
(25PCS) MM74HC08M AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, SOIC14
(25PCS) MM74HC08M AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, SOIC14
(25PCS) MM74HC08M AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, SOIC14

(25PCS) MM74HC08M AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, SOIC14

Tax included.
Only 55 left!

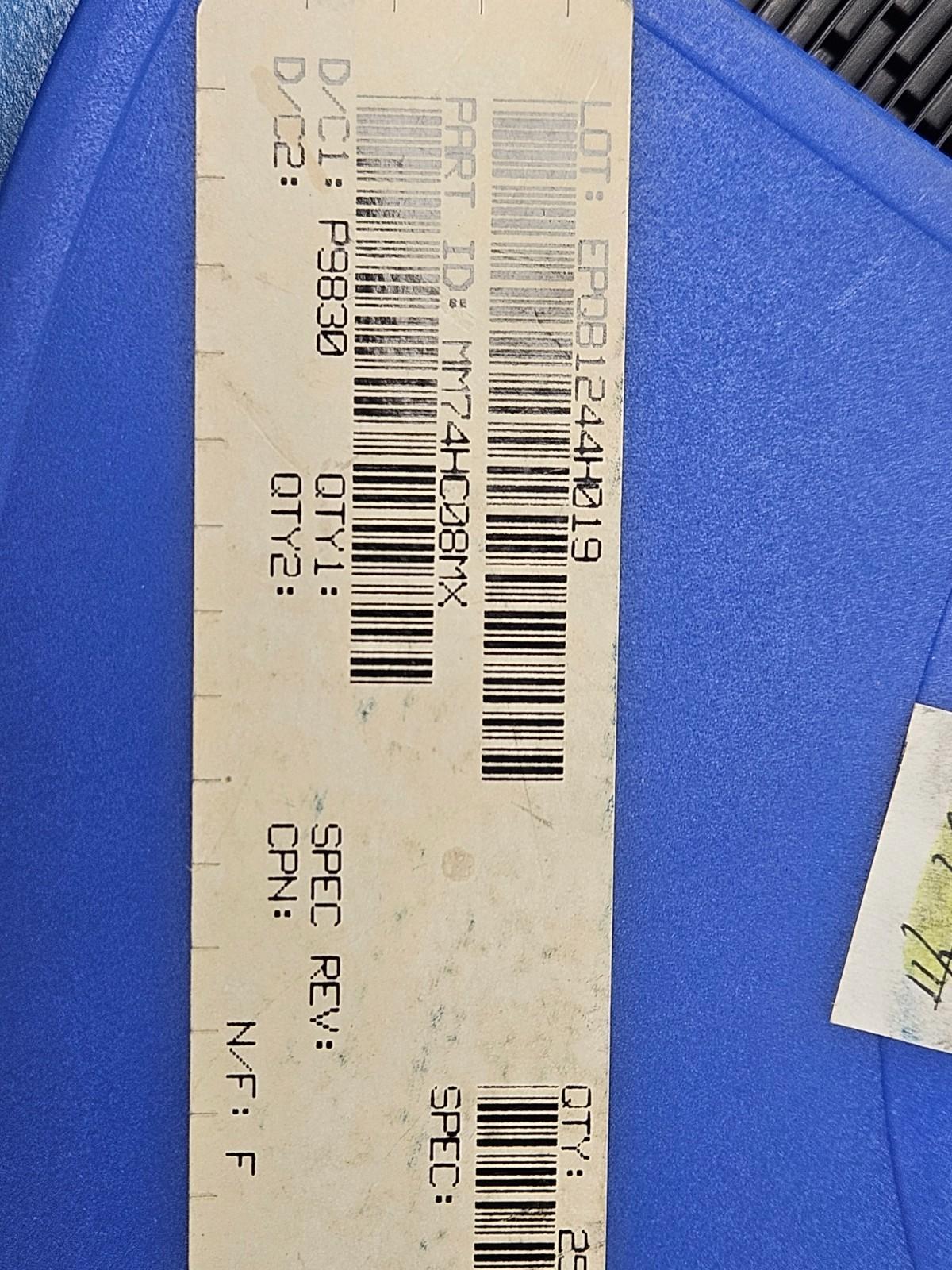

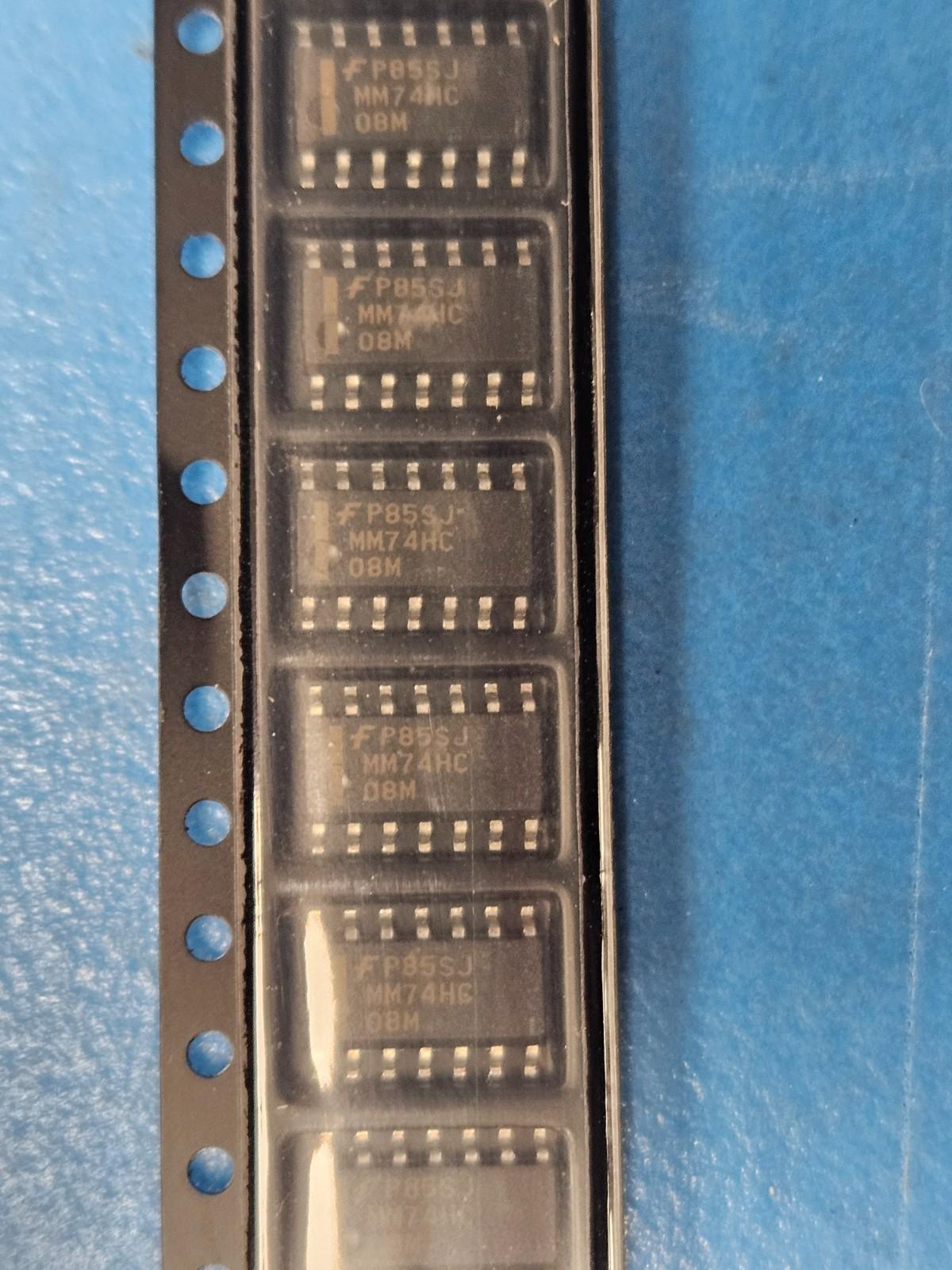

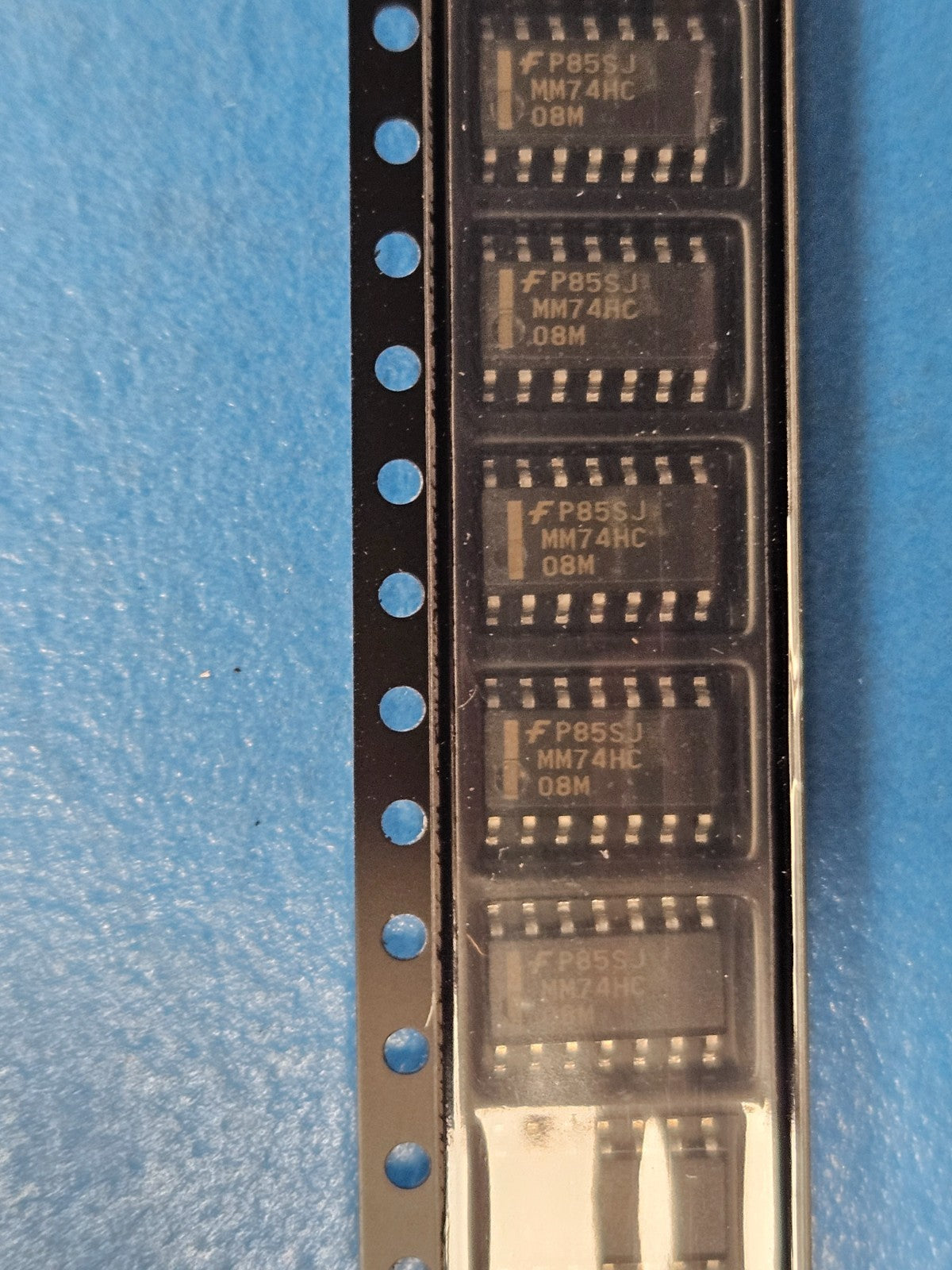

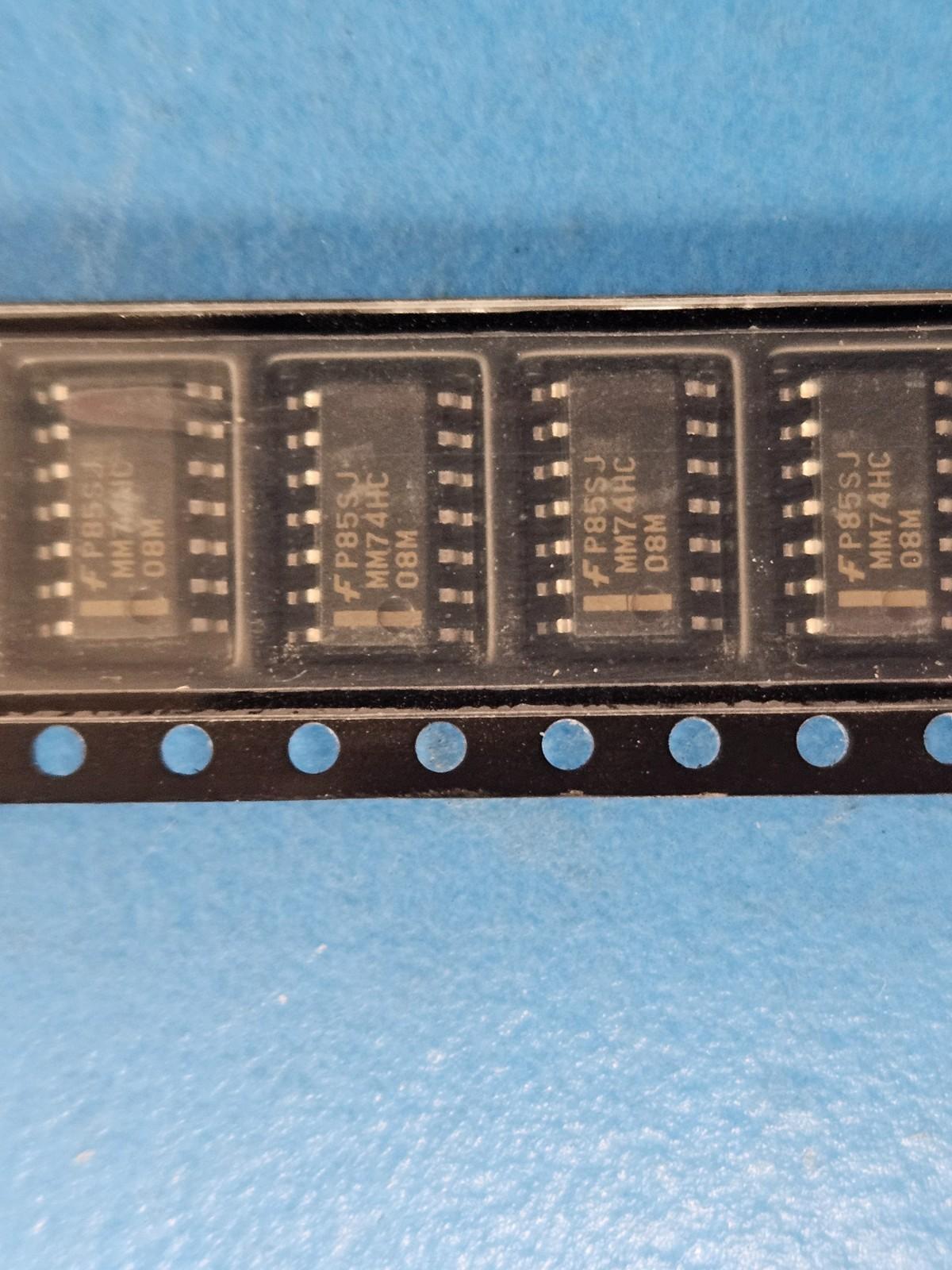

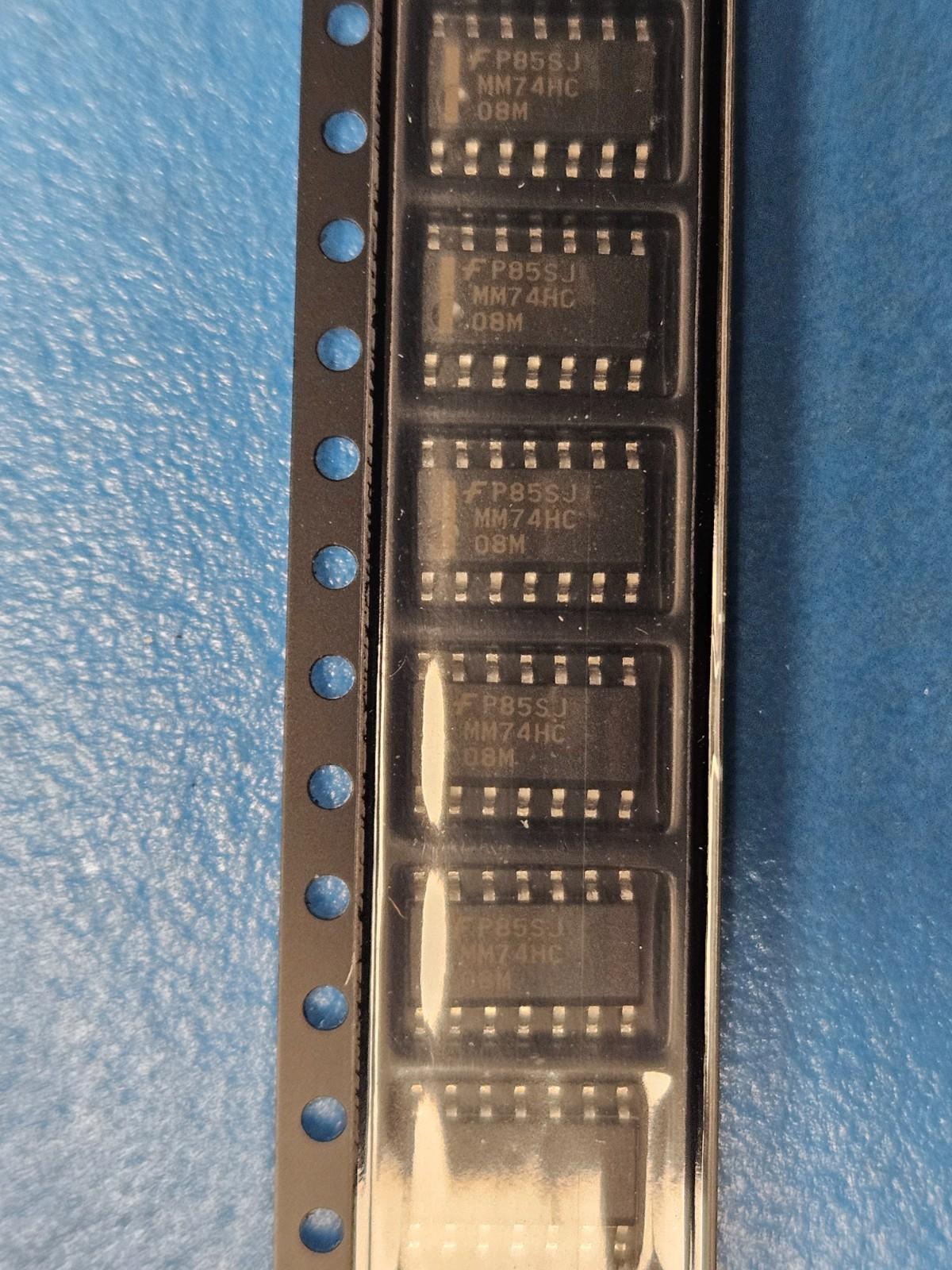

This listing is for (25PCS) of MM74HC08MX by Fairchild Semiconductor

Mfr Package Description 0.150 INCH, MS-012, SOIC-14
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Transferred
Logic IC Type AND GATE
Sub Category Gates
Family HC/UH
JESD-30 Code R-PDSO-G14
JESD-609 Code e3
Load Capacitance (CL) 50.0  pF
Max I(ol) 0.004  Amp
Moisture Sensitivity Level 1
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 85.0  Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Prop. Delay@Nom-Sup 35.0  ns
Propagation Delay (tpd) 121.0  ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.753  mm
Supply Voltage-Nom (Vsup) 4.5
Supply Voltage-Min (Vsup) 2.0  V
Supply Voltage-Max (Vsup) 6.0  V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
