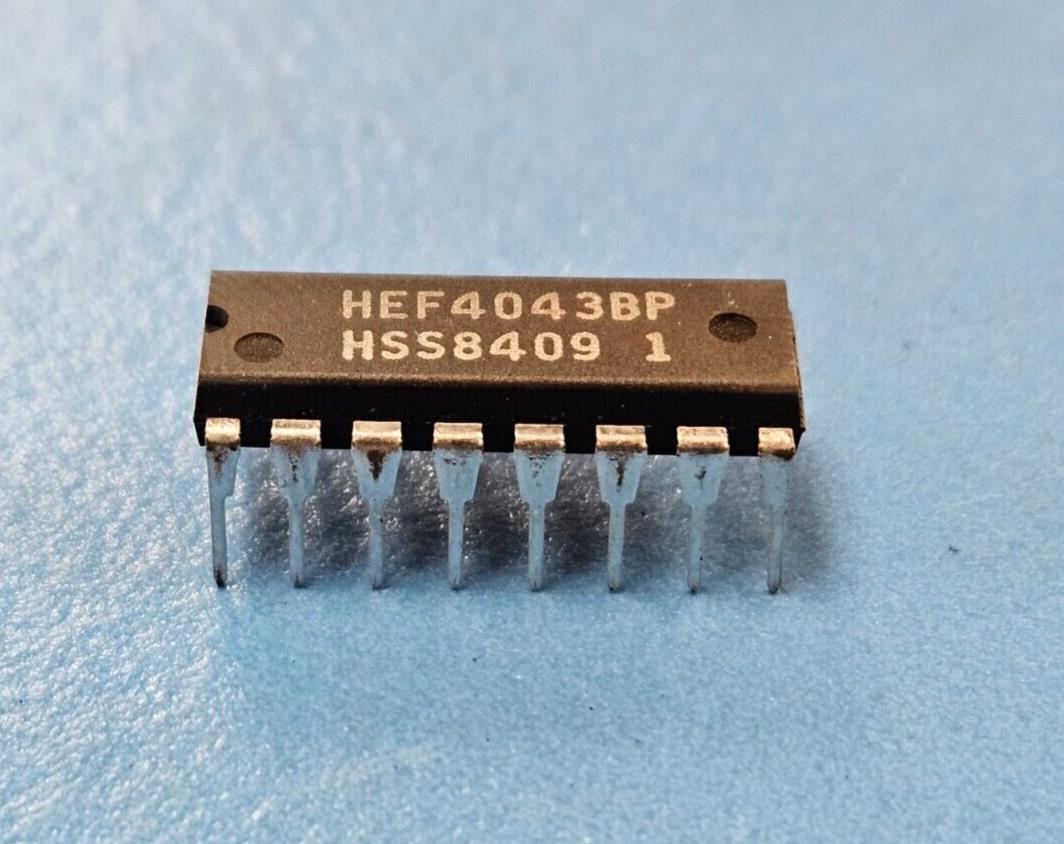

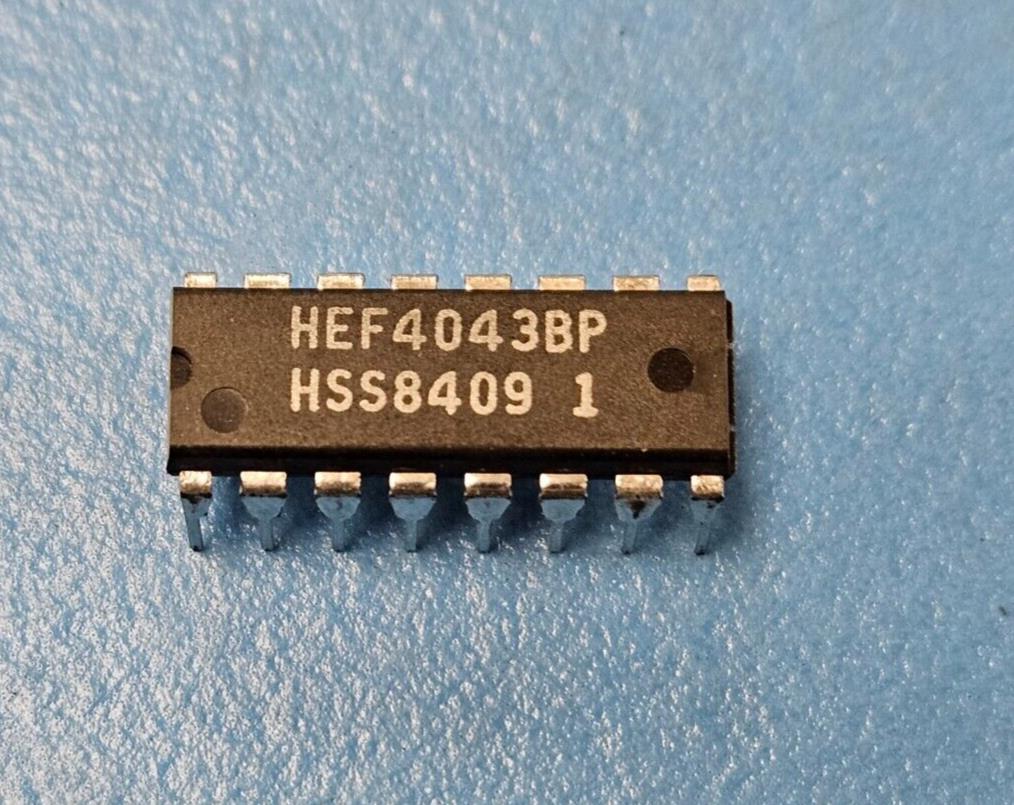

(25PCS) HEF4043BP R-S Latch 1-Func, High Level Triggered, 4-Bit, CMOS, PDIP16
Tax included.
This listing is for (25PCS) of HEF4043BP
Mfr Package Description 0.300 INCH, PLASTIC, SOT38-4, DIP-16
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Discontinued
Logic IC Type R-S LATCH
Sub Category FF/Latches
Family 4000/14000/40000
JESD-30 Code R-PDIP-T16
JESD-609 Code e4
Load Capacitance (CL) 50.0 pF
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Packing Method BULK
Prop. Delay@Nom-Sup 180.0 ns
Propagation Delay (tpd) 180.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.2 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 15.0 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type HIGH LEVEL
Length 19.025 mm
Width 7.62 mm
