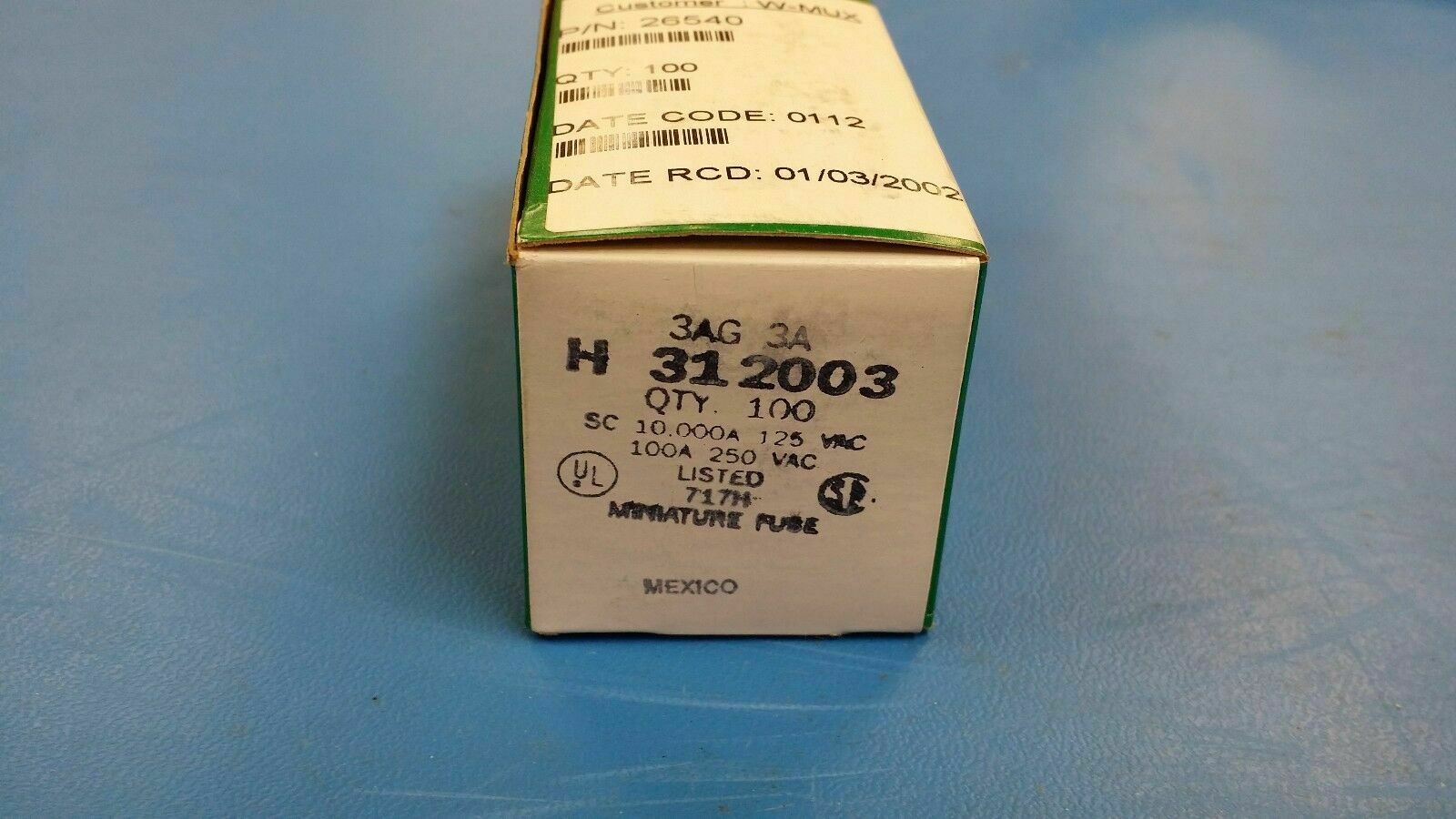

(25PCS) H312003 0312003.H LITTELFUSE FUSE GLASS 3A 250VAC 3AB 3AG
Tax included.
THIS LISTING IS FOR (25PCS) OF H312003/0312003.H BY LITTELFUSE
SPECIFICATIONS
| Status | Active-Unconfirmed |
| Circuit Protection Type | ELECTRIC FUSE |
| Blow Characteristic | FAST |
| Body Height | 31.75 mm |
| Body Length or Diameter | 6.35 mm |
| JESD-609 Code | e3 |
| Joule-integral-Nom | 14 J |
| Manufacturer Series | 312 |
| Mounting Feature | INLINE/HOLDER |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 125 Cel |
| Packing Method | BULK |
| Physical Dimension | 6.35mm x 31.75mm |
| Rated Breaking Capacity | 100 A |
| Rated Current | 3 A |
| Rated Voltage (AC) | 250 V |
| Reference Standard | CE; CSA; KTL; PSE; UL |
| Terminal Finish | TIN |
| Terminal Shape | END CAP |
