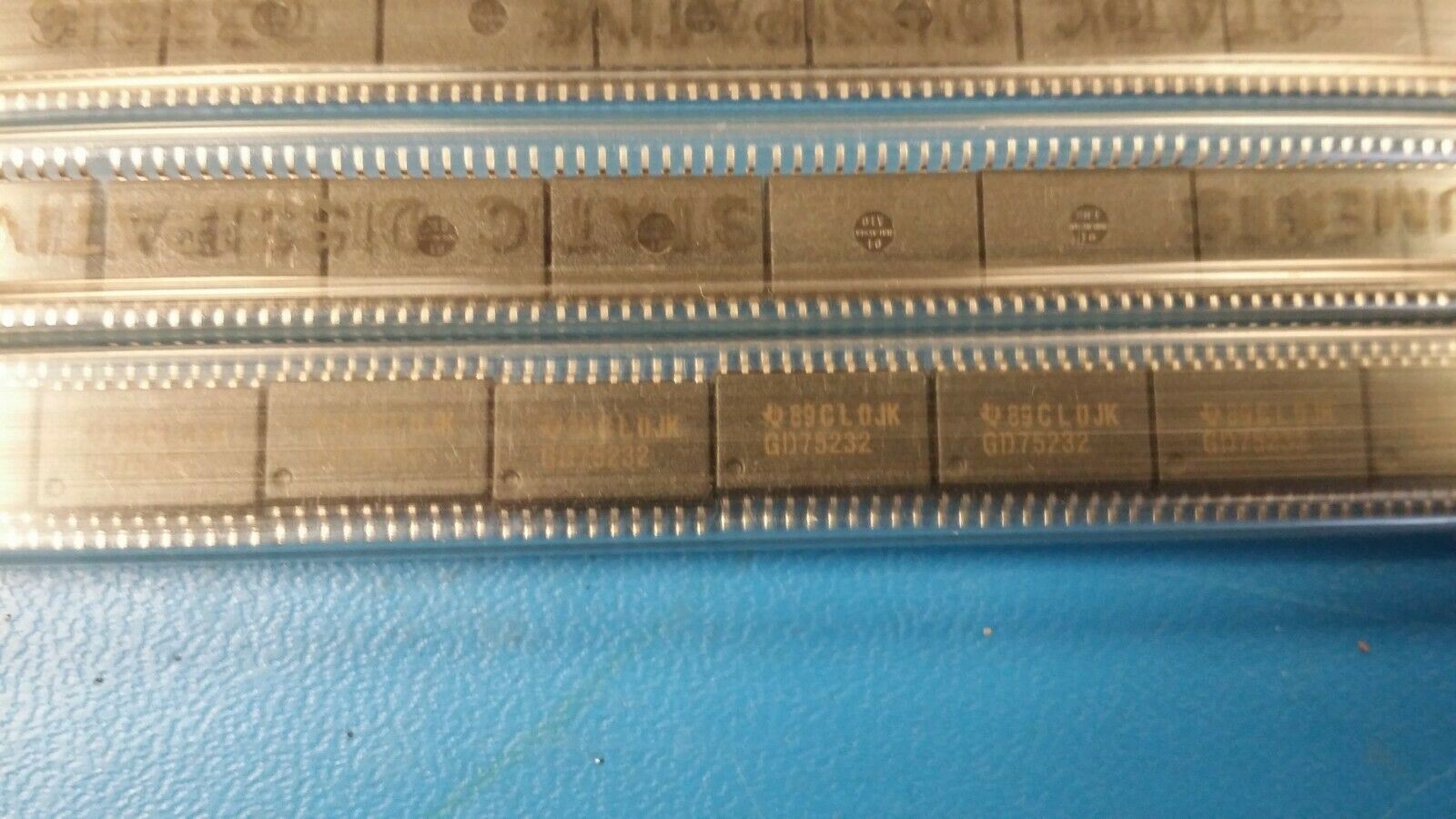

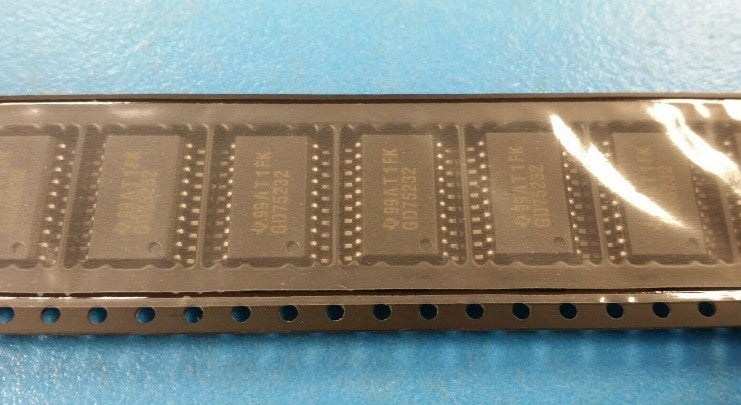

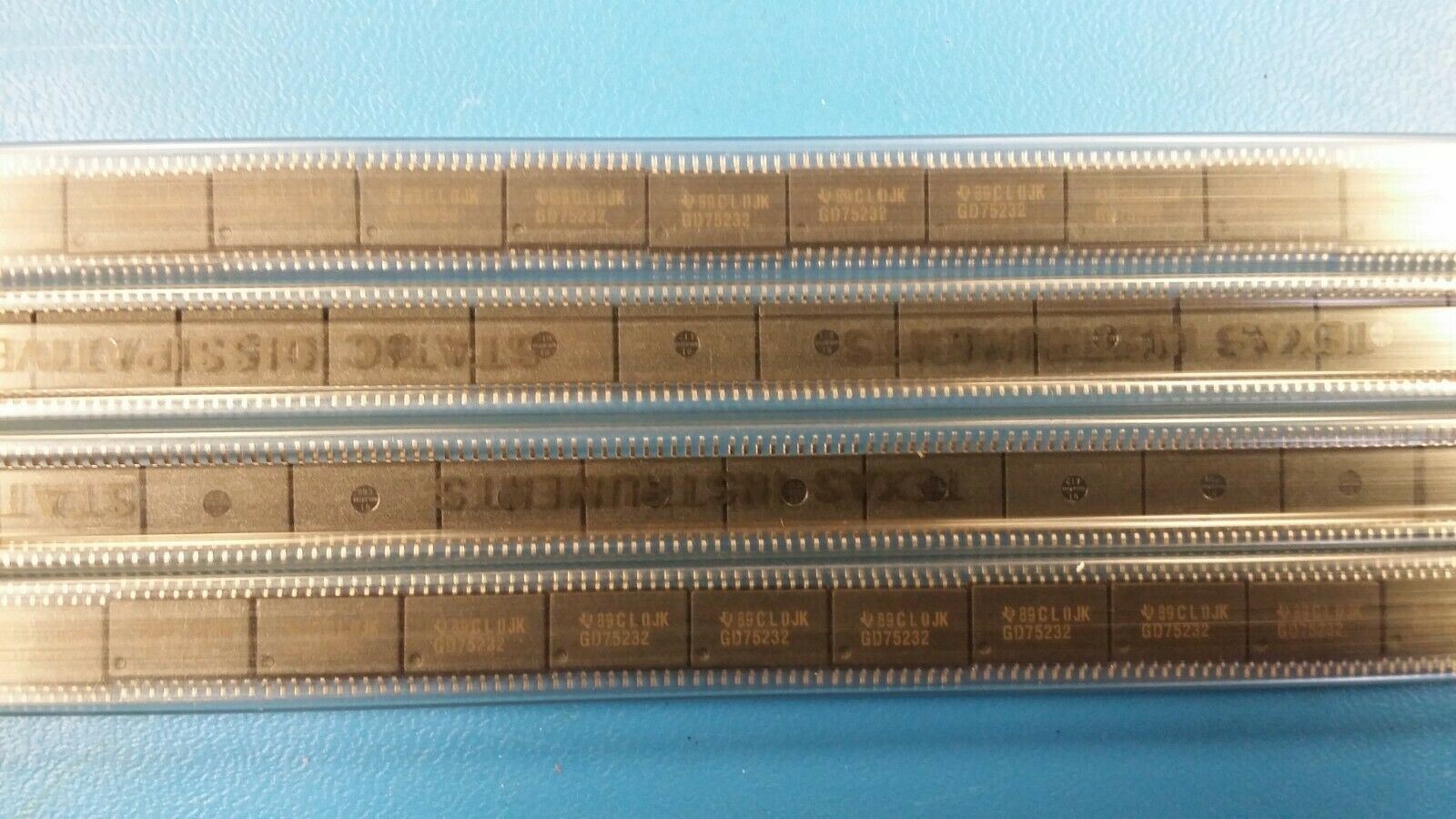

(10pcs) GD75232DW Triple Transmitter Quint Receiver RS-232 20-Pin SOIC

This listing is for (10PCS) of GD75232DW by Texas Instruments

Additional Feature    EASY INTERFACE BETWEEN UART, SERIAL-PORT CONNECTOR OF IBM PC/AT
Differential Output    NO
Driver Number of Bits    3
High Level Input Current-Max (A)    0.000010000000000
Input Characteristics    SCHMITT TRIGGER
Interface IC Type    LINE TRANSCEIVER
Interface Standard    EIA-232-F; TIA-232-F; V.28
JESD-30 Code    R-PDSO-G20
J-STD-609 Code    e4
Length (mm)    12.8000
Moisture Sensitivity Level    1
Number of Functions    3
Number of Terminals    20
Operating Temperature-Max (Cel)    70
Operating Temperature-Min (Cel)    0
Out Swing-Min (V)    12.000000
Output Characteristics    OPEN-COLLECTOR
Output Low Current-Max (mA)    0.010000000000000
Output Polarity    TRUE
Package Body Material    PLASTIC/EPOXY
Package Code    SOP
Package Equivalence Code    SOP20,.4
Package Shape    RECTANGULAR
Package Style    SMALL OUTLINE
Peak Reflow Temperature (Cel)    260
DLA Qualification    Not Qualified
Receive Delay-Max (ns)    150.000000000000000
Receiver Number of Bits    5
Seated Height-Max (mm)    2.6500
Supply Current-Max (mA)    25.00000000
Supply Voltage-Max (V)    5.5000
Supply Voltage-Min (V)    4.5000
Supply Voltage-Nom (V)    5.0000
Supply Voltage1-Max (V)    15.0000
Supply Voltage1-Min (V)    7.5000
Supply Voltage1-Nom (V)    9.0000
Surface Mount    YES
Technology    BIPOLAR
Temperature Grade    COMMERCIAL
Terminal Finish    Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form    GULL WING
Terminal Pitch (mm)    1.270
Terminal Position    DUAL
Time@Peak Reflow Temperature-Max (s)    30
Transmit Delay-Max (ns)    175.0000
Width (mm)    7.5000
