(25PCS) B3F-1022 Switch Tactile N.O. SPST Flat Plunger PC Pins 0.05A 24VDC 1.47N
Tax included.

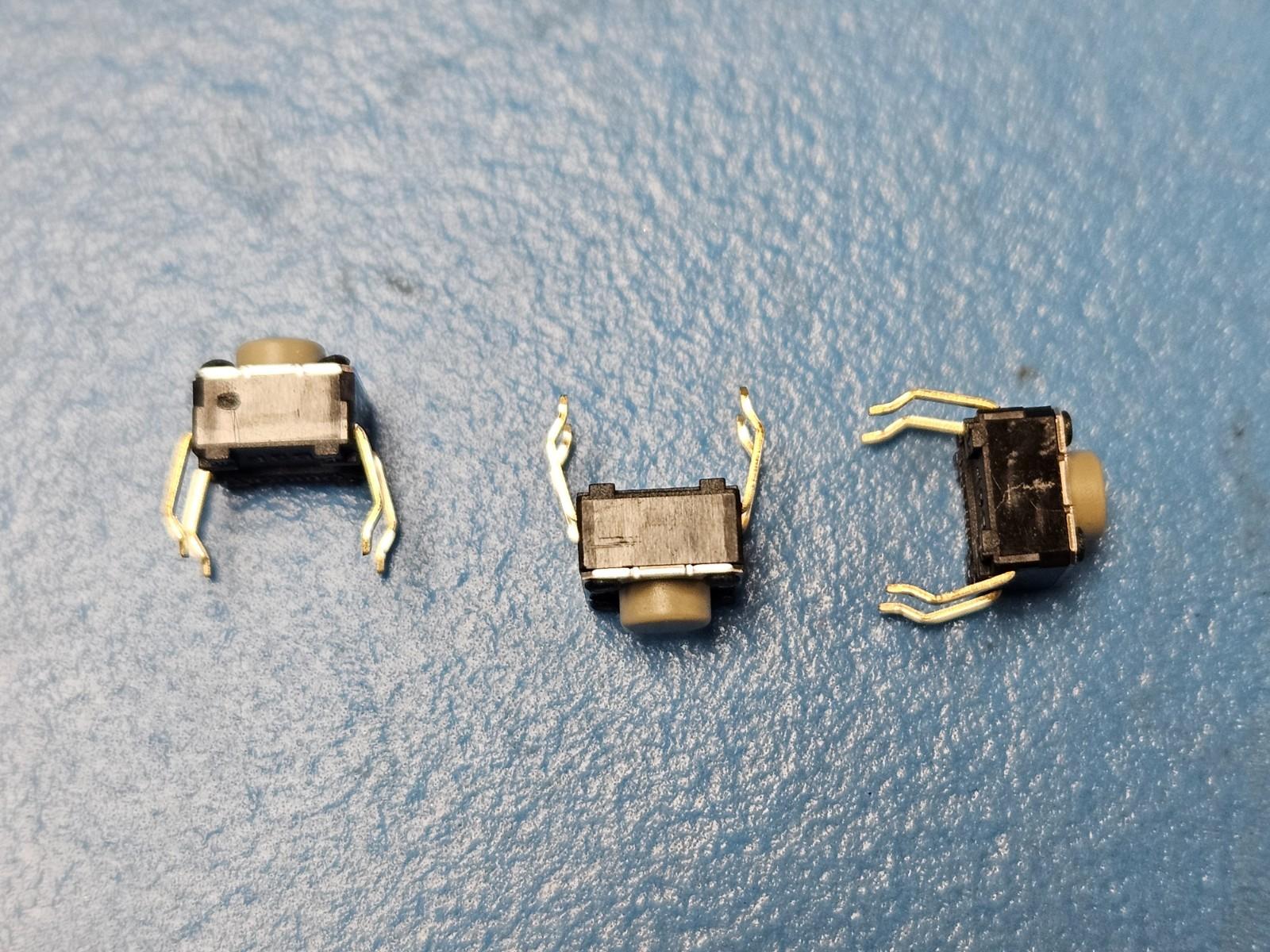

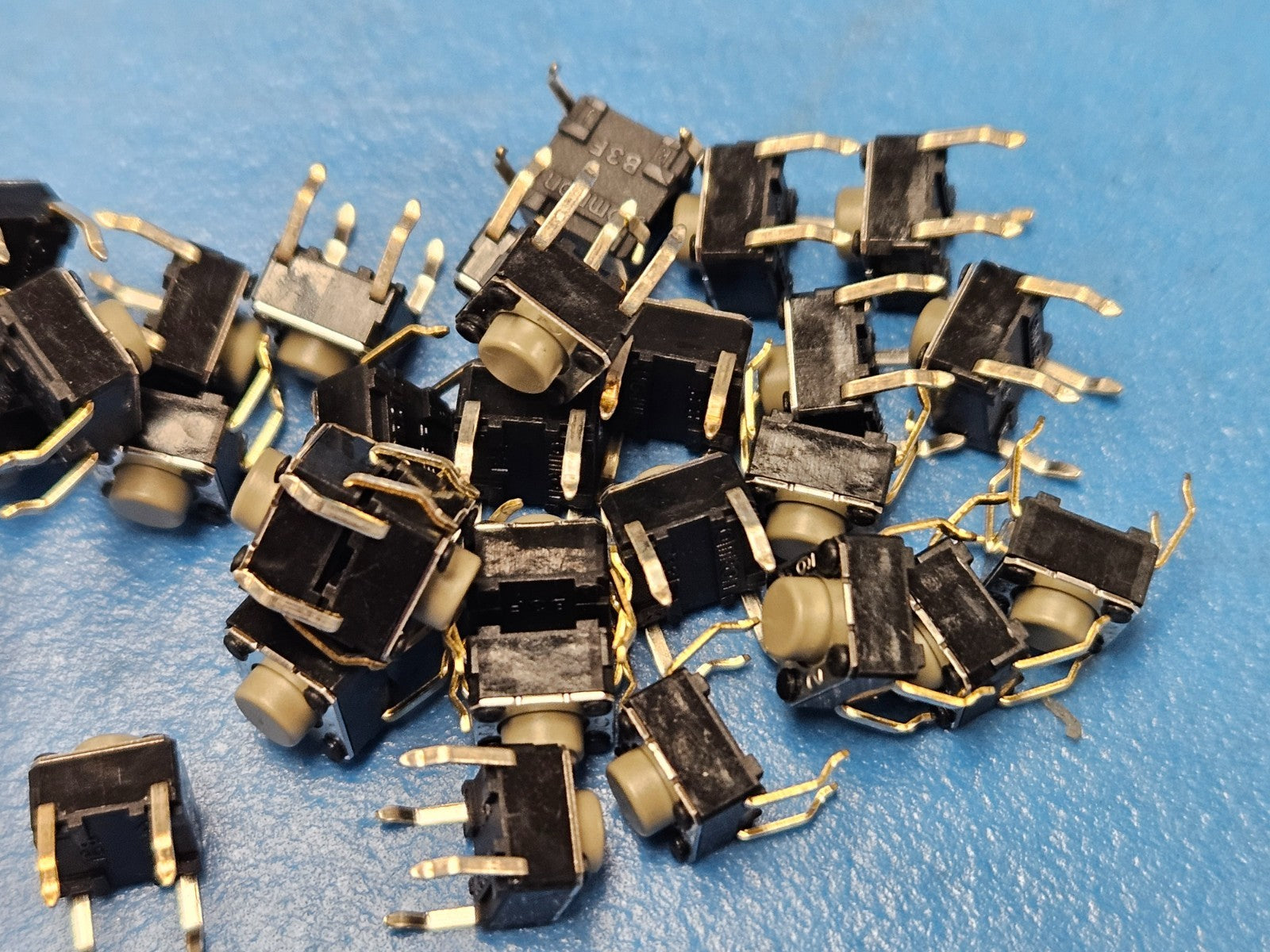

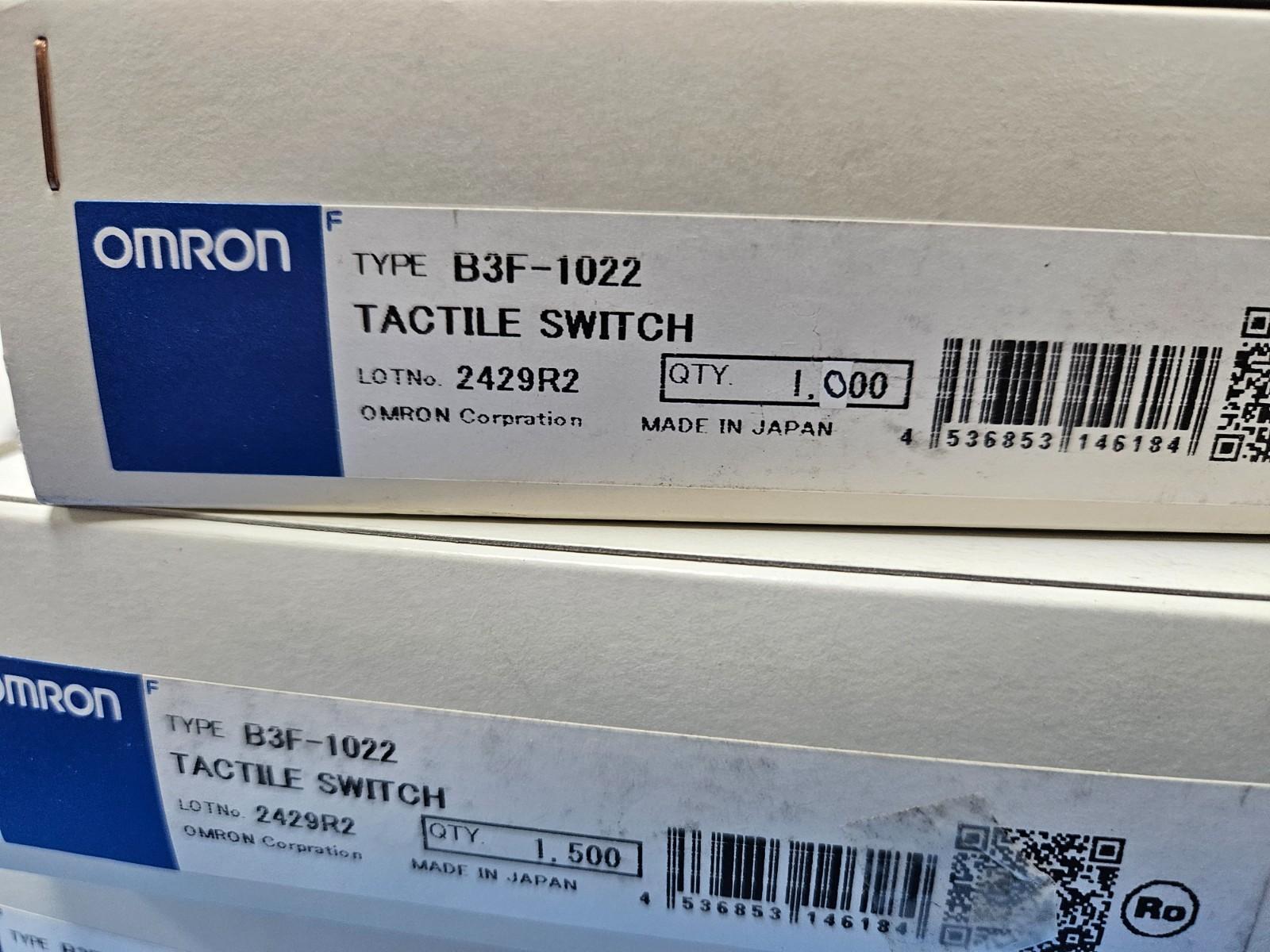

This listing is for (25PCS) of B3F-1022 by Omron
Status Active
Actuator Angle (deg) 0.000000
Actuator Color GRAY
Actuator Type PUSHBUTTON
Additional Feature STICK PACKAGING
Body Breadth (mm) 5.9944
Bushing Length (inch) 0.000000
Contact Current(DC)-Max (A) 0.05000000
Contact DC Max Rating R Load 0.05A@24VDC
Contact Function OFF-(ON)
Contact Resistance (mohm) 100.000000000000000
Contact Timing BREAK-BEFORE-MAKE
Contact Voltage(DC)-Max (V) 24.00000000
Dielectric Withstand Volts (V) 500VAC
Electrical Life (Cycle(s)) 1000000
Insulation Resistance (ohm) 100000000.000000000000000
Mounting Feature THROUGH HOLE-STRAIGHT
Operating Temperature-Max (Cel) 70
Operating Temperature-Min (Cel) -25
PCB Hole Count 4
Switch Action MOMENTARY
Switch Function SPST
Terminal Length (inch) 0.138000
Termination Type SOLDER
