(25PCS) ADP150AUJZ-2.5 LDO Regulator Pos 2.5V 0.15A 5-Pin TSOT
Tax included.

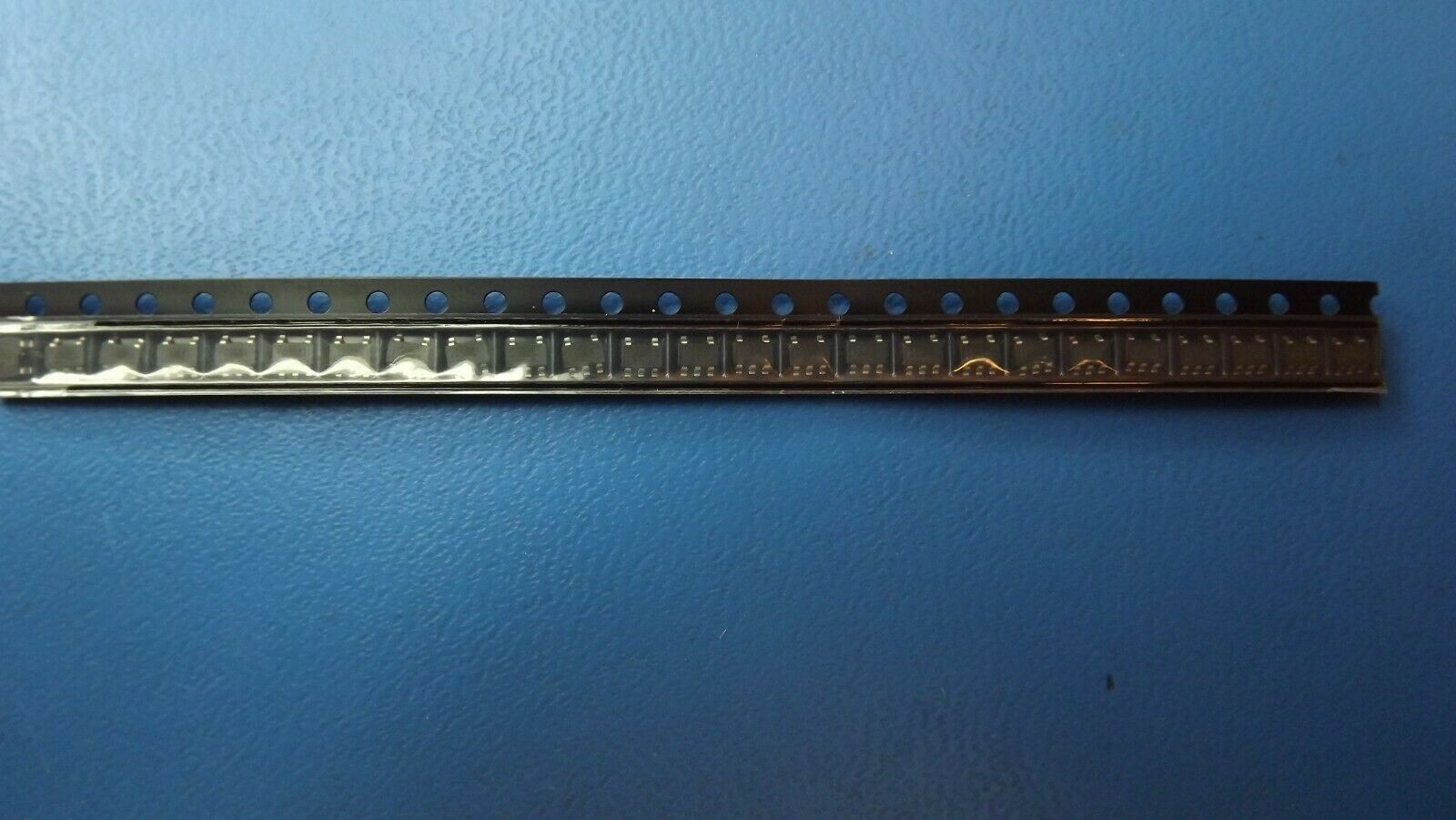

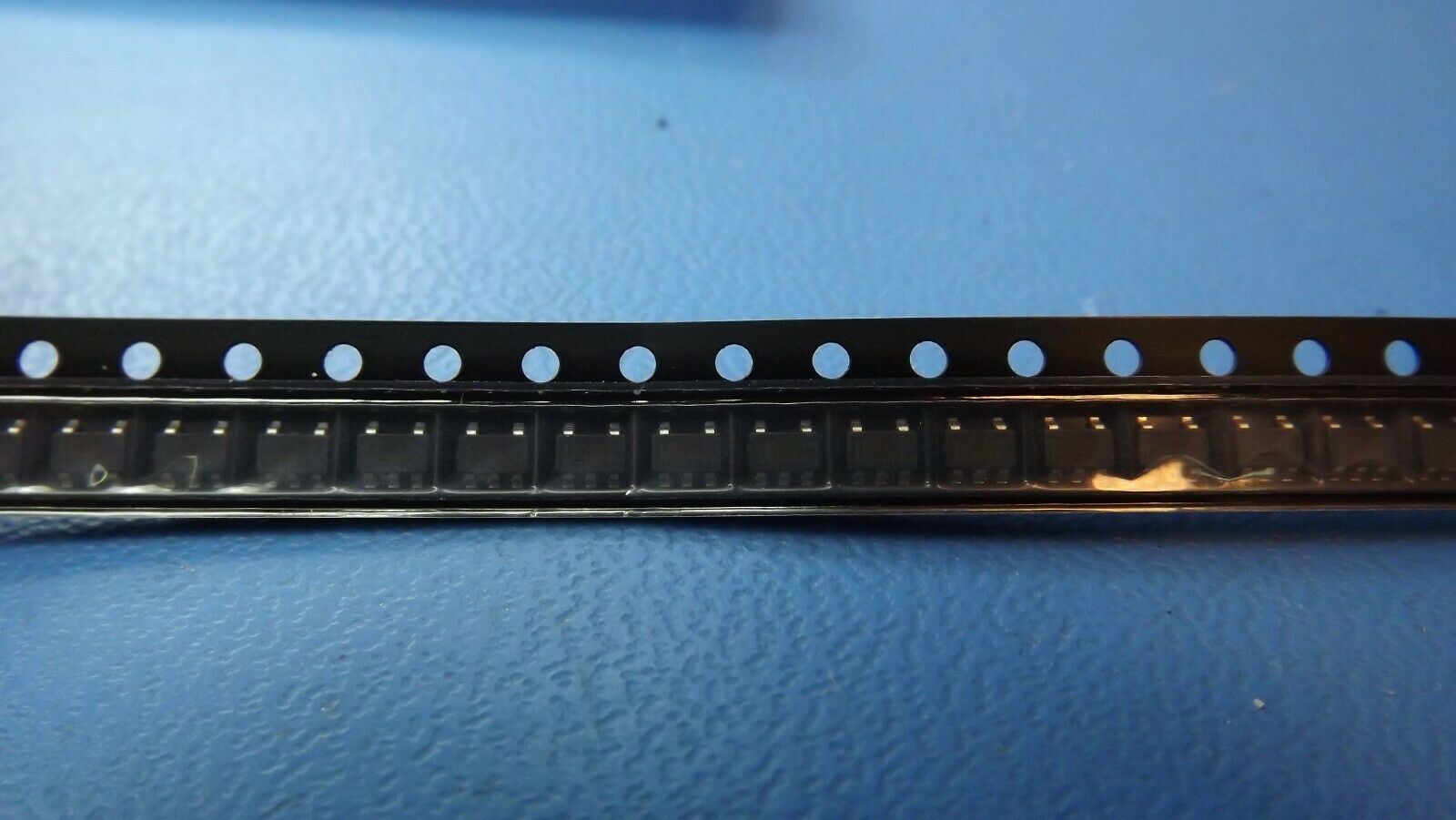

THIS LISTING IS FOR (25PCS) OF ADP150AUJZ-2.5 BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, MO-193AB, TSOT-5 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Adjustability | FIXED |
| Dropout Voltage1-Nom | 0.105 V |
| Dropout Voltage1-Max | 0.16 V |
| Input Voltage Absolute-Max | 6.5 V |
| Input Voltage-Min | 2.2 V |
| Input Voltage-Max | 5.5 V |
| JESD-30 Code | R-PDSO-G5 |
| JESD-609 Code | e3 |
| Line Regulation-Max | 0.00325 V |
| Load Regulation-Max | 0.0281 V |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 5 |
| Operating Temperature, TJ-Min | -40.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 0.15 A |
| Output Voltage1-Nom | 2.5 V |
| Output Voltage1-Min | 2.4375 V |
| Output Voltage1-Max | 2.5375 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | VSSOP |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH |
| Packing Method | TAPE AND REEL |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.0 mm |
| Sub Category | Other Regulators |
| Surface Mount | YES |
| Technology | CMOS |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Voltage Tolerance-Max | 2.5 % |
| Length | 2.9 mm |
| Width | 1.6 mm |
