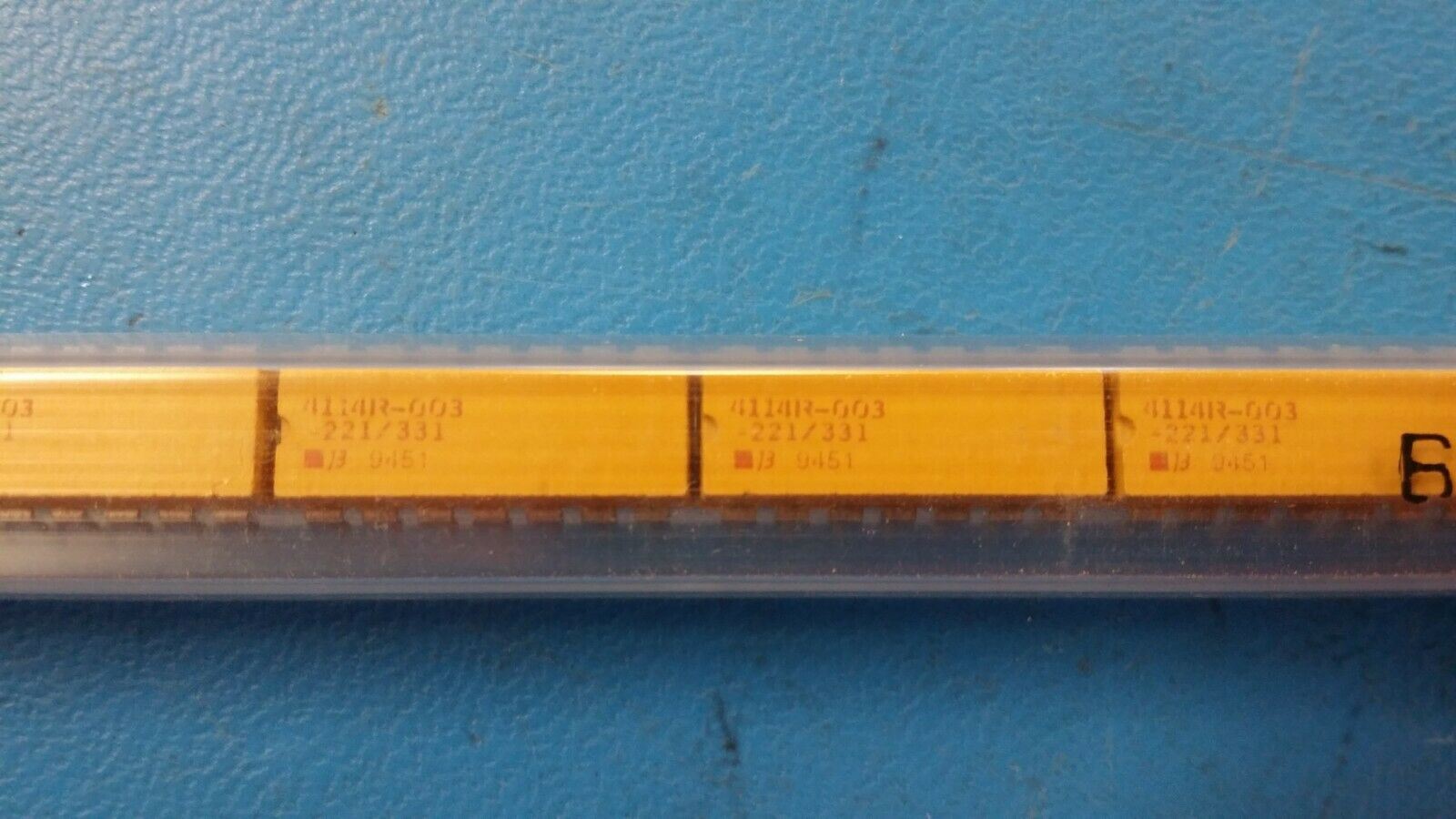

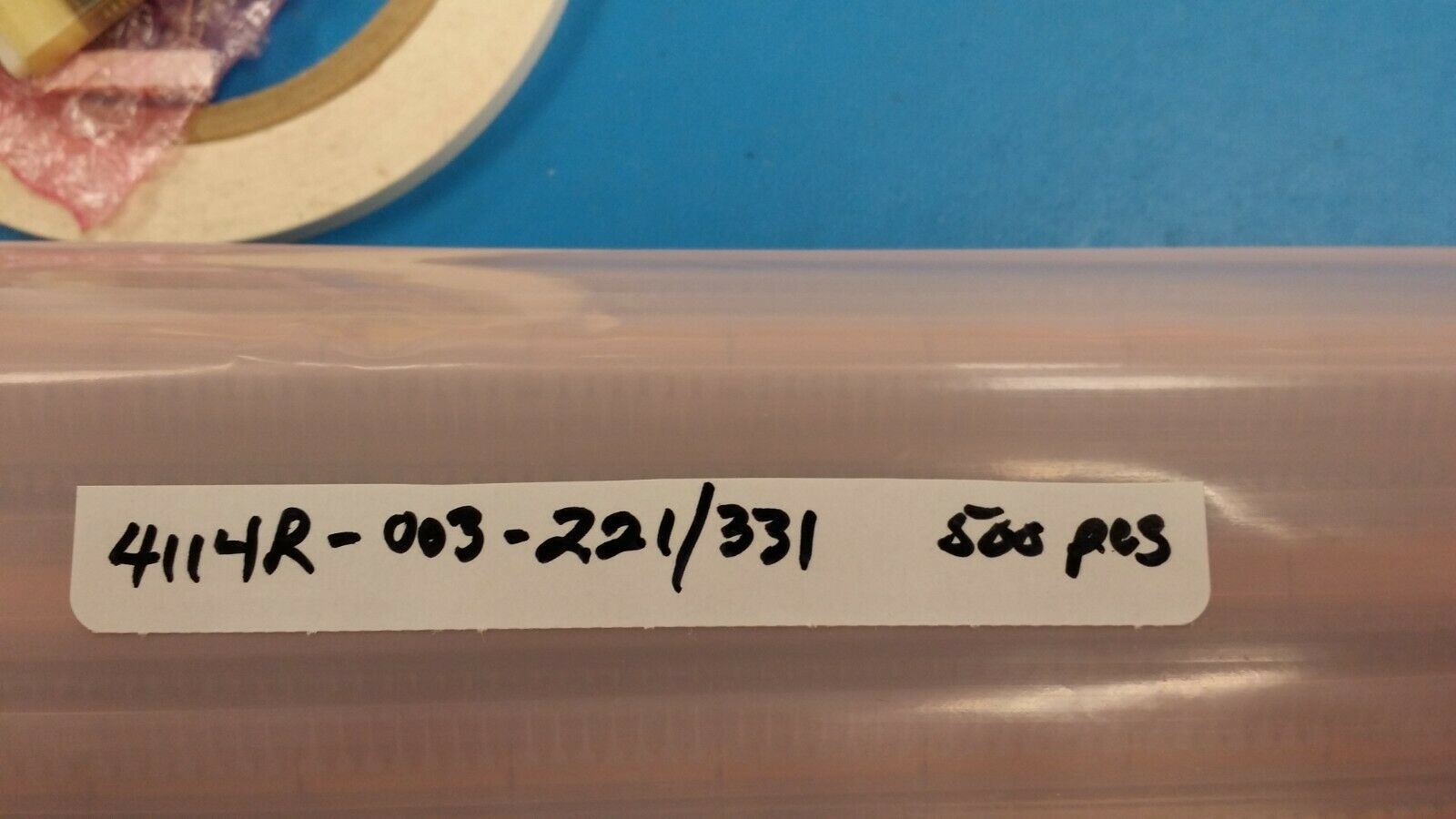

(25pcs) 4114R-003-221/331 Resistor Network, Thick Film, 220 Ohm, 100V, 2±% (AKA:
Tax included.

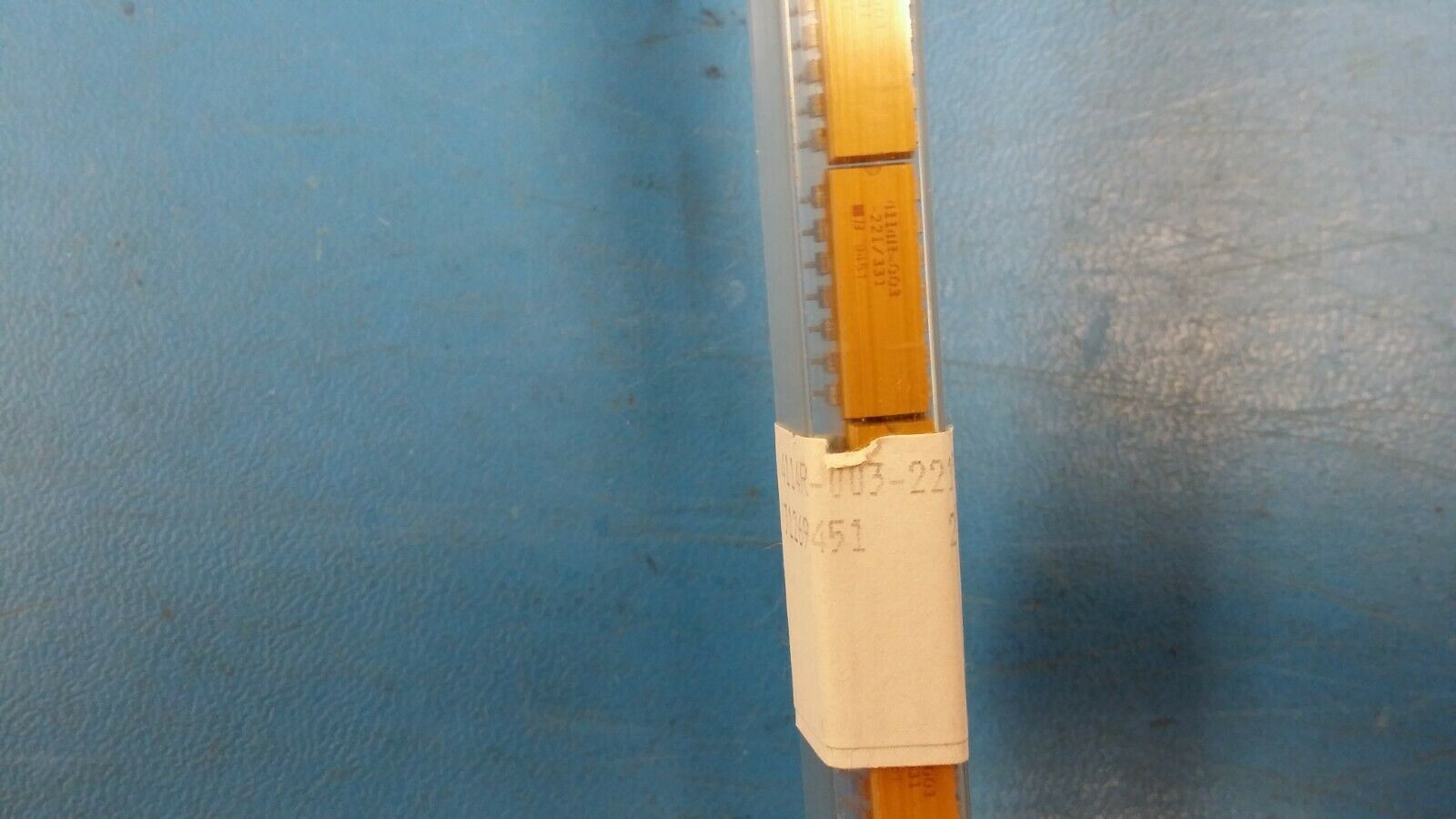

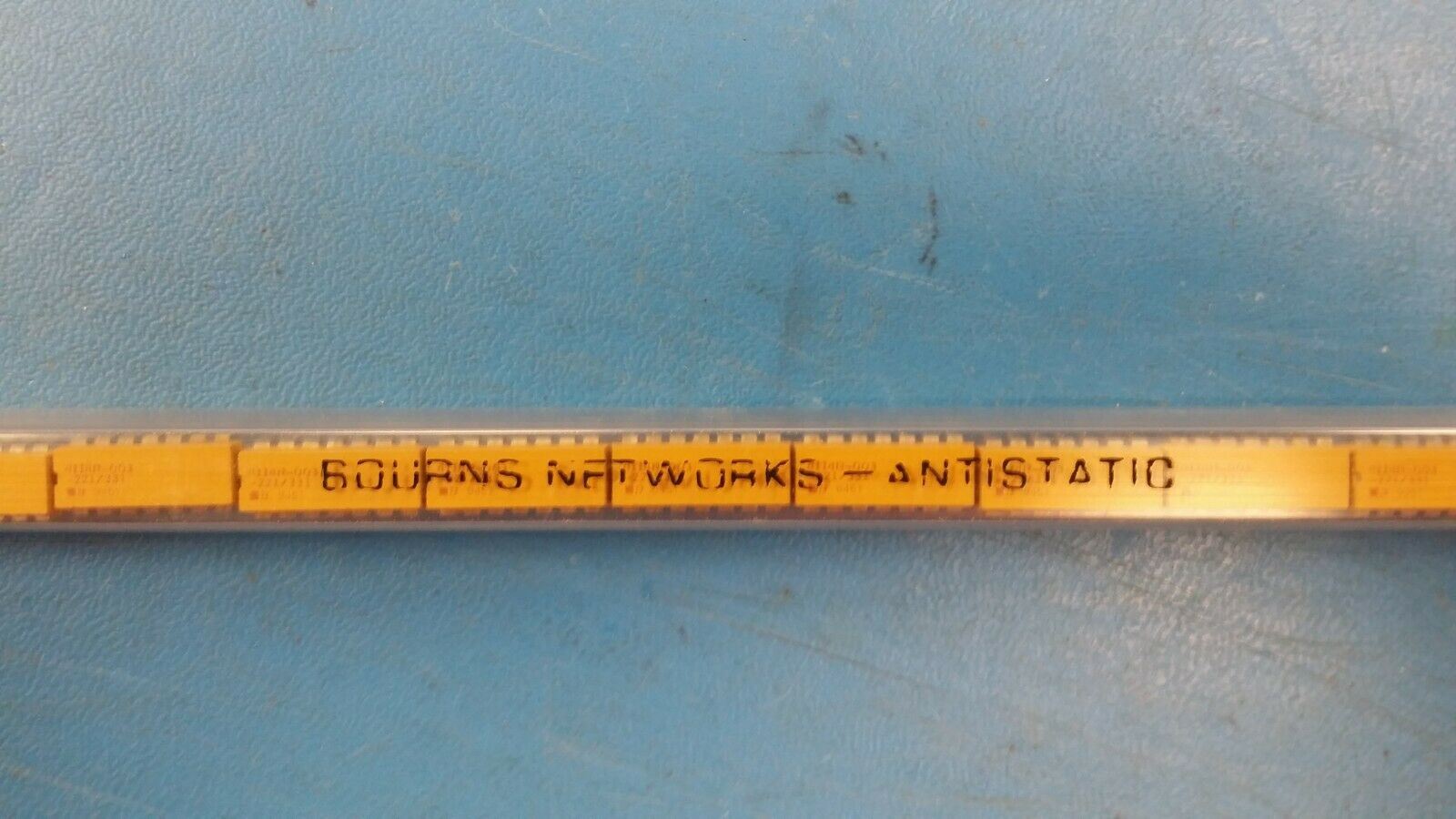

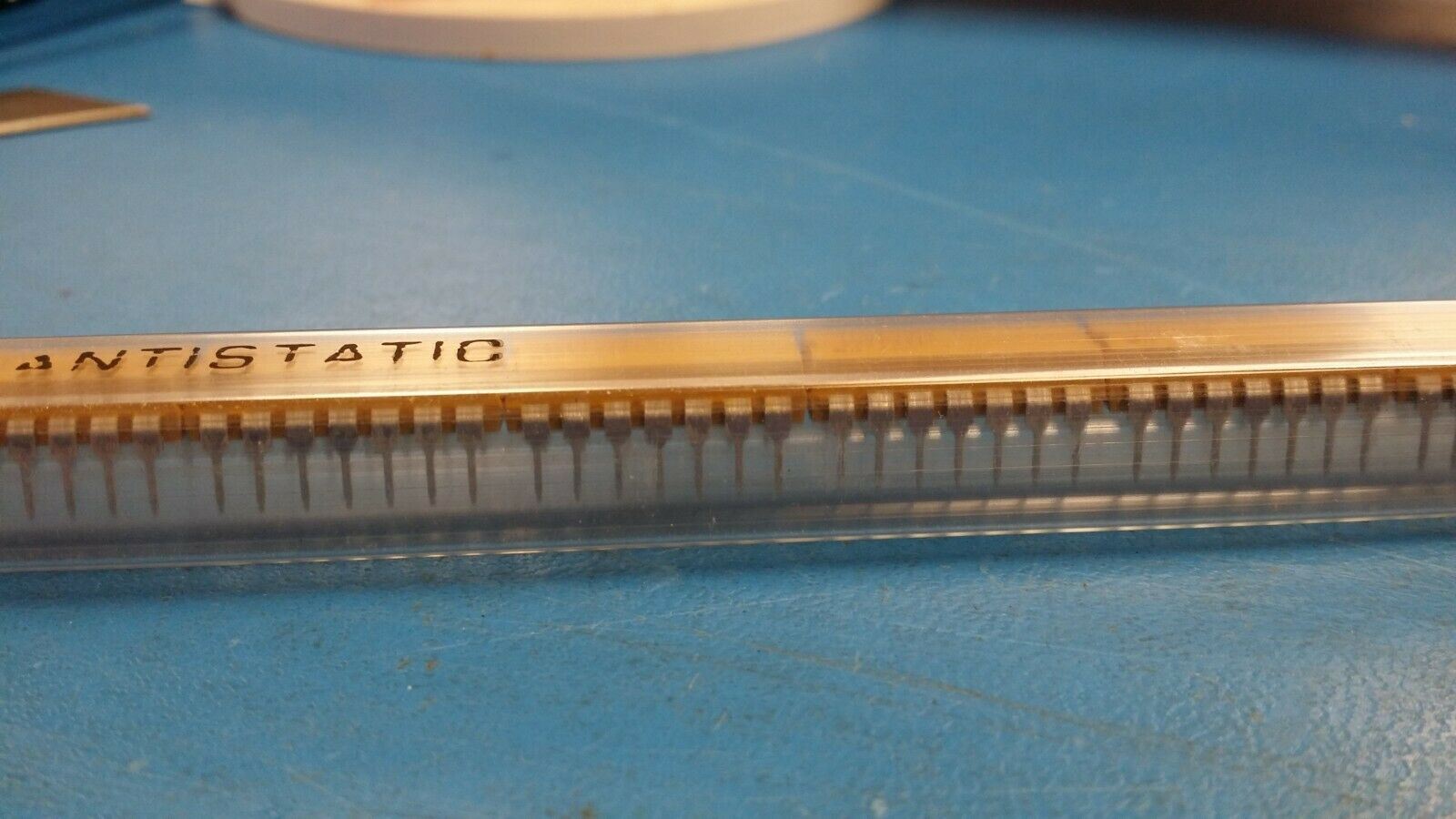

Each order is for 1 full tube of 25pcs.
Status Discontinued
Additional Feature DUAL TERMINATOR
Construction Molded
Element Power Dissipation (W) 0.12500
First Element Resistance (ohm) 220.00000000
J-STD-609 Code e0
Lead Length (mm) 3.430000
Lead Spacing (mm) 2.540000
Mounting Feature THROUGH HOLE MOUNT
Network Type TERMINATOR
Number of Elements 2
Number of Functions 12
Number of Terminals 14
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Package Height (mm) 4.570000
Package Length (mm) 19.430000
Package Shape RECTANGULAR PACKAGE
Package Style DIP
Package Width (mm) 6.710000
Rated Power Dissipation (P) (W) 2.0000
Rated Temperature (Cel) 70
Resistance (ohm) 220.0000000000000000
Resistor Type ARRAY/NETWORK RESISTOR
Second/Last Element Resistance (ohm) 330.00000000
Technology METAL GLAZE/THICK FILM
Temperature Coefficient (ppm/Cel) 250
Temperature Coefficient Tracking (ppm/Cel) 50.0000
Terminal Finish Tin/Lead (Sn60Pb40)
Terminal Shape FLAT
Tolerance (%) 2.00000000
Working Voltage (V) 100.0000
