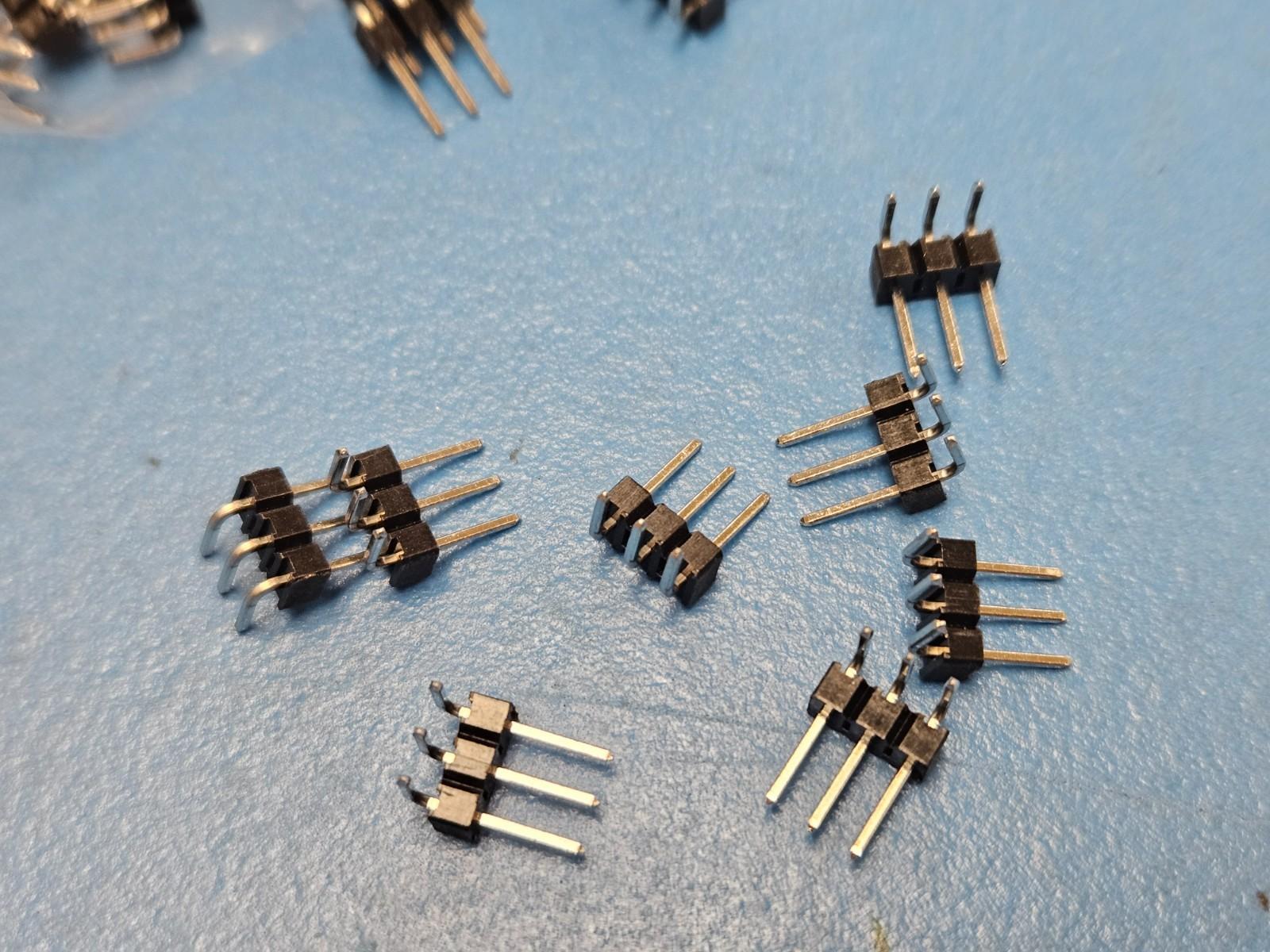

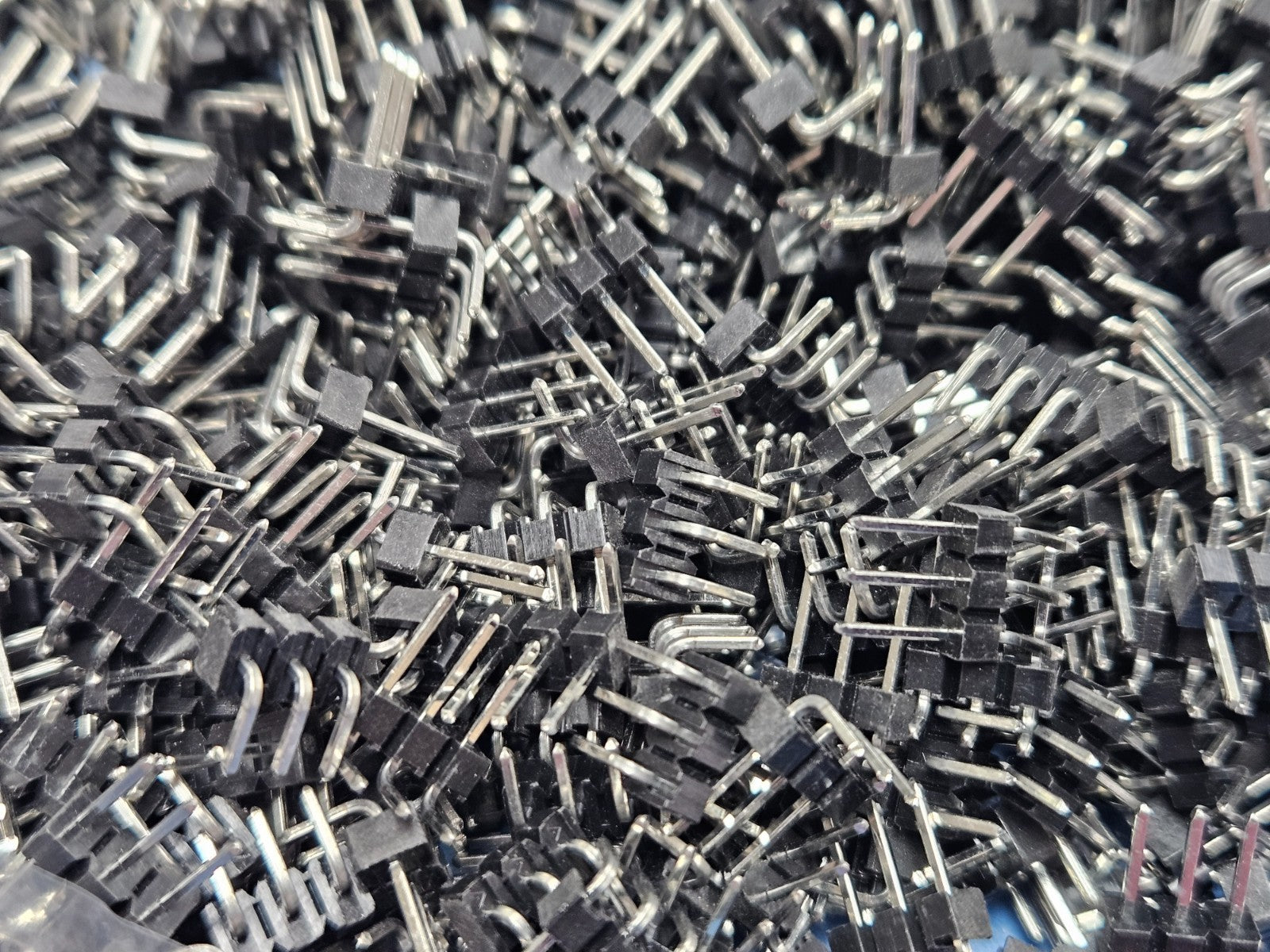

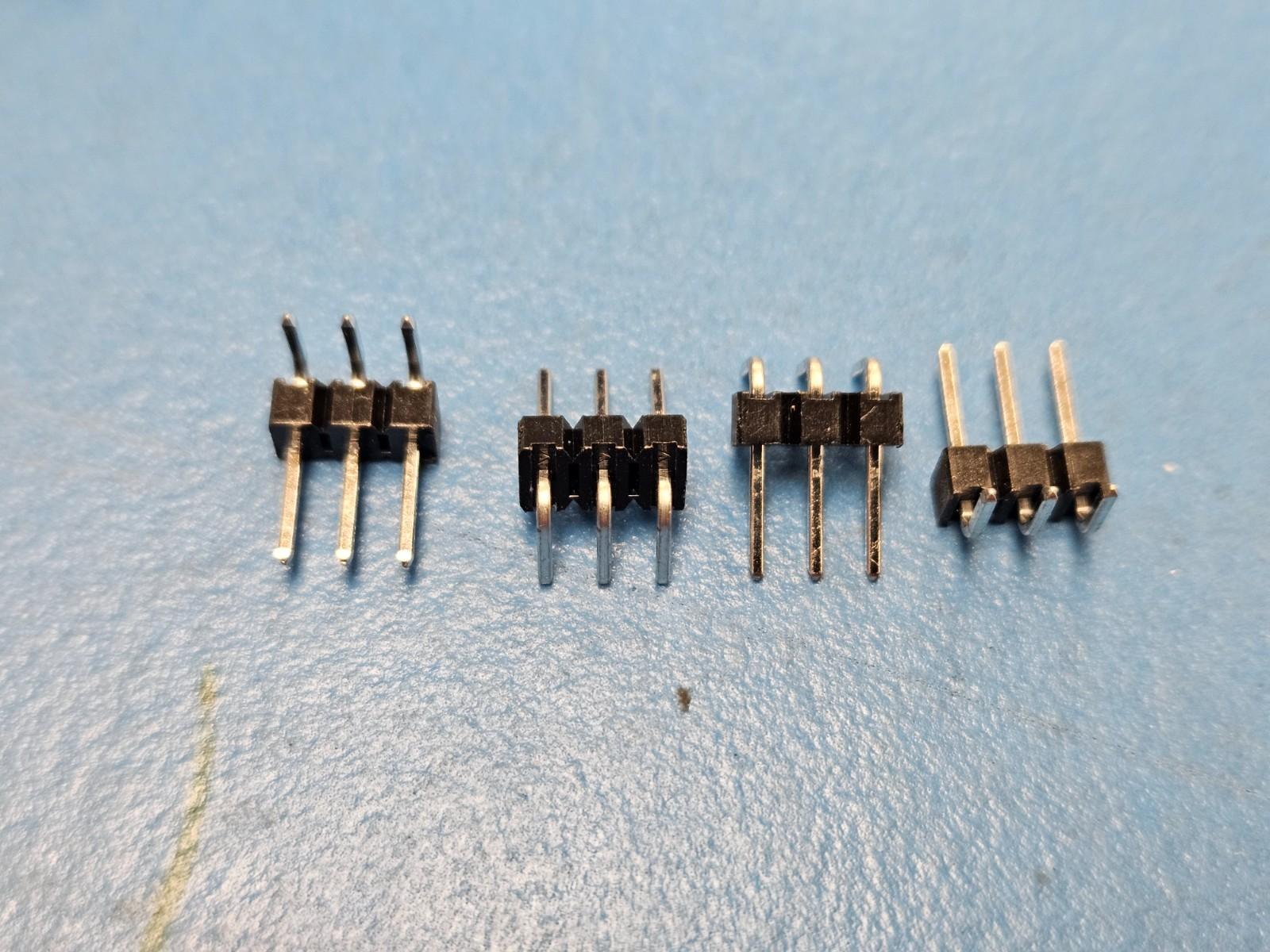

(25PCS) 103329-3 Connector Header 3 Contact 2.54mm Solder RA Thru-Hole
Tax included.

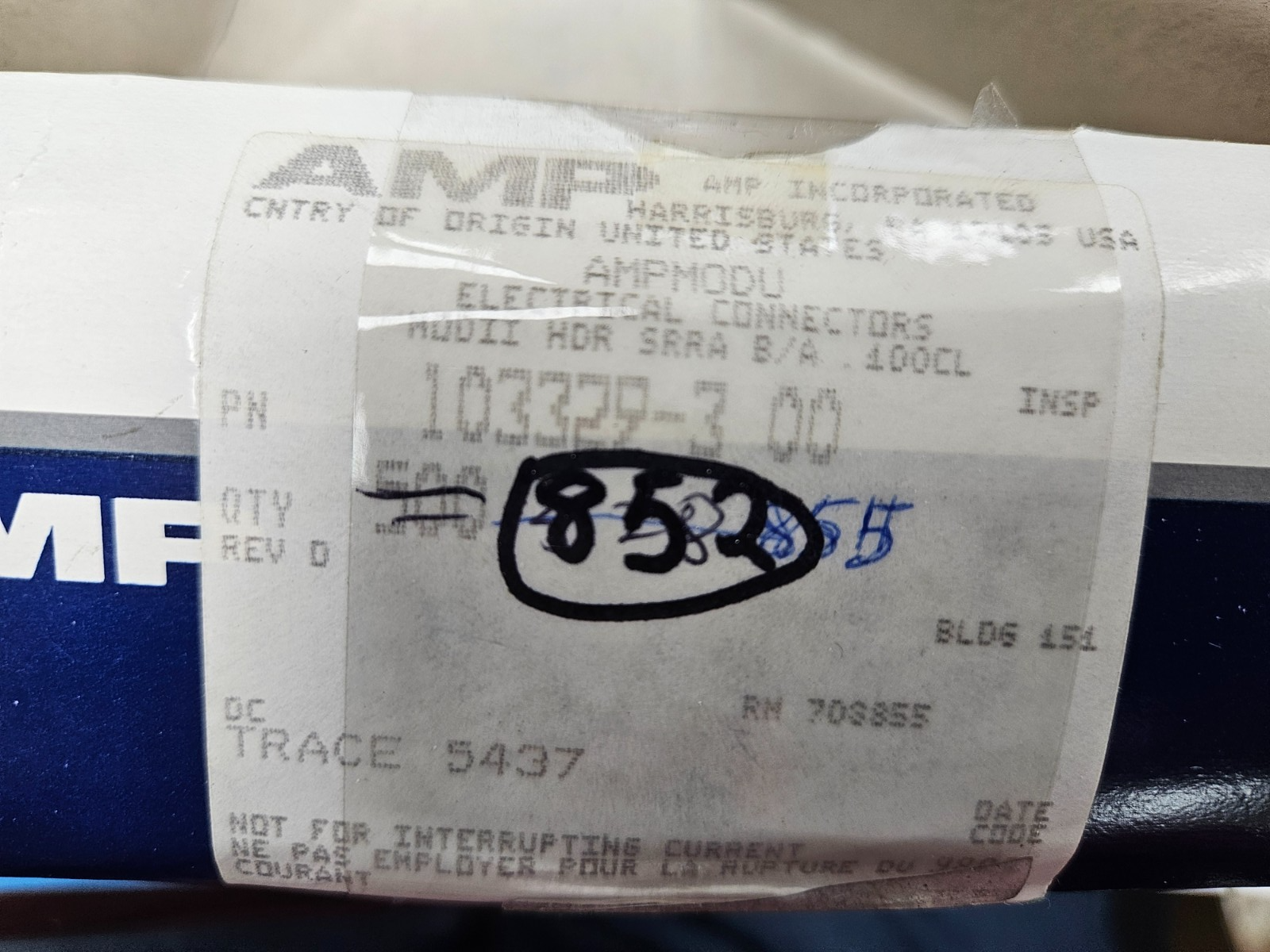

This listing is for (25PCS) of 103329-3 by AMP
Status Discontinued
Additional Feature AMP
Body Breadth (inch) 0.138000
Body Depth (inch) 0.147000
Body Length (inch) 0.284000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
EMI Shielded NO
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Color BLACK
Insulator Material POLYETHYLENE
J-STD-609 Code e0
MIL Conformance NO
Mains Connector Rating 3A
Mating Contact Pitch (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 1
Number of Ports 1
Number of Rows Loaded 1
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Panel Mount NO
Plating Thickness (inch) 200u
Rated Current (Signal) (A) 3.0000000000000000
Screening Level / Reference Standard CSA, LR, U
Terminal Length (inch) 0.120000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 3
UL Flammability Code 94V-0
