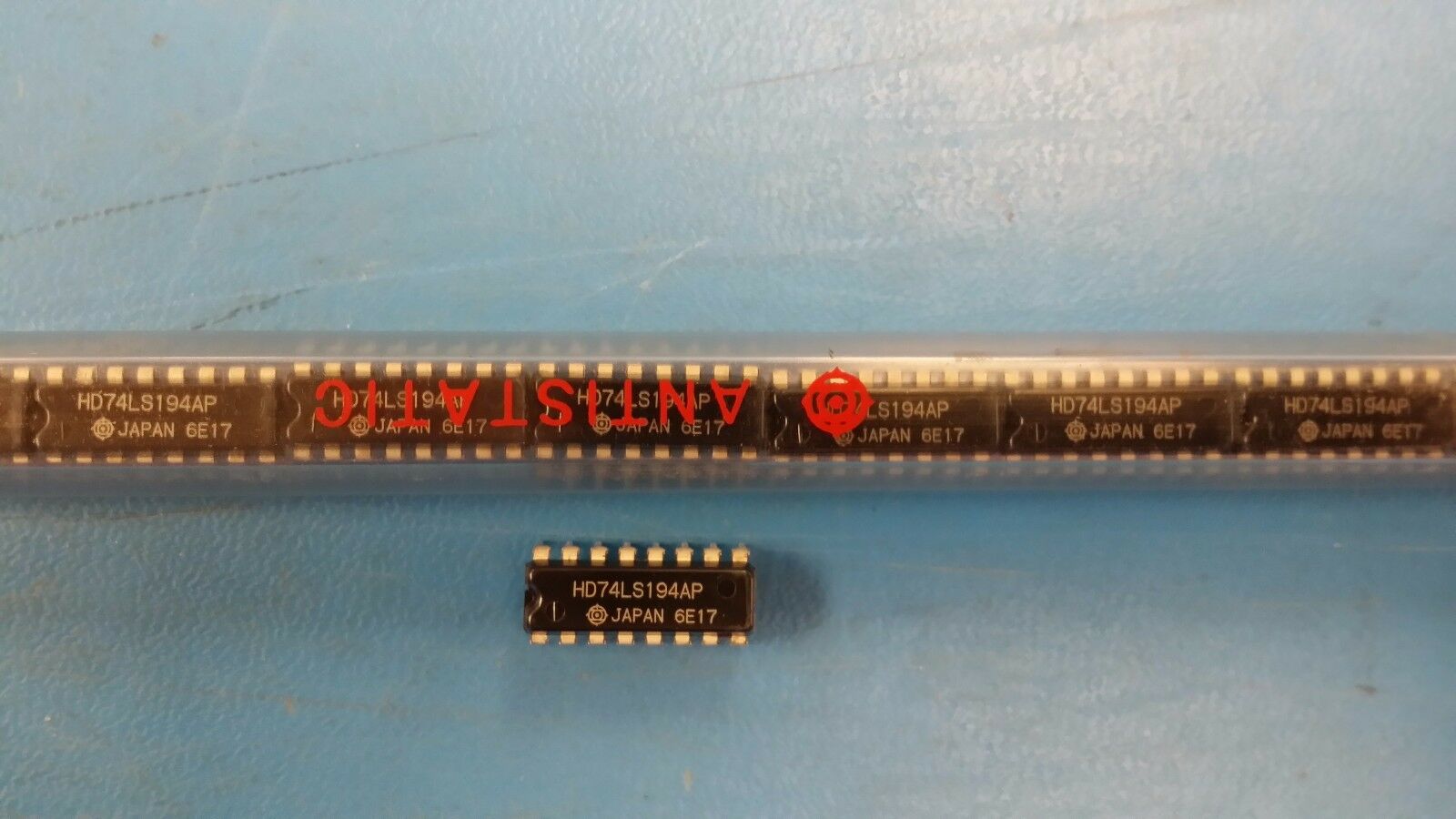

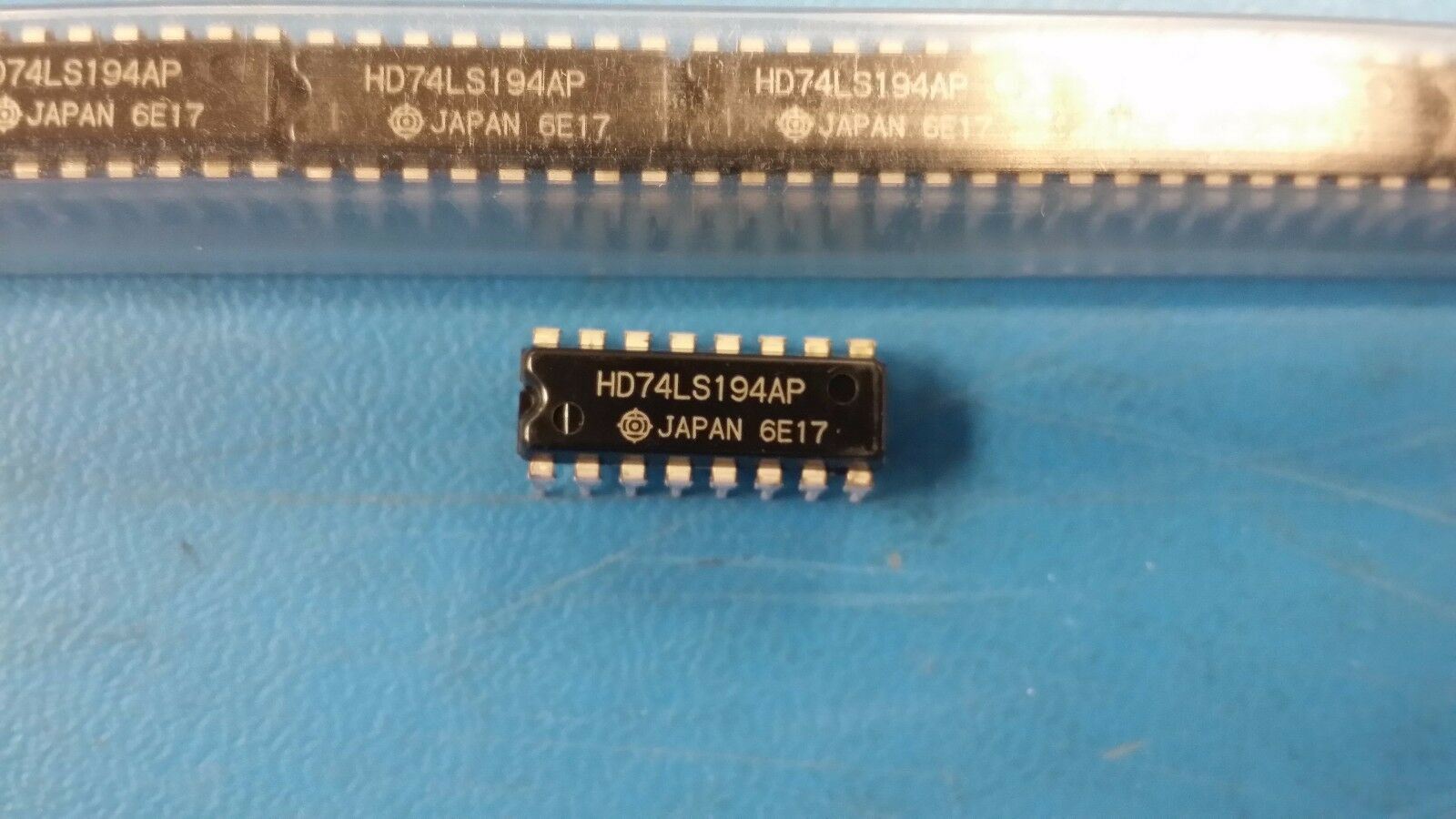

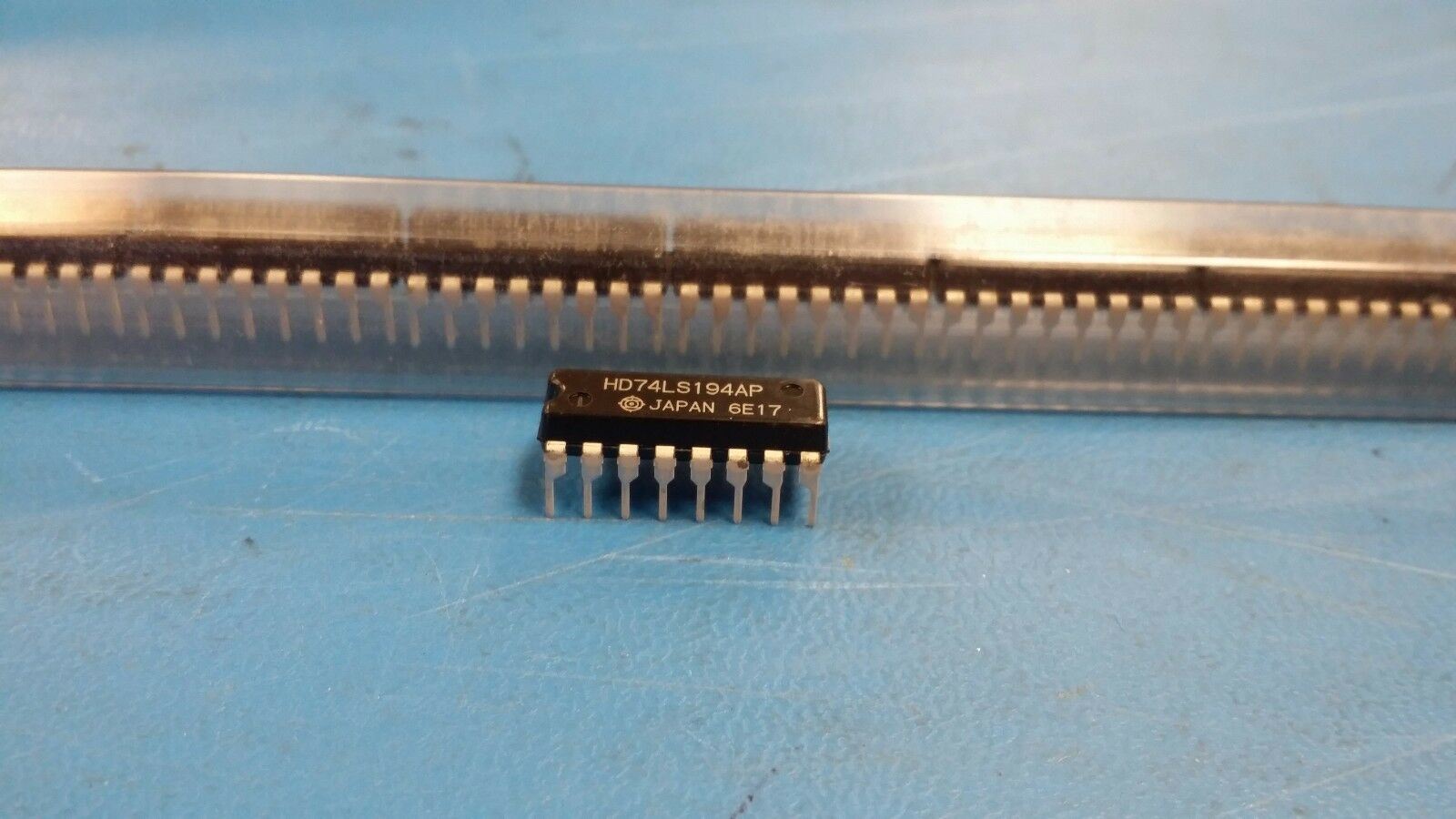

(25PC) HD74LS194AP Shift Register Single 4-Bit Serial/Parallel to Parallel 16PIN

$24.95
Unit price per

Tax included.

THIS LISTING IS FOR (5 PCS) OF HD74LS194AP BY HITACHI

Shift Register Single 4-Bit Serial/Parallel to Parallel 16PIN

Part #: HD74LS194AP

Part Category: Logic ICs

Manufacturer: Hitachi, Ltd.

Description: Parallel In Parallel Out, LS Series, 4-Bit, Bidirectional, True Output, TTL, PDIP16

Mfr Package Description DP-16

Status Transferred

Logic IC Type PARALLEL IN PARALLEL OUT

Sub Category Shift Registers

Count Direction BIDIRECTIONAL

Family LS

fmax-Min 25.0 MHz

JESD-30 Code R-PDIP-T16

Max Frequency@Nom-Sup 2.5E7 Hz

Number of Bits 4

Number of Functions 1

Number of Terminals 16

Operating Temperature-Min -20.0 Cel

Operating Temperature-Max 75.0 Cel

Output Polarity TRUE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Propagation Delay (tpd) 26.0 ns

Qualification Status Not Qualified

Seated Height-Max 5.06 mm

Supply Voltage-Nom (Vsup) 5

Surface Mount NO

Technology TTL

Temperature Grade COMMERCIAL EXTENDED

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Trigger Type POSITIVE EDGE

Length 19.2 mm

Width 7.62 mm
