(2500) QF3DFXAQN000T Audio Audio Signal Processor 3 Channel 24-VQFN-EP (4x4)
Tax included.

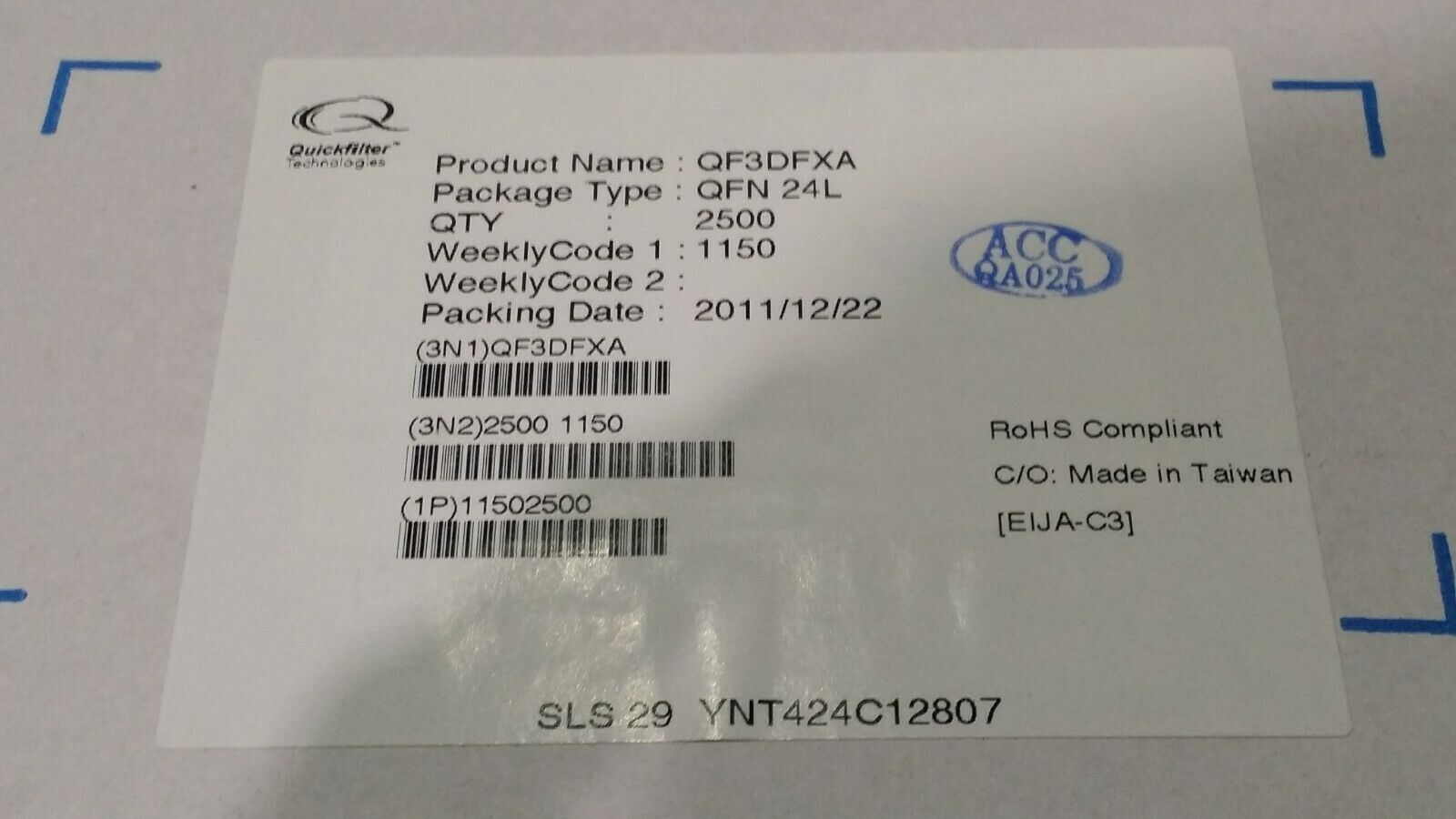

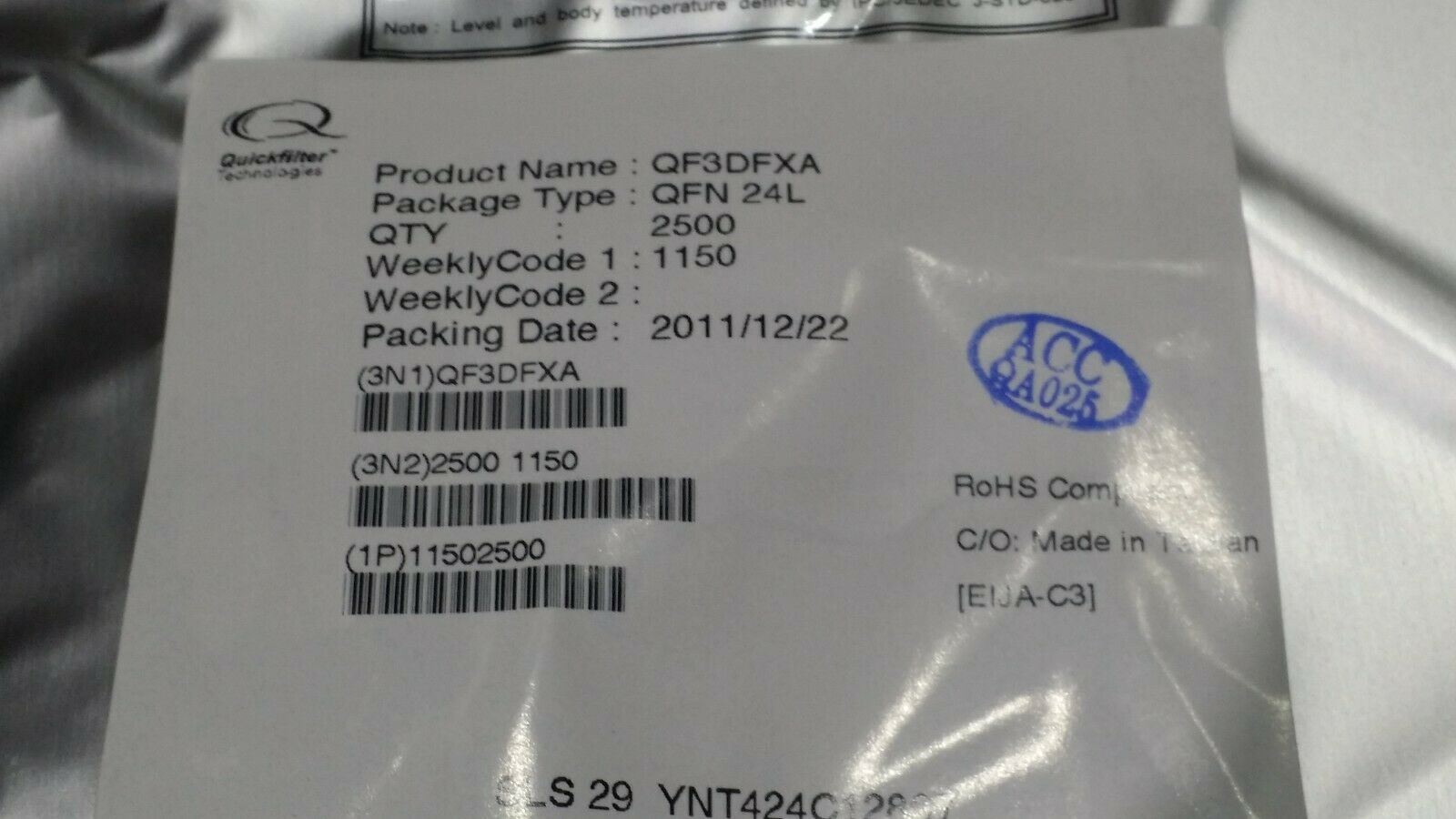

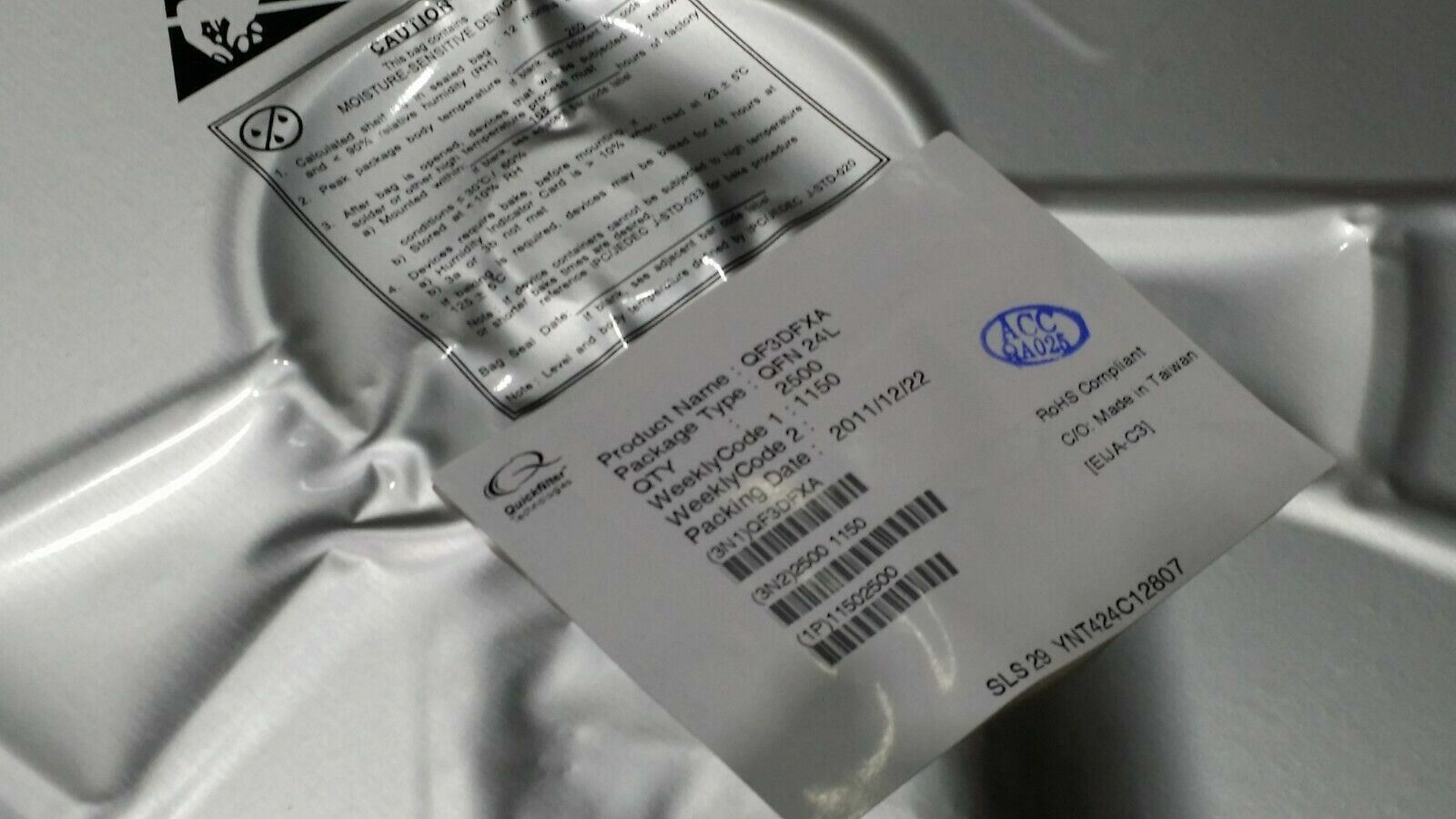

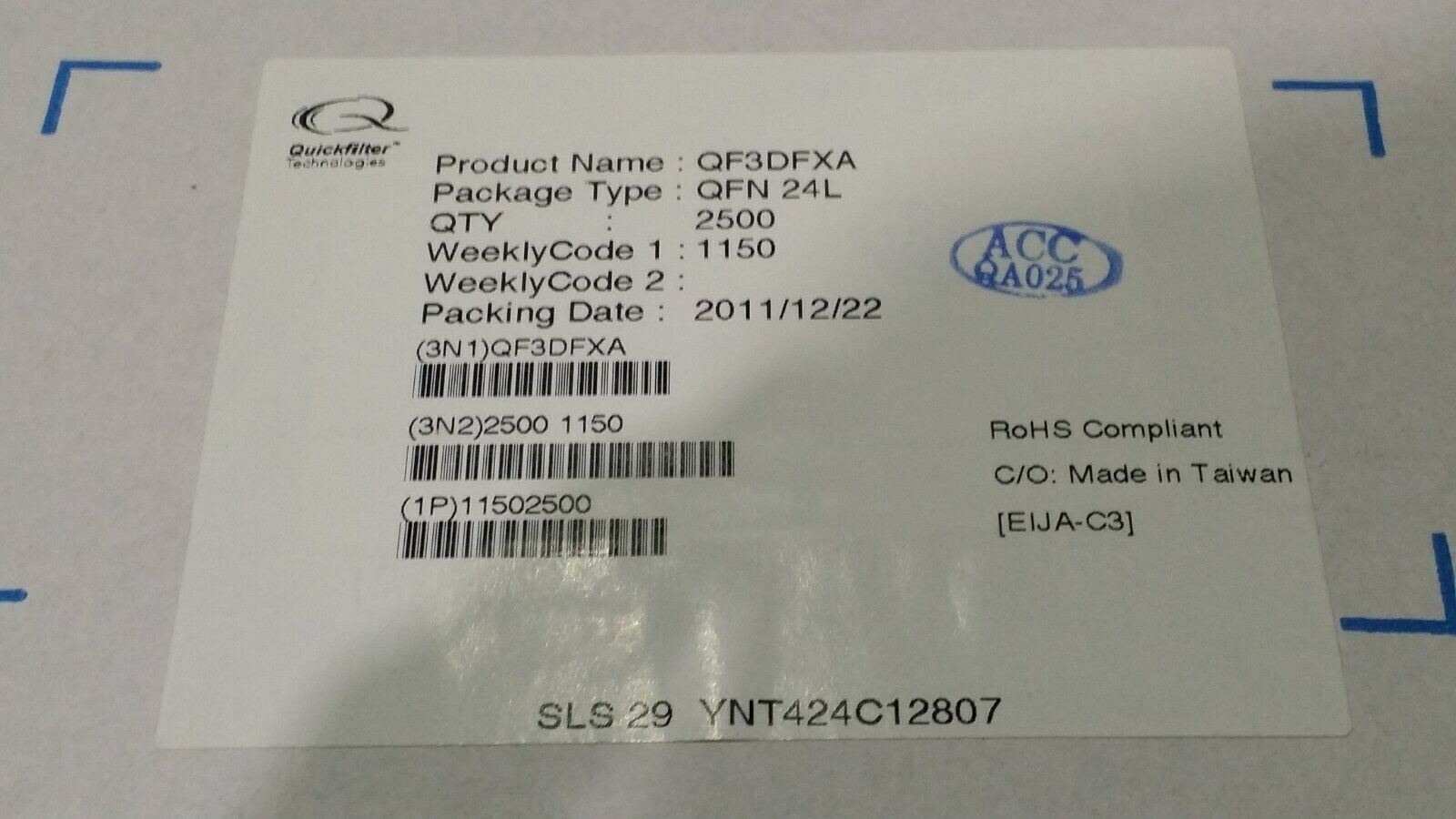

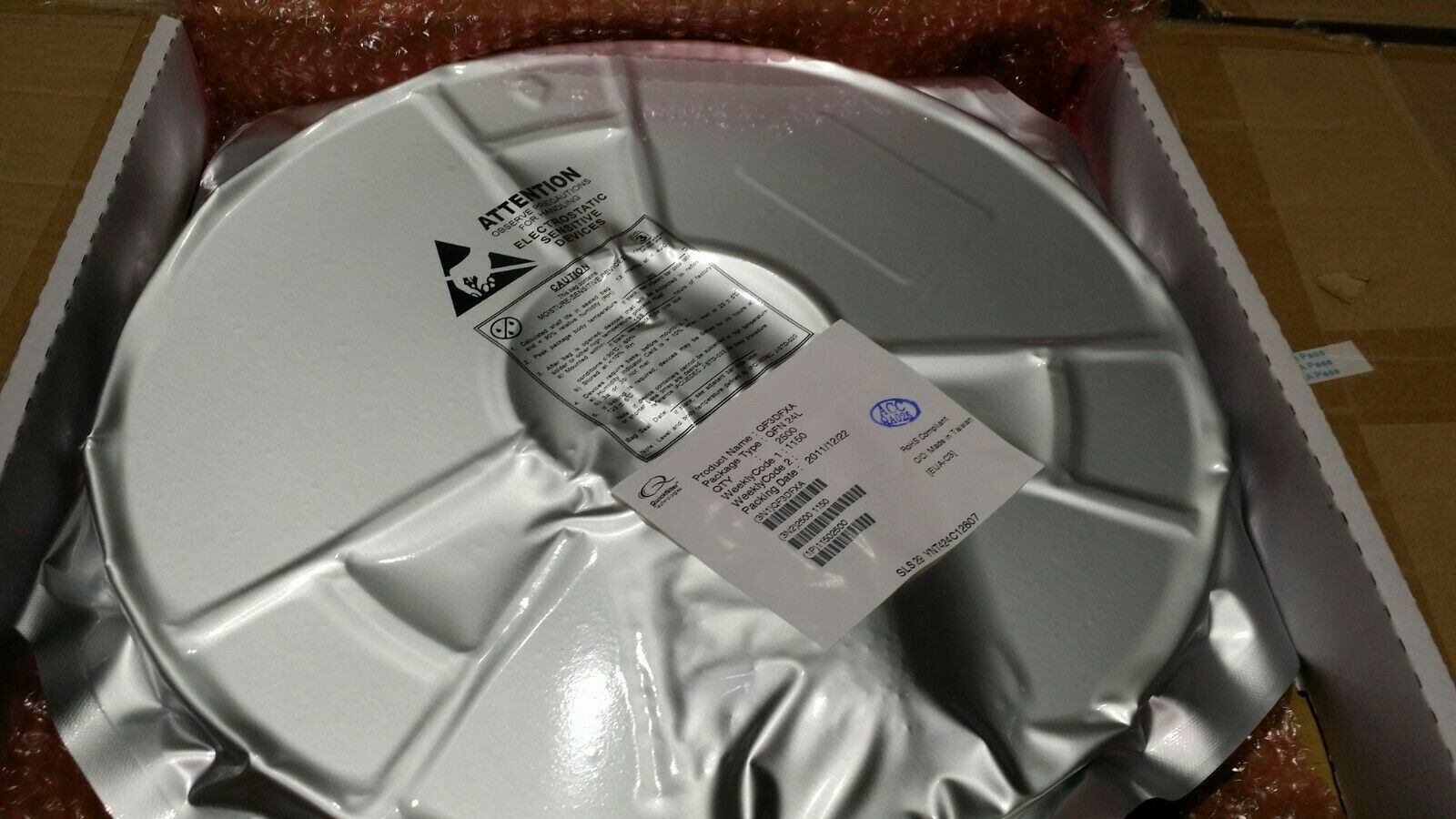

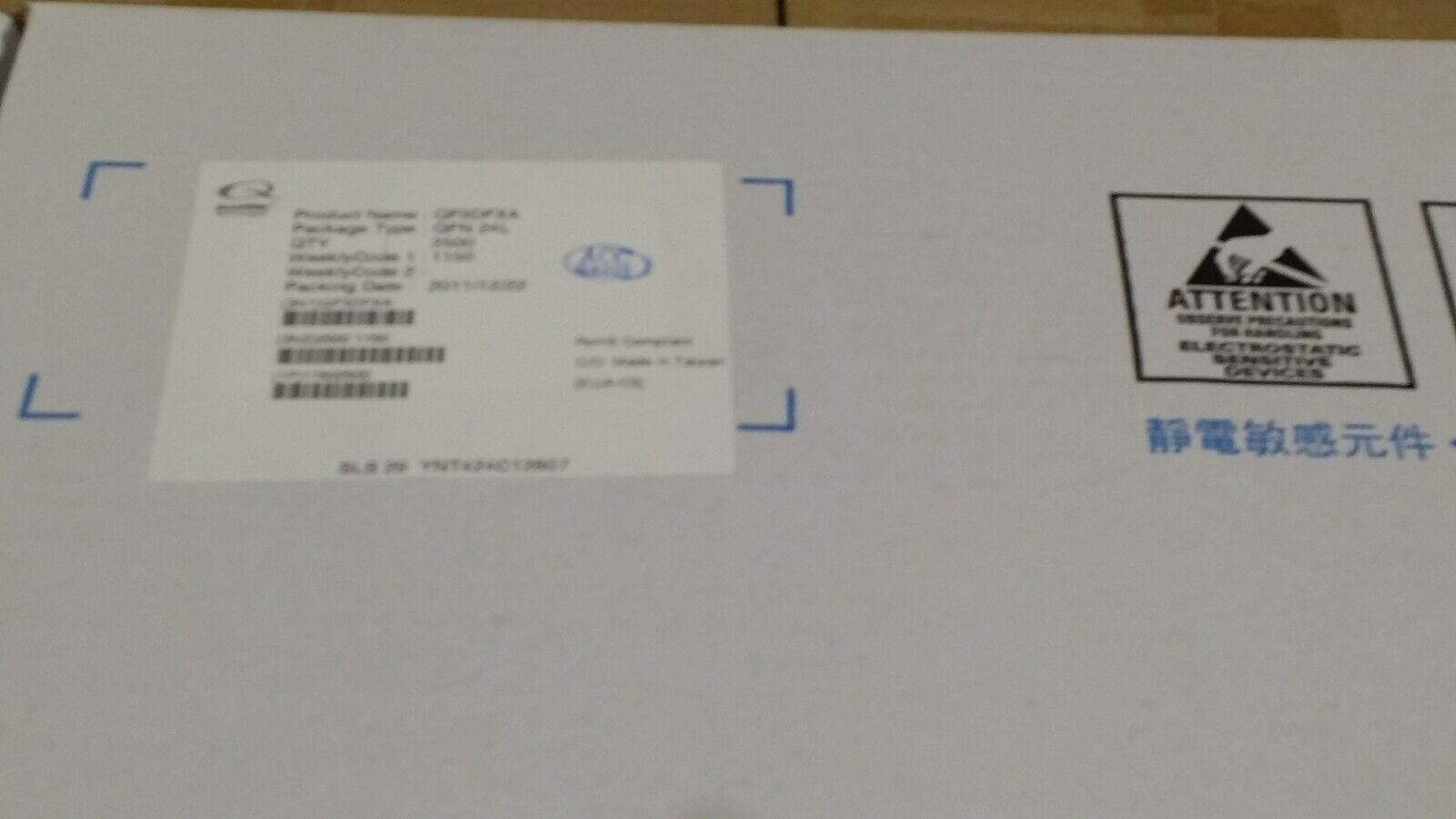

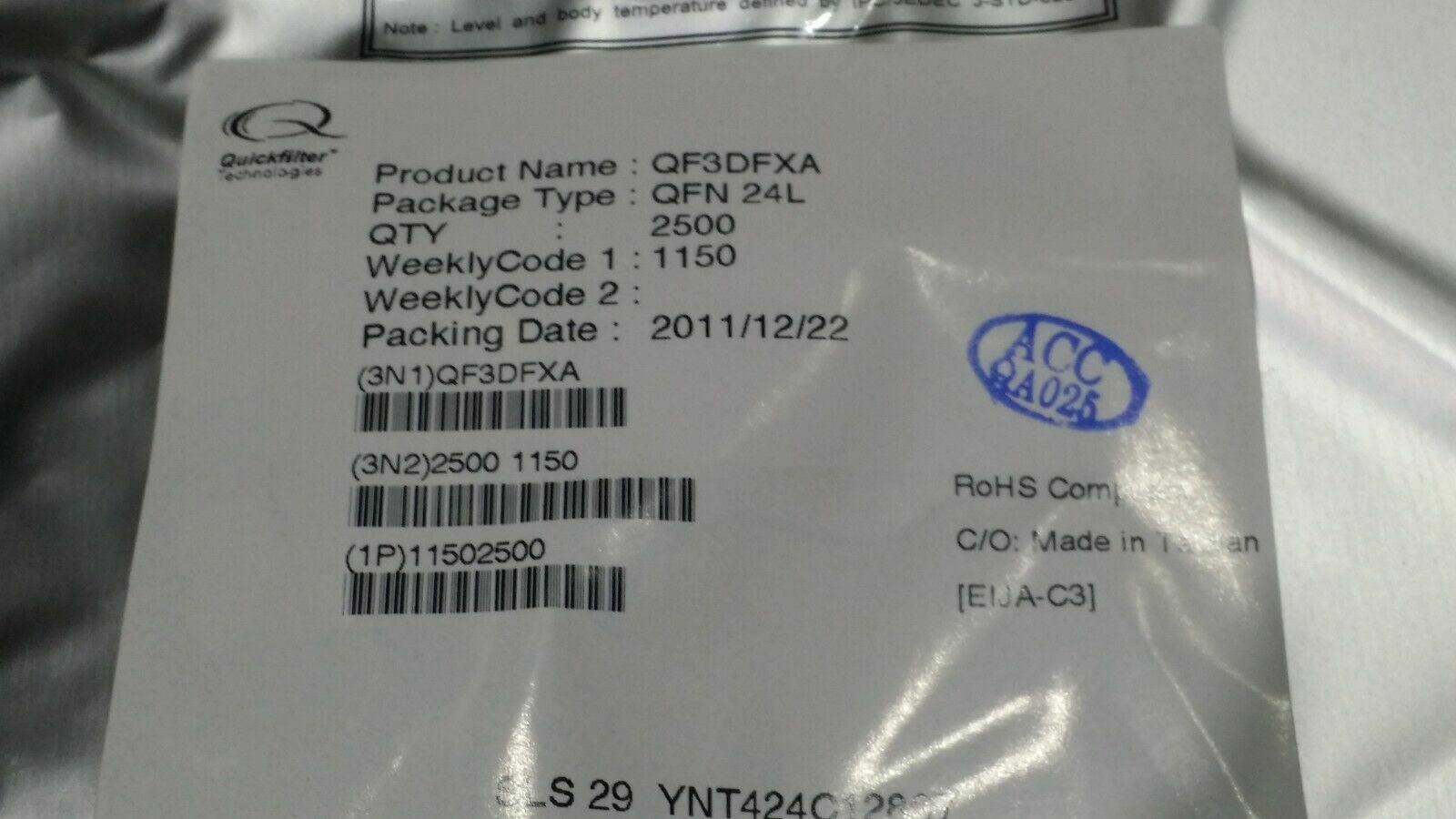

THIS LISTING IS FOR (2500) OF QF3DFXAQN000T BY QUICKFILTER
Audio Audio Signal Processor 3 Channel 24-VQFN-EP (4x4)
APPLICATIONS
Powered Speaker Products
Sound Bars
Docking Stations
Internet Radio
MP3 Players
Stereo Headsets (wired or wireless)
Televisions
Home Theatre
Other audio products
DESCRIPTION
A powerful 3-channel audio filter and effects system-on-a-chip
designed for seamless insertion in an audio serial digital data
path. The QF3DFX is easily configured using the Quickfilter’s
QFProTM Design Software (QFPro) with royalty free user
tunable advanced audio algorithms for psychoacoustic effects.
The QF3DFX can be configured to interface with I2S or TDM
based audio systems. The QF3DFX can operate over a broad
range of data rates up to 48ksps and can support data
resolutions of 16 or 24 bits. The QF3DFX is self-booting and
provides pin control for volume up, volume down, mute and
profiles supporting cost sensitive designs with minimal external
requirements. The QF3DFX automatically powers down when
audio data is not present.
KEY FEATURES
Input
o I2S, 2-channels
o TDM, up to 8-channels
Output
o 2.2.1 (2.1 + crossover) or any subset
o I2S x 3; 6-channels
o TDM x 1; up to 8-channel frame
DC Blocking
AGC supports special modes
o Night, Commercial, Dynamic Loudness
Psychoacoustics
o High Frequency Restoration
o Spatialization
o Virtual Bass
Dynamic Bass and Treble
Parametric Equalization
User Controlled Graphic Equalization
Profiles: Single-pin control with tone feedback
Digital volume control with Mute
Compression: Soft Clipper
Advanced noise-shaping Bi-quad structure
Self-booting
Optional microcontroller can dynamically reconfigure system via I2C or SPI
Low power: 1.8V Core, 1.8V – 3.3V IO, ~22 mW @ 48ksps, ~50 uW standby
Cost effective
o Microcontroller-less system; QF3DFX + EEPROM + 4 switches
