(2500 PCS) LTC1096CS8#TR IC A/D CONV 8BIT SRL IN/OUT 8SOIC
Tax included.

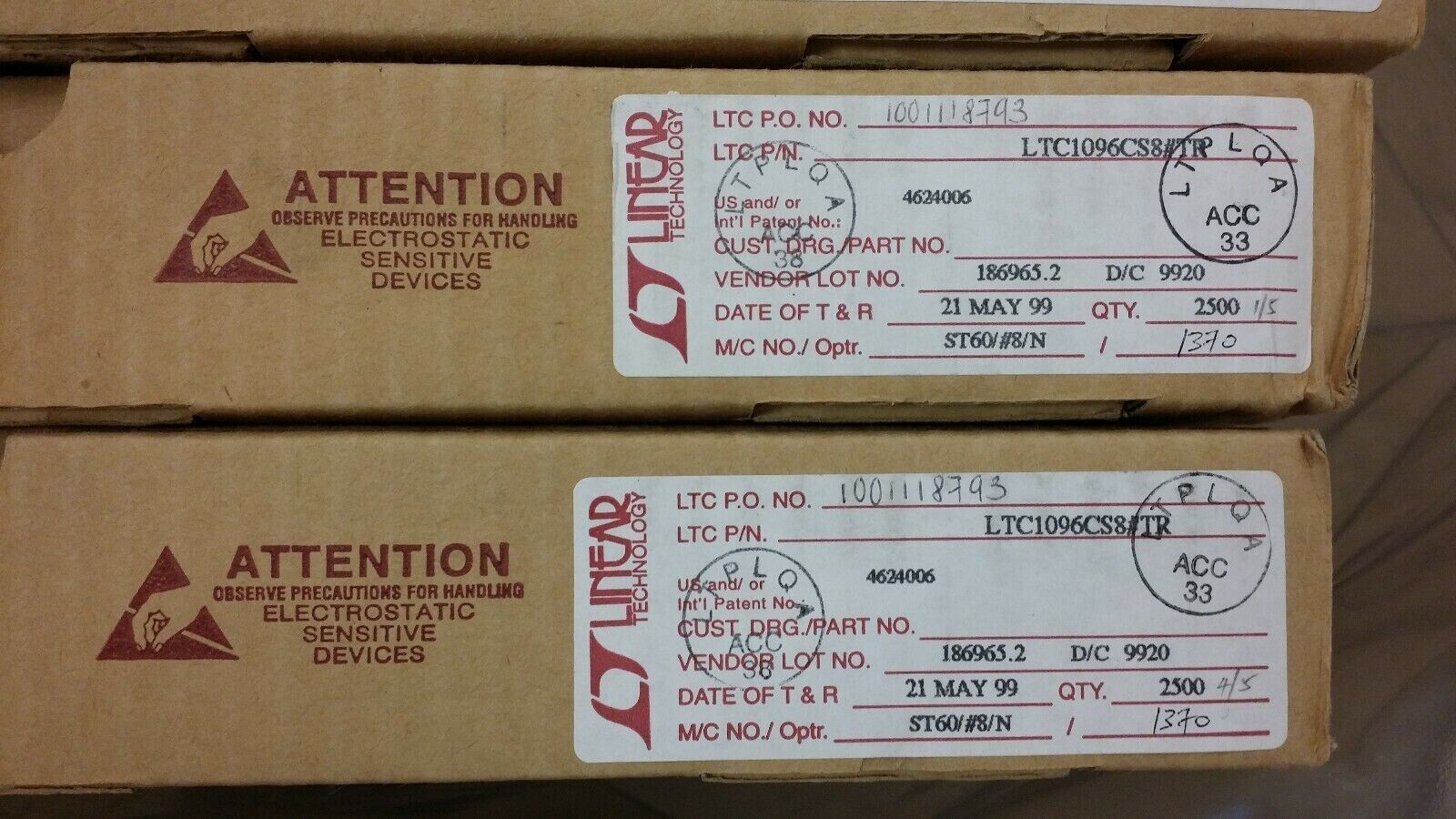

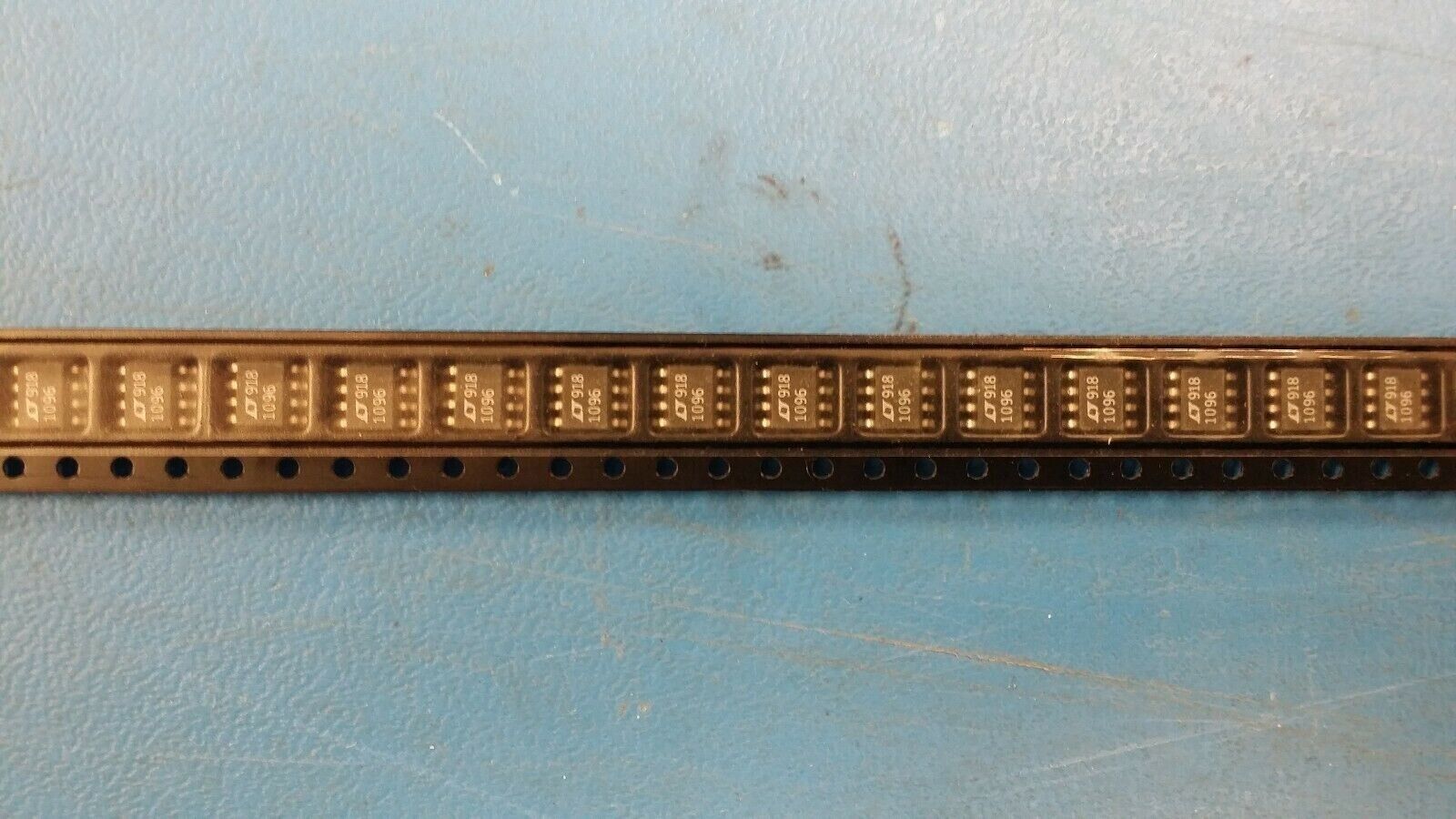

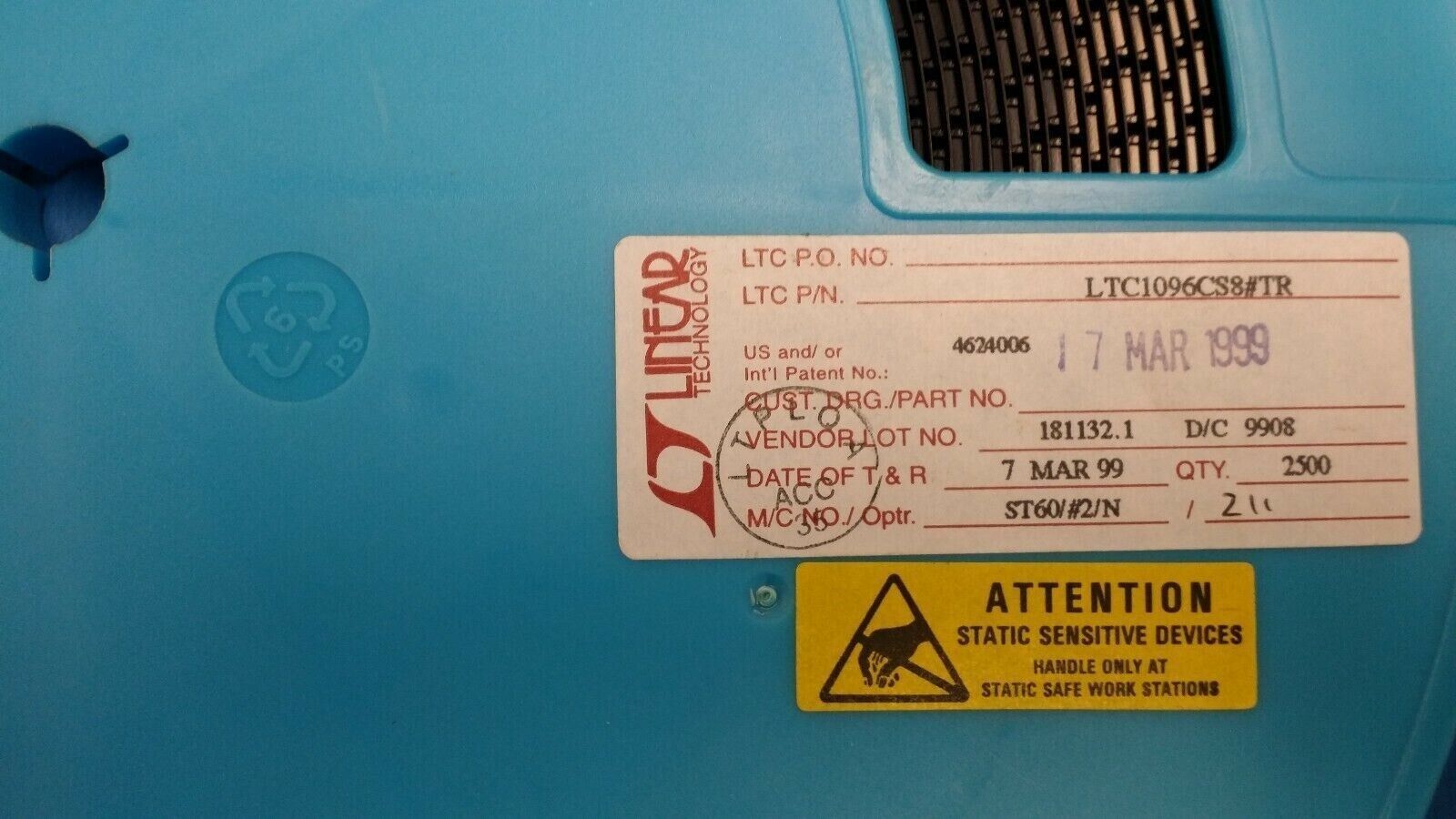

THIS LISTING IS FOR (2500 PCS) OF LTC1096CS8 BY LINEAR TECHNOLOGY
Mfr Package Description 0.150 INCH, PLASTIC, SOIC-8
Status Transferred
Converter Type ADC, SUCCESSIVE APPROXIMATION
Analog Input Voltage-Min -0.05 V
Analog Input Voltage-Max 9.05 V
Conversion Time-Max 32.0 µs
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Linearity Error-Max (EL) 0.3906 %
Moisture Sensitivity Level 1
Number of Analog In Channels 1.0
Number of Bits 8
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Bit Code BINARY
Output Format SERIAL
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Sample-and-Hold/Track-and-Hold SAMPLE
Sample Rate 0.033 MHz
Seated Height-Max 1.752 mm
Sub Category Analog to Digital Converters
Supply Voltage-Nom 3.0 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 4.9025 mm
Width 3.9 mm
