(2500) ON5409 PHILIPS POWER FET TRANS 9.4A 100V 0.29 OHM DPAK-3 TO-252 ROHS
Tax included.

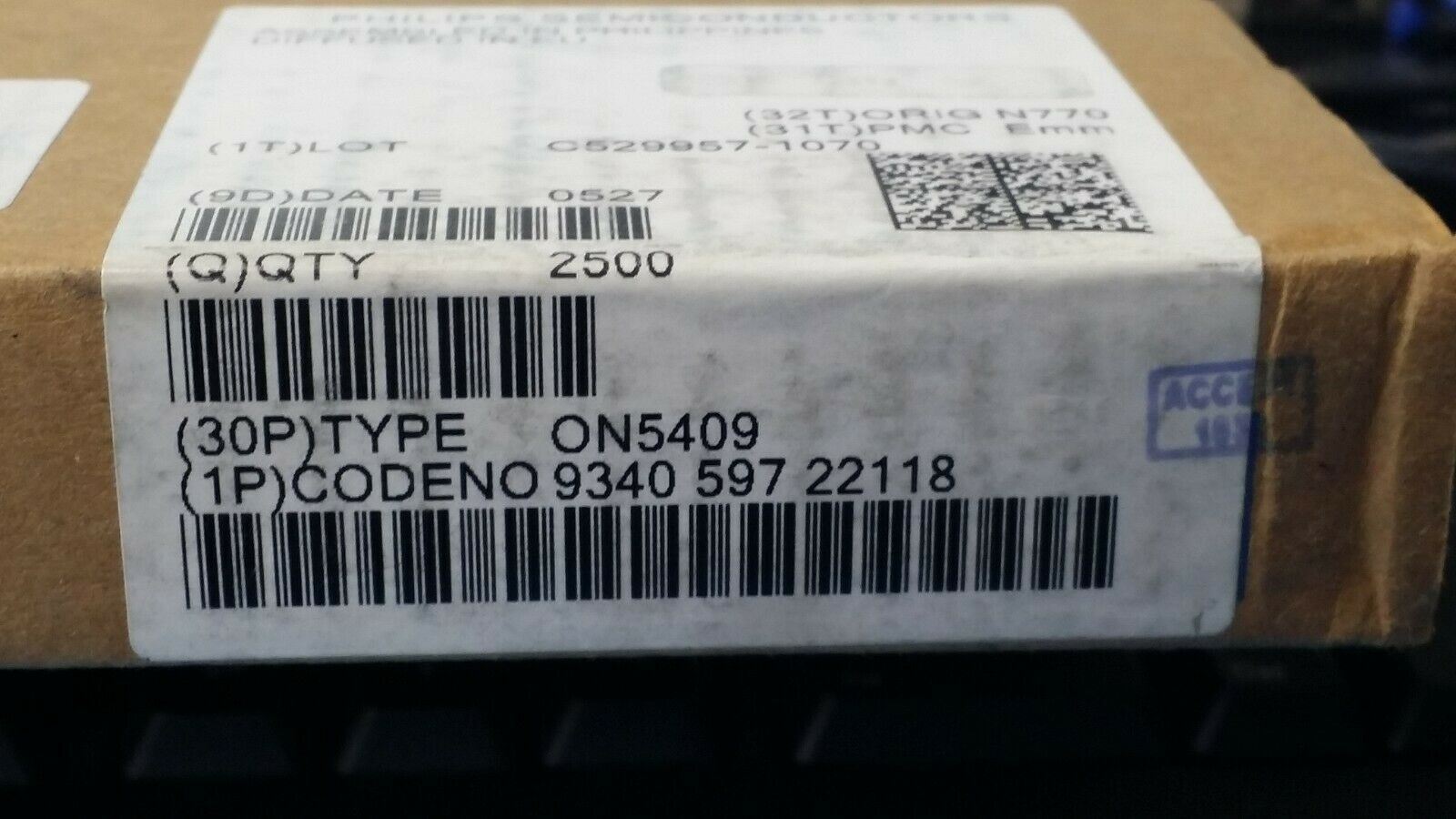

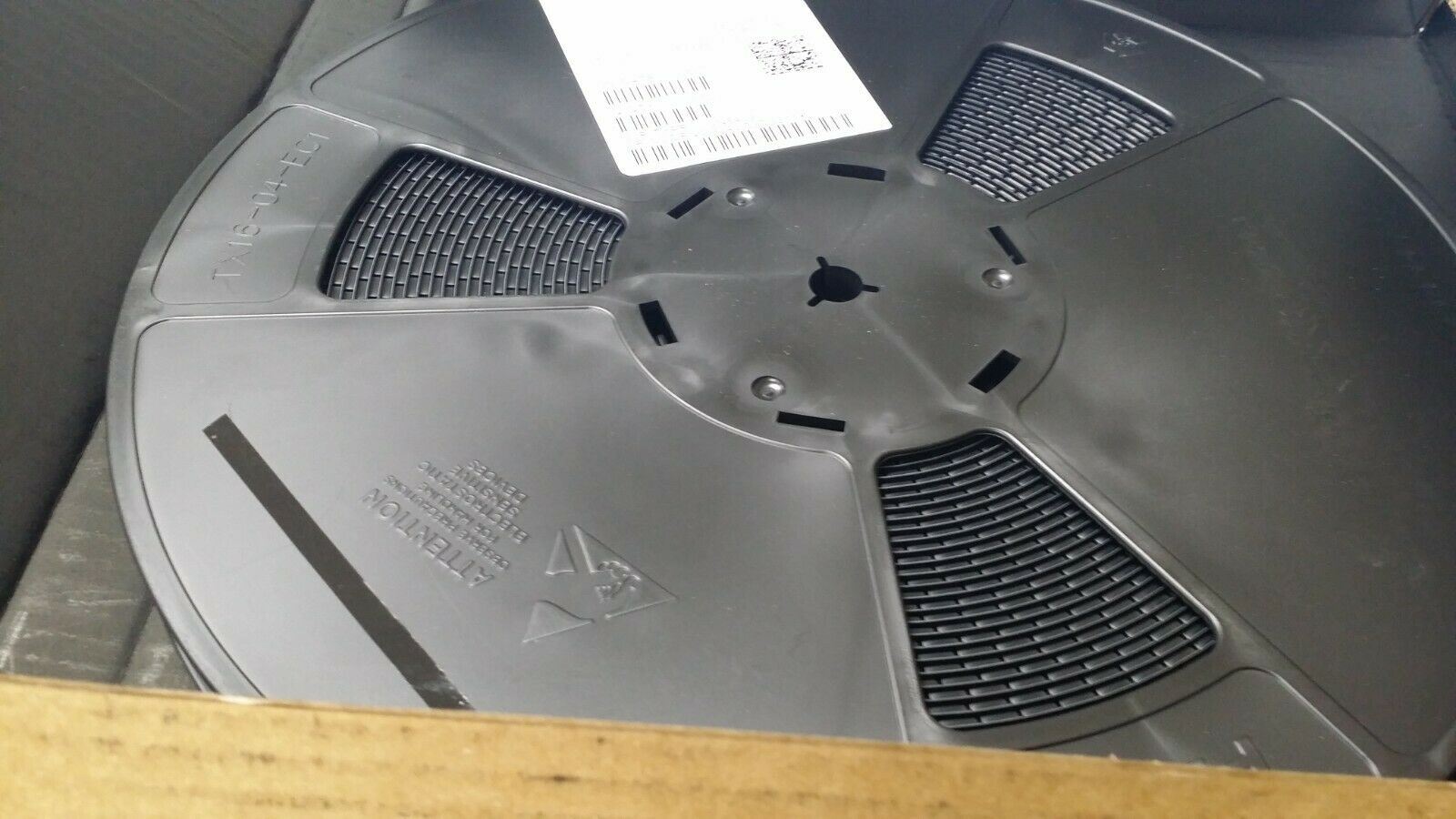

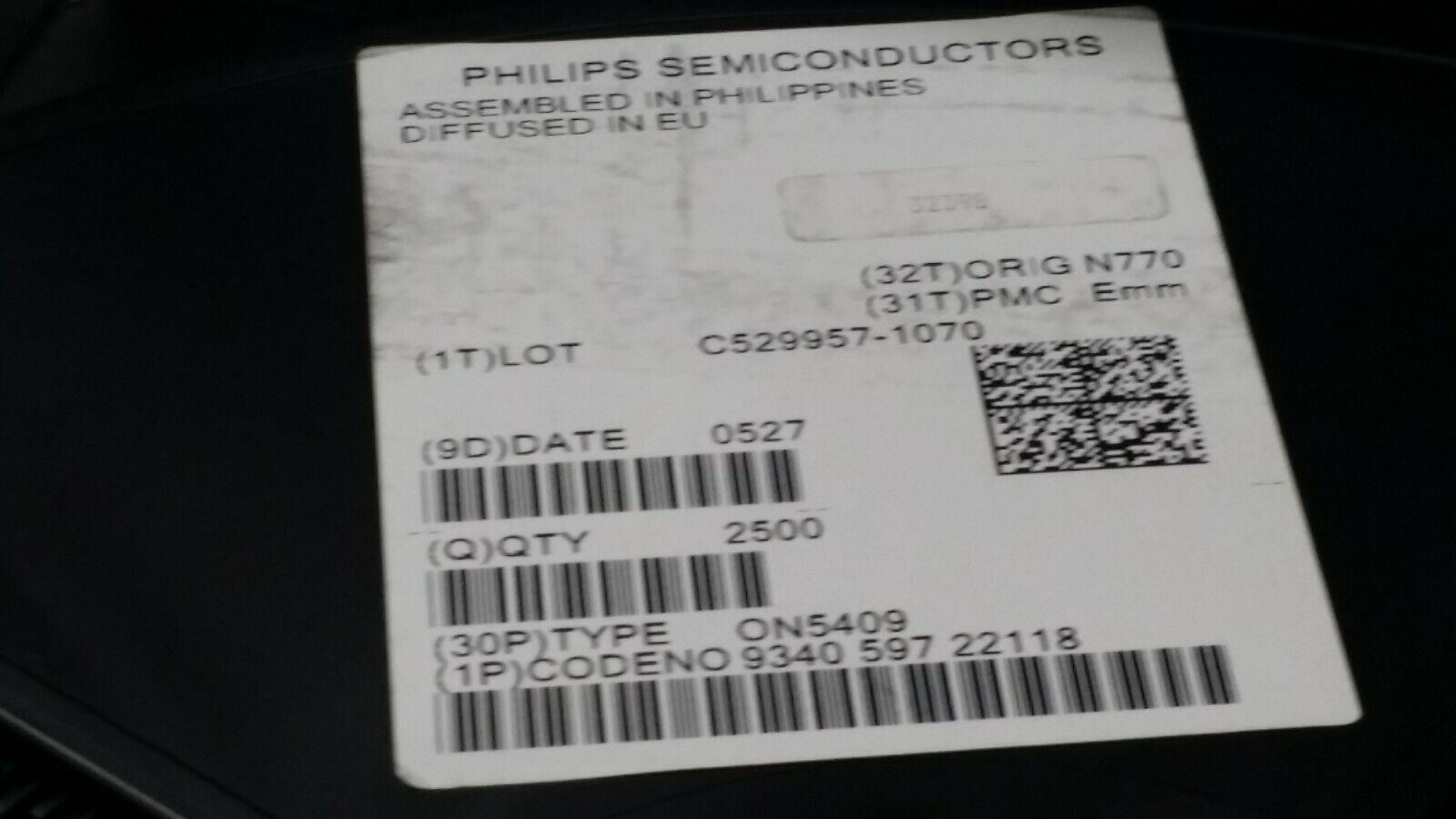

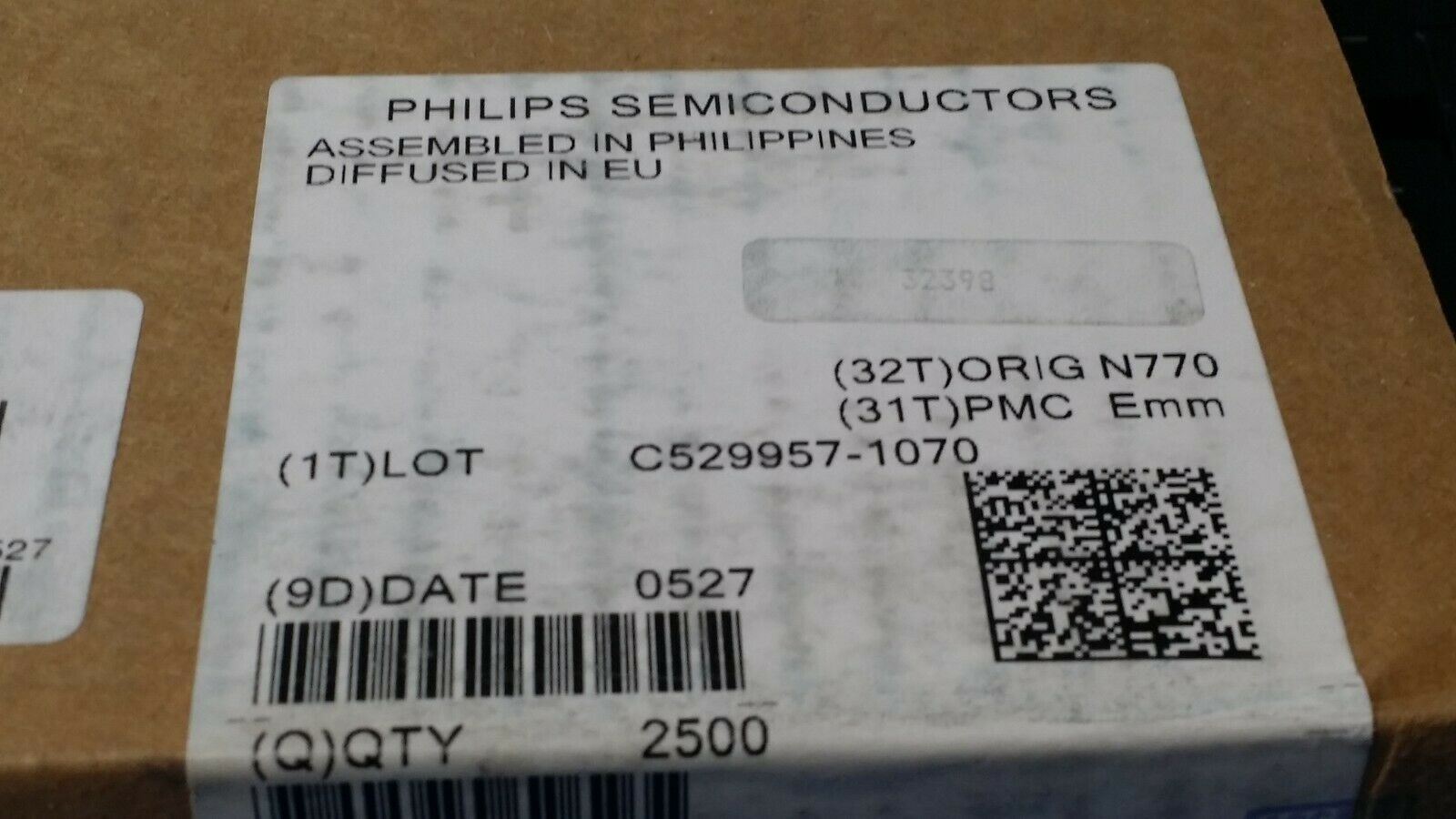

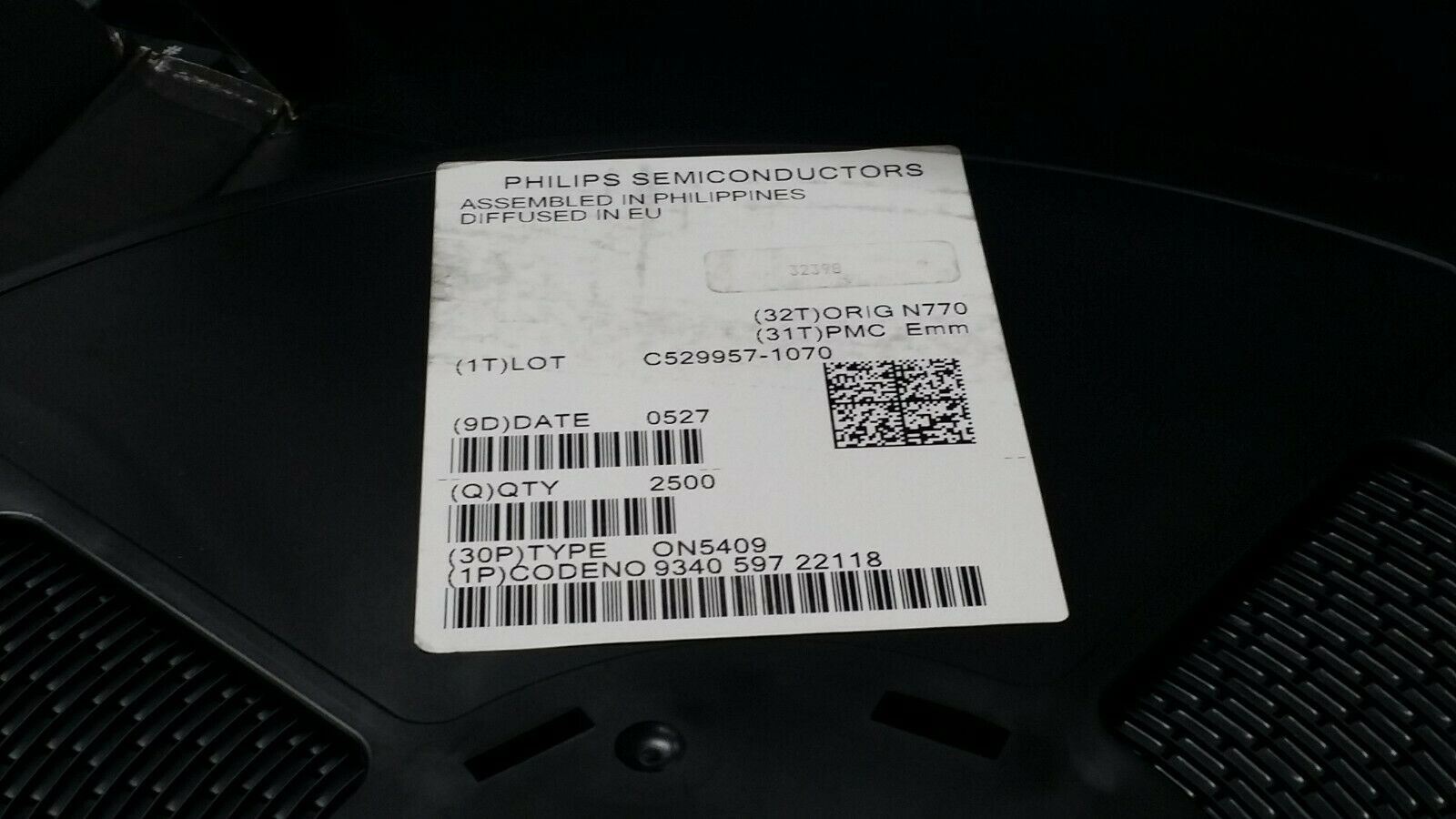

THIS IS FOR (2500 PCS) OF ON5409 BY PHILIPS

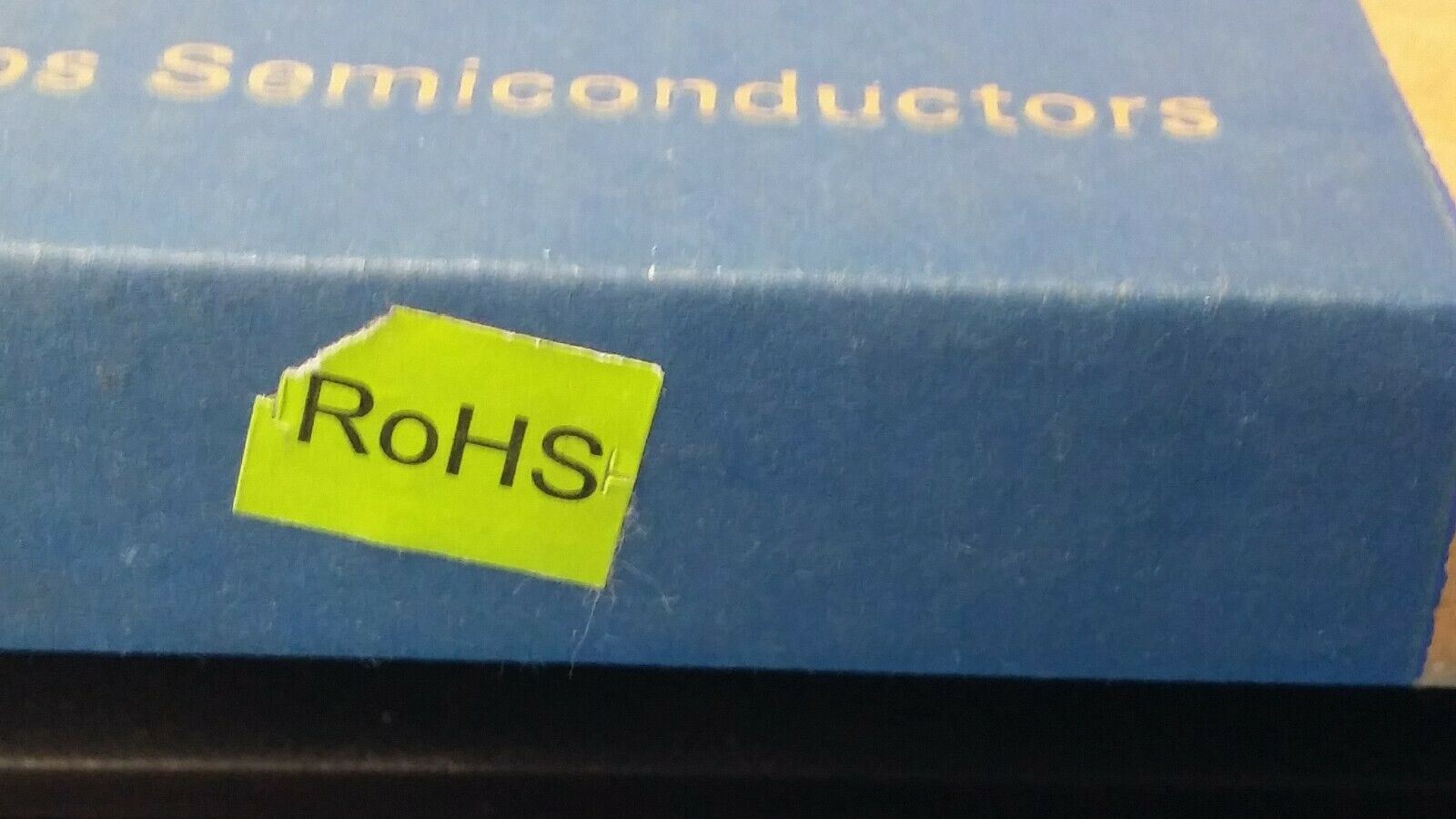

POWER FET TRANSISTOR 9.4A 100V 0.29 OHM DPAK-3 TO-252 ROHS
Mfr Package Description DPAK-3
Status Discontinued
Avalanche Energy Rating (Eas) 370.0 mJ
Case Connection DRAIN
Configuration SINGLE WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 9.4 A
Drain Current-Max (ID) 9.4 A
Drain-source On Resistance-Max 0.29 ohm
DS Breakdown Voltage-Min 100.0 V
FET Technology METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code TO-252
JESD-30 Code R-PSSO-G2
JESD-609 Code e0
Number of Elements 1.0
Number of Terminals 2
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type P-CHANNEL
Power Dissipation-Max (Abs) 50.0 W
Pulsed Drain Current-Max (IDM) 37.6 A
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount YES
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Additional Feature FAST SWITCHING, AVALANCHE RATED
