(250 PCS) ZC2813ETA ZETEX Dual Schottky Barrier Mixer Diode SOT-23
Tax included.

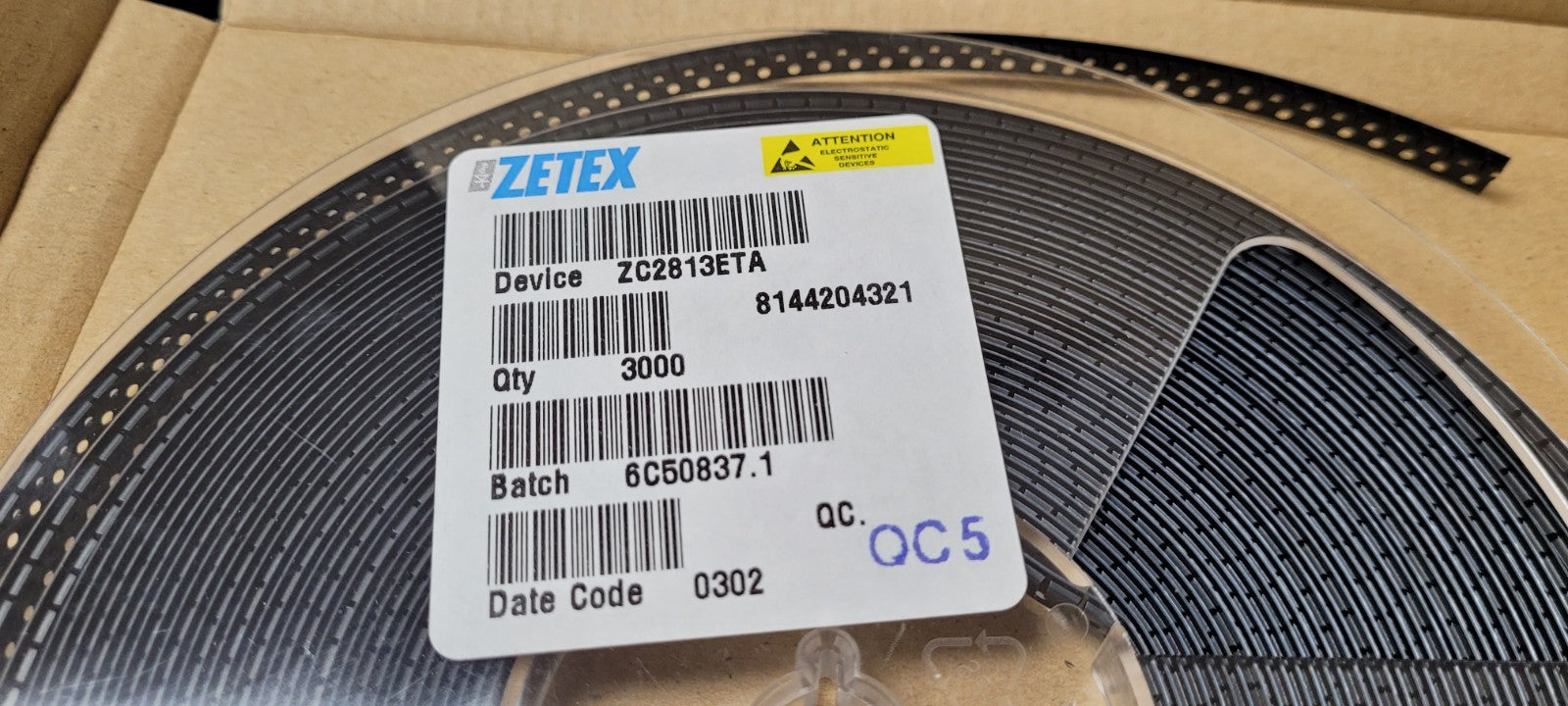

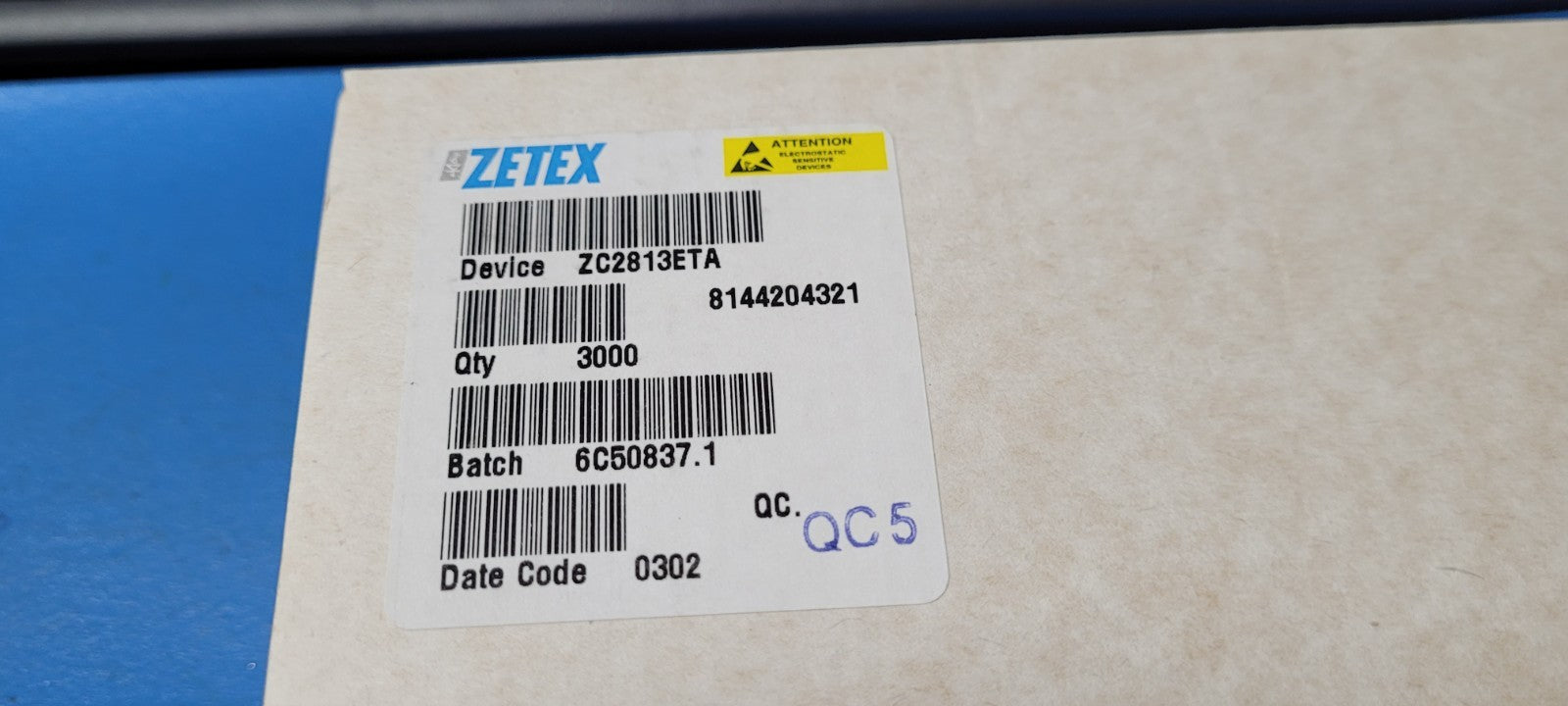

THIS IS FOR (250 PCS) OD ZC2813ETA BY ZETEX
Dual Schottky Barrier Mixer Diode SOT-23
Type: Dual Schottky Barrier Diode (configured as a Series pair)
Primary Application: RF Mixing and signal detection
Package Style: Surface-mount SOT23-3

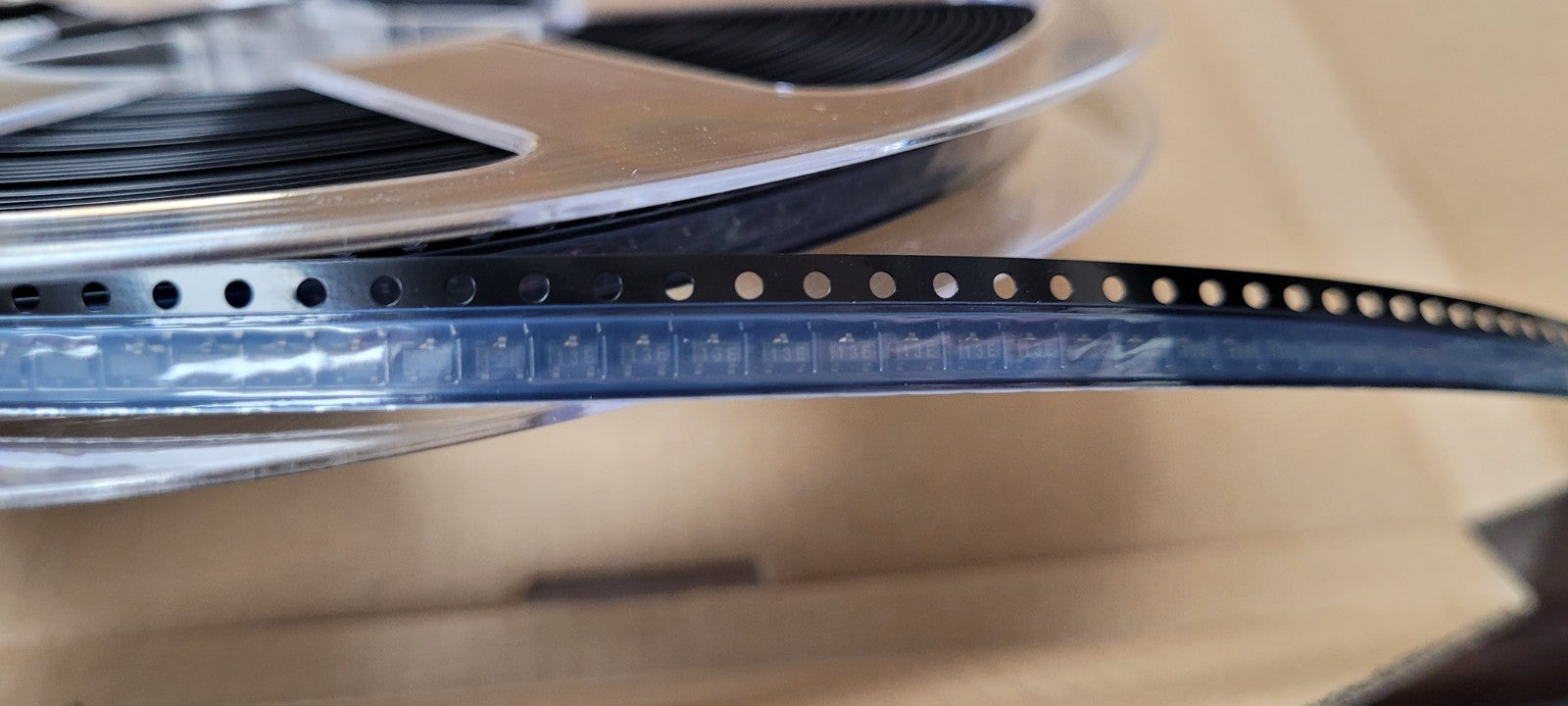

Suffix Meaning: The "TA" suffix traditionally designates the specific tape-and-reel packaging format used by Zetex/Diodes Inc. for automated PCB assembly
Part #: ZR78L048GTA
Obsolete
Part Category: Fixed Positive Single Output Standard Regulators
Manufacturer: ZETEX PLC
Description: Fixed Positive Standard Regulator, 4.85V, BIPolar, PDSO4
Status Discontinued
Input Voltage-Max (V) 20.0000
Input Voltage-Min (V) 6.8500
JESD-30 Code R-PDSO-G4
Length (mm) 6.5000
Number of Functions 1
Number of Terminals 4
Operating Temperature TJ-Max (Cel) 125
Operating Temperature TJ-Min (Cel) -55
Output Current1-Max (A) 0.2000
Output Voltage1-Max (V) 5.0440
Output Voltage1-Min (V) 4.6560
Output Voltage1-Nom (V) 4.8500
Package Body Material PLASTIC/EPOXY
Package Code LSOP
Package Equivalence Code SOT-223
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE
DLA Qualification Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max (mm) 1.7000
Surface Mount YES
Technology BIPOLAR
Terminal Form GULL WING
Terminal Pitch (mm) 2.300
Terminal Position DUAL
Voltage Tolerance-Max (%) 4.000000
Width (mm) 3.5000
