(250 PCS) B82496C3479J Fixed Inductors 4.7nH 800mA 5% 1.6x0.8mm SMD ROHS
Tax included.

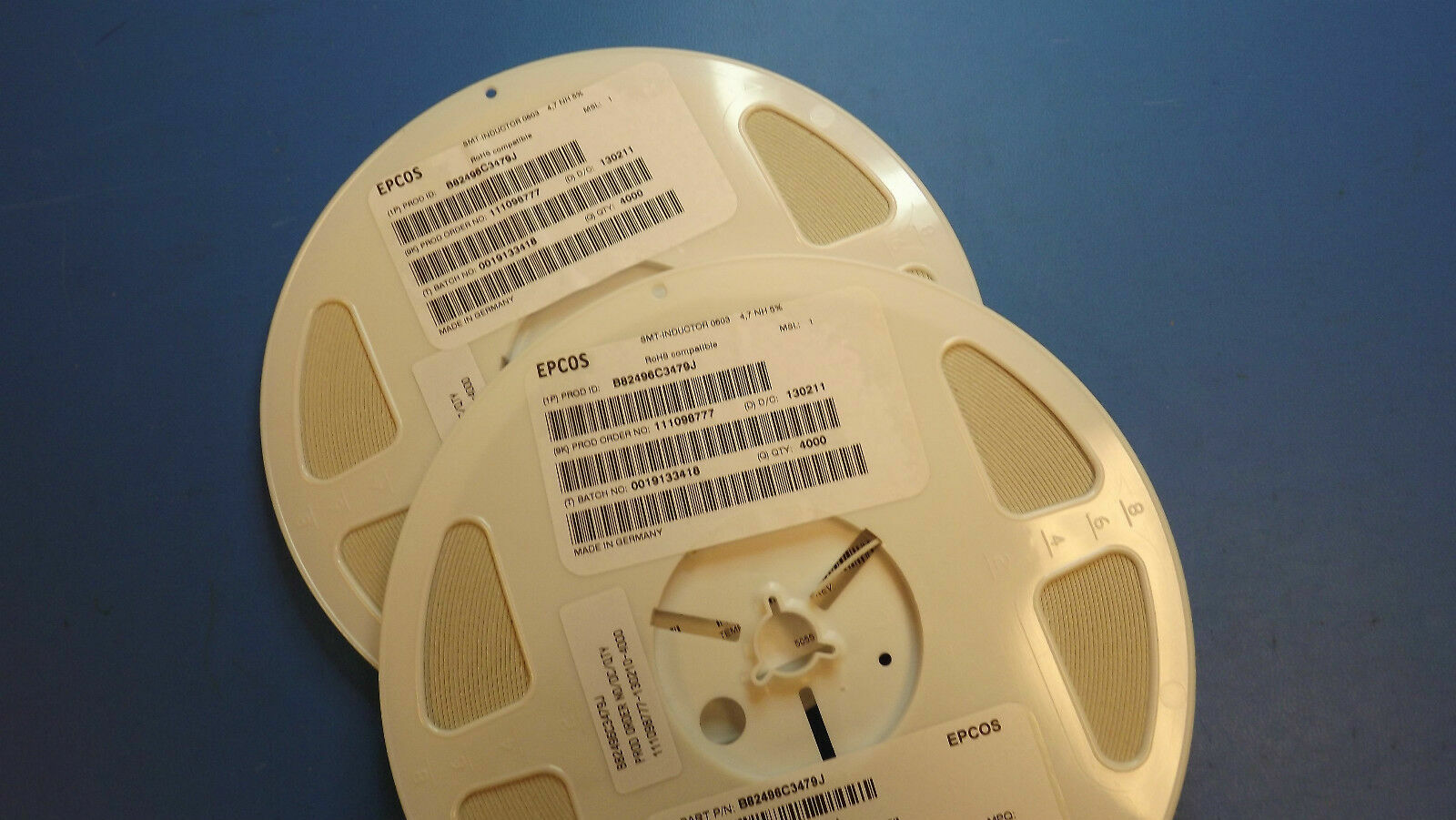

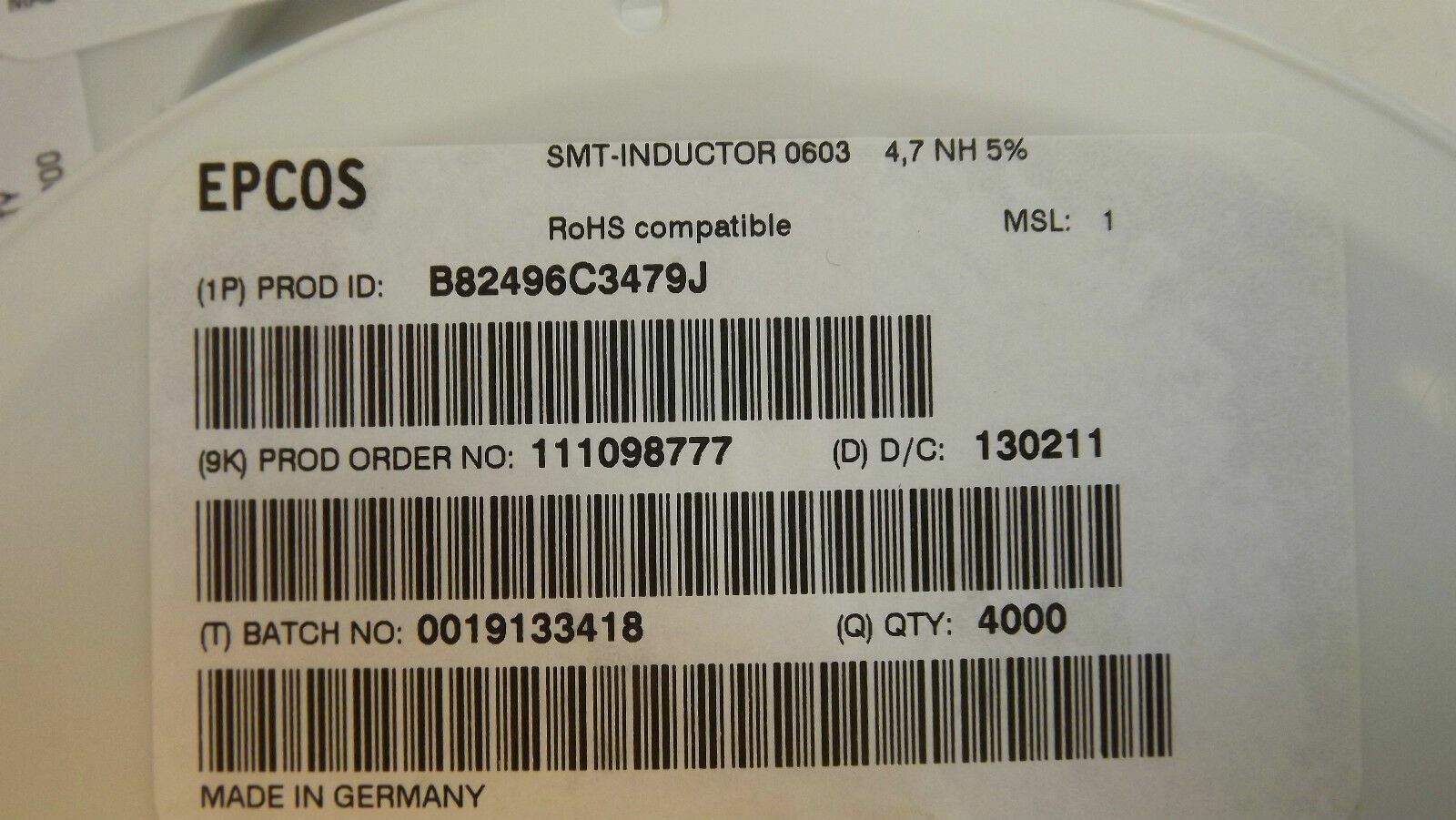

THIS LISTING IS FOR (250 PCS) OF B82496C3479J BY EPCOS
Fixed Inductors 4.7nH 800mA 5% 1.6x0.8mm SMD
B82496C3479J Part Details & Parametric
| EU RoHS |
Compliant
|
| Type | Chip |
| Technology | Laser Cut |
| Core Material | Copper Plated Ceramic |
| Inductance (H) | 4.7n |
| Tolerance | 5% |
| Test Frequency (Hz) | 100M |
| Maximum DC Current (A) | 800m |
| Maximum DC Resistance (Ohm) | 100m |
| Minimum Quality Factor | 14@100MHz |
| Minimum Self Resonant Frequency (Hz) | 7G |
| Case Size | 0603 |
| Product Length (mm) | 1.7 |
| Product Depth (mm) | 0.9 |
| Product Height (mm) | 0.9 |
| Maximum Operating Temperature (°C) | 150 |
| Special Features | Tight Tolerance|High SRF |
| Packaging | Tape and Reel |
