(25) PDTC144EEF Small Signal Bipolar Transistor, 0.1A 50V 1-Element NPN Silicon
Tax included.

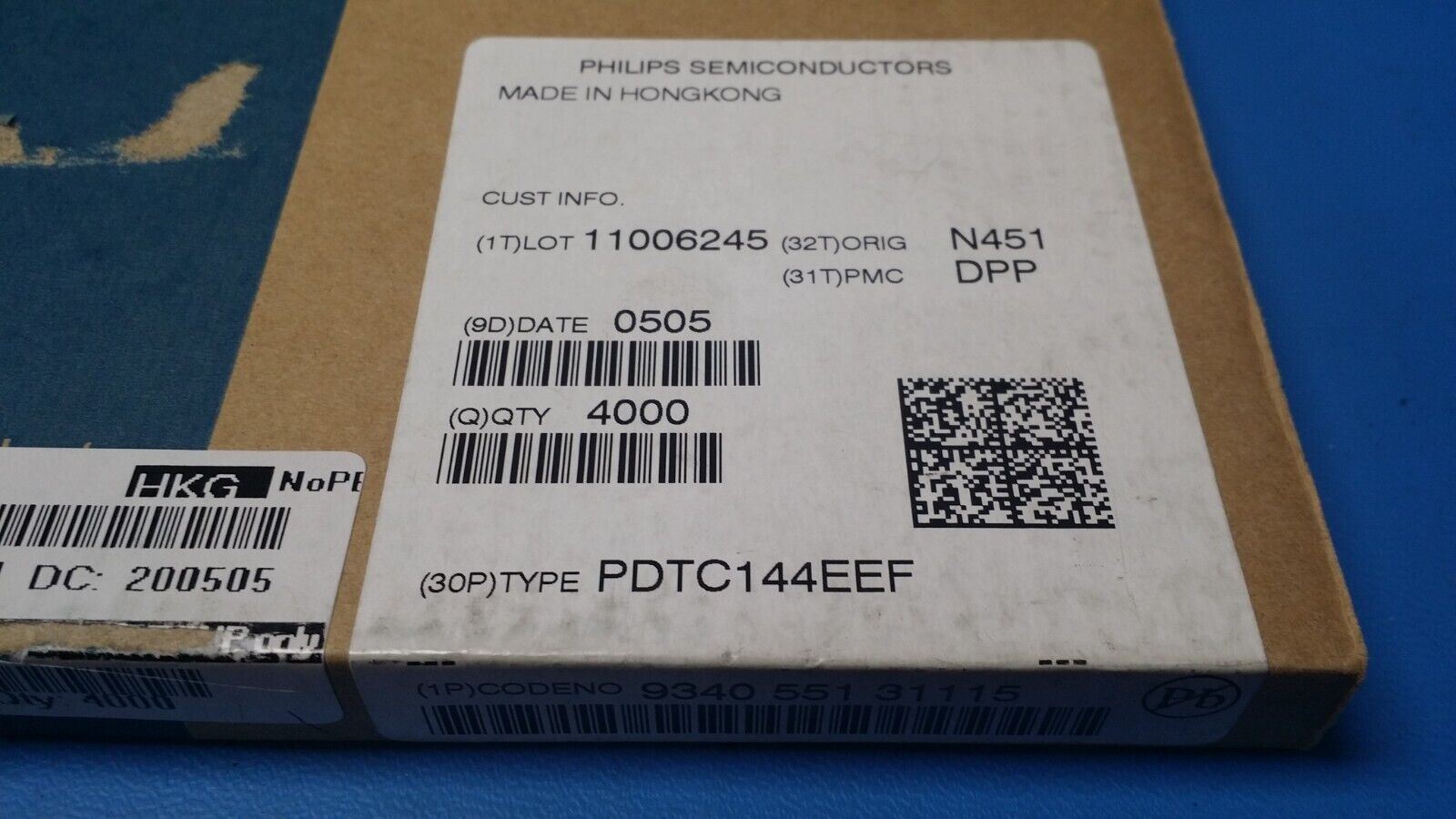

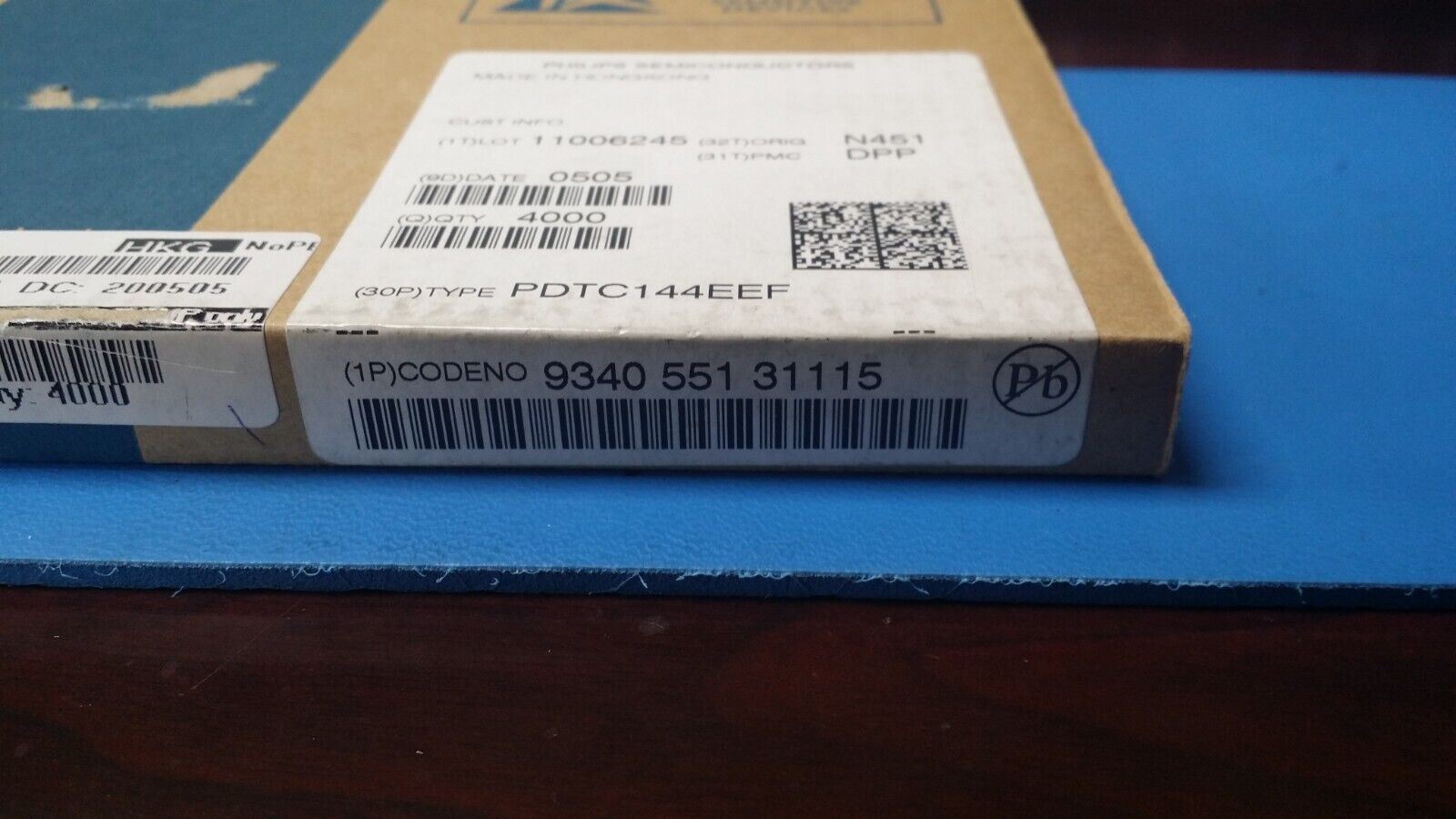

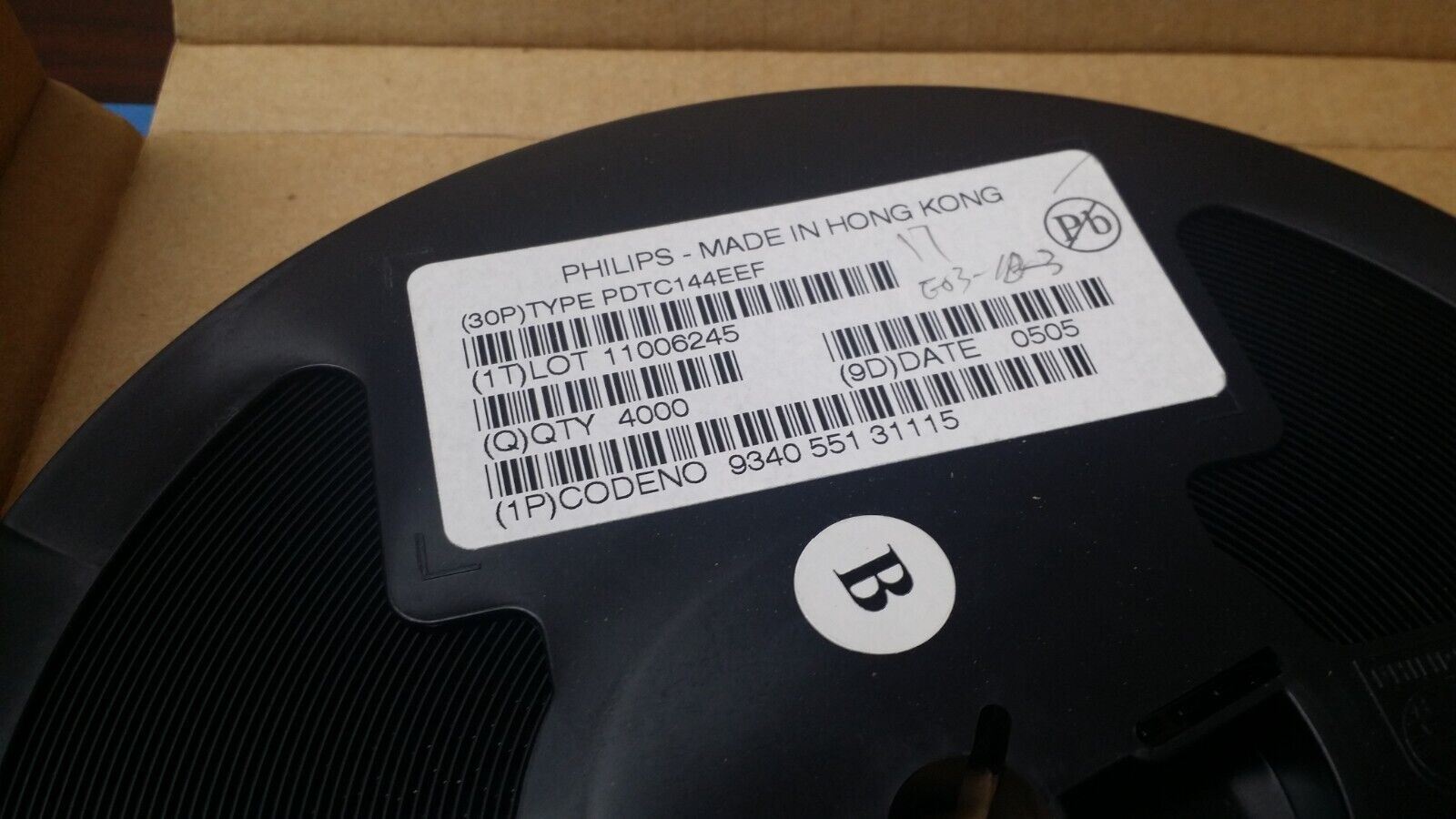

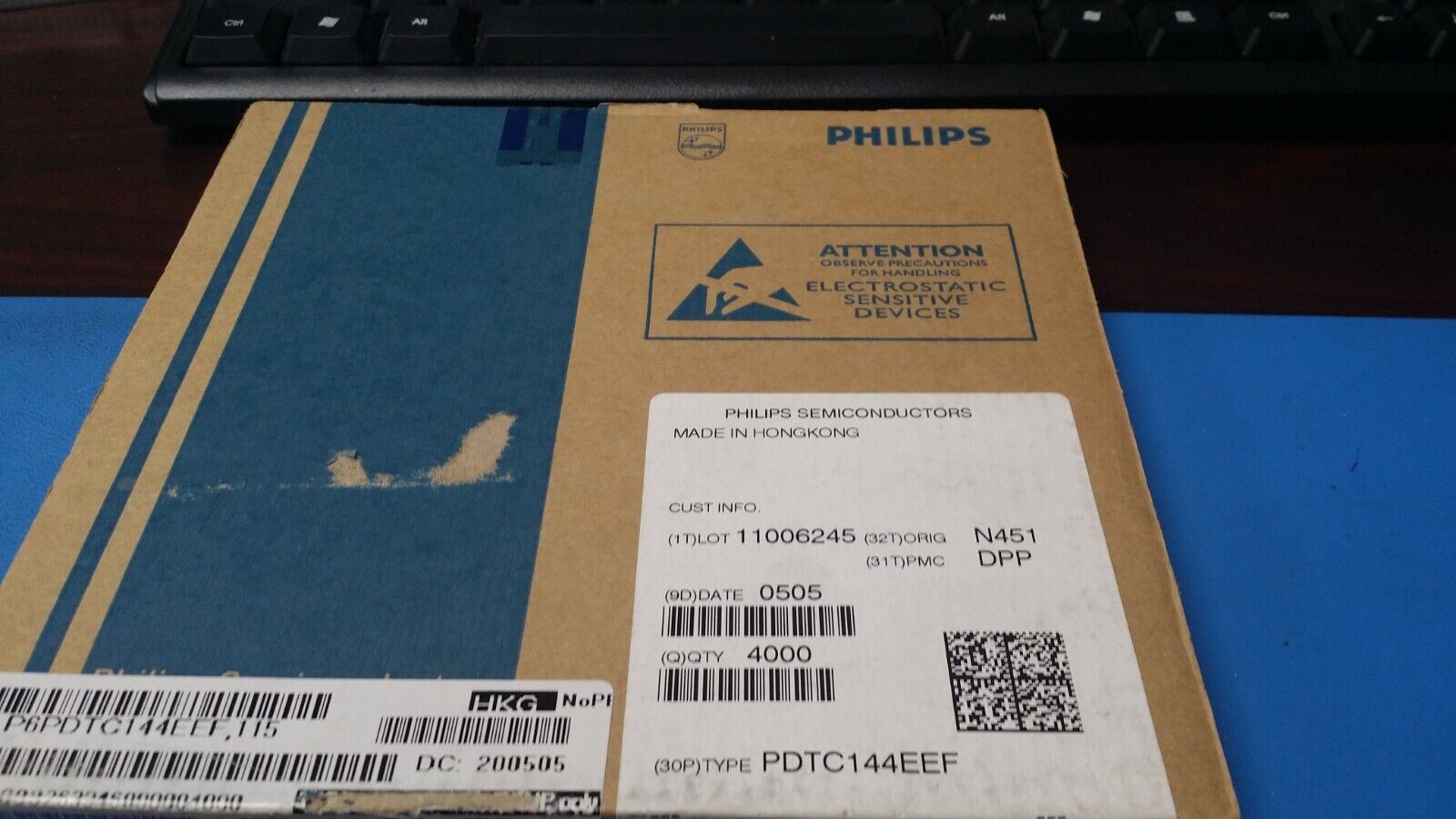

THIS IS FOR (25 PCS) OF PDTC144EEF BY NXP PHILIPS
Small Signal Bipolar Transistor, 0.1A 50V 1-Element NPN Silicon ROHS
Part #: PDTC144EEF
Part Category: Transistors
Manufacturer: NXP (PHILIPS)
Description: Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon
Mfr Package Description PLASTIC, SC-89, 3 PIN
EU RoHS Compliant Yes
Status Discontinued
Collector Current-Max (IC) 0.1 A
Collector-emitter Voltage-Max 50.0 V
Configuration SINGLE WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE) 80.0
JESD-30 Code R-PDSO-F3
JESD-609 Code e3
Number of Elements 1.0
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 0.25 W
Qualification Status Not Qualified
Sub Category BIP General Purpose Small Signal
Surface Mount YES
Terminal Finish Tin (Sn)
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Additional Feature BUILT IN BIAS RESISTANCE RATIO IS 1
