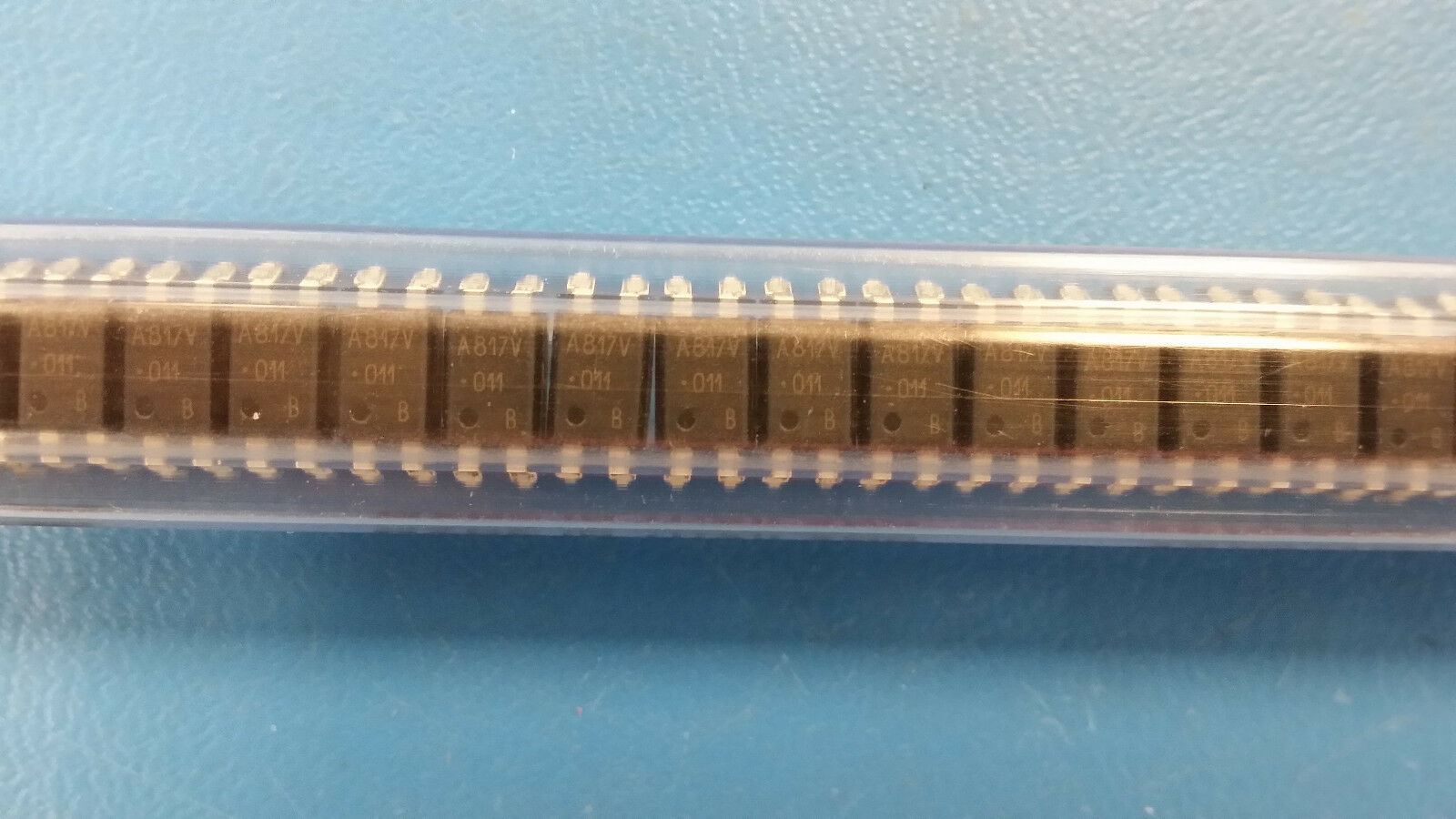

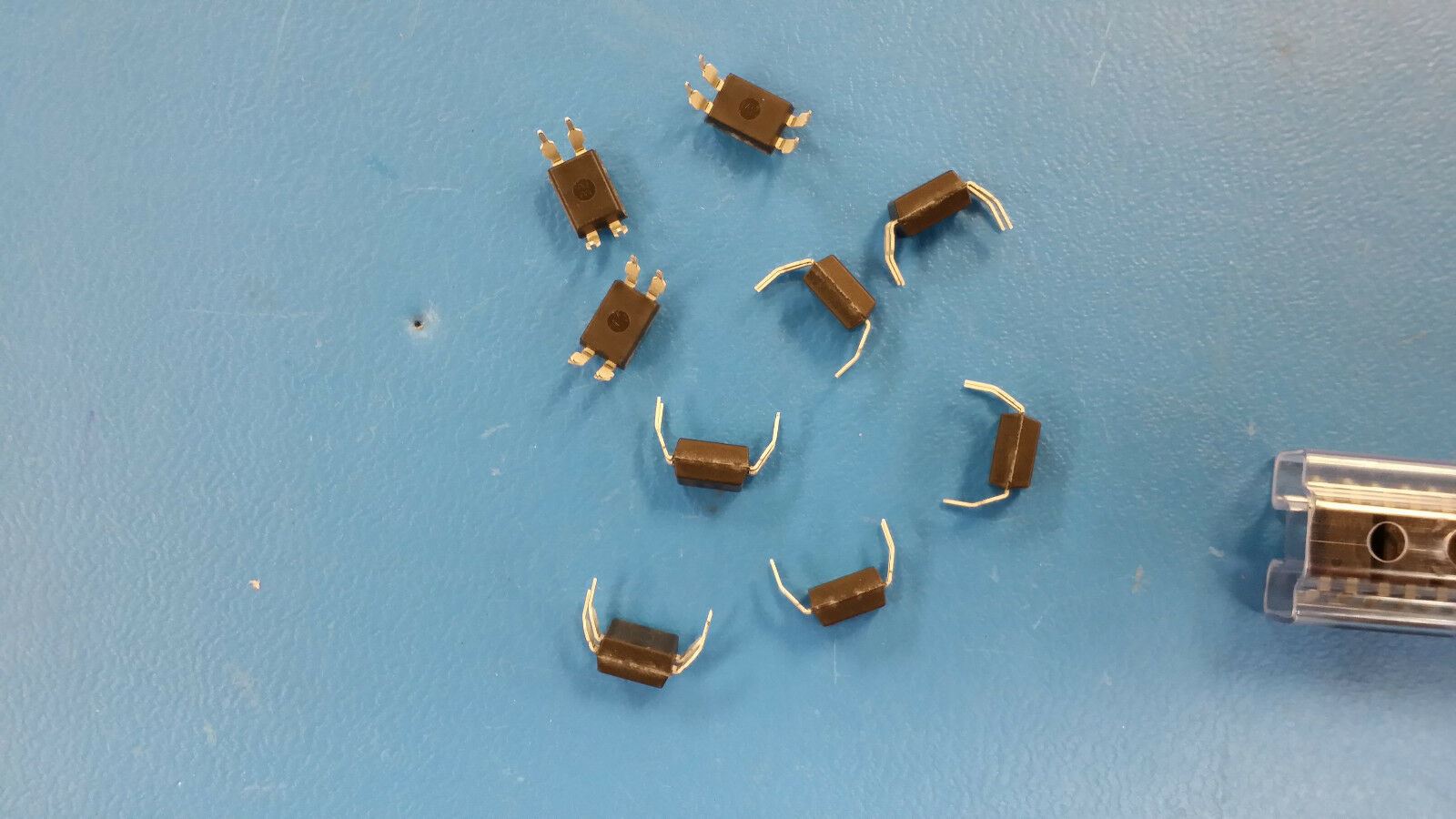

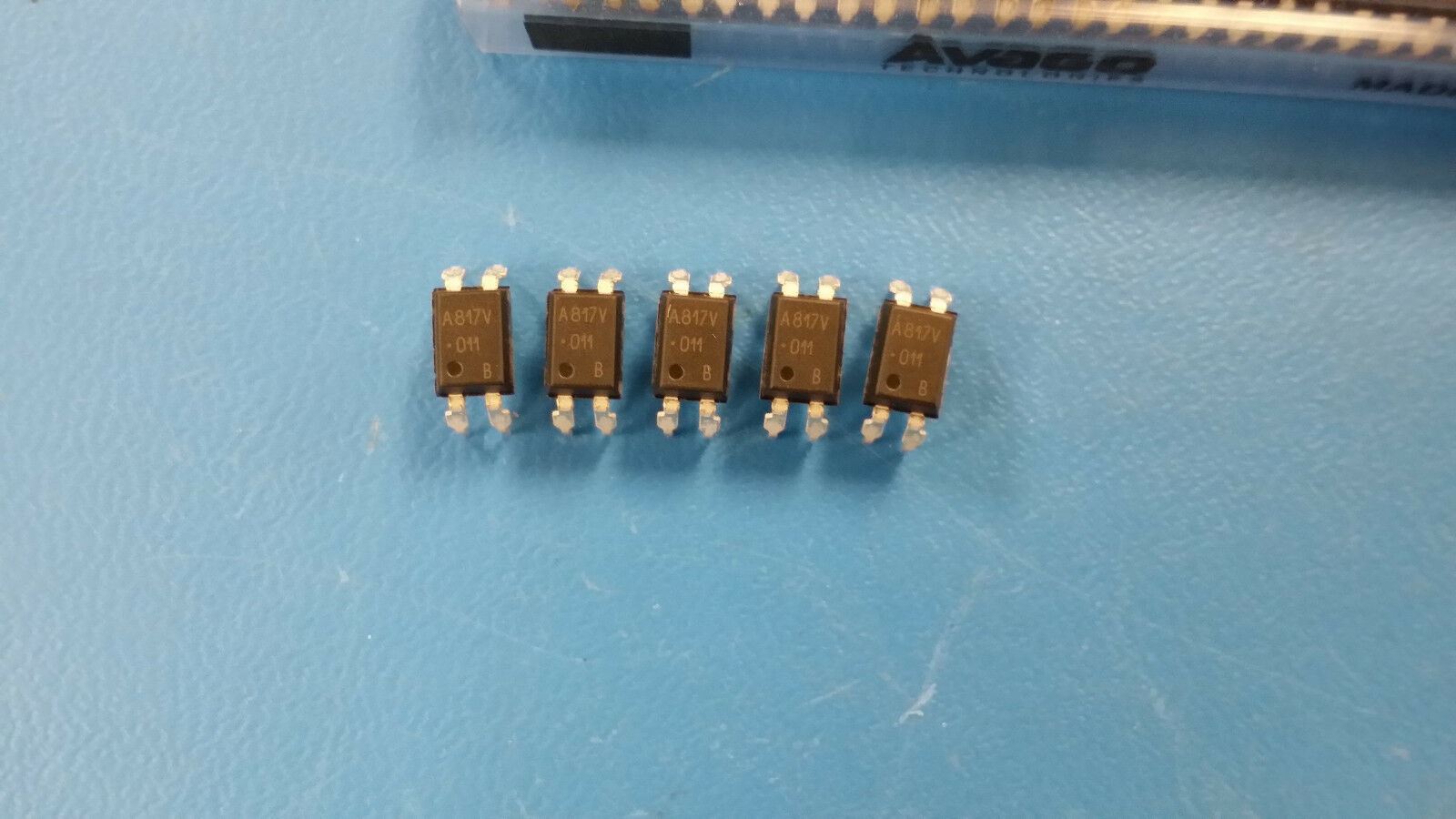

(25 PCS)HCPL-817-W6BE AVAGO Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP
Tax included.

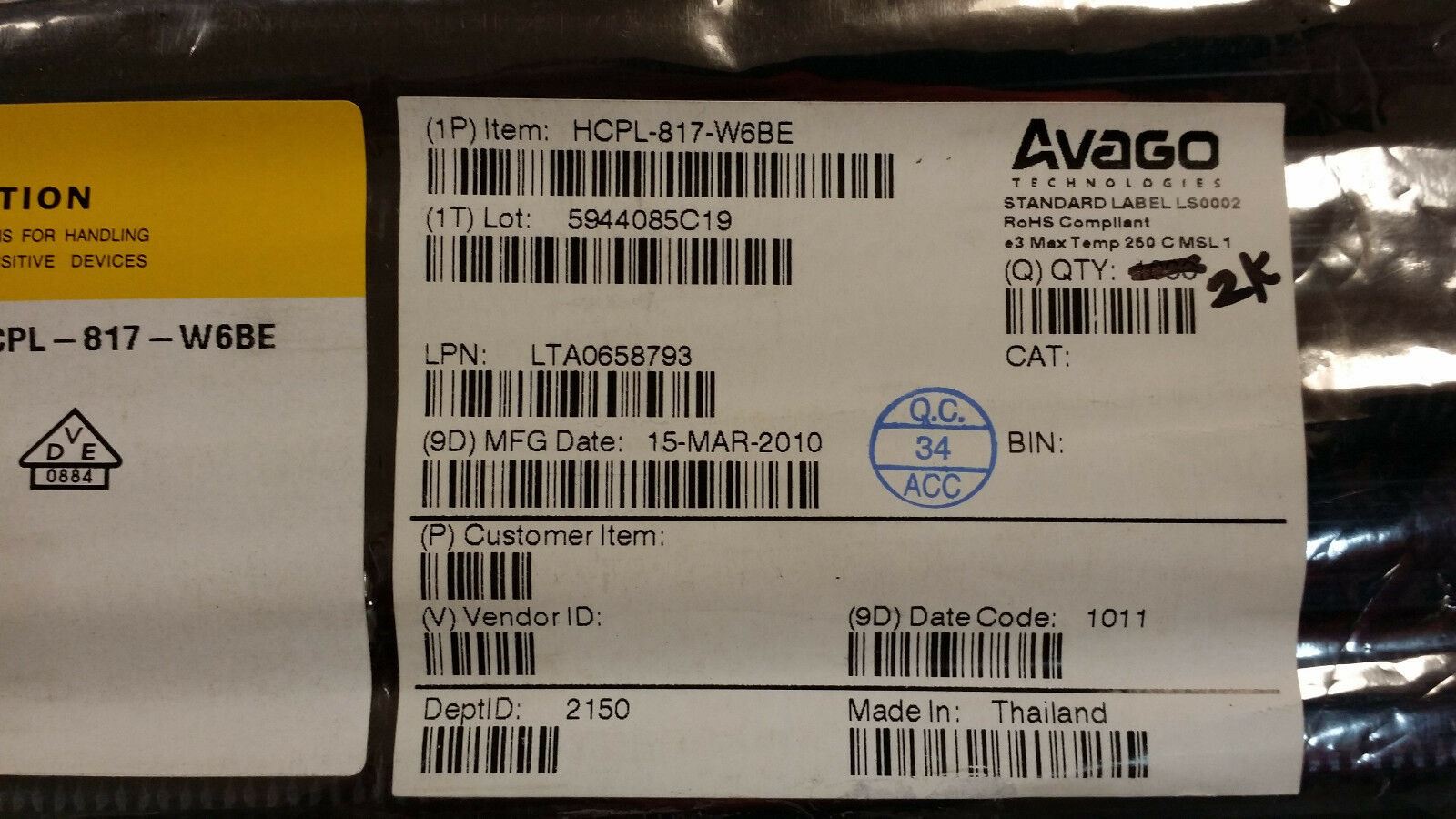

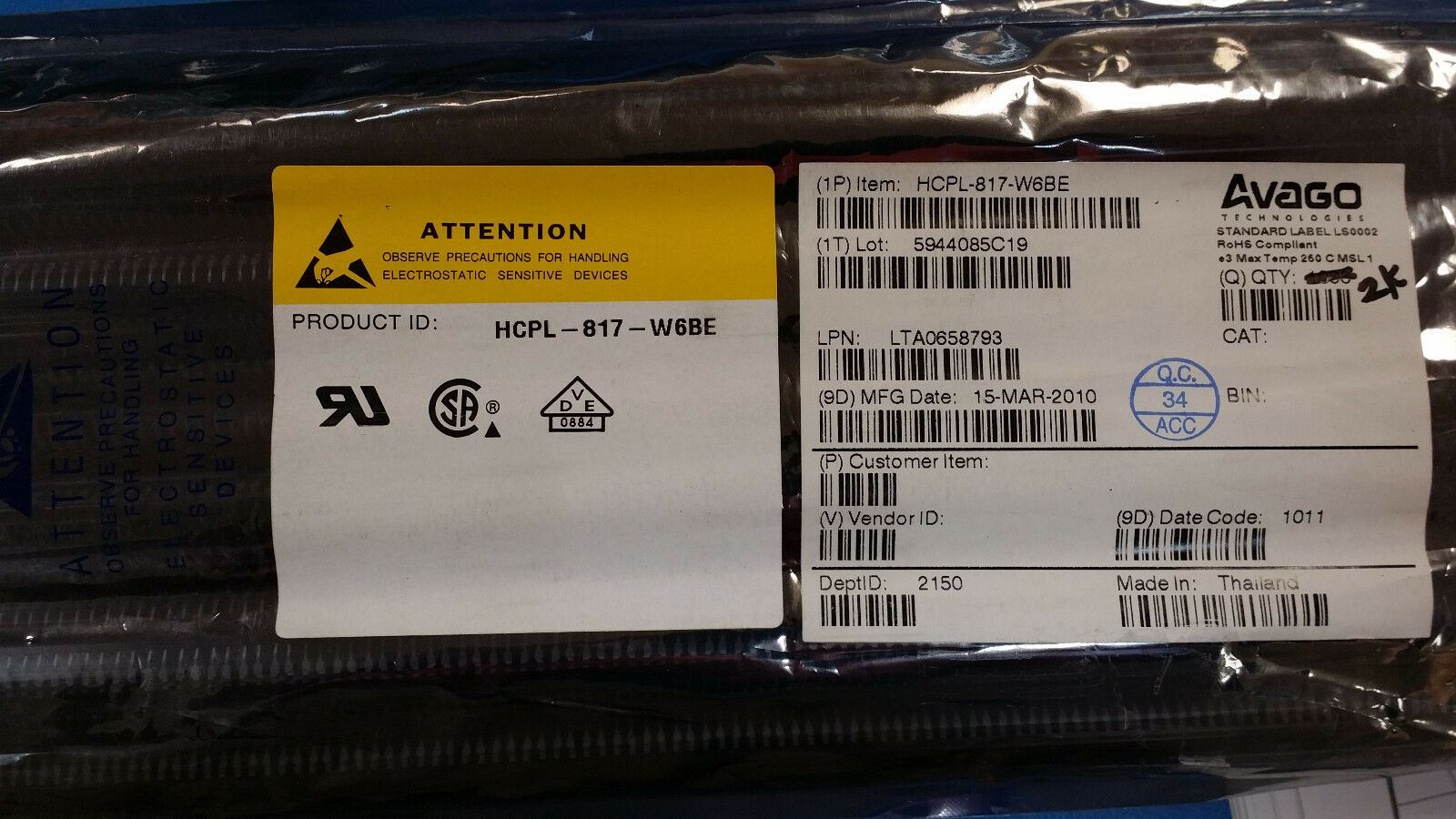

THIS LISTING IS FOR (25 PCS) OF HCPL-817-W6BE BY AVAGO
Optocoupler DC-IN 1-CH Transistor
Optocoupler DC-IN 1-CH Transistor
HCPL-817-W6BE Part Details & Parametric
| EU RoHS |
Compliant
|
| Input Type | DC |
| Output Type | DC |
| Output Device | Transistor |
| Number of Channels per Chip | 1 |
| Maximum Forward Voltage (V) | 1.4 |
| Maximum Input Current (mA) | 50 |
| Maximum Collector Current (mA) | 50 |
| Maximum Reverse Voltage (V) | 6 |
| Maximum Collector Emitter Voltage (V) | 35 |
| Maximum Collector Emitter Saturation Voltage (mV) | 200 |
| Minimum Isolation Voltage (Vrms) | 5000 |
| Maximum Power Dissipation (mW) | 200 |
| Maximum Current Transfer Ratio (%) | 260 |
| Maximum Rise Time (us) | 18 |
| Maximum Fall Time (us) | 18 |
| Minimum Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 100 |

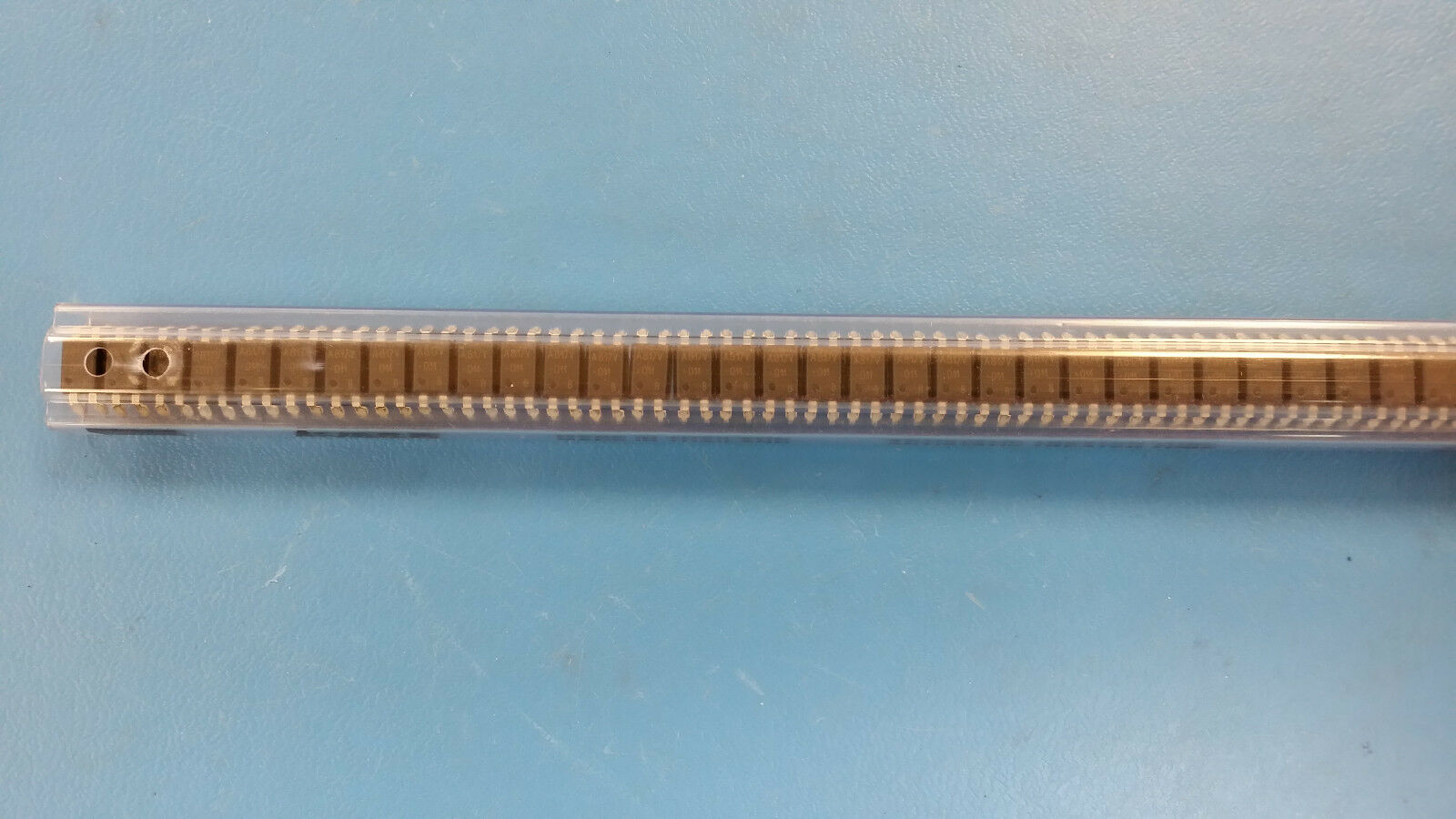

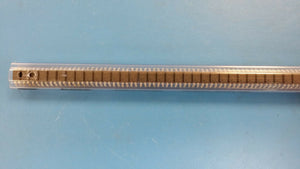

| Packaging | Tube |
| Mounting | Through Hole |
| Package Height (mm) | 3.5 |
| Package Length (mm) | 4.6 |
| Package Width (mm) | 6.5 |
| PCB | 4 |
| Standard Package Name | PDIP |
| Supplier Package | PDIP |
| Pin Count | 4 |
