(25 PCS) ZMR50HCL ZETEX Fixed Positive Standard Regulator, 5V, BIPolar TO-92

$12.95
Unit price per

Tax included.

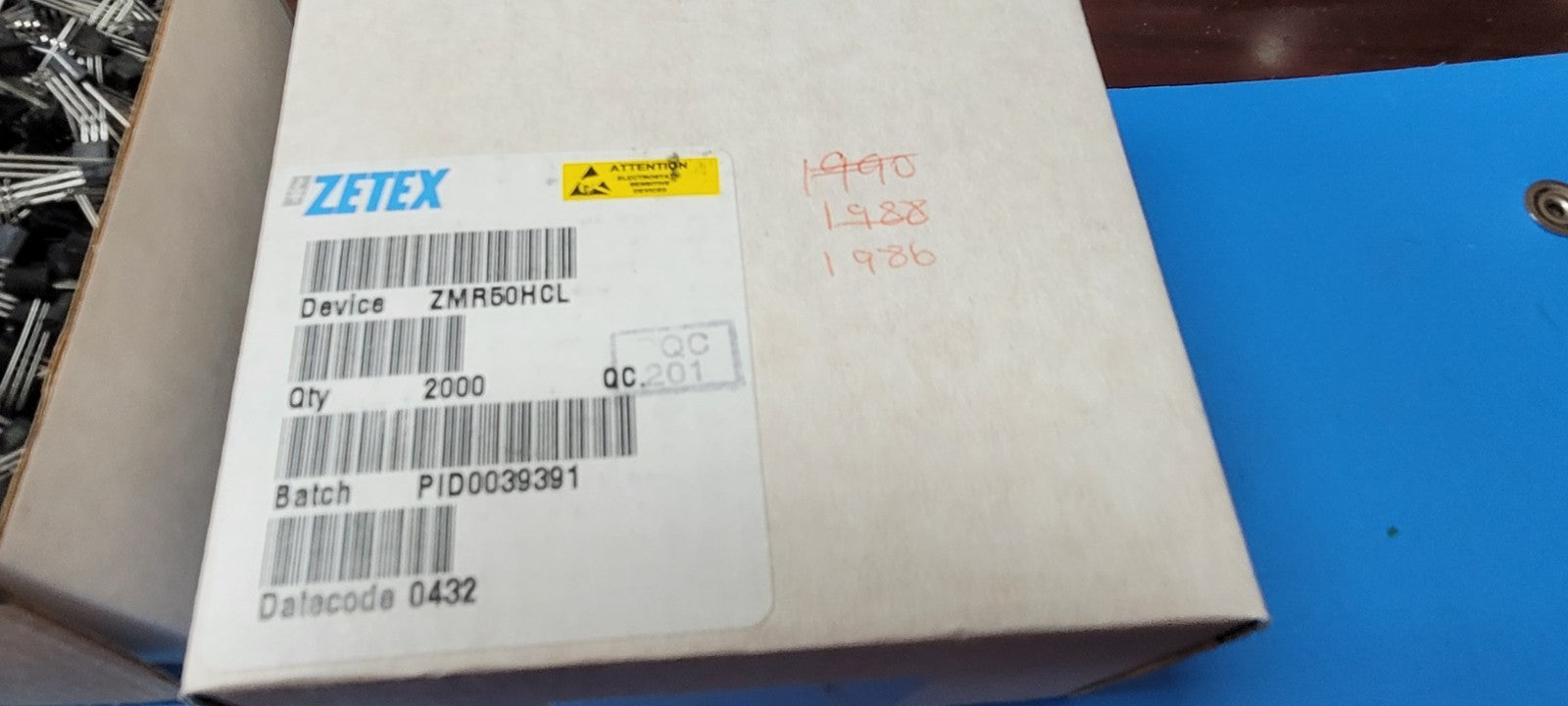

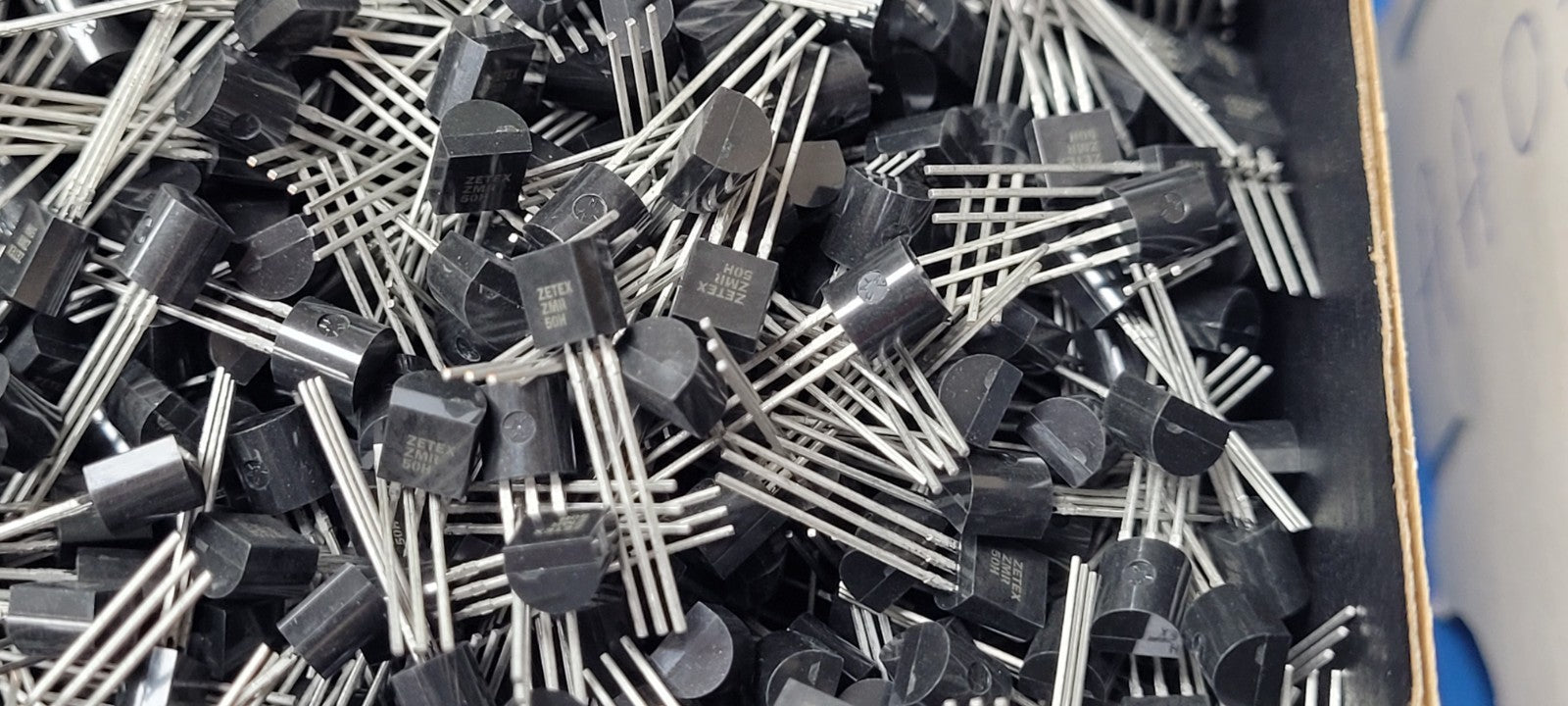

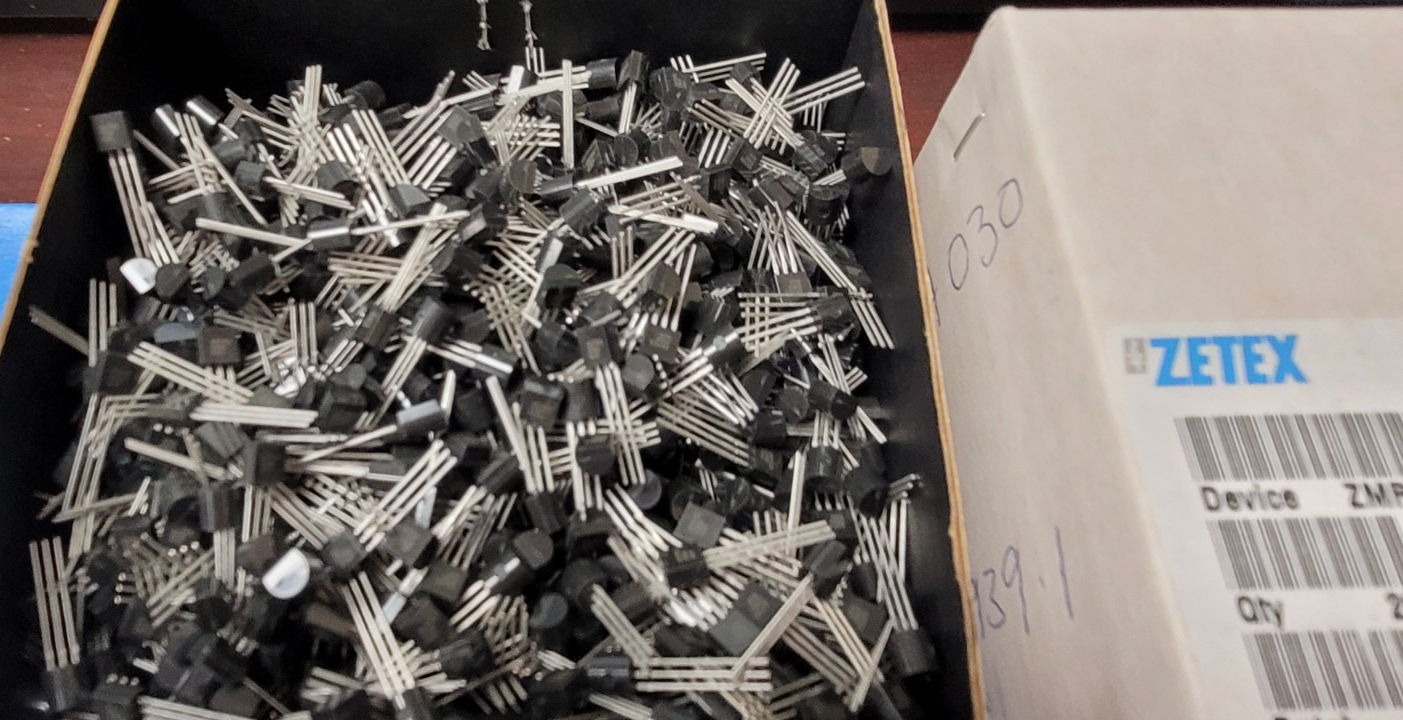

THIS IS FOR (25 PCS) OF ZMR50HCL BY ZETEX

Fixed Positive Standard Regulator, 5V, BIPolar TO-92

Part #: ZMR50HCL

Part Category: Fixed Positive Single Output Standard Regulators

Manufacturer: ZETEX PLC

Description: Fixed Positive Standard Regulator, 5V, BIPolar, PBCY3

Status Transferred

Input Voltage-Max (V) 25.0000

Input Voltage-Min (V) 7.0000

JESD-30 Code O-PBCY-W3

J-STD-609 Code e3

Number of Functions 1

Number of Terminals 3

Operating Temperature TJ-Max (Cel) 125

Operating Temperature TJ-Min (Cel) -55

Output Current1-Max (A) 0.0500

Output Voltage1-Max (V) 5.1750

Output Voltage1-Min (V) 4.7800

Output Voltage1-Nom (V) 5.0000

Package Body Material PLASTIC/EPOXY

Package Code TO-92

Package Shape ROUND

Package Style CYLINDRICAL

Peak Reflow Temperature (Cel) 260

DLA Qualification Not Qualified

Regulator Type FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

Surface Mount NO

Technology BIPOLAR

Terminal Finish Matte Tin (Sn)

Terminal Form WIRE

Terminal Position BOTTOM

Time@Peak Reflow Temperature-Max (s) 10
