(25 PCS) XGL5020-681MEC COILCRAFT FIXED INDUCTOR 0.68UH SMD ROHS
Tax included.

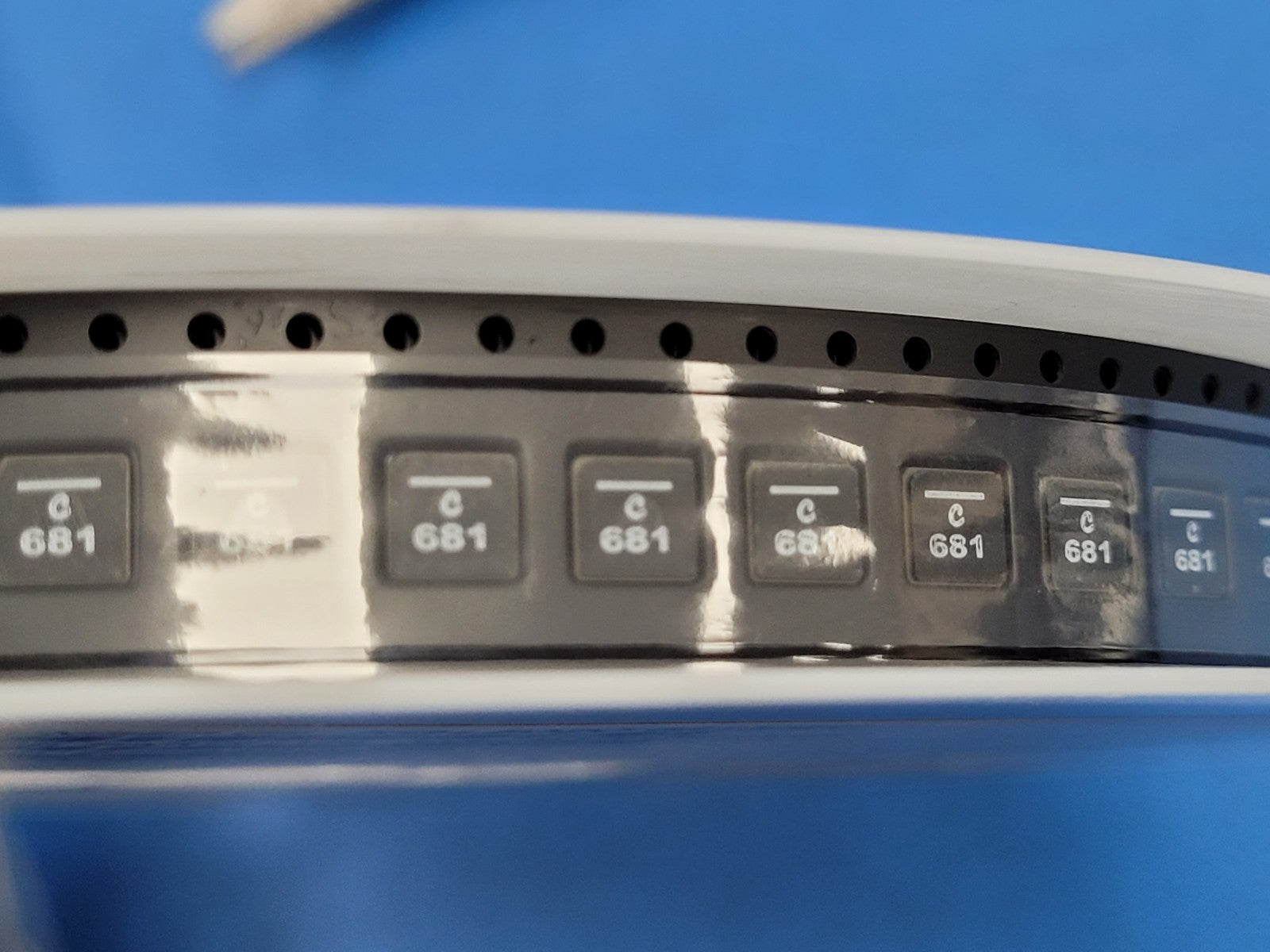

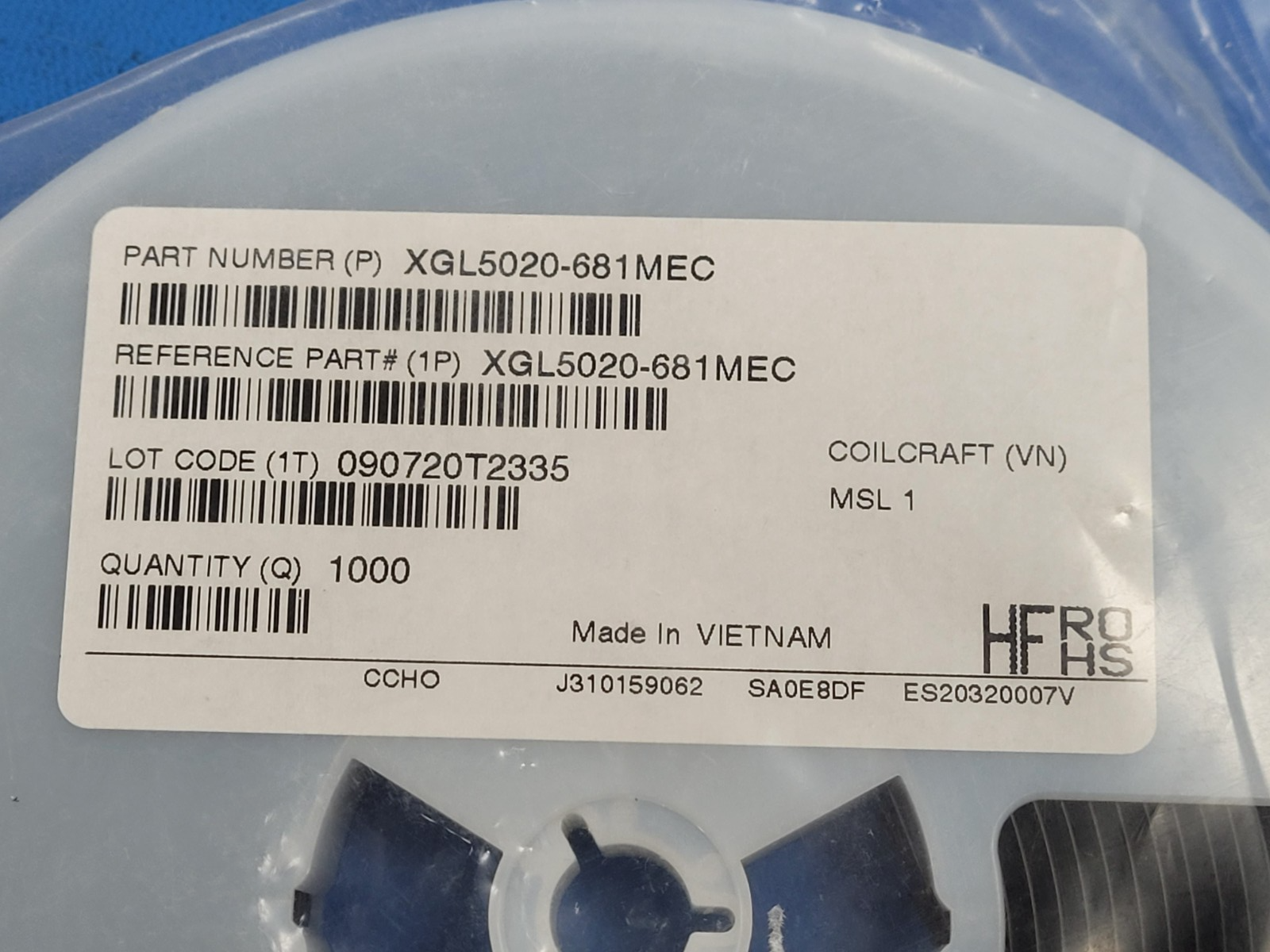

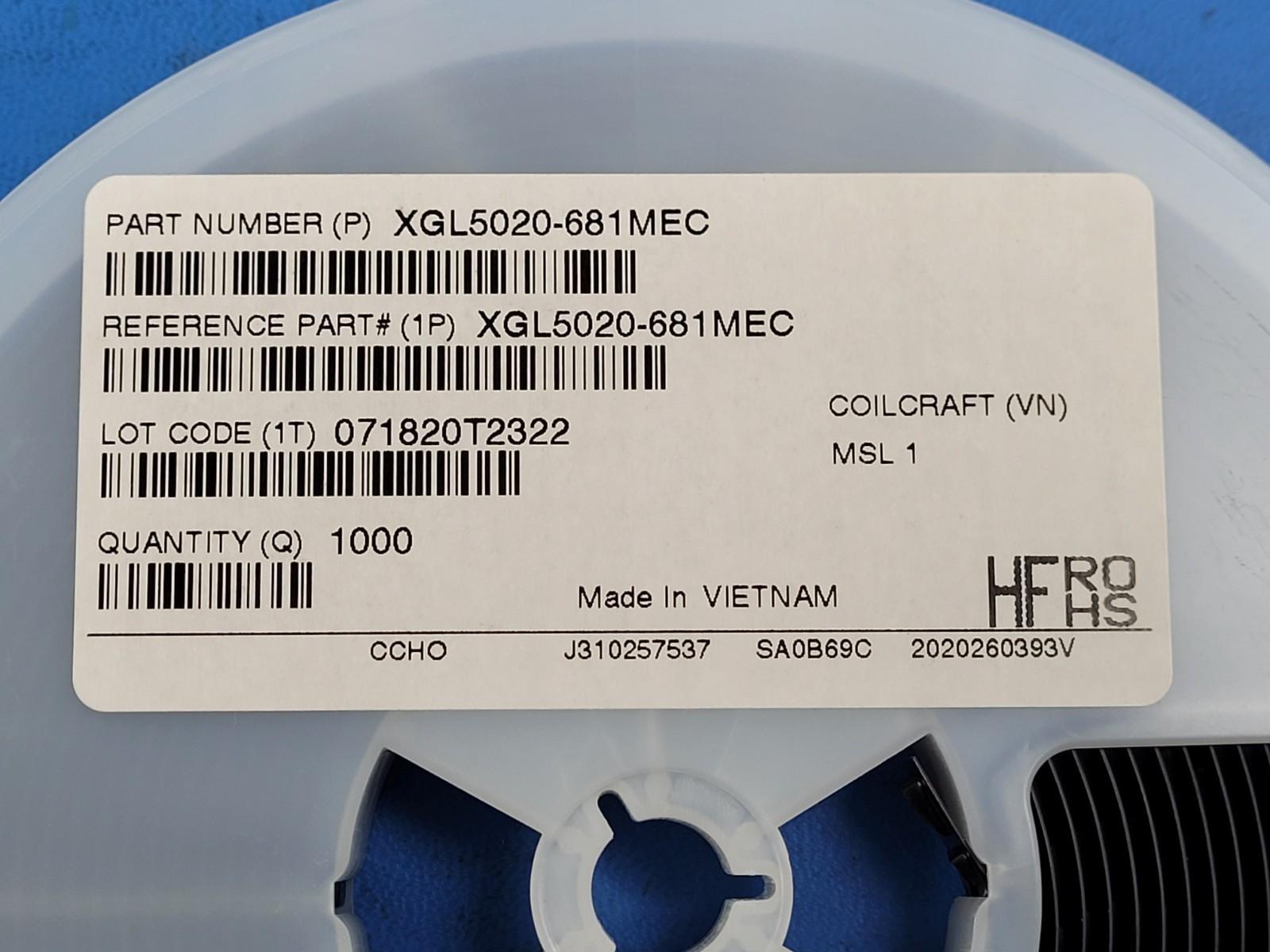

THIS IS FOR (25 PCS) OF XGL5020-681MEC BY COILCRAFT
FIXED INDUCTOR 0.68UH SMD ROHS
Mfr Coilcraft
Series XGL5020
Packaging Strip
Part Status Active
Type Molded
Material - Core -
Inductance 680 nH
Tolerance ±20%
Current Rating (Amps) 12.9 A
Current - Saturation (Isat) 14A
Shielding Shielded
DC Resistance (DCR) 6.1mOhm Max
Q @ Freq -
Frequency - Self Resonant 65MHz
Ratings AEC-Q200
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.216" L x 0.208" W (5.48mm x 5.28mm)
Height - Seated (Max) 0.083" (2.10mm)
