(25 PCS) W27E520W-70 WINBOND EEPROM, 64KX8, 70ns, Parallel, CMOS, TSSOP20
(25 PCS) W27E520W-70 WINBOND EEPROM, 64KX8, 70ns, Parallel, CMOS, TSSOP20

(25 PCS) W27E520W-70 WINBOND EEPROM, 64KX8, 70ns, Parallel, CMOS, TSSOP20

Tax included.
Only 71 left!

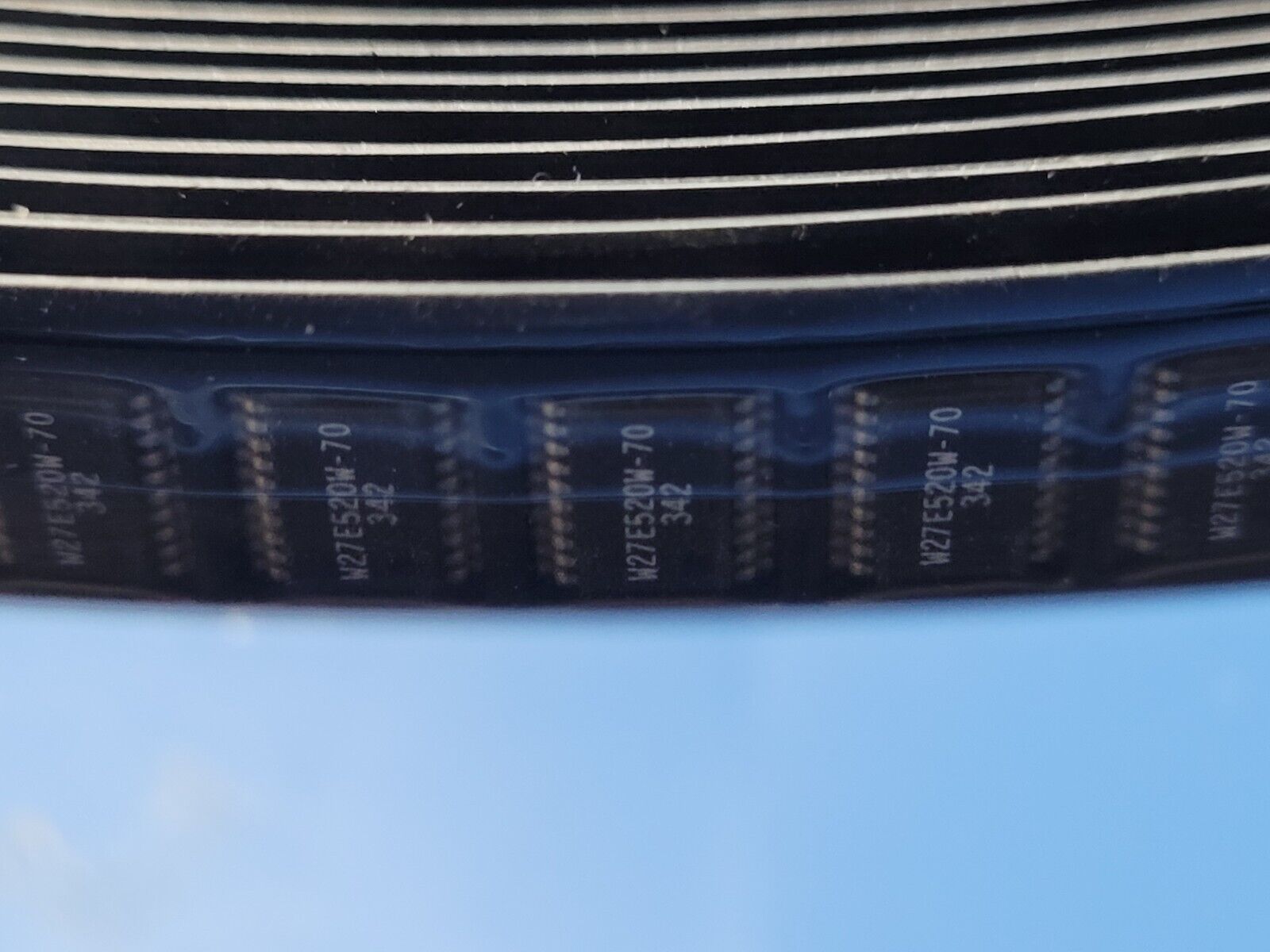

THIS IS FOR (25 PCS) OF W27E520W-70 BY WINBOND
EEPROM, 64KX8, 70ns, Parallel, CMOS, TSSOP20

Part #: W27E520W-70
Part Category: Memory ICs
Manufacturer: Winbond Electronics Corporation America
Description: EEPROM, 64KX8, 70ns, Parallel, CMOS, PDSO20

Mfr Package Description 0.173 INCH, TSSOP-20
REACH Compliant Yes
Status Discontinued
Sub Category EEPROMs
Access Time-Max 70.0 ns
Command User Interface NO
Data Polling NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Memory Density 524288.0 bit
Memory IC Type EEPROM
Memory Width 8
Number of Functions 1
Number of Terminals 20
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64KX8
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP20,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.02 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Toggle Bit NO
Length 6.5 mm
Width 4.4 mm
