(25 PCS) UPD6122G-002 NEC Transmitter IC, Infrared, CMOS, SOIC24
Tax included.

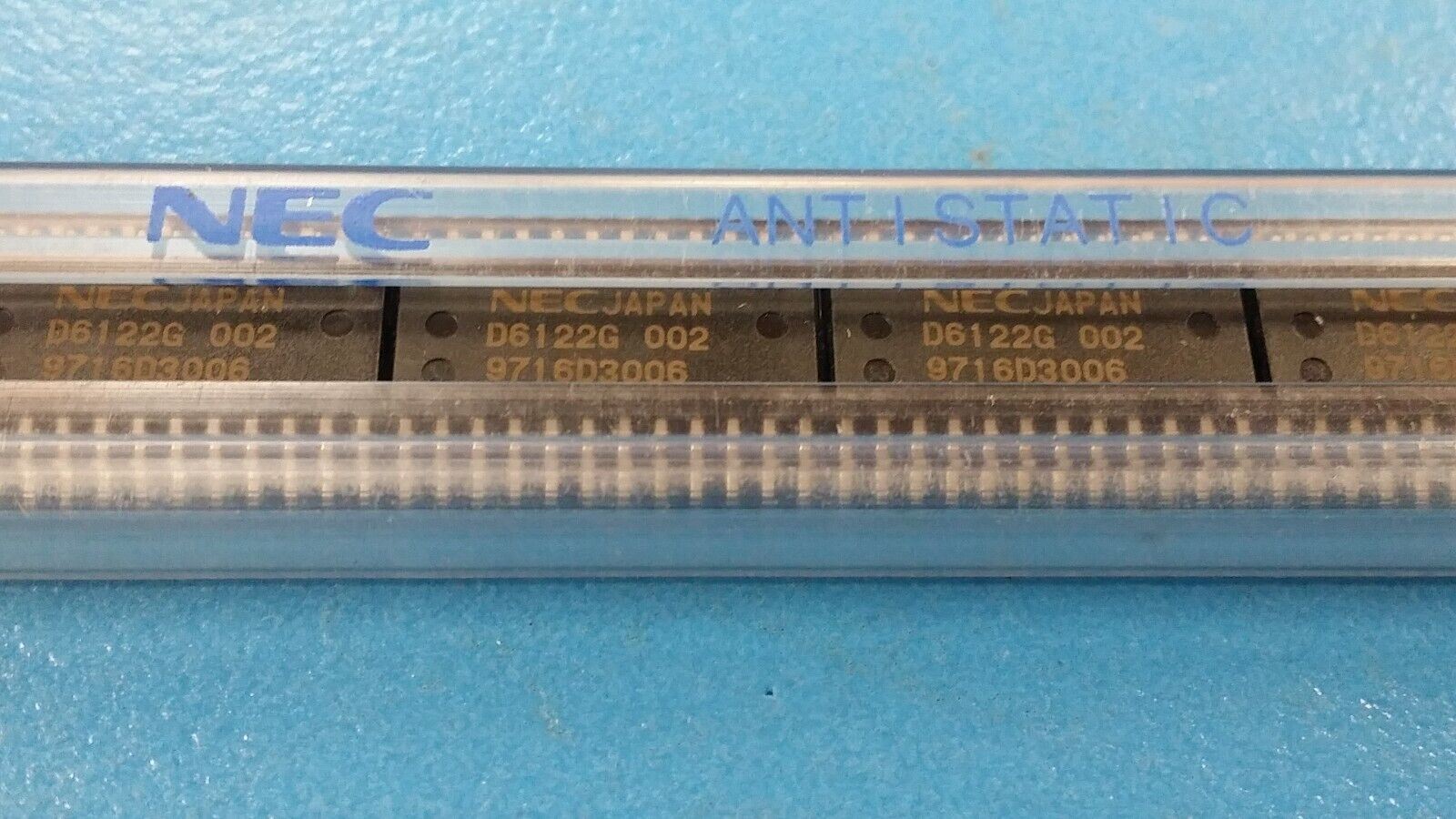

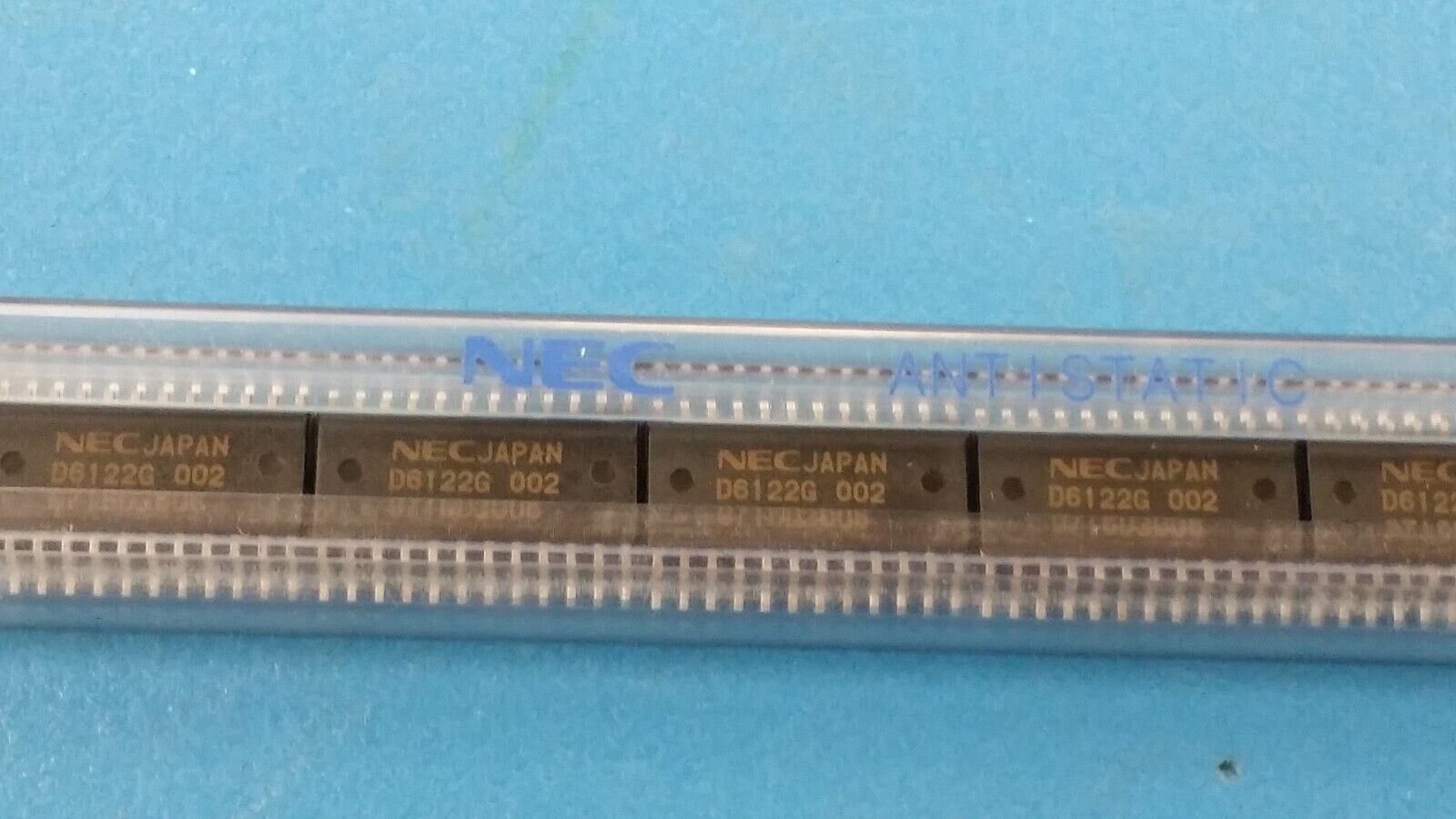

THIS IS FOR (25 PC) OF UPD6122G-002 BY NEC
Transmitter IC, Infrared, CMOS, SOIC24
Part #: UPD6122G-002
Part Category: Consumer ICs
Manufacturer: NEC Corporation
Description: Transmitter IC, Infrared, CMOS, PDSO24
Mfr Package Description 0.375 INCH, PLASTIC, SOP-24
Status Discontinued
Consumer IC Type TRANSMITTER IC
JESD-30 Code R-PDSO-G24
Number of Functions 1
Number of Terminals 24
Operating Temperature-Min -20.0 Cel
Operating Temperature-Max 75.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Seated Height-Max 2.9 mm
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL EXTENDED
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Transmission Media INFRARED
Width 7.2 mm
