(25 PCS) TLP181 TOSHIBA Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin MFSOP T/R
Tax included.

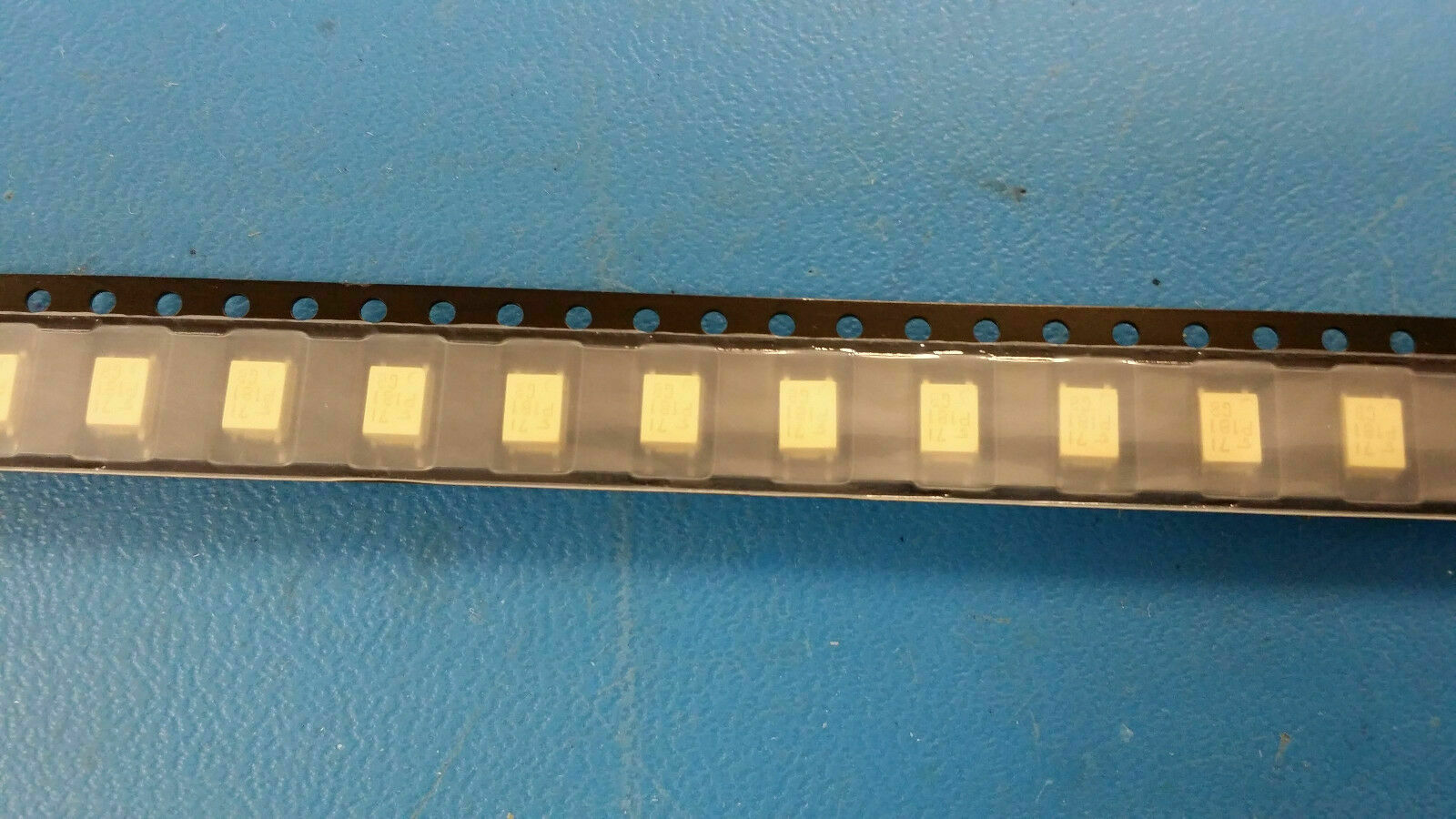

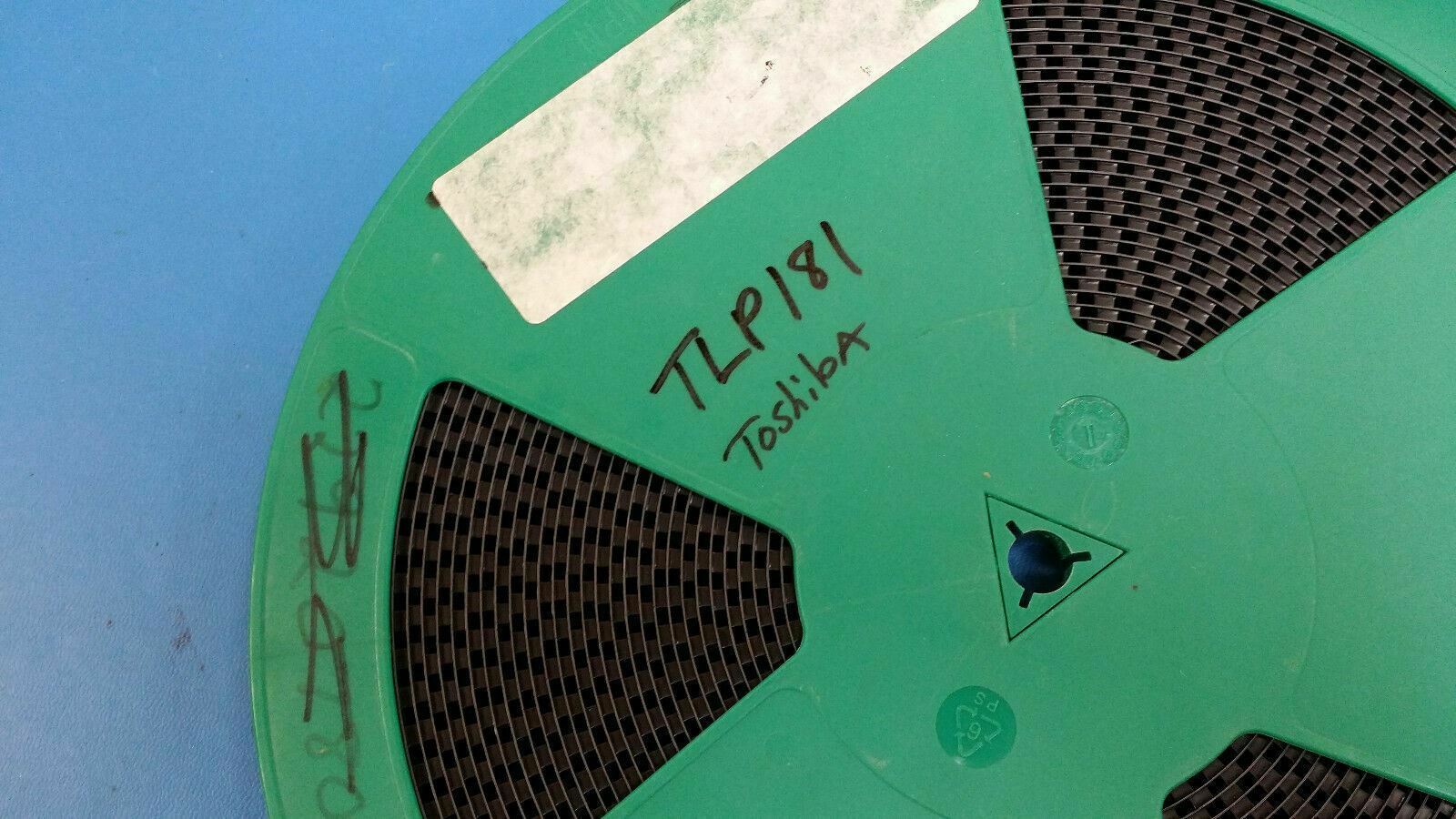

THIS LISTING IS FOR (25 PCS) OF TLP181 BY TOSHIBA
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin MFSOP T/R
Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin MFSOP T/R
TLP181 Part Details & Parametric
| EU RoHS |
Not Compliant
|
| Input Type | DC |
| Output Type | DC |
| Output Device | Transistor |
| Number of Channels per Chip | 1 |
| Maximum Forward Voltage (V) | 1.3 |
| Maximum Input Current (mA) | 50 |
| Maximum Collector Current (mA) | 50 |
| Maximum Reverse Voltage (V) | 5 |
| Maximum Collector Emitter Voltage (V) | 80 |
| Maximum Collector Emitter Saturation Voltage (mV) | 400 |
| Minimum Isolation Voltage (Vrms) | 3750 |
| Maximum Power Dissipation (mW) | 200 |
| Maximum Current Transfer Ratio (%) | 600 |
| Minimum Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 110 |
| Packaging | Tape and Reel |
| Mounting | Surface Mount |
| Package Height (mm) | 2.5 |
| Package Length (mm) | 3.6 |
| Package Width (mm) | 4.4 |
| PCB | 4 |
| Supplier Package | MFSOP |
| Pin Count | 4 |
| Lead Shape | Gull-wing |
