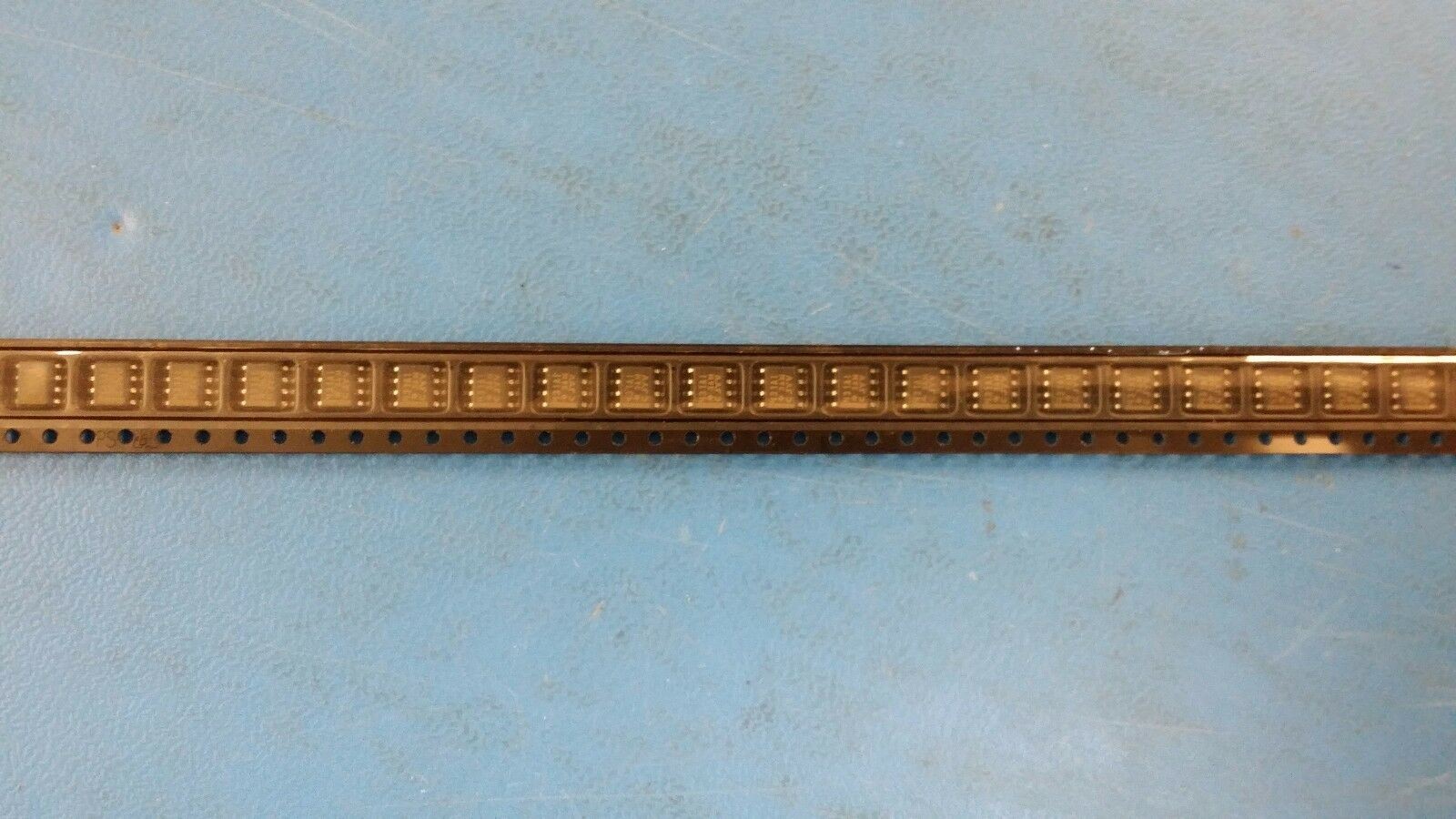

(25 PCS) TL431AIDR V-Ref Adjustable 2.495V to 36V 100mA 8-Pin SOIC ROHS
Tax included.

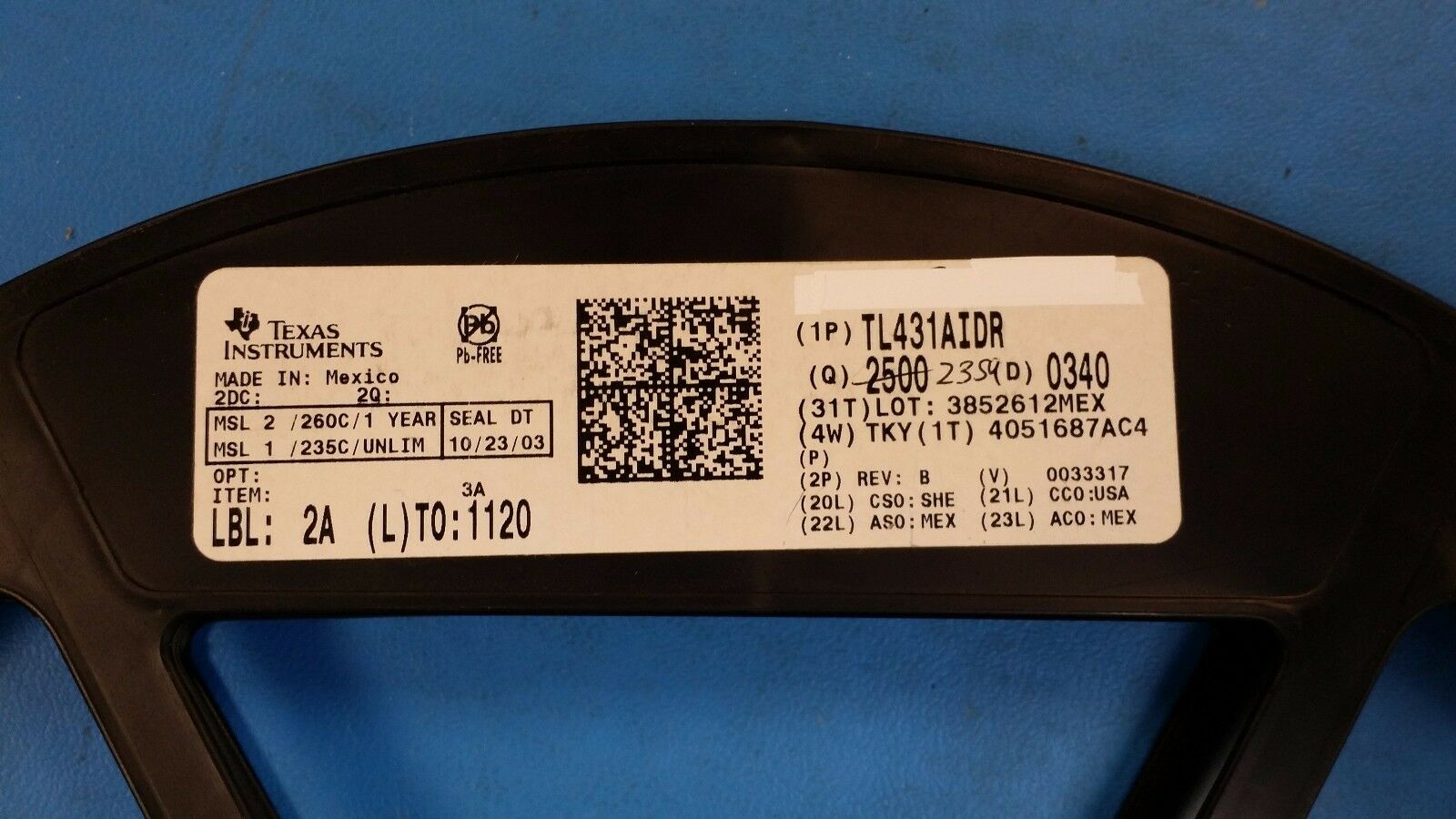

THIS LISTING IS FOR (25PCS) OF TL431AIDR BY TEXAS INSTRUMENTS.
SPECIFICATIONS
| Mfr Package Description | GREEN, PLASTIC, MS-012AA, SOIC-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Output Current-Max | 0.1000 A |
| Output Voltage-Nom | 2.5 V |
| Output Voltage-Min | 2.47 V |
| Output Voltage-Max | 2.52 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Voltage References |
| Supply Current-Max (Isup) | 100 mA |
| Supply Voltage-Min (Vsup) | 2.5 V |
| Supply Voltage-Max (Vsup) | 36 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temp Coef of Voltage-Max | 109 ppm/Cel |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trim/Adjustable Output (V) | YES |
| Length | 4.9 mm |
| Width | 3.9 mm |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V |
