(25 PCS) TL3301BF260QG E-Switch SWITCH TACTILE SPST-NO 0.05A 12V ROHS
Tax included.

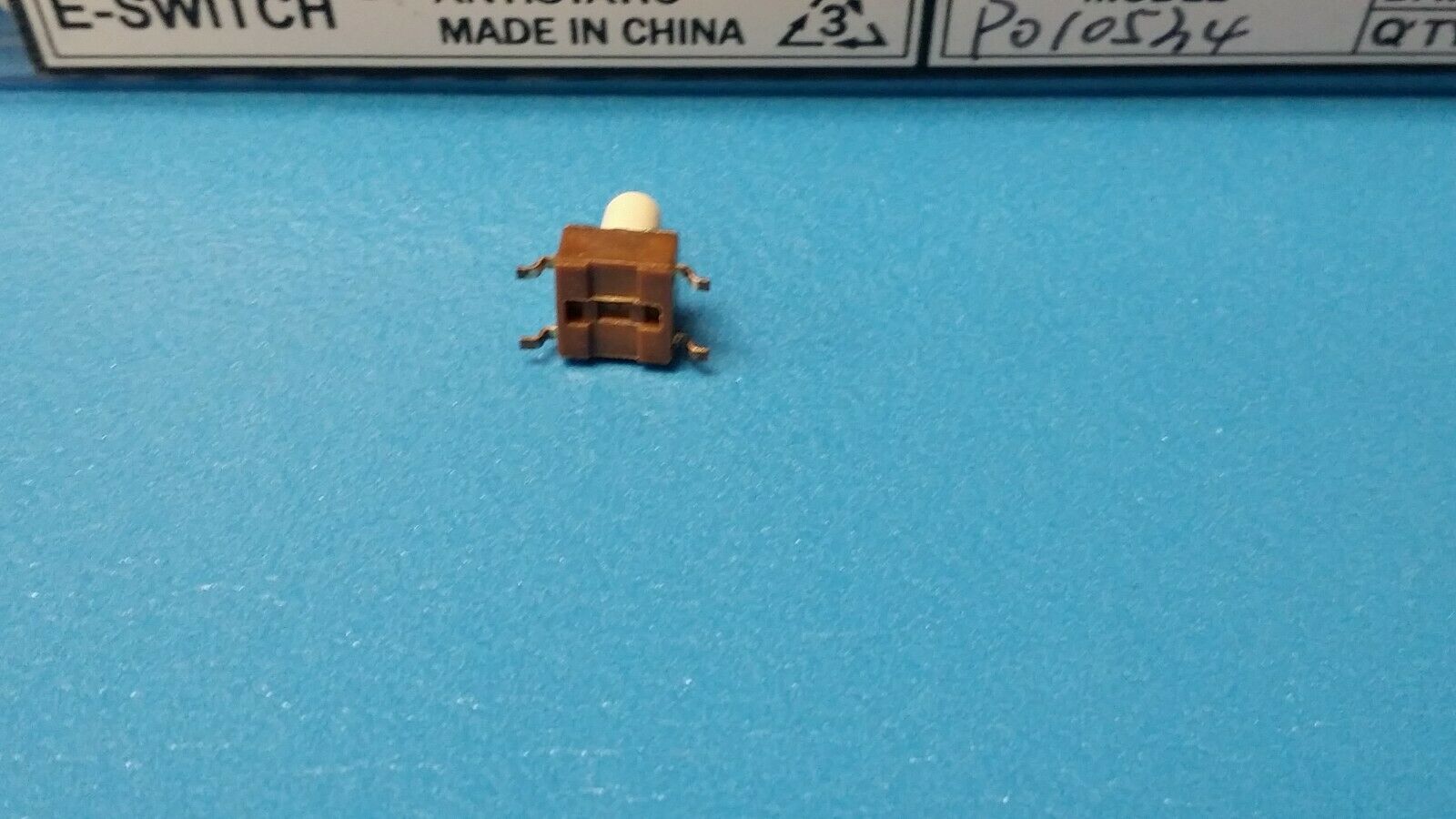

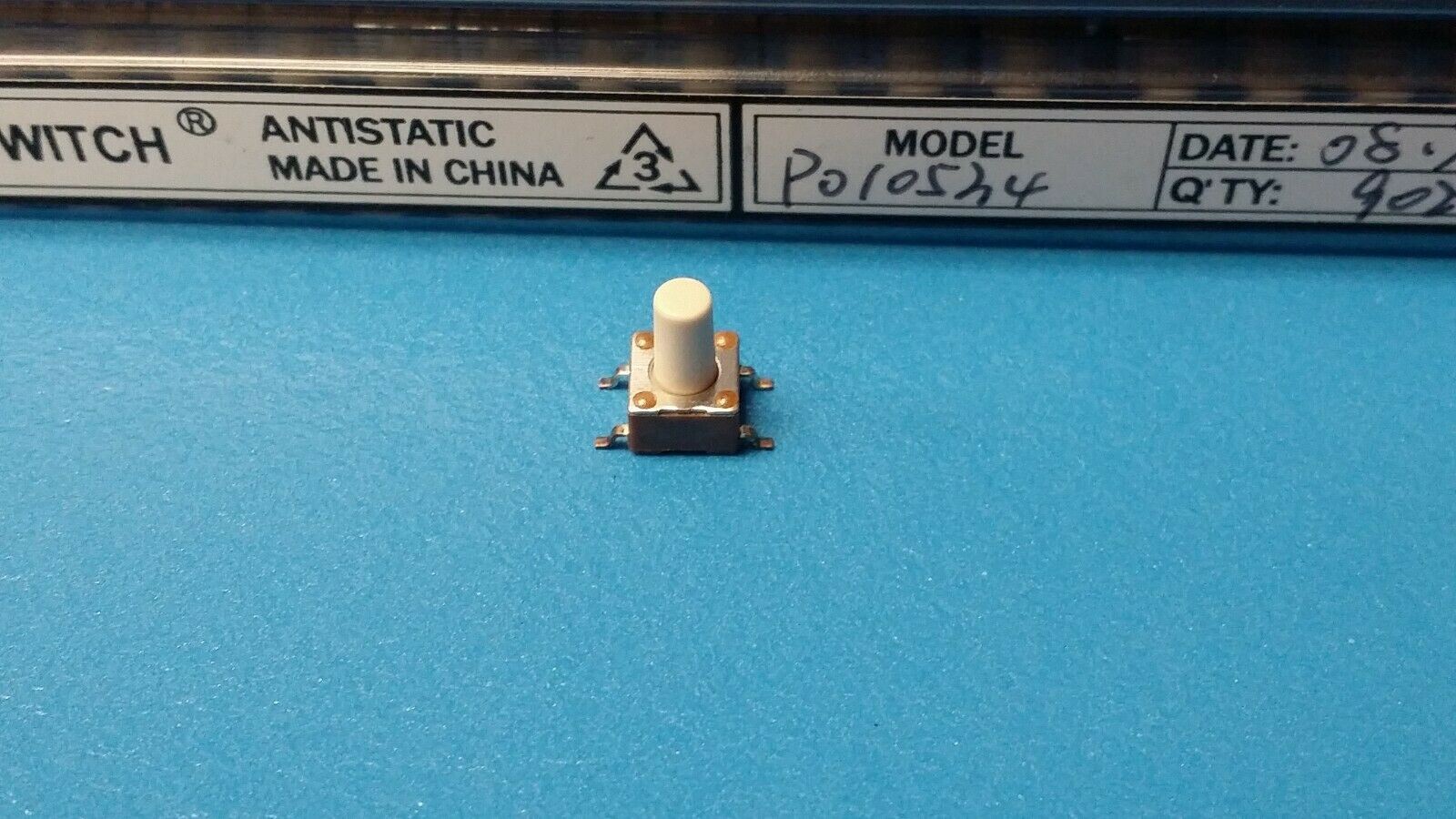

THIS LISTING IS FOR (25 PCS) OF TL3301BF260QG BY E-Switch
SWITCH TACTILE SPST-NO 0.05A 12V ROHS
Manufacturer E-Switch
Series TL3301

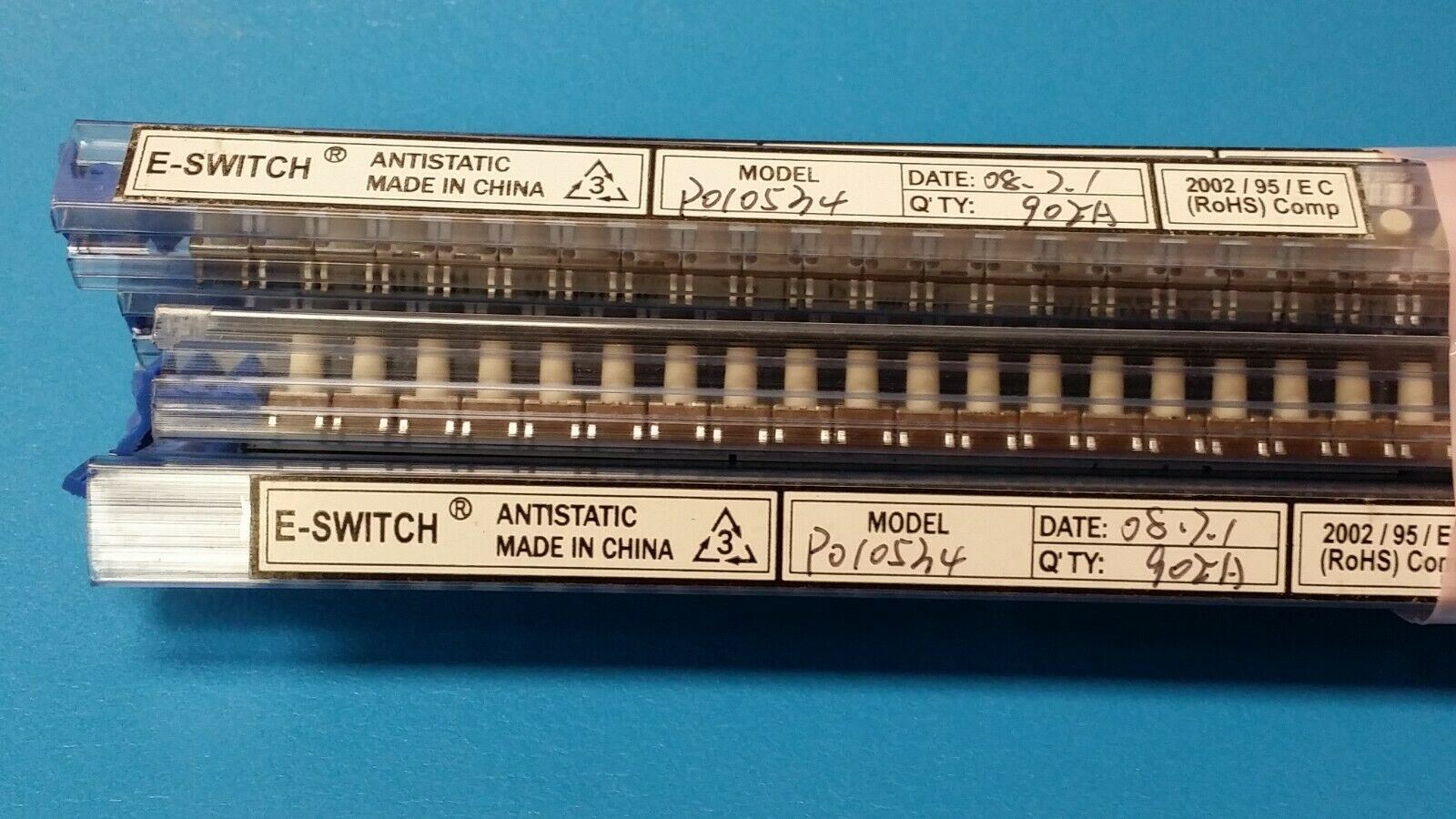

Packaging Tube
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 9.50mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 260gf
Ingress Protection -
Features -
Operating Temperature -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
