(25 PCS) TDA8029HL/C1 Microcontroller, 8-Bit, MROM, 20MHz, CMOS, PQFP32
Tax included.

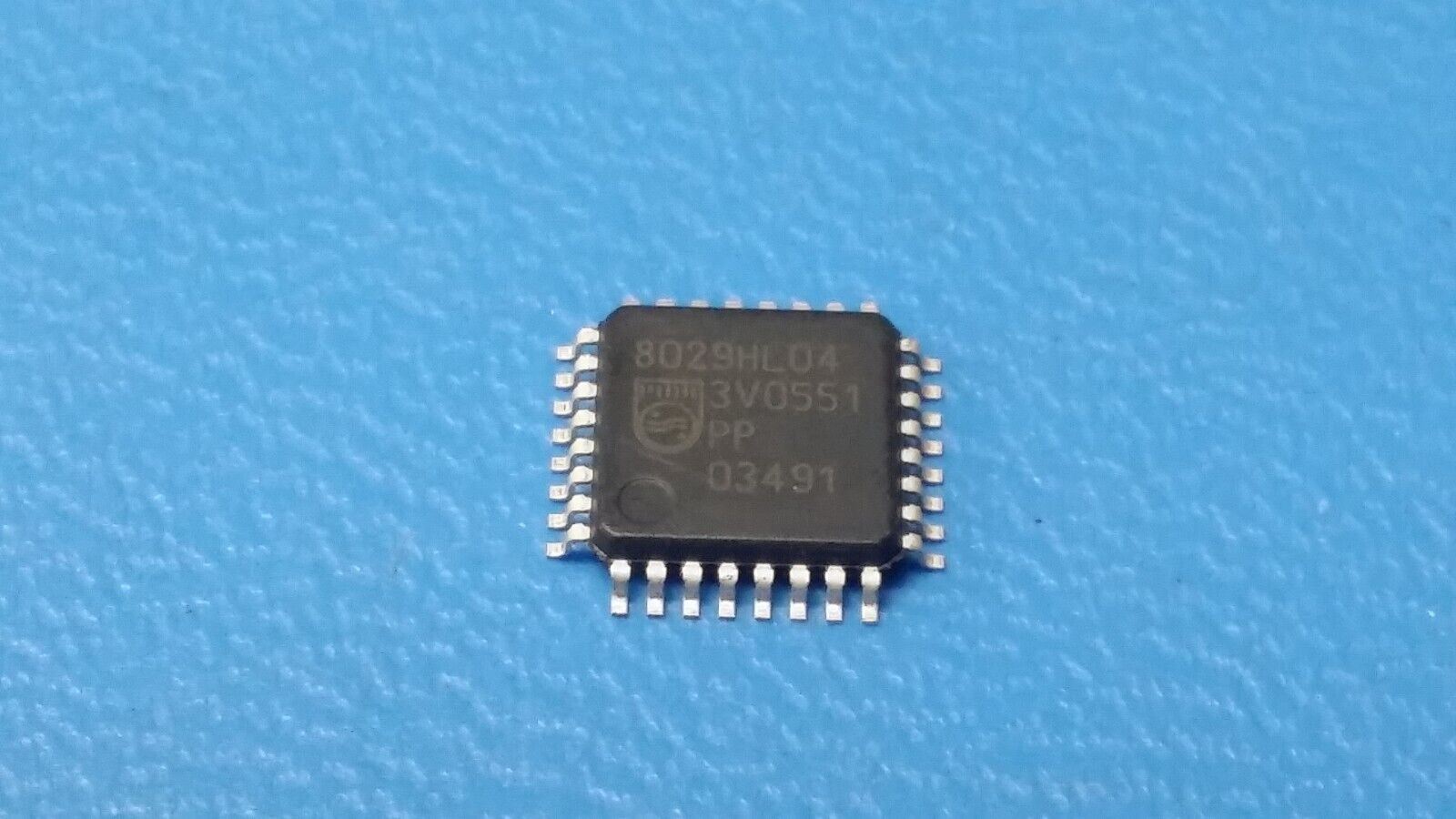

THIS IS FOR (25 PCS) OF TDA8029HL/C1 BY PHILIPS
Microcontroller, 8-Bit, MROM, 20MHz, CMOS, PQFP32
Part #: TDA8029HL/C1
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: NXP/PHILIPS
Description: Microcontroller, 8-Bit, MROM, 20MHz, CMOS, PQFP32
Mfr Package Description 7 X 7 MM, 1.40 MM, PLASTIC, MS-026, SOT-358-1, LQFP-32
REACH Compliant Yes
Status Discontinued
ADC Channels NO
Address Bus Width 0.0
Bit Size 8
Clock Frequency-Max 27.0 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 0.0
JESD-30 Code S-PQFP-G32
JESD-609 Code e3
Number of I/O Lines 8.0
Number of Terminals 32
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 90.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP32,.35SQ,32
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE
Power Supplies 1.8/5,3/5
PWM Channels NO
Qualification Status Not Qualified
ROM Programmability MROM
Seated Height-Max 1.6 mm
Speed 20.0 MHz
Sub Category Other Microprocessor ICs
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 2.7 V
Supply Voltage-Max 6.0 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Length 7.0 mm
Width 7.0 mm
