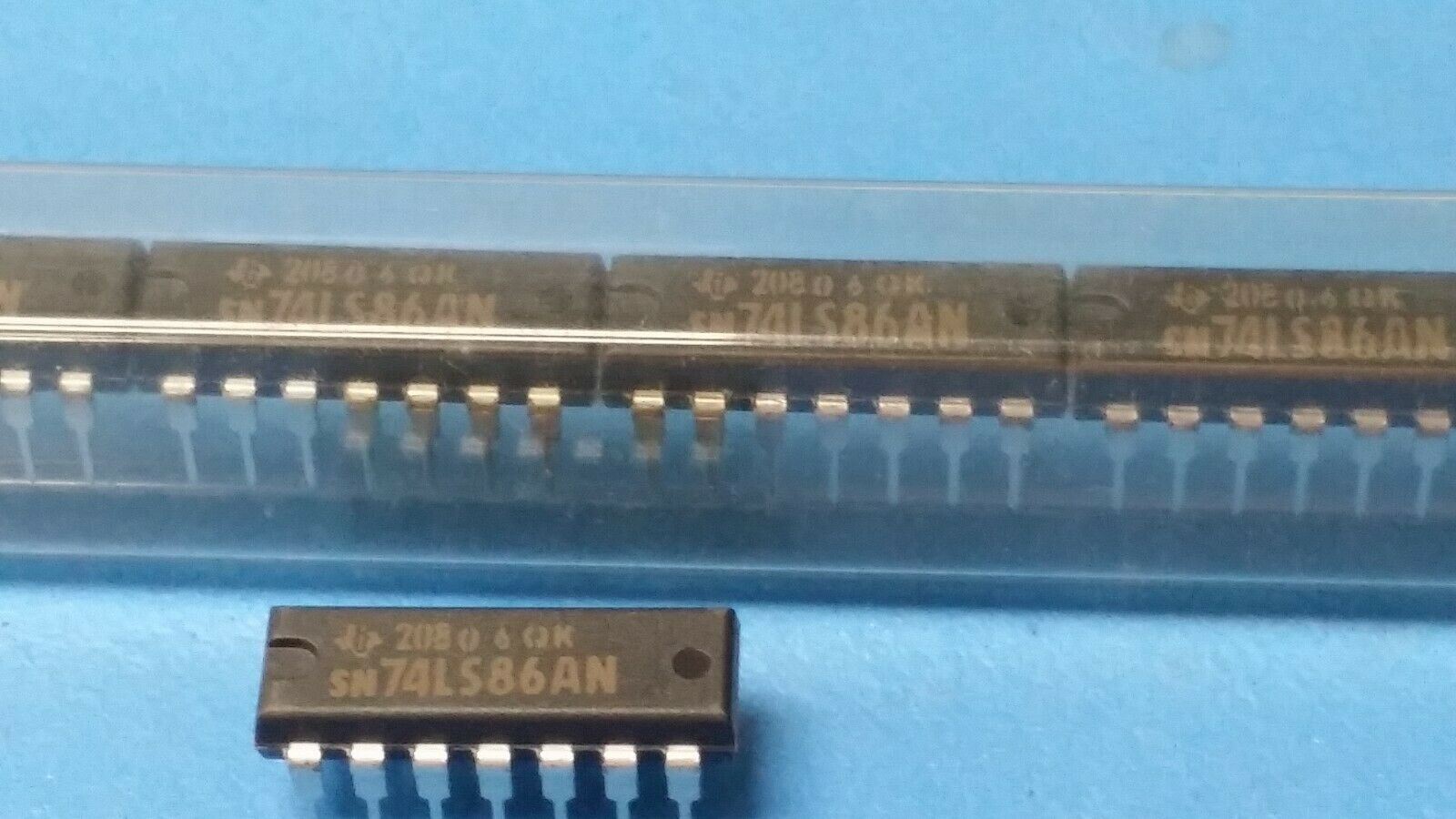

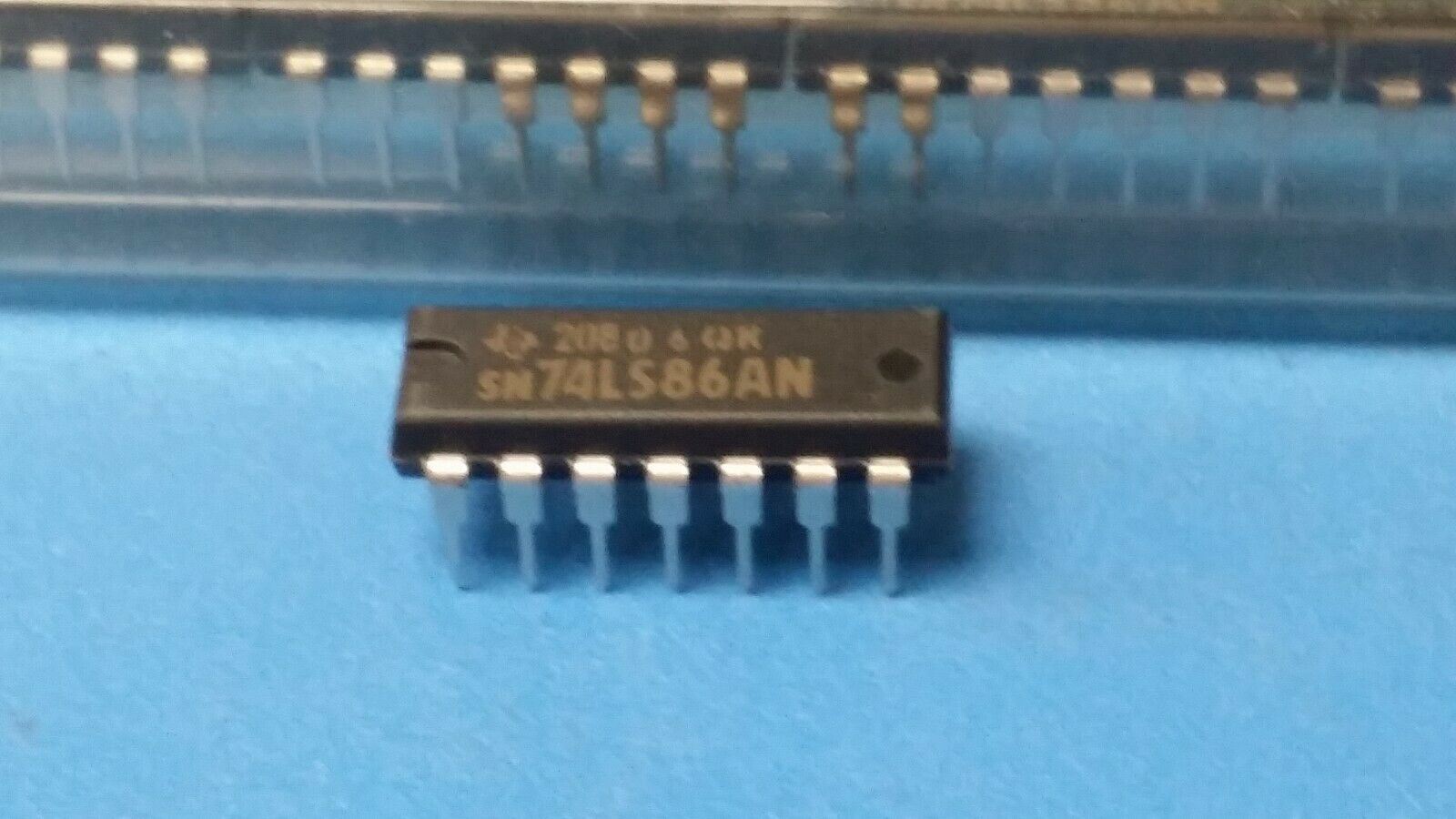

(25 PCS) SN74LS86AN TI XOR (Exclusive OR) IC 4 Channel - 14-PDIP
Tax included.
THIS IS FOR (5 PCS) OF SN74LS86AN BY TI
XOR (Exclusive OR) IC 4 Channel - 14-PDIP
Manufacturer: Texas Instruments
Product Category: Logic Gates
RoHS: NO
Product: Single-Function Gate
Logic Function: XOR
Logic Family: LS
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 16 mA
Low Level Output Current: 0.8 mA
Propagation Delay Time: 30 ns
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package / Case: PDIP-14
Packaging: Tube
Brand: Texas Instruments
Function: Devices contain four independent 2-input OR gates
Height: 4.57 mm
Input Type: TTL
Length: 19.3 mm
Logic Type: 2-Input Exclusive-OR
Number of Bits: 4 bit
Operating Supply Current: 50 uA
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Output Type: TTL
Product Type: Logic Gates
Quiescent Current: 6.1 mA
Series: SN74LS86A
25
Subcategory: Logic ICs
Width: 6.35 mm
Unit Weight: 0.032734 oz
