(25 PCS) SMCJ78 VISHAY Diode TVS Single Uni-Dir 78V 1.5KW 2-Pin DO-214AB T/R
Tax included.

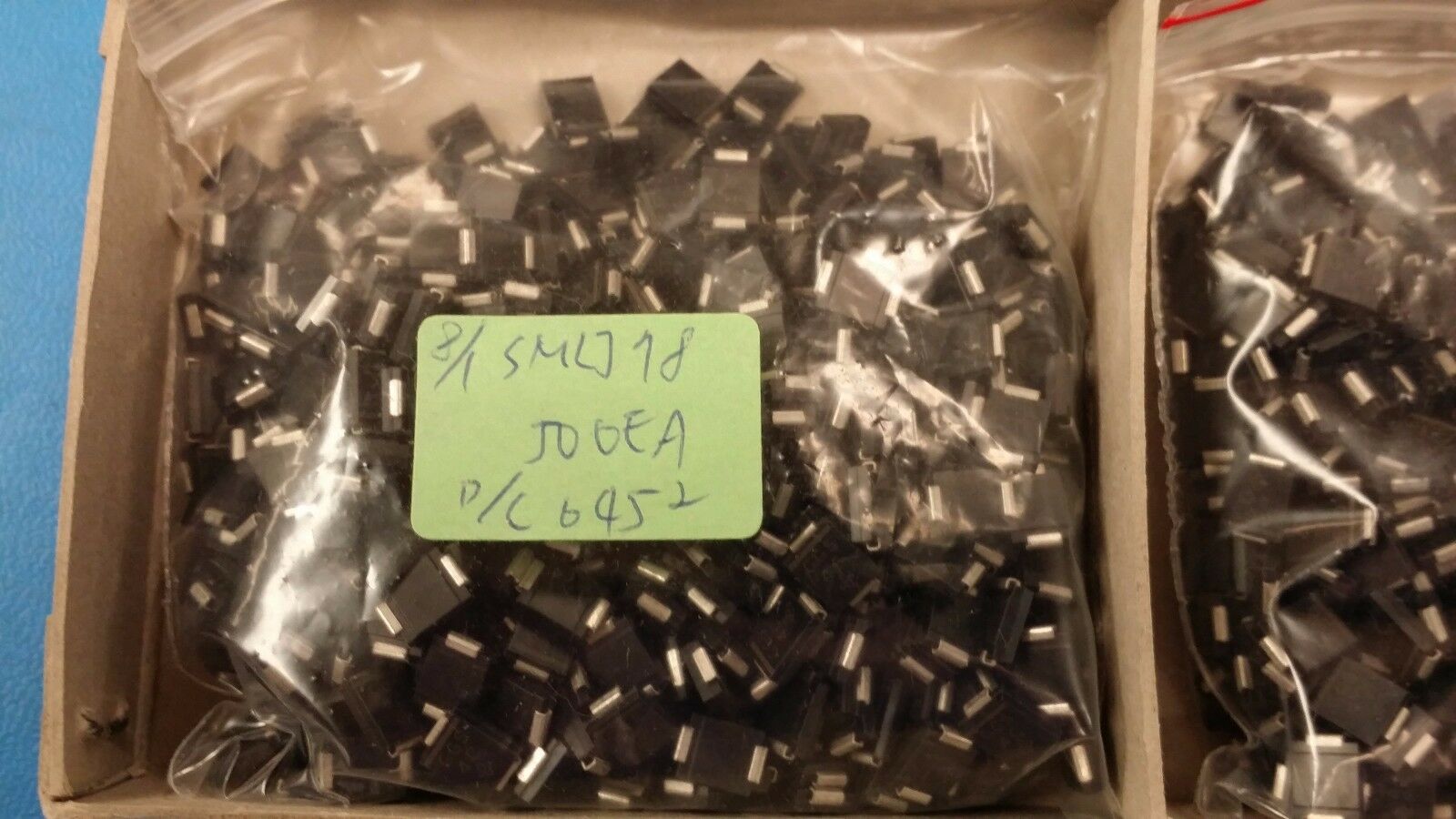

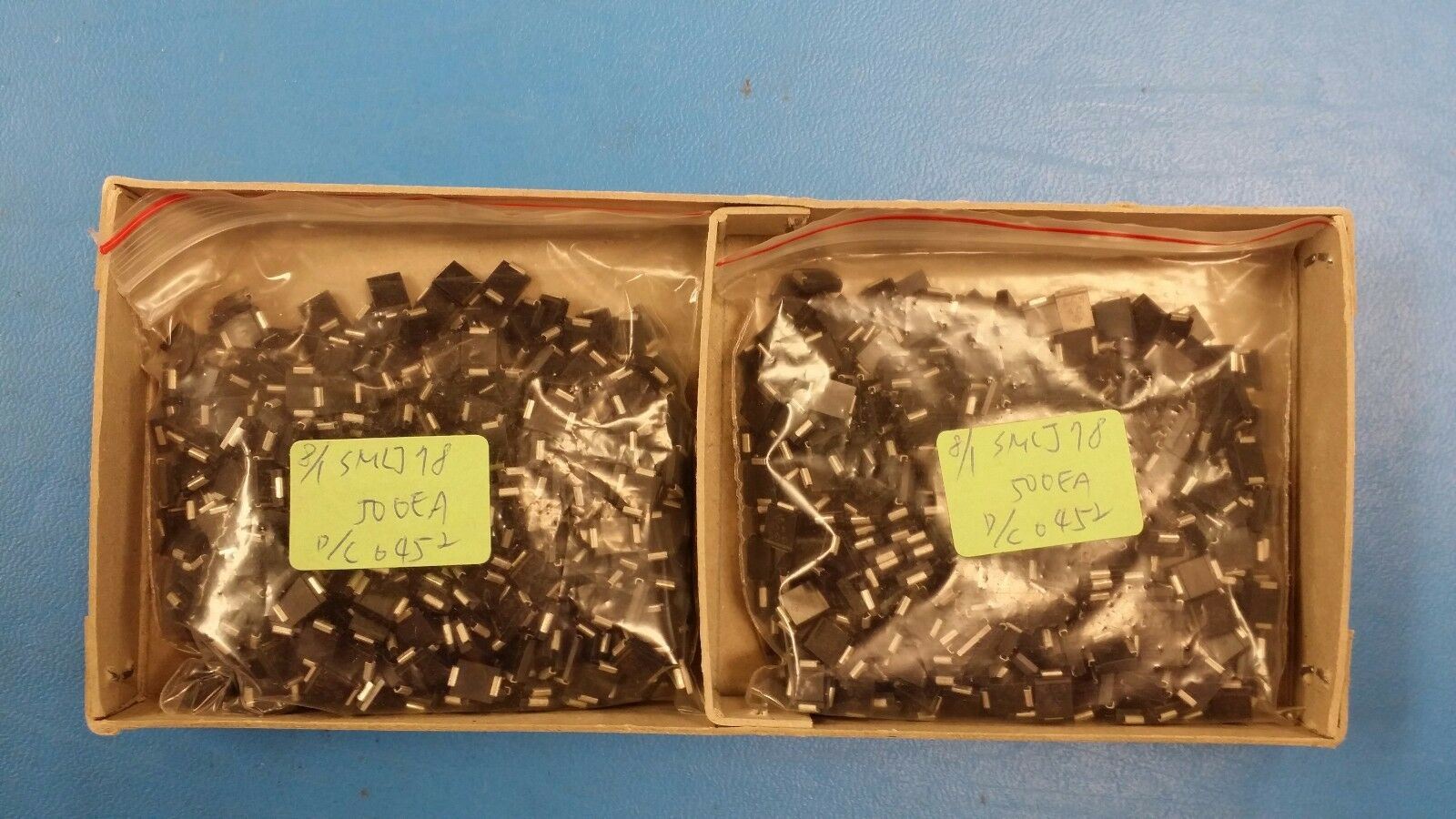

THIS LISTING IS FOR (25 PCS) OF SMCJ78 BY VISHAY/GENERAL SEMI
Diode TVS Single Uni-Dir 78V 1.5KW 2-Pin DO-214AB T/R
Part #: SMCJ78
Part Category: Diodes
Manufacturer: Vishay
Description: 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB
Manufacturer: Vishay
Description: 1500W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB
| Mfr Package Description |
|
| Status | Discontinued |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Min | 86.7 V |
| Breakdown Voltage-Max | 106.0 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JEDEC-95 Code | DO-214AB |
| JESD-30 Code | R-PDSO-C2 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Non-rep Peak Rev Power Dis-Max | 1500.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity | UNIDIRECTIONAL |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 78.0 V |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Finish | TIN LEAD |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | UL RECOGNIZED |
