(25 PCS) S6020L SCR 600V 20A Standard Recovery TO-220 Isolated Tab ROHS
Tax included.

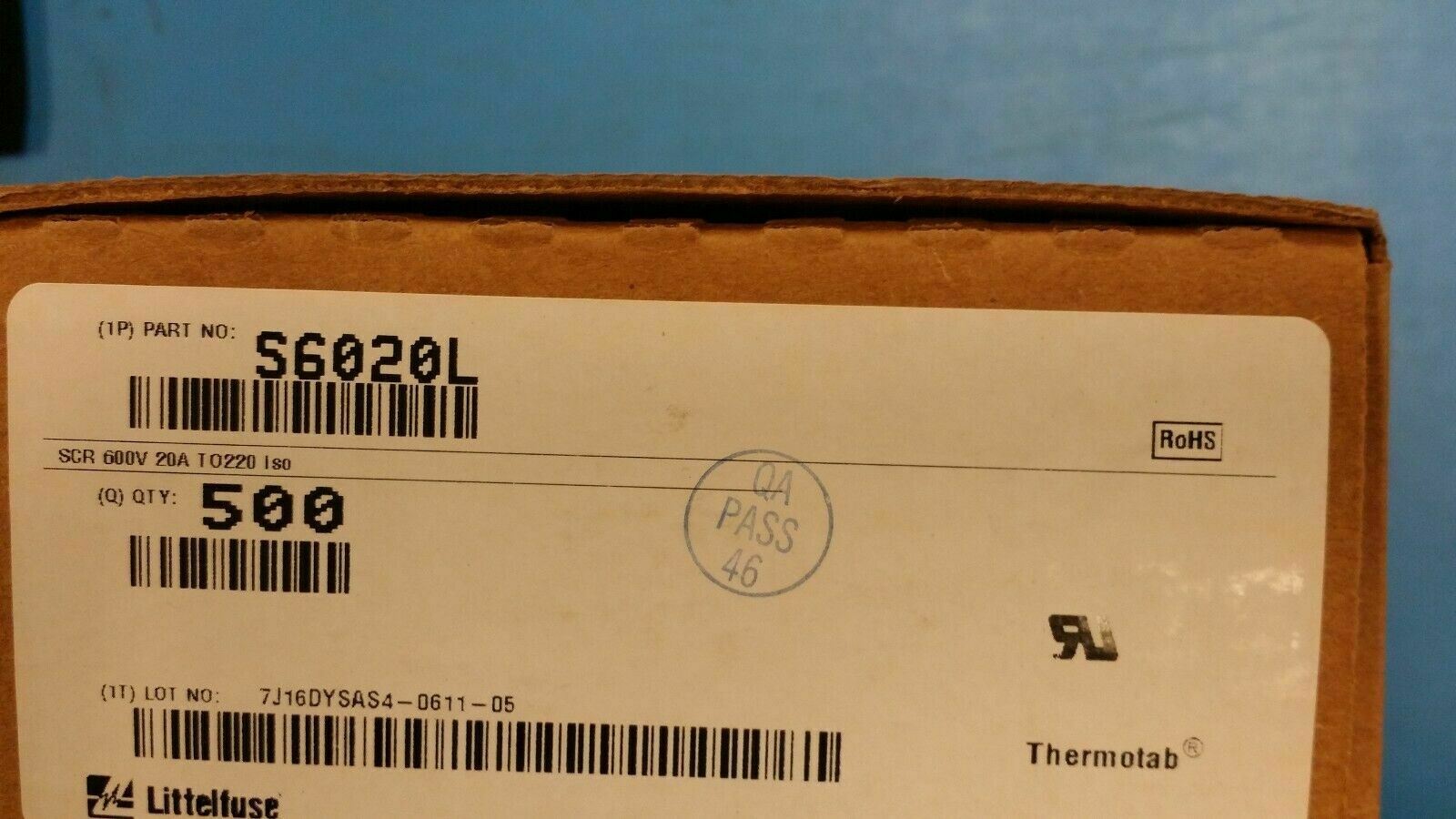

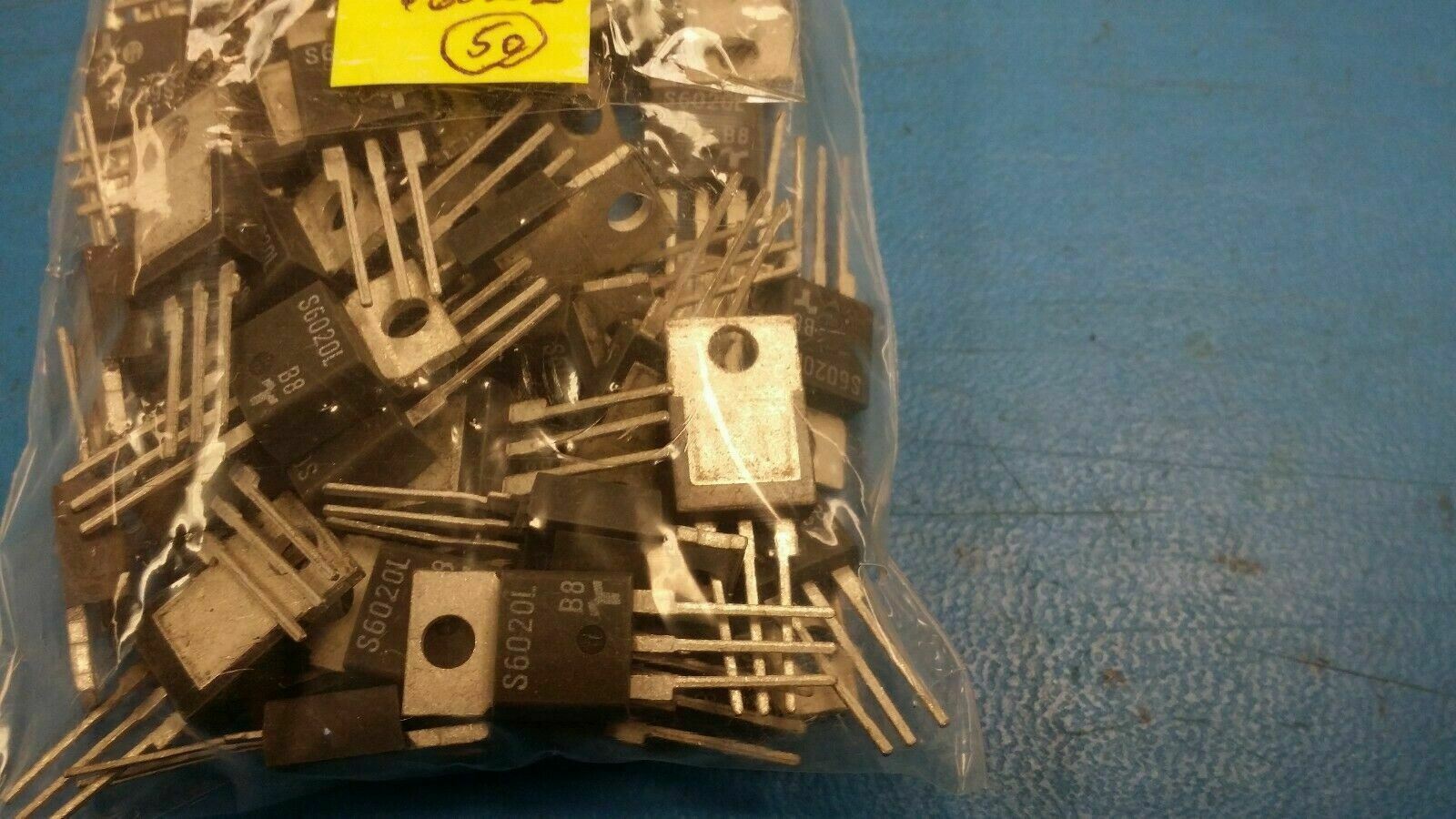

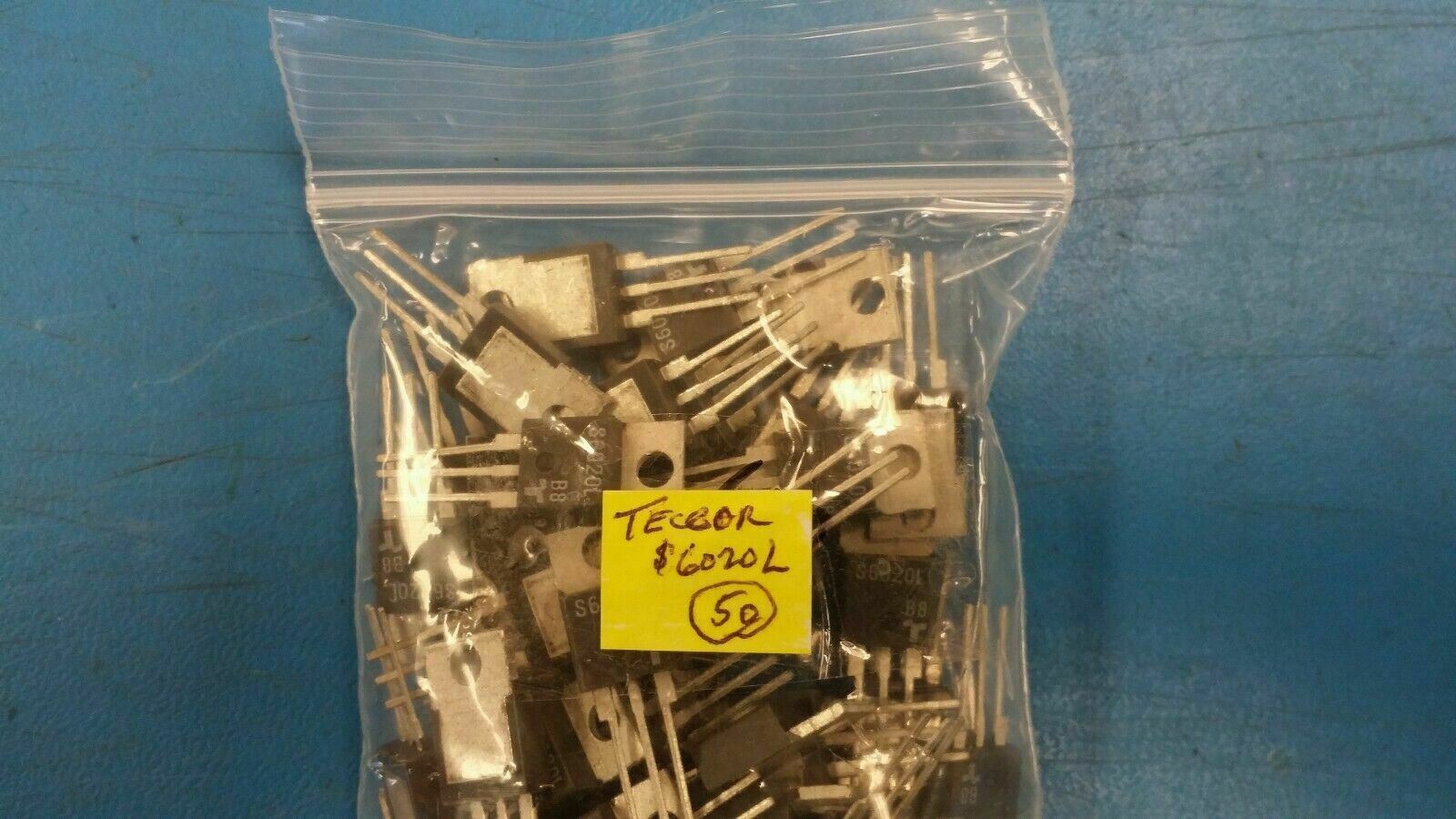

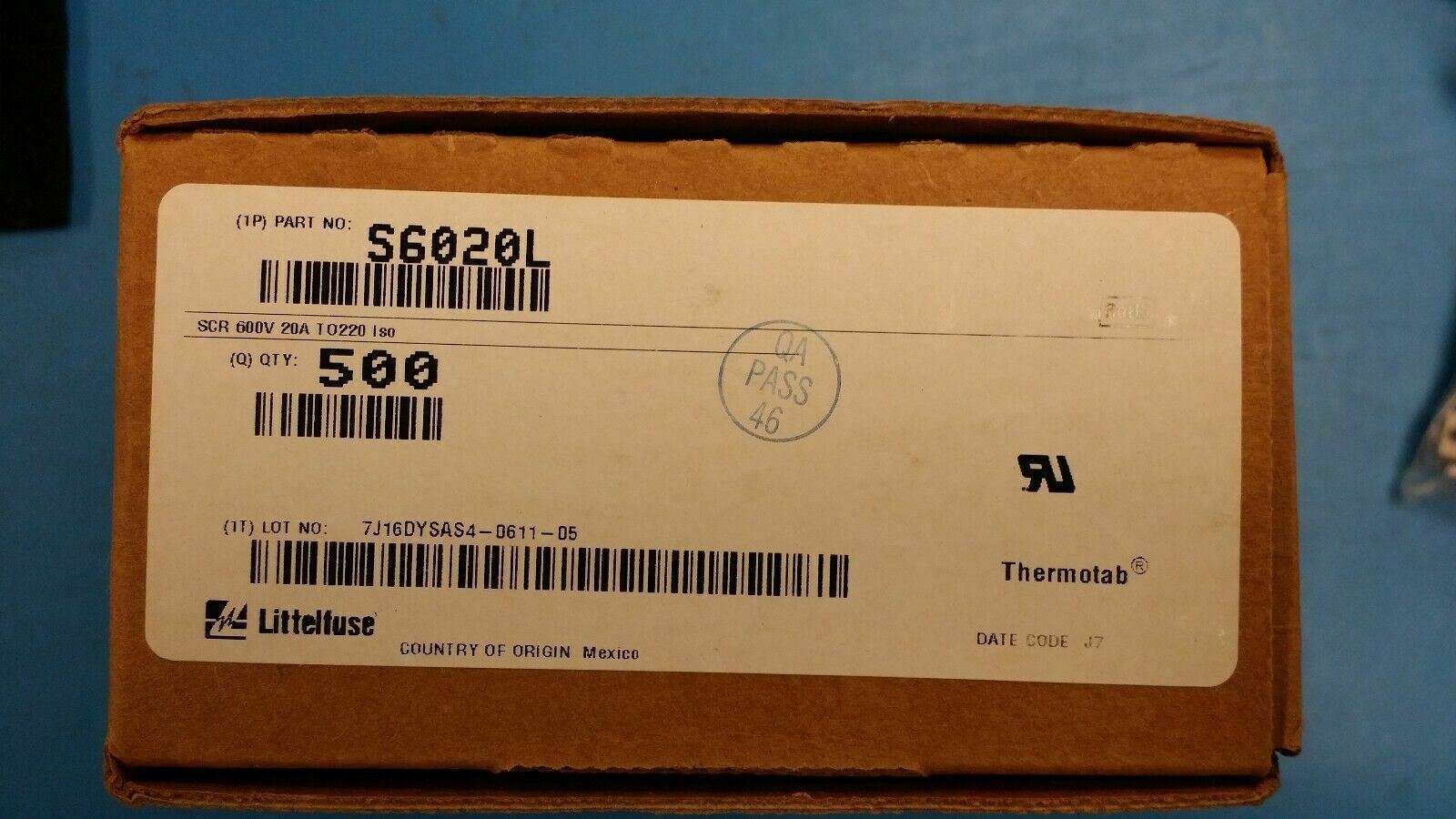

THIS LISTING IS FOR (25 PCS) OF S6020L BY TECCOR
SCR 600V 20A Standard Recovery TO-220 Isolated Tab ROHS
| Manufacturer | Littelfuse Inc. | |
|---|---|---|
| Series | - | |
| Packaging | Bulk | |
| Part Status | Discontinued at Digi-Key | |
| Voltage - Off State | 600V | |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V | |
| Current - Gate Trigger (Igt) (Max) | 30mA | |
| Voltage - On State (Vtm) (Max) | 1.6V | |
| Current - On State (It (AV)) (Max) | 12.8A | |
| Current - On State (It (RMS)) (Max) | 20A | |
| Current - Hold (Ih) (Max) | 40mA | |
| Current - Off State (Max) | 10µA | |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 255A, 300A | |
| SCR Type | Standard Recovery | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Through Hole | |
| Package / Case | TO-220-3 Isolated Tab | |
| Supplier Device Package | TO-220 Isolated Tab |
