(25 PCS) S2G VISHAY/GS Diode Rectifier 400V 1.5A 2-Pin SMB (DO-214AA)
Tax included.

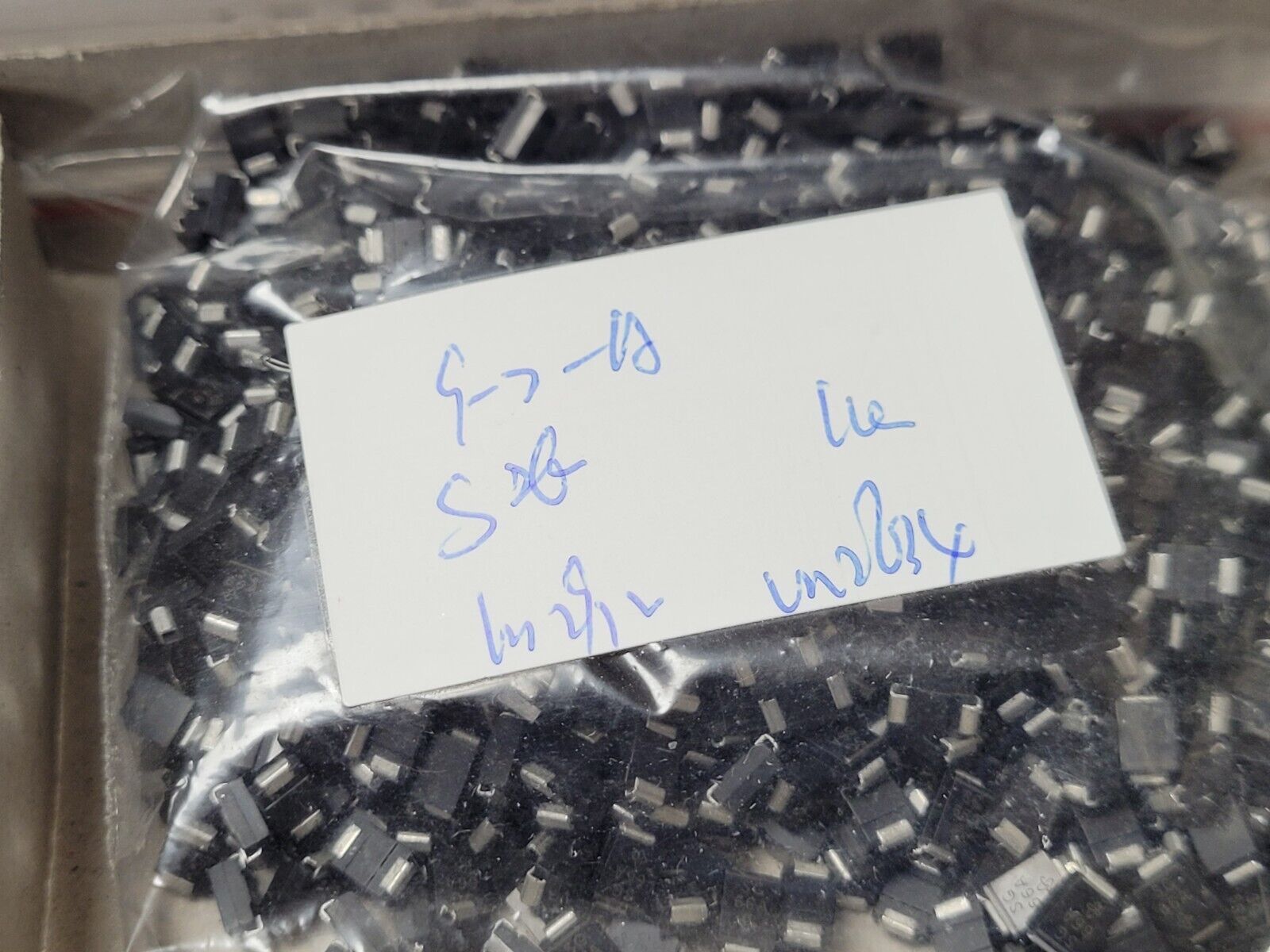

THIS IS FOR (25 PCS) OF S2G BY VISHAY/GS
Diode Rectifier 400V 1.5A 2-Pin SMB (DO-214AA)
Mfr Package Description SMB, 2 PIN
Diode Type RECTIFIER DIODE
Application GENERAL PURPOSE
Configuration SINGLE
Diode Element Material SILICON
Forward Voltage-Max (VF) 1.1 V
JEDEC-95 Code DO-214AA
JESD-30 Code R-PDSO-C2
Non-rep Pk Forward Current-Max 50.0 A
Number of Elements 1.0
Number of Phases 1.0
Number of Terminals 2
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 150.0 Cel
Output Current-Max 1.5 A
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Rep Pk Reverse Voltage-Max 400.0 V
Reverse Current-Max 1.0 µA
Reverse Recovery Time-Max 2.0 µs
Reverse Test Voltage 400.0 V
Surface Mount YES
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature LOW LEAKAGE CURRENT
