(25 PCS) RSF20.25%R SEI Res Metal Oxide 0.2 Ohm 5%35 2W AXIAL ROHS
(25 PCS) RSF20.25%R SEI Res Metal Oxide 0.2 Ohm 5%35 2W AXIAL ROHS
(25 PCS) RSF20.25%R SEI Res Metal Oxide 0.2 Ohm 5%35 2W AXIAL ROHS
(25 PCS) RSF20.25%R SEI Res Metal Oxide 0.2 Ohm 5%35 2W AXIAL ROHS

(25 PCS) RSF20.25%R SEI Res Metal Oxide 0.2 Ohm 5%35 2W AXIAL ROHS

Tax included.
Only 38 left!

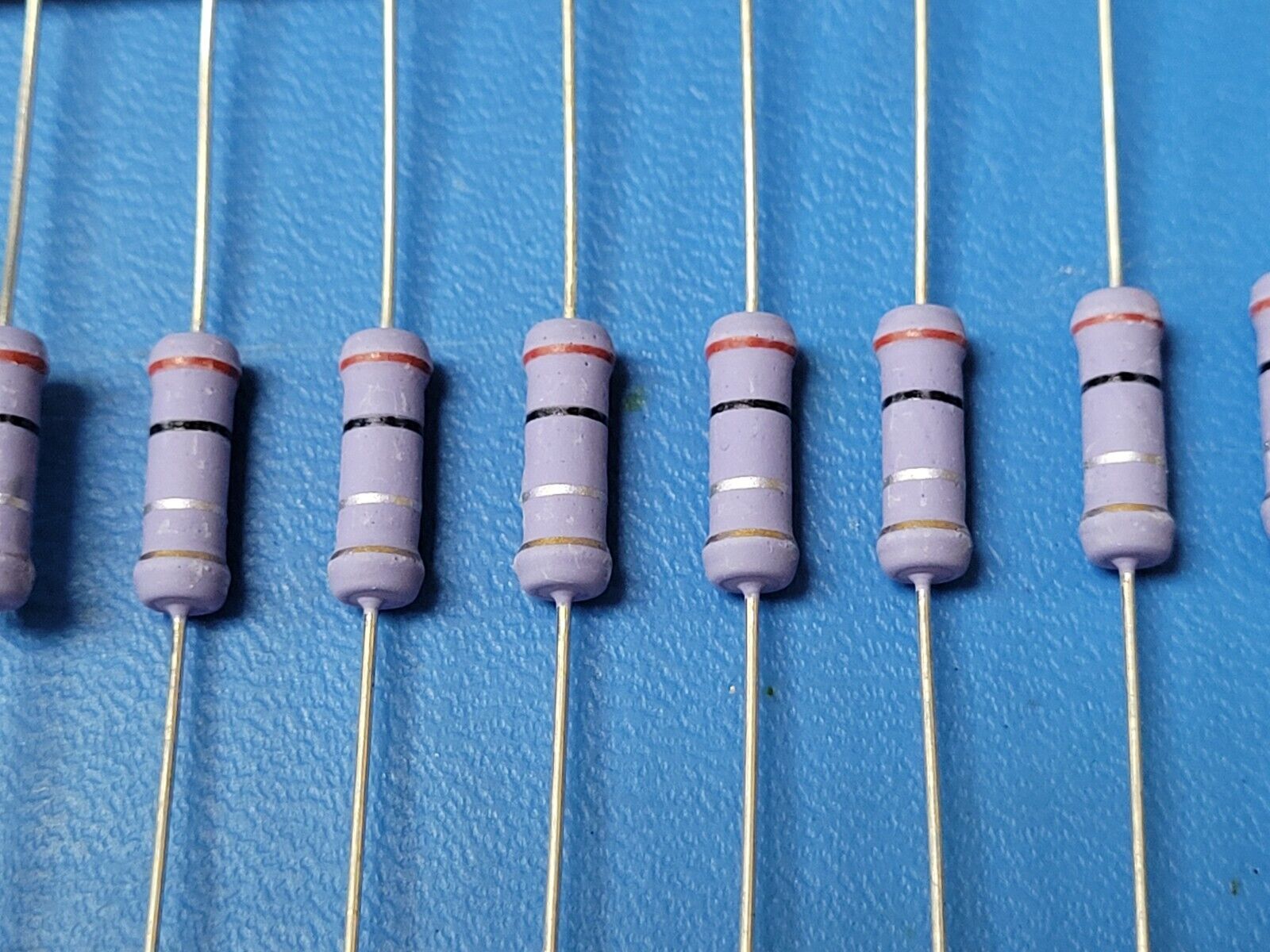

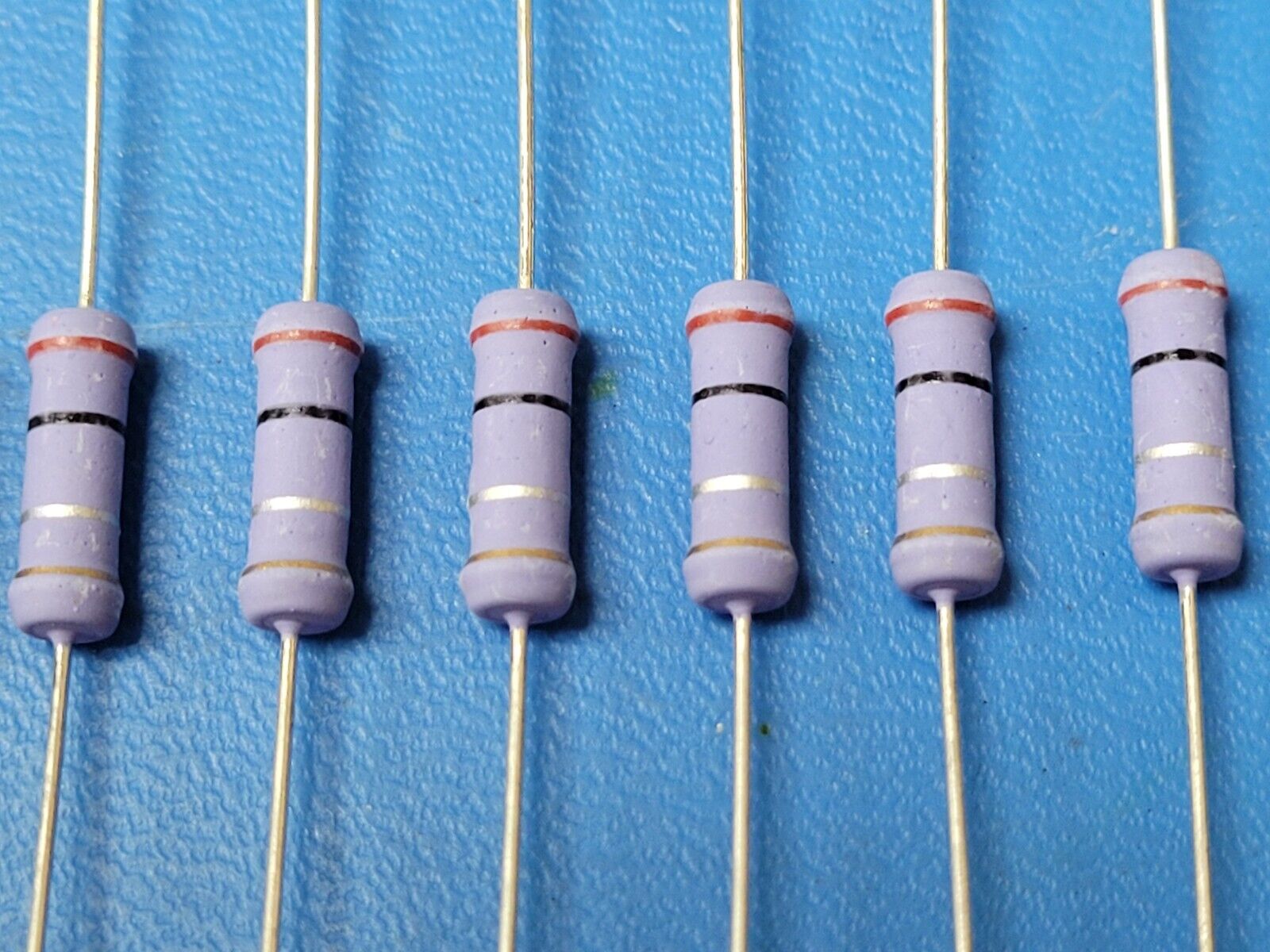

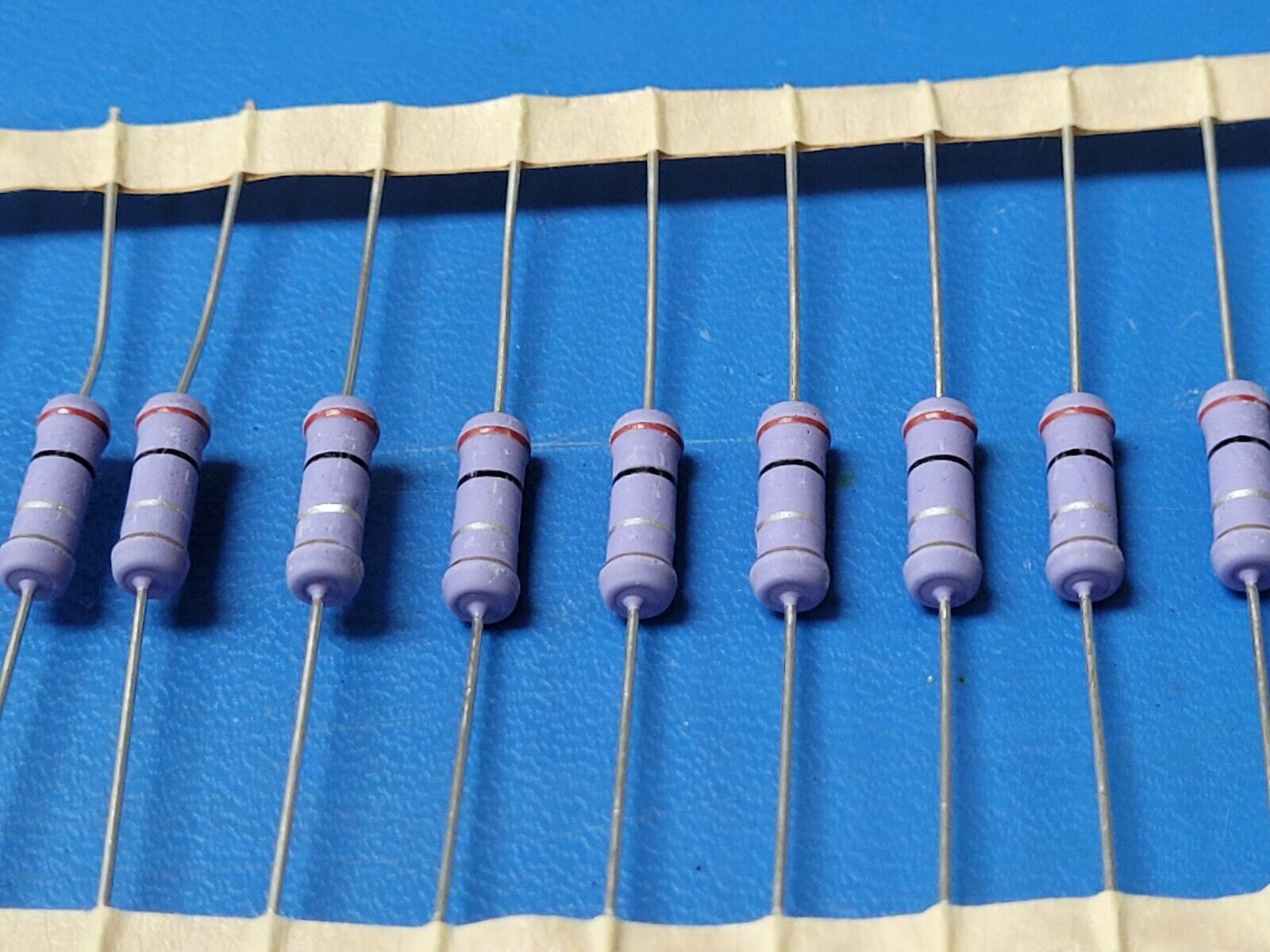

THIS IS FOR (25 PCS) OF RSF20.25%R BY SEI
Res Metal Oxide 0.2 Ohm 5%35 2W AXIAL ROHS

Part #: RSF20.25%R
Part Category: Resistors
Manufacturer: Stackpole Electronics, Inc.
Description: Fixed Resistor, Metal Oxide Film, 2W, 0.2ohm, 350V, 5% +/-Tol, 200ppm/Cel, Through Hole Mount

Mfr Package Description AXIAL LEADED, ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Discontinued
Resistor Type FIXED RESISTOR
Construction Tubular
JESD-609 Code e3
Lead Diameter 0.7  mm
Lead Length 30.0  mm
Manufacturer Series RS
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 2
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 235.0  Cel
Package Diameter 5.0  mm
Package Length 15.0  mm
Package Shape TUBULAR PACKAGE
Package Style Axial
Packing Method TAPE
Rated Power Dissipation (P) 2.0  W
Rated Temperature 70.0  Cel
Reference Standard MIL-STD-202
Resistance 0.2  ohm
Series RS2 (5%TOL)
Sub Category Fixed Resistors
Technology METAL OXIDE FILM
Terminal Finish Matte Tin (Sn)
Tolerance 5.0  %
Working Voltage 350.0  V
