(25 PCS) R451010 LITTELFUSE Surface Mount Fuses 10 AMP 125V VERY FAST ACTING
Tax included.

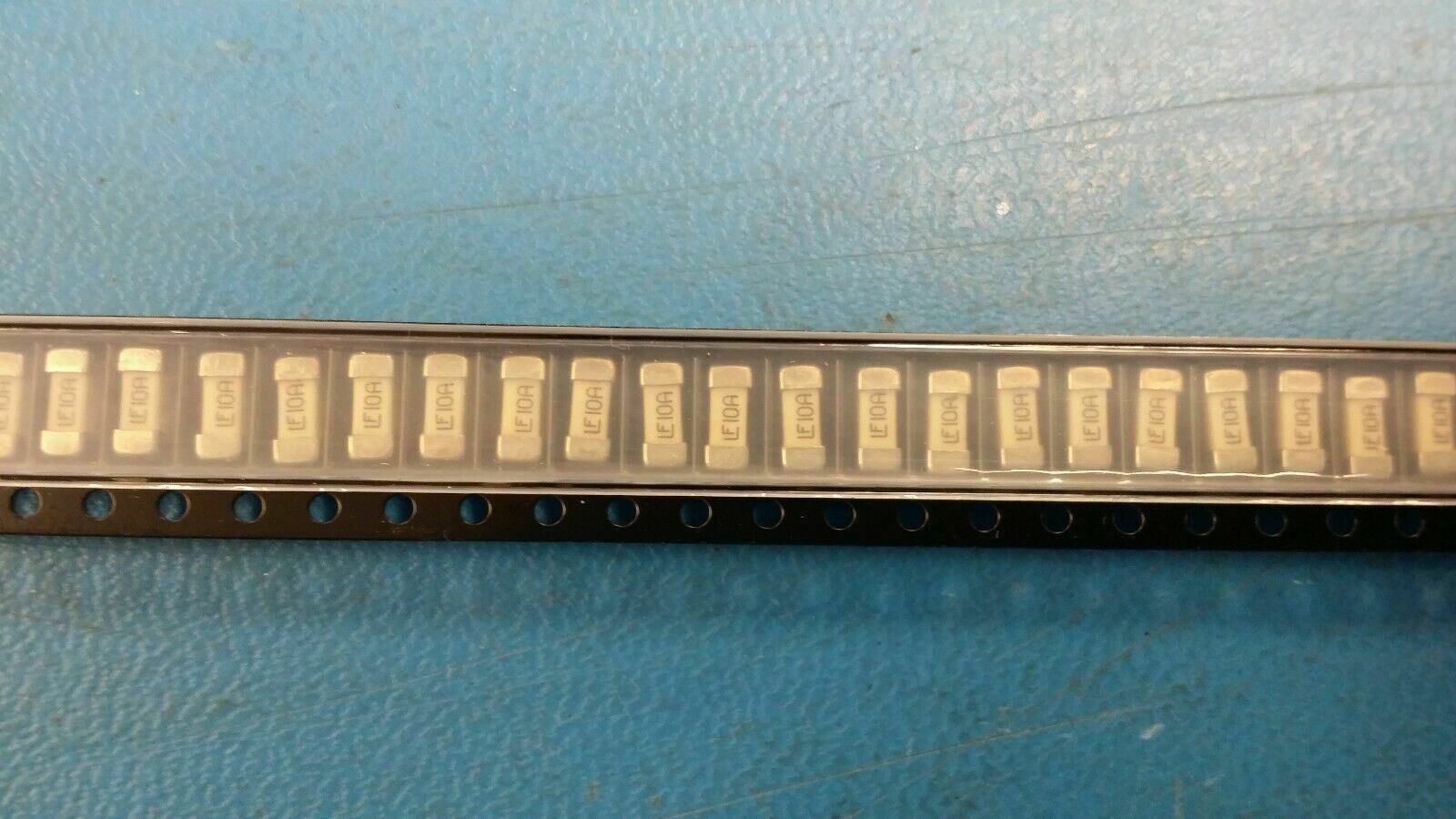

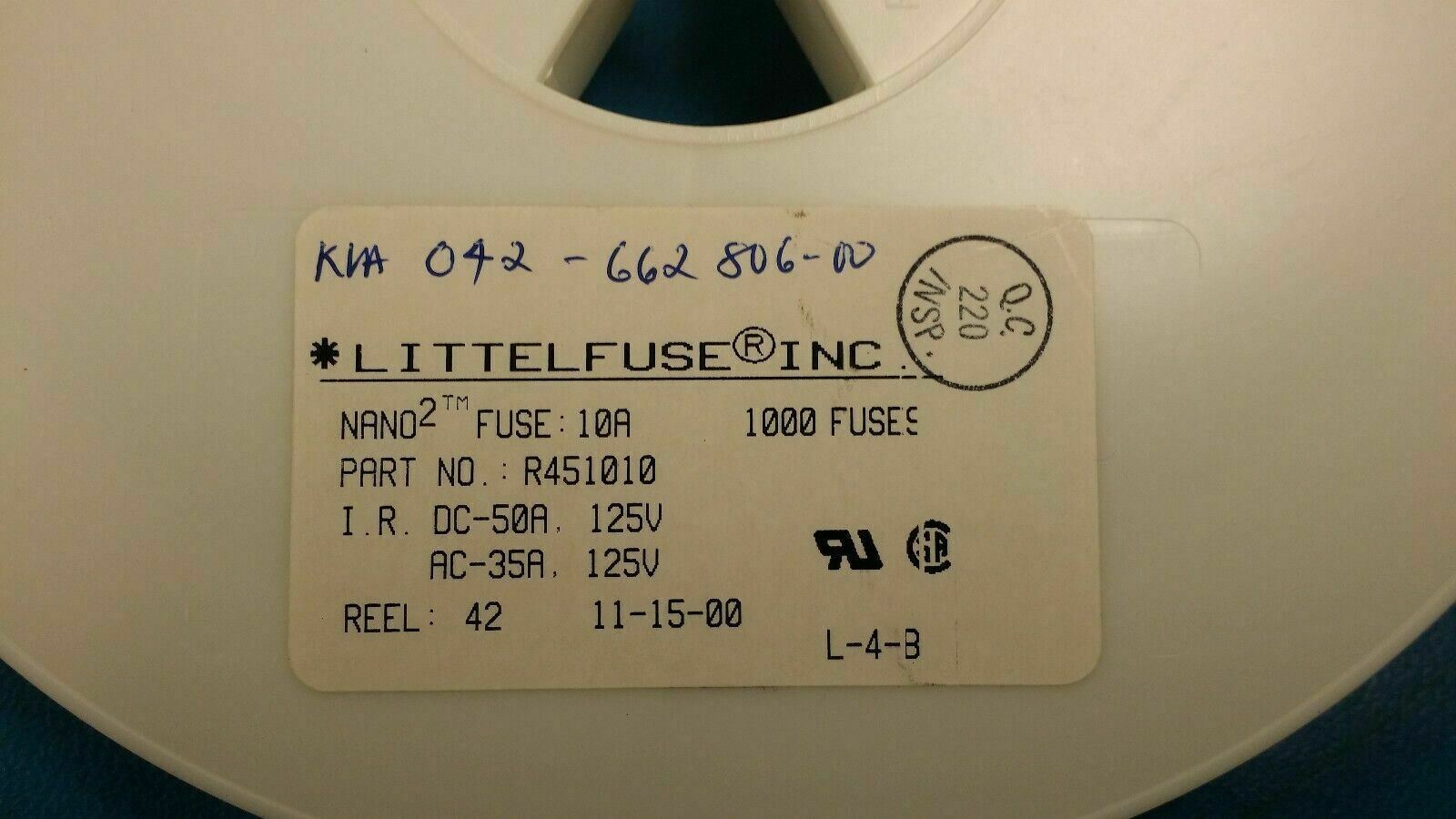

THIS LISTING IS FOR (25 PCS) OF R451010 BY LITTELFUSE
Surface Mount Fuses 10 AMP 125V VERY FAST ACTING
| Manufacturer | Littelfuse Inc. | |
|---|---|---|
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating (Amps) | 10A | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 125V | |
| Response Time | Fast Blow | |
| Package / Case | 2-SMD, Square End Block | |
| Mounting Type | Surface Mount | |
| Breaking Capacity @ Rated Voltage | 35A AC, 50A DC | |
| Melting I²t | 26.46 | |
| Approvals | CSA, PSE, UL | |
| Operating Temperature | -55°C ~ 125°C | |
| Color | - | |
| Size / Dimension | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
| DC Cold Resistance | 0.0056 Ohms |
