(25 PCS) PTS645SK43SMTRLFS C&K SWITCH TACTILE SPST-NO 0.05A 12V SMT ROHS
Tax included.

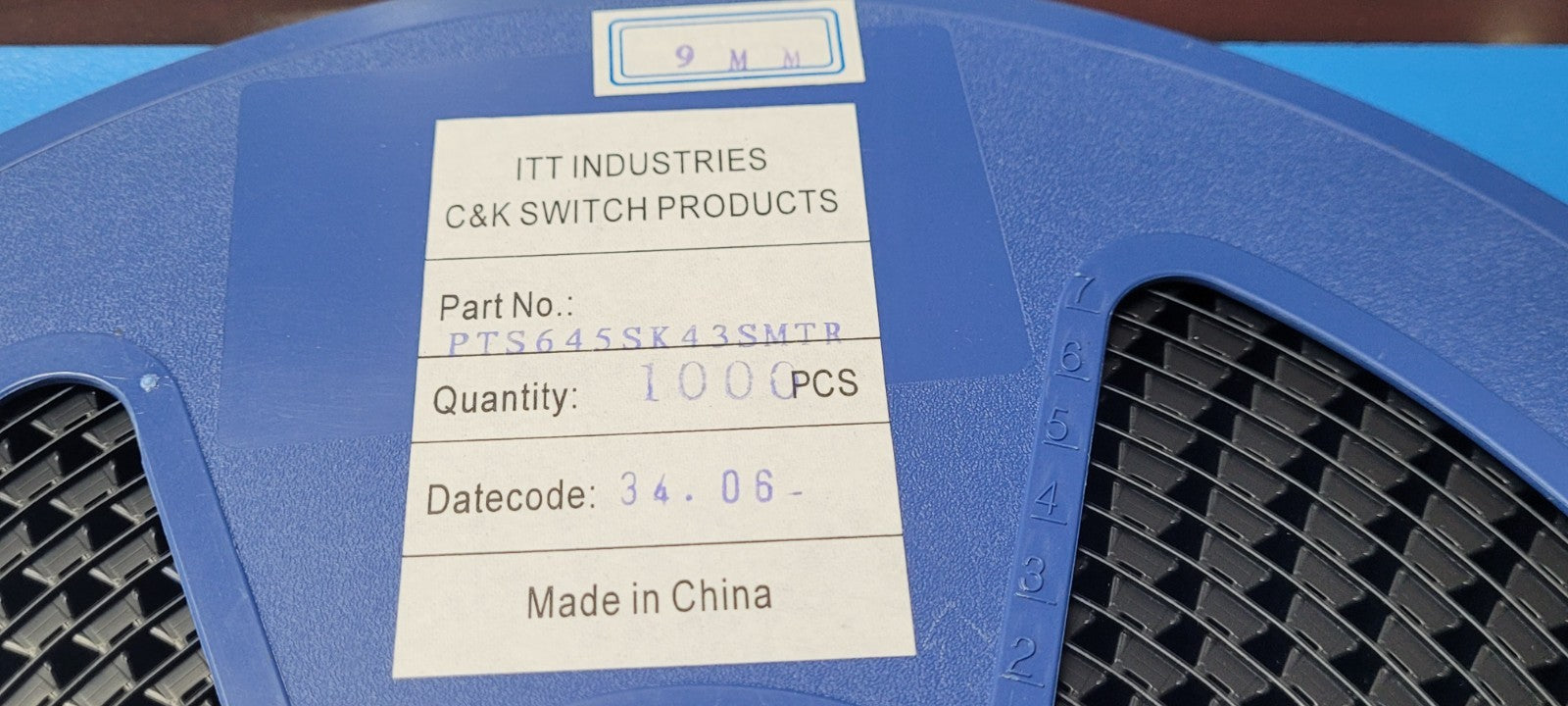

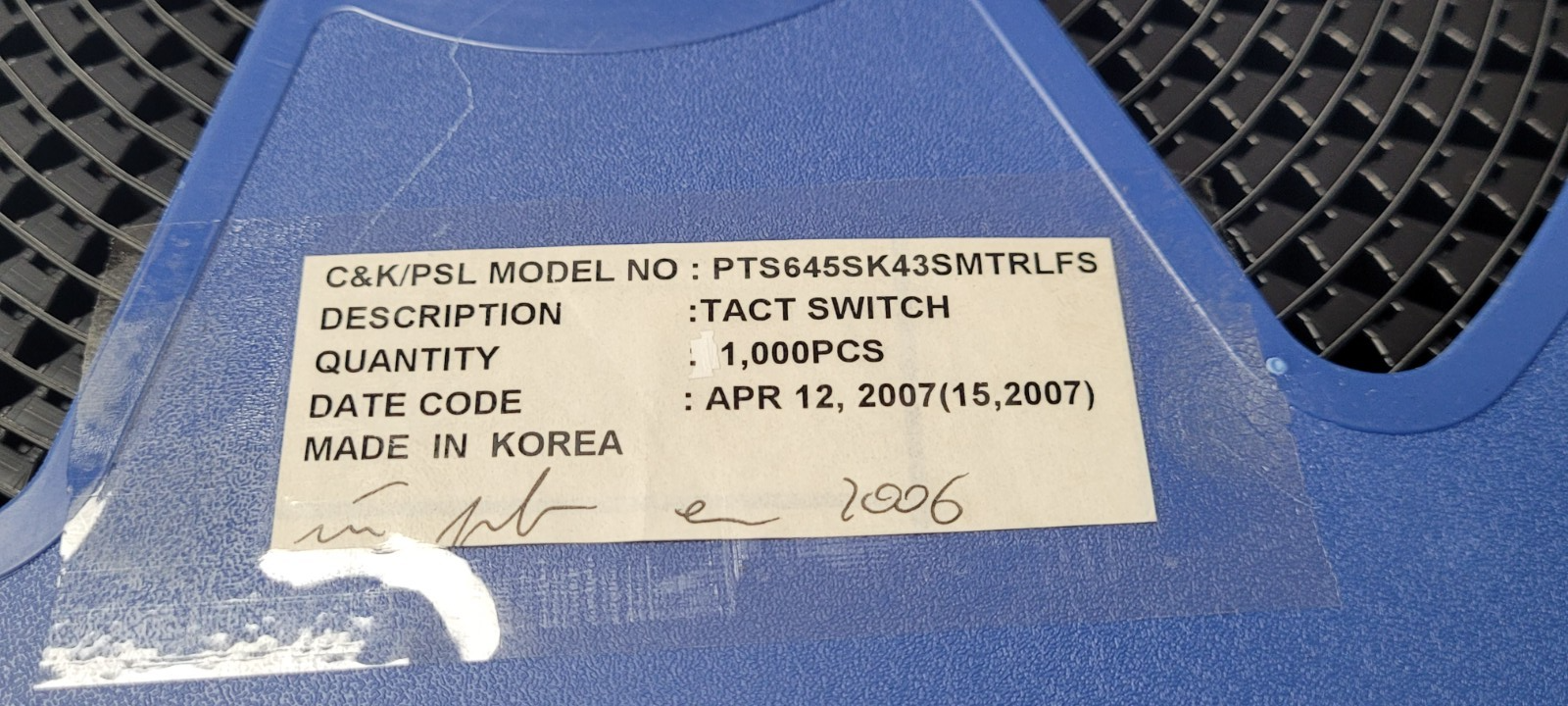

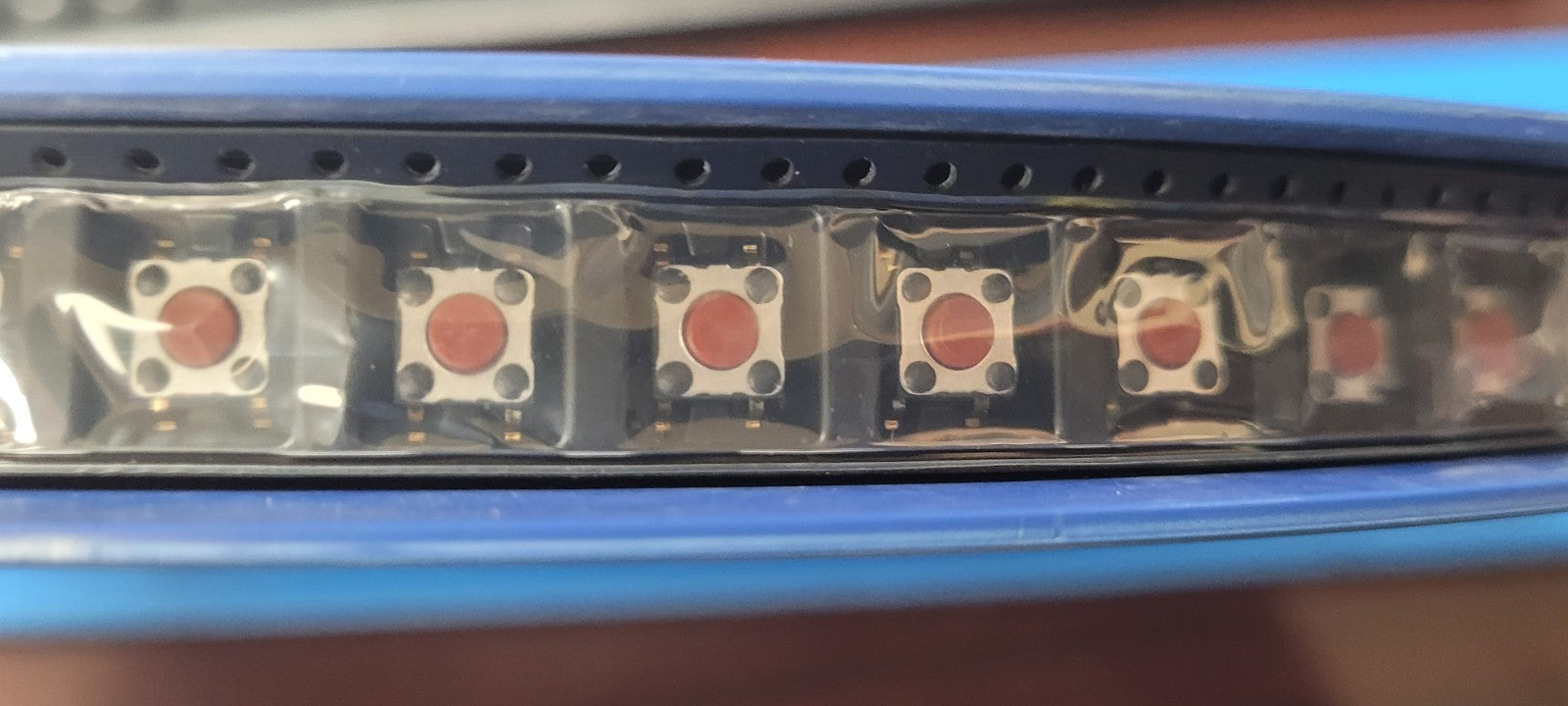

THIS IS FOR (5 PCS) OF PTS645SK43SMTRLFS BY C&K SWITCHES
SWITCH TACTILE SPST-NO 0.05A 12V SMT ROHS
Part #: PTS645SK43SMTRLFS
Active
Part Category: Keypad Switches
Manufacturer: C & K COMPONENTS LLC
Description: Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 12VDC, 2.55N, Solder Terminal, Surface Mount-straight
Status Active
Actuator Length (inch) 0.027000
Additional Feature ROHS COMPLIANT
Body Breadth (mm) 6.0000
Body Height (mm) 3.6000
Body Length or Diameter (mm) 6.0000
Center Contact Material PHOSPHOR BRONZE
Center Contact Plating SILVER
Circuit Configuration 1X1
Contact Current(DC)-Max (A) 0.05000000
Contact DC Max Rating R Load .05A@12VDC
Contact Function OFF-(ON)
Contact Resistance (mohm) 100.000000000000000
Contact Voltage(DC)-Max (V) 12.00000000
Dielectric Withstand Volts (V) 250VAC
Electrical Life (Cycle(s)) 100000
End Contact Material BRASS
End Contact Plating SILVER
Insulation Resistance (ohm) 100000000000.000000000000000
J-STD-609 Code e4
Mounting Feature SURFACE MOUNT-STRAIGHT
Number of Switches 1
Operating Force-Max (N) 2.5500
Operating Temperature-Max (Cel) 60
Operating Temperature-Min (Cel) -20
Packing Method TAPE AND REEL
Switch Action MOMENTARY
Switch Function SPST
Switch Type KEYPAD SWITCH
Terminal Finish SILVER
Terminal Material BRASS
Termination Type SOLDER
