(25 PCS) PIMT1,115 NXP Transistor GP BJT PNP 40V 0.1A 6-Pin TSOP
Tax included.

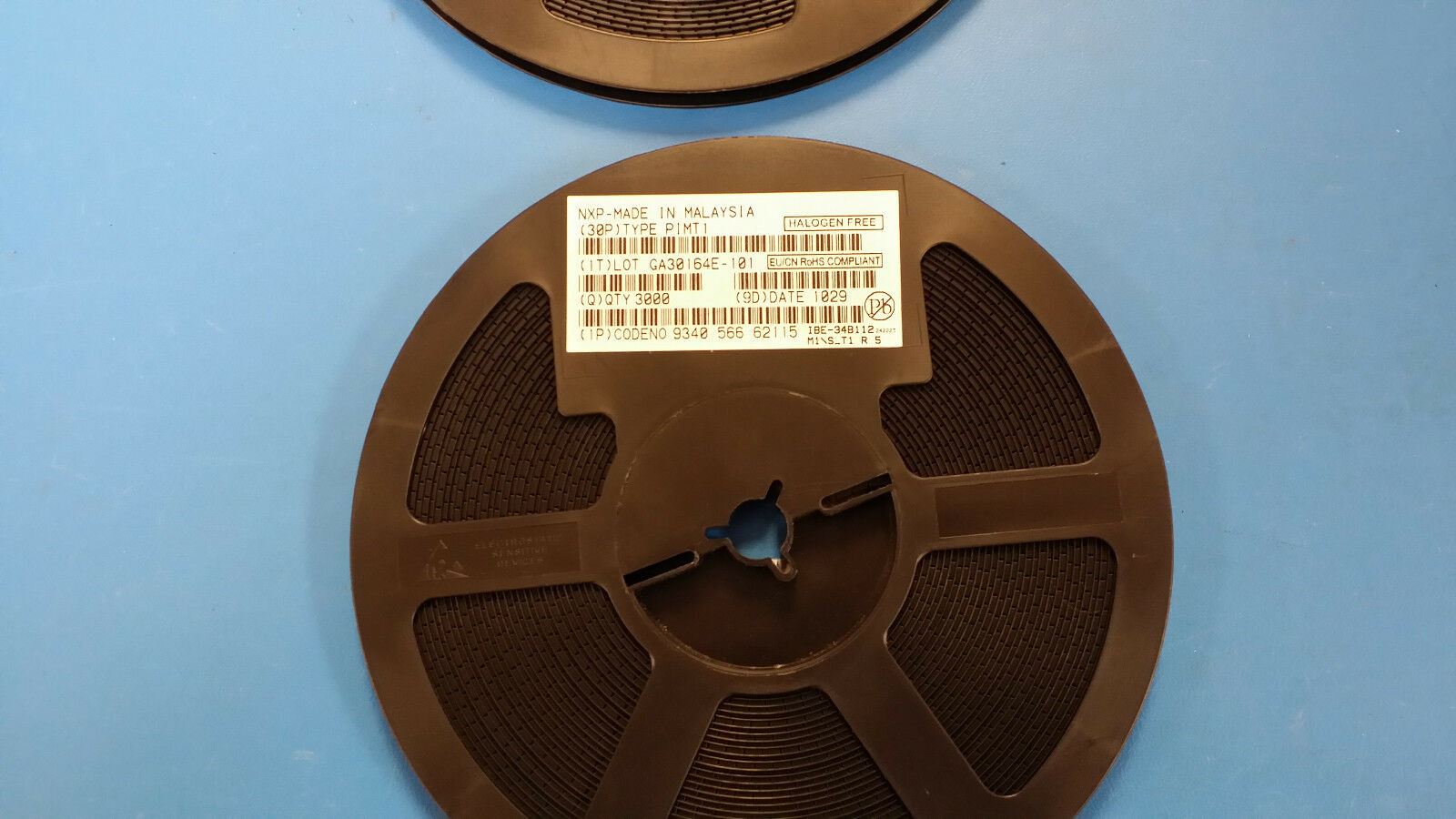

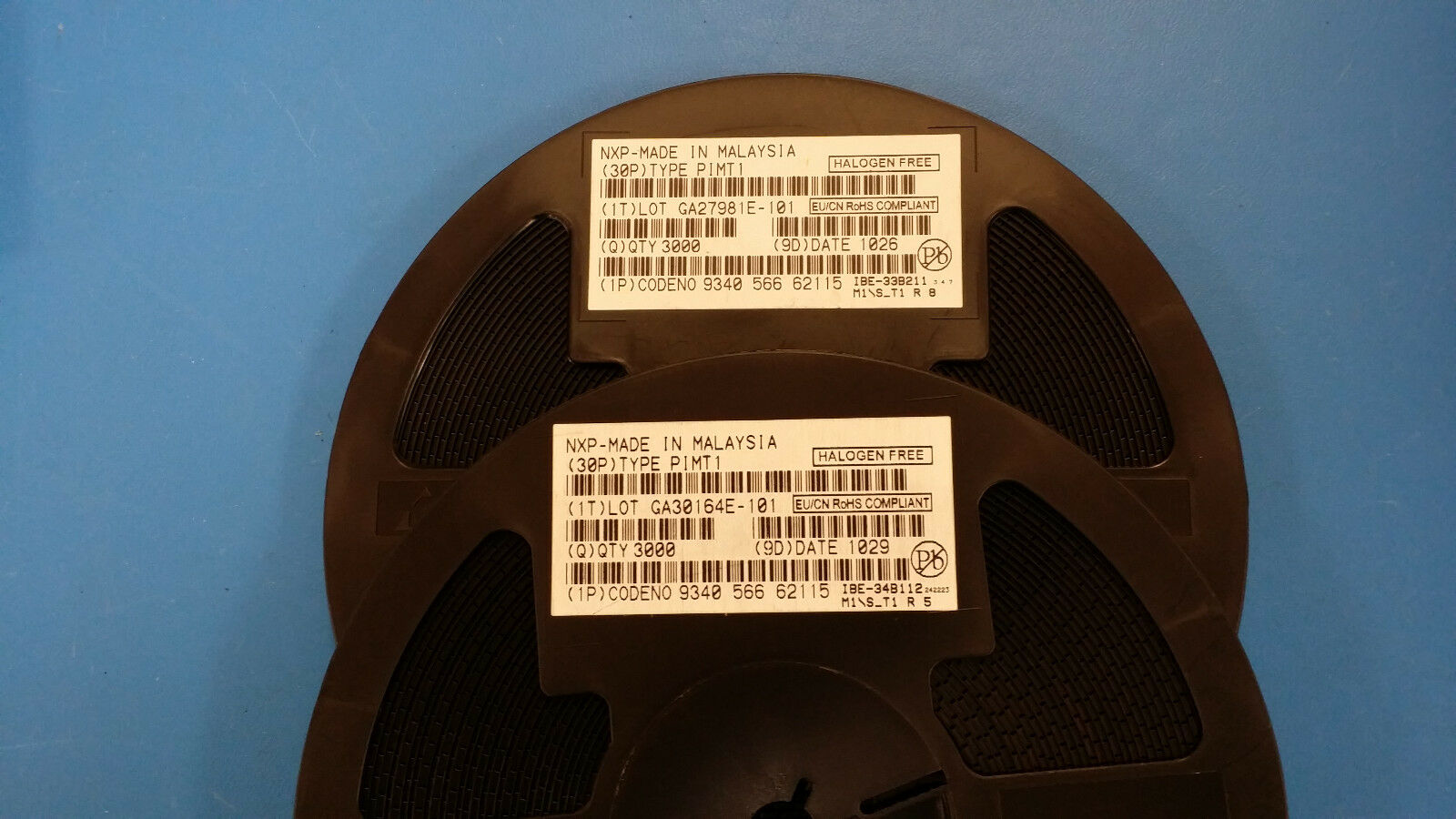

THIS LISTING IS FOR (25 PCS) OF PIMT1,115 BY NXP
Transistor GP BJT PNP 40V 0.1A 6-Pin TSOP
Transistor GP BJT PNP 40V 0.1A 6-Pin TSOP
PIMT1,115 Part Details & Parametric
| EU RoHS |
Compliant
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | PNP |
| Maximum Collector Base Voltage (V) | 50 |
| Maximum Emitter Base Voltage (V) | 5 |
| Maximum Collector Emitter Voltage (V) | 40 |
| Maximum Power Dissipation (mW) | 600 |
| Maximum DC Collector Current (A) | 0.1 |
| Packaging | Tape and Reel |
| Minimum DC Current Gain | 120@1mA@6V |
| Number of Elements per Chip | 2 |
| Maximum Transition Frequency (MHz) | 100(Min) |
| Category | Bipolar Small Signal |
| Mounting | Surface Mount |
| Package Height (mm) | 1(Max) |
| Package Length (mm) | 3.1(Max) |
| Package Width (mm) | 1.7(Max) |
| PCB | 6 |
| Standard Package Name | TSOP |
| Supplier Package | TSOP |
| Pin Count | 6 |
| Lead Shape | Gull-wing |
