(25 PCS) PI74FCT153ATW Multiplexer 2 Func 4 Line Input 1 Line Output CMOS SOIC16
Tax included.

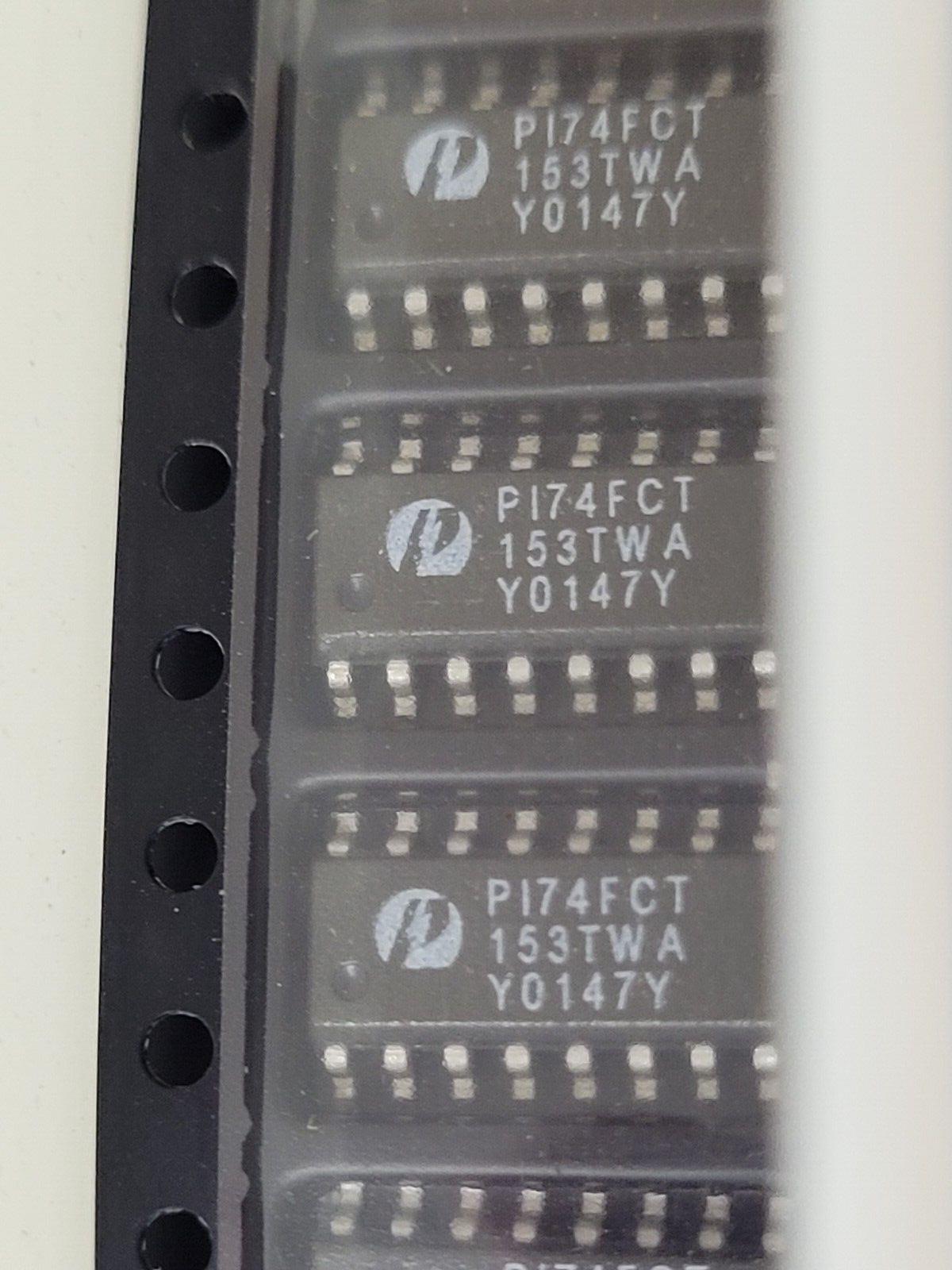

THIS IS FOR (25 PCS) OF PI74FCT153ATW BY PERICOM
Multiplexer 2 Func 4 Line Input 1 Line Output CMOS SOIC16
Part #: PI74FCT153ATW
Part Category: Logic ICs
Manufacturer: Pericom Semiconductor Corp.
Description: Multiplexer, FCT Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16
Mfr Package Description 0.150 INCH, PLASTIC, SOIC-16
Status Discontinued
Logic IC Type MULTIPLEXER
Sub Category Multiplexer/Demultiplexers
Family FCT
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.048 Amp
Number of Functions 2
Number of Inputs 4.0
Number of Outputs 1.0
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Prop. Delay@Nom-Sup 5.2 ns
Propagation Delay (tpd) 5.2 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 9.9 mm
Width 3.9 mm
