(25 PCS) P1602ABL TECCOR 95V 25A SIDAC SILICON SURGE PROTECTOR TO220-3
Tax included.

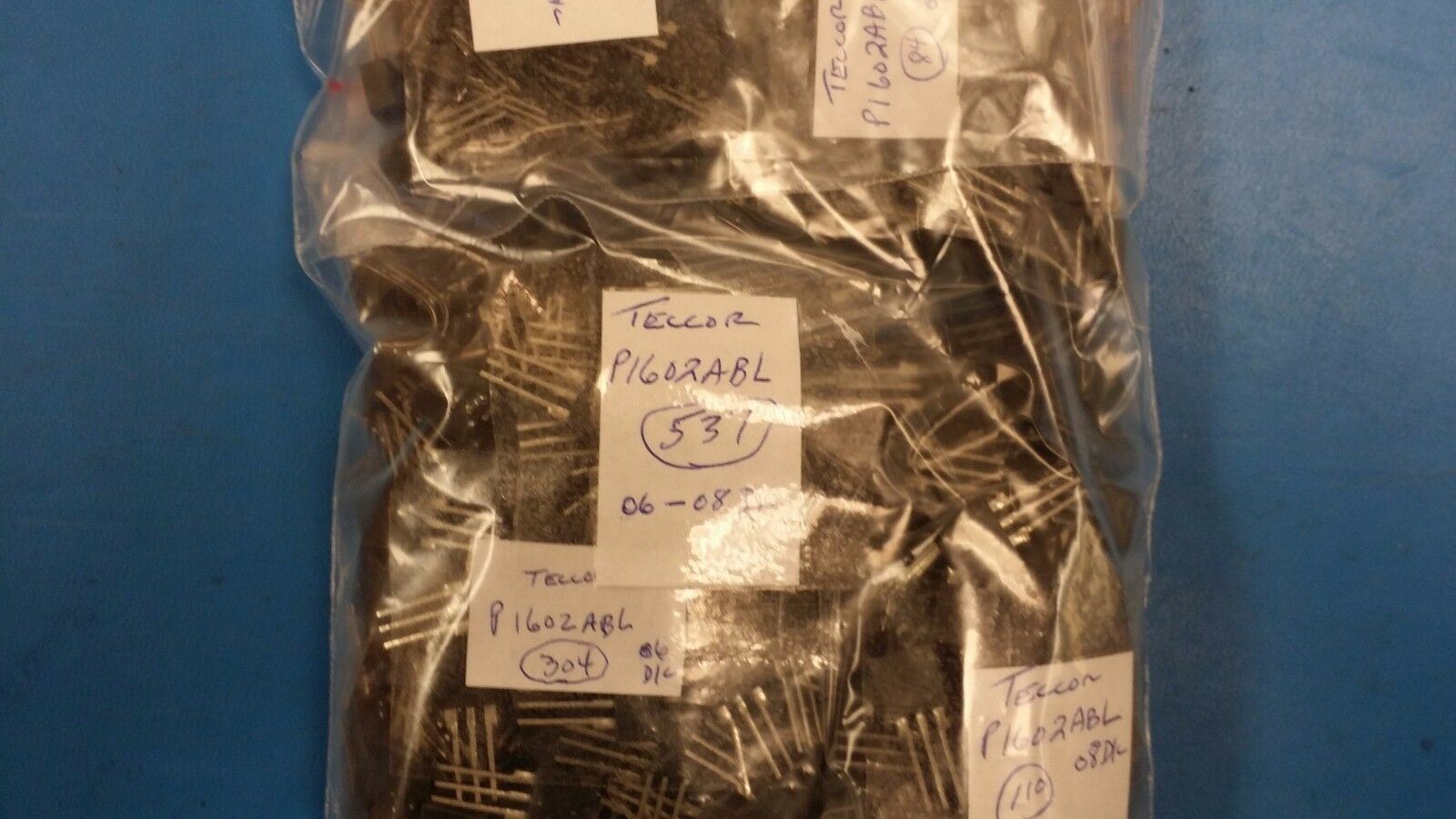

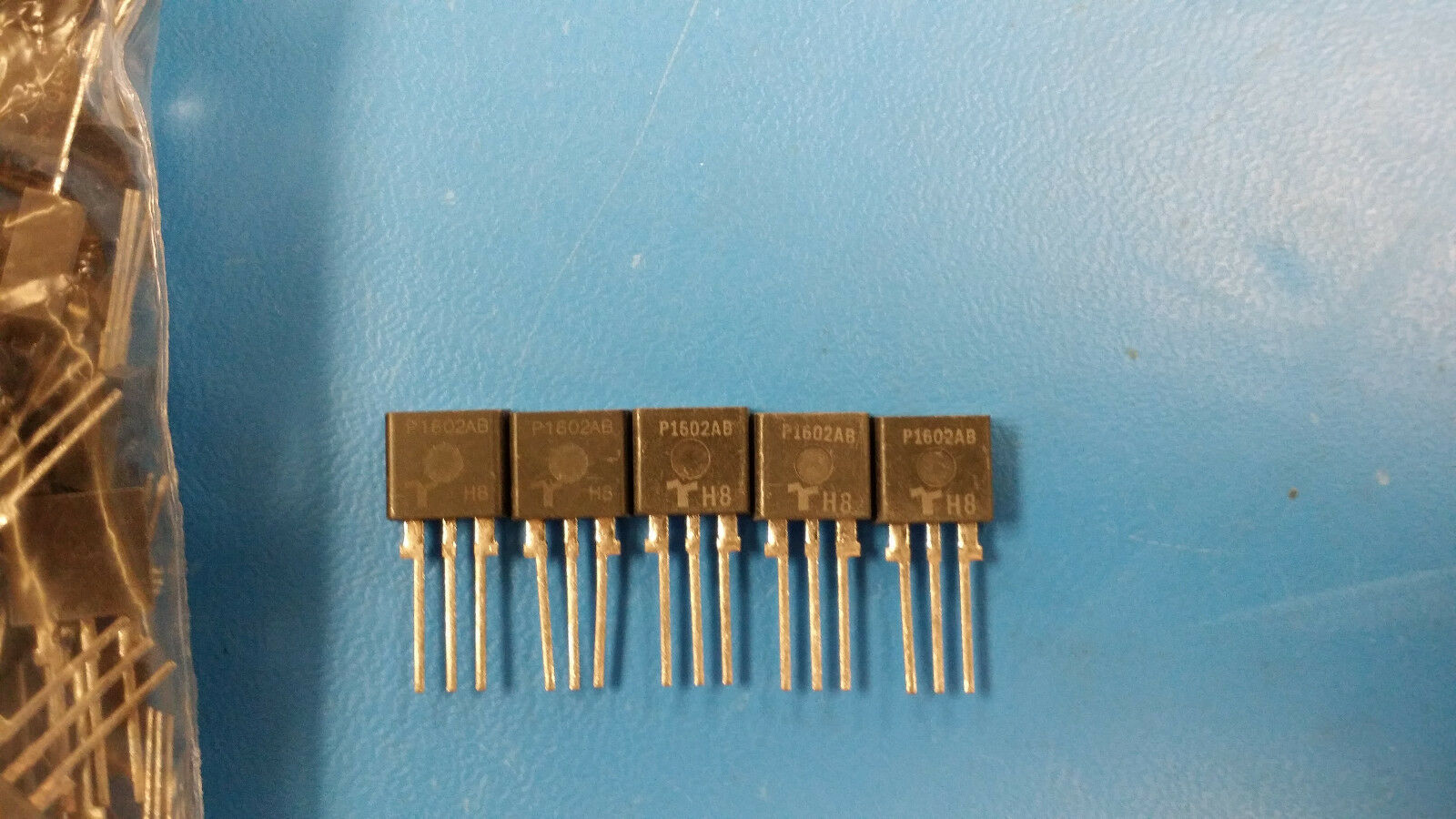

THIS LISTING IS FOR (25 PCS) OF P1602ABL BY TECCOR
Thyristor Surge Protection Devices 130V 30A 3-Pin(3+Tab) TO-220 Modified
Thyristor Surge Protection Devices 130V 30A 3-Pin(3+Tab) TO-220 Modified
| Manufacturer: | Littelfuse/Teccor | |
| Product Category: | Sidacs | |
| Breakover Voltage VBO: | 95 V, 190 V | |
| Breakover Current IBO Max: | 800 mA | |
| Non Repetitive On-State Current: | 30 A | |
| Rated Repetitive Off-State Voltage VDRM: | 65 V, 130 V | |
| Off-State Leakage Current @ VDRM IDRM: | 5 uA | |
| Holding Current Ih Max: | 150 mA | |
| On-State Voltage: | 4 V | |
| Off-State Capacitance CO: | 20 pF to 85 pF, 35 pF to 145 pF | |
| Maximum Operating Temperature: | + 85 C | |
| Mounting Style: | Through Hole | |
| Package / Case: | TO-220-3 | |
| Brand: | Littelfuse/Teccor | |
| Current Rating: | 2.2 A |
|
| Minimum Operating Temperature: | - 40 C |
|
| Packaging: | Bulk |
|
| Qualification: | Commercial |
