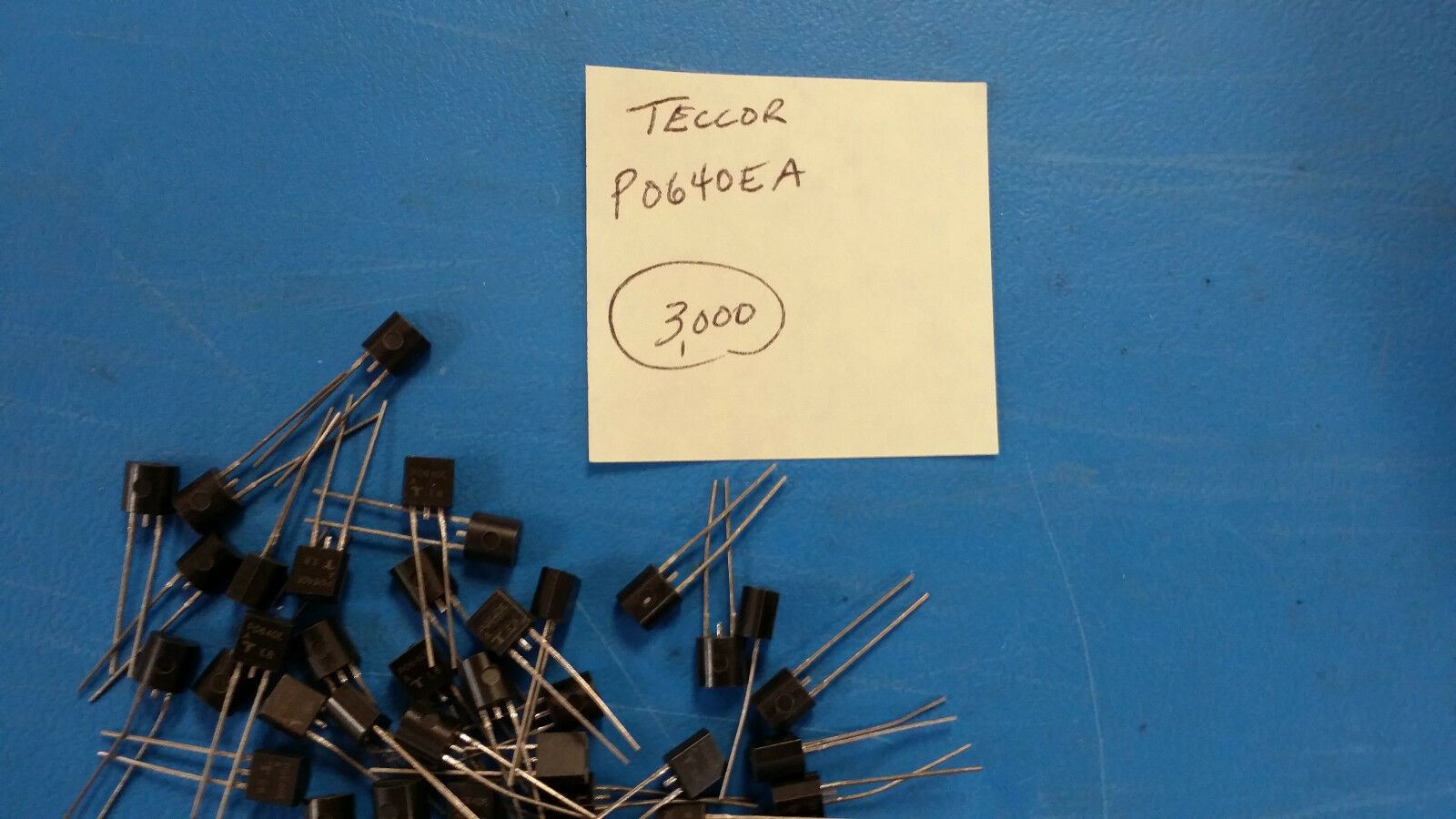

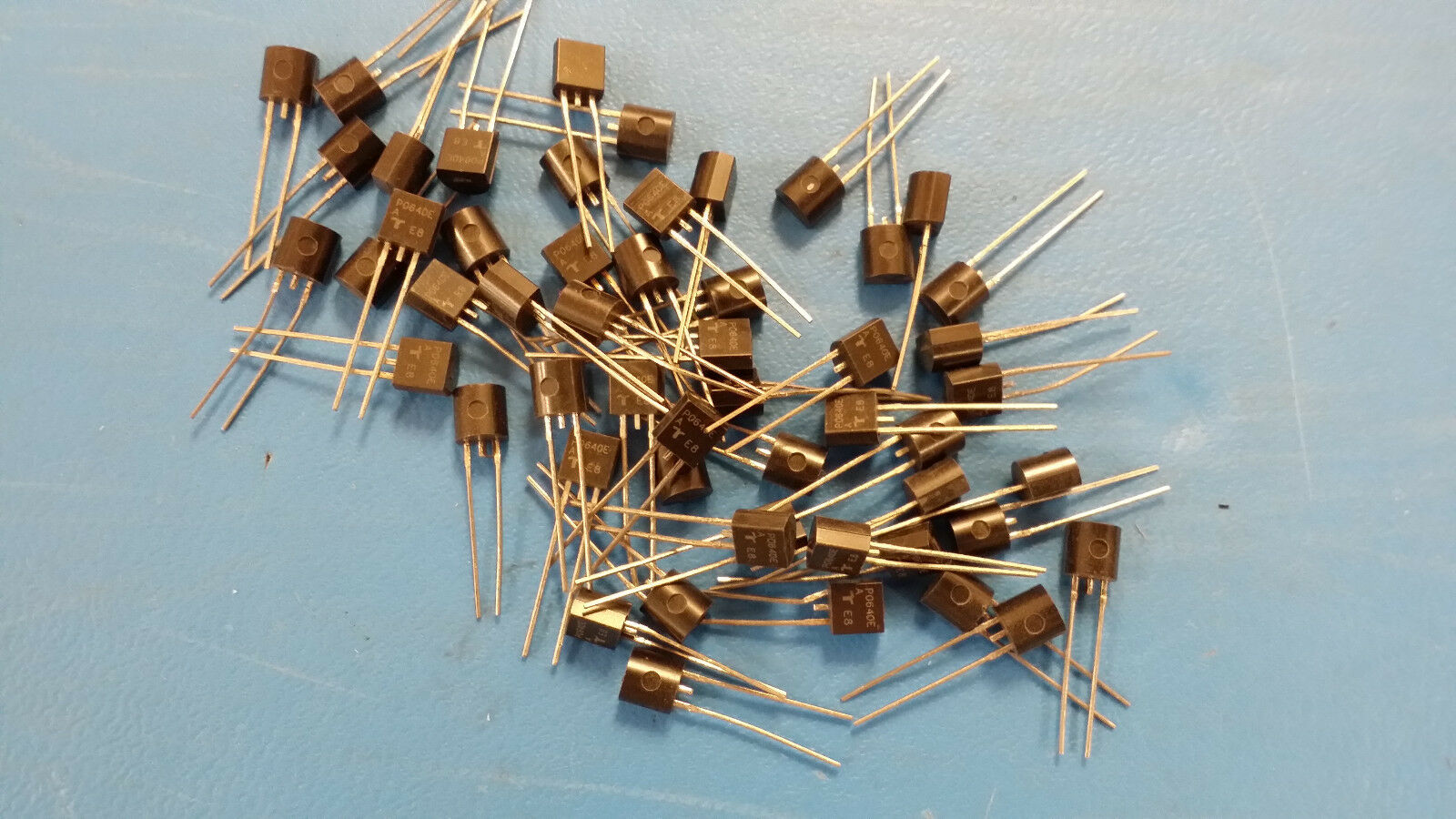

(25 PCS) P0640EA TECCOR Thyristor Surge Protection Devices 58V 20A 2-Pin TO-92

  • $12.95
    Unit price per
Tax included.

Only 80 left!

THIS LISTING IS FOR (25 PCS) OF P0640EA BY TECCOR
Thyristor Surge Protection Devices 58V 20A 2-Pin TO-92
Manufacturer: Littelfuse/Teccor
Product Category: Sidacs
RoHS: No
Breakover Voltage VBO: 77 V
Breakover Current IBO Max: 800 mA
Non Repetitive On-State Current: 20 A
Rated Repetitive Off-State Voltage VDRM: 58 V
Off-State Leakage Current @ VDRM IDRM: 5 uA
Holding Current Ih Max: 150 mA
On-State Voltage: 4 V
Off-State Capacitance CO: 40 pF to 60 pF
Maximum Operating Temperature: + 85 C
Mounting Style: Through Hole
Package / Case: TO-92-3
Brand: Littelfuse/Teccor
Current Rating: 2.2 A
Minimum Operating Temperature: - 40 C
