(25 PCS) NRWP471M50V10X20F Cap Aluminum 470uF 50V 20% Radial 105°C ROHS
Tax included.

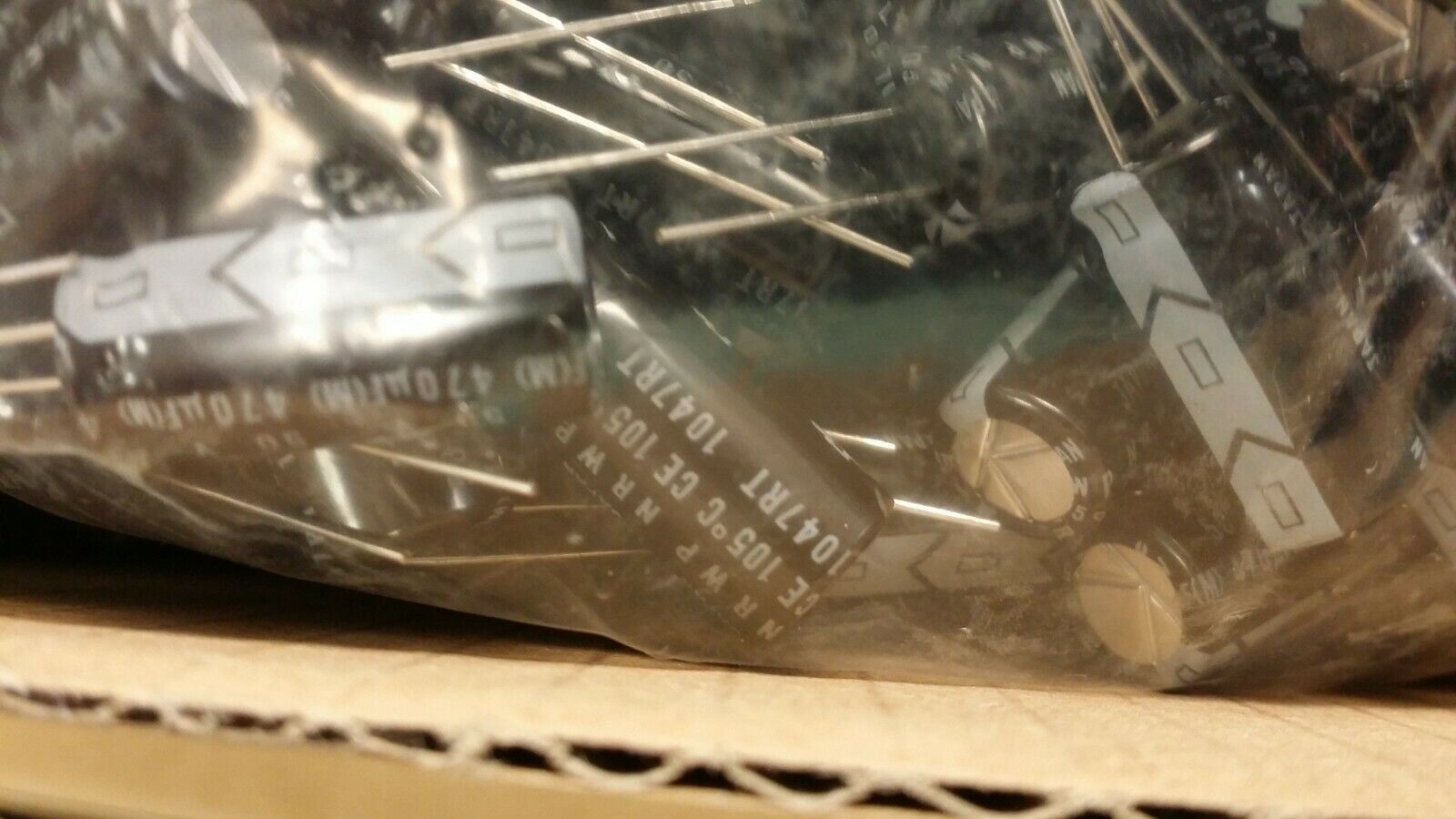

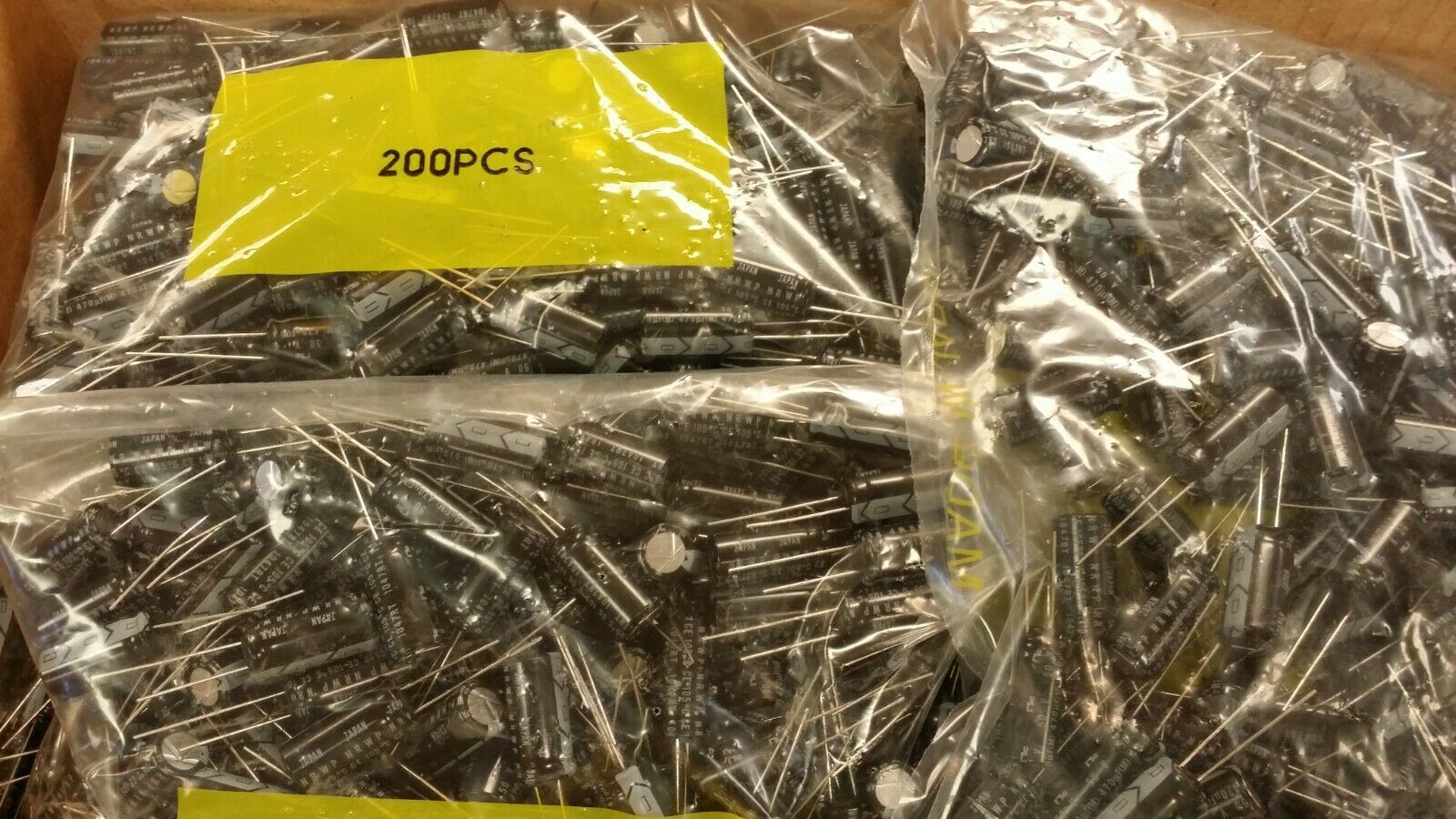

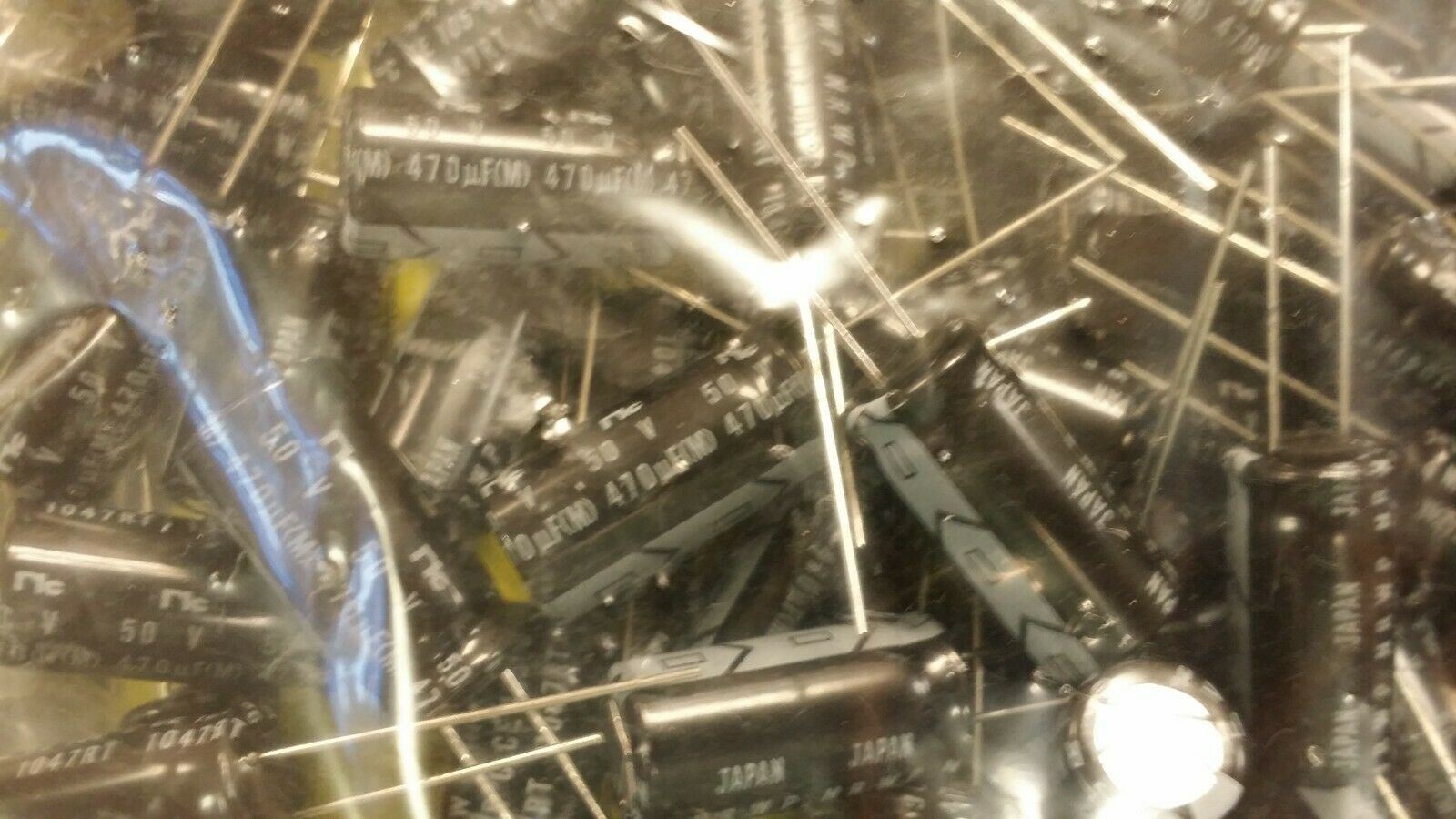

THIS LISTING IS FOR (25 PCS) OF NRWP471M50V10X20F BY NIC
Cap Aluminum 470uF 50V 20% Radial 105°C ROHS
Series: NRWP
Type: Radial
Capacitance: 470µF
Tolerance (%): ±20%
Rated Voltage: 50V
Lifetime@Temperature: 2000 Hrs @ 105°C
Operating Temp Range: -55°C to +105°C
Ripple Current: 600mA
ESR (Equivalent Series Resistance): 0.42Ω
Lead Spacing: 5mm
Operating Temp-Max: 105°C
Dissipation Factor: 0.12%
Leakage Current: 235µA
Dimension: L 20mm x D 10mm
