(25 PCS) NDS9430 NSC or FSC Trans MOSFET P-CH 30V 5.3A 8-Pin SOIC N T/R
Tax included.

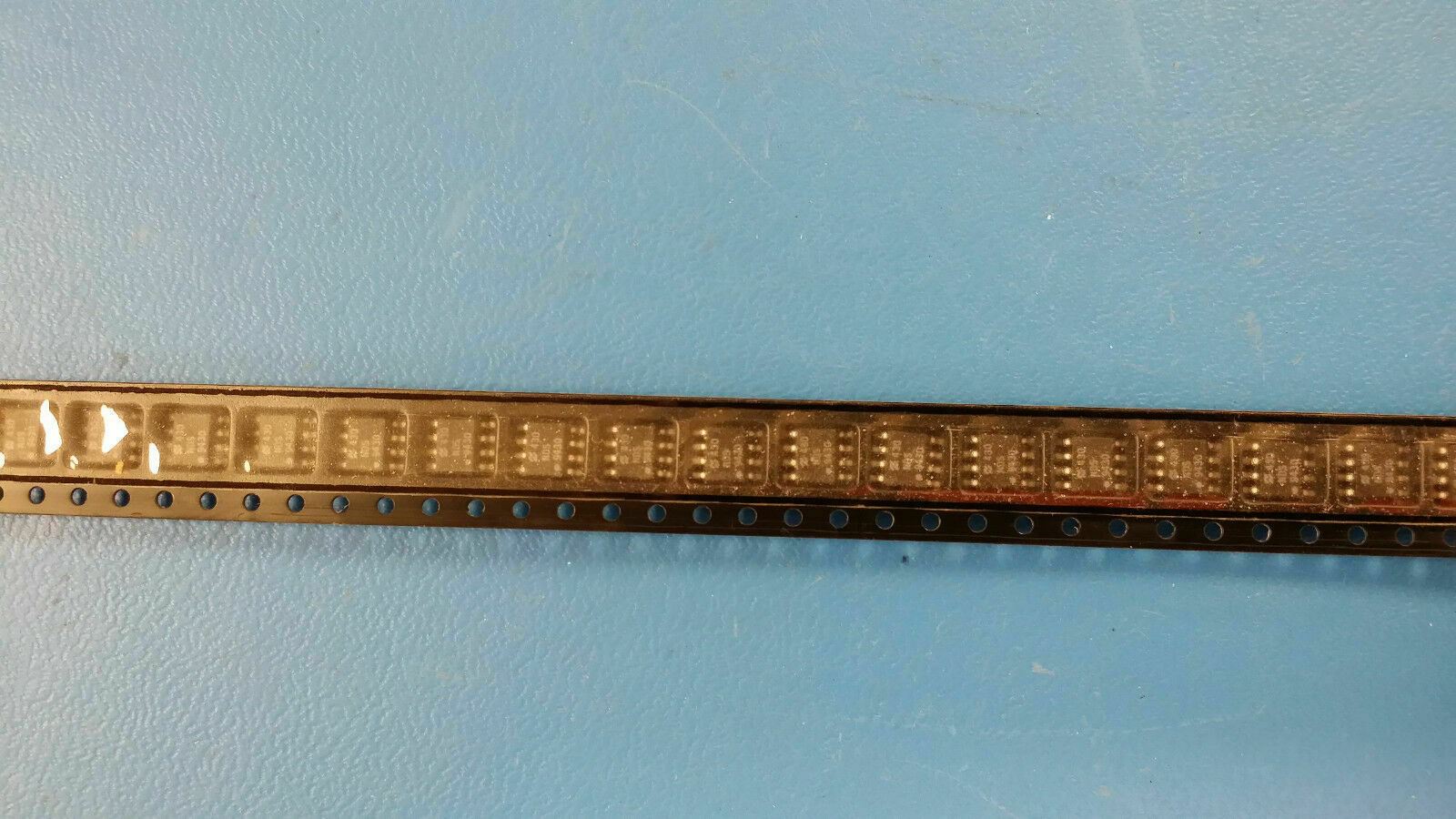

THIS LISTING IS FOR (25 PCS) OF NDS9430 BY NSC or FSC
Trans MOSFET P-CH 30V 5.3A 8-Pin SOIC N T/R
(2500 STOCK. WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
Trans MOSFET P-CH 30V 5.3A 8-Pin SOIC N T/R
(2500 STOCK. WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
NDS9430 Part Details & Parametric
| Maximum Operating Temperature (°C) | 175 |
| Channel Mode | Enhancement |
| Channel Type | P |
| Typical Gate Charge @ 10V (nC) | 10 |
| Category | Power MOSFET |
| Maximum Power Dissipation (mW) | 2500 |
| Packaging | Tape and Reel |
| Maximum Drain Source Voltage (V) | 30 |
| Maximum Gate Source Voltage (V) | ±20 |
| Typical Gate Charge @ Vgs (nC) | 10@10V |
| Typical Input Capacitance @ Vds (pF) | 528@15V |
| Maximum Drain Source Resistance (mOhm) | 60@10V |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Continuous Drain Current (A) | 5.3 |
| Mounting | Surface Mount |
| Package Height (mm) | 1.5(Max) |
| Package Length (mm) | 5(Max) |
| Package Width (mm) | 4(Max) |
| PCB | 8 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC N |
| Pin Count | 8 |
| Lead Shape | Gull-wing |
