(25 PCS) NC7S02M5X FSC NOR Gate IC 1 Channel SOT-23-5
Tax included.

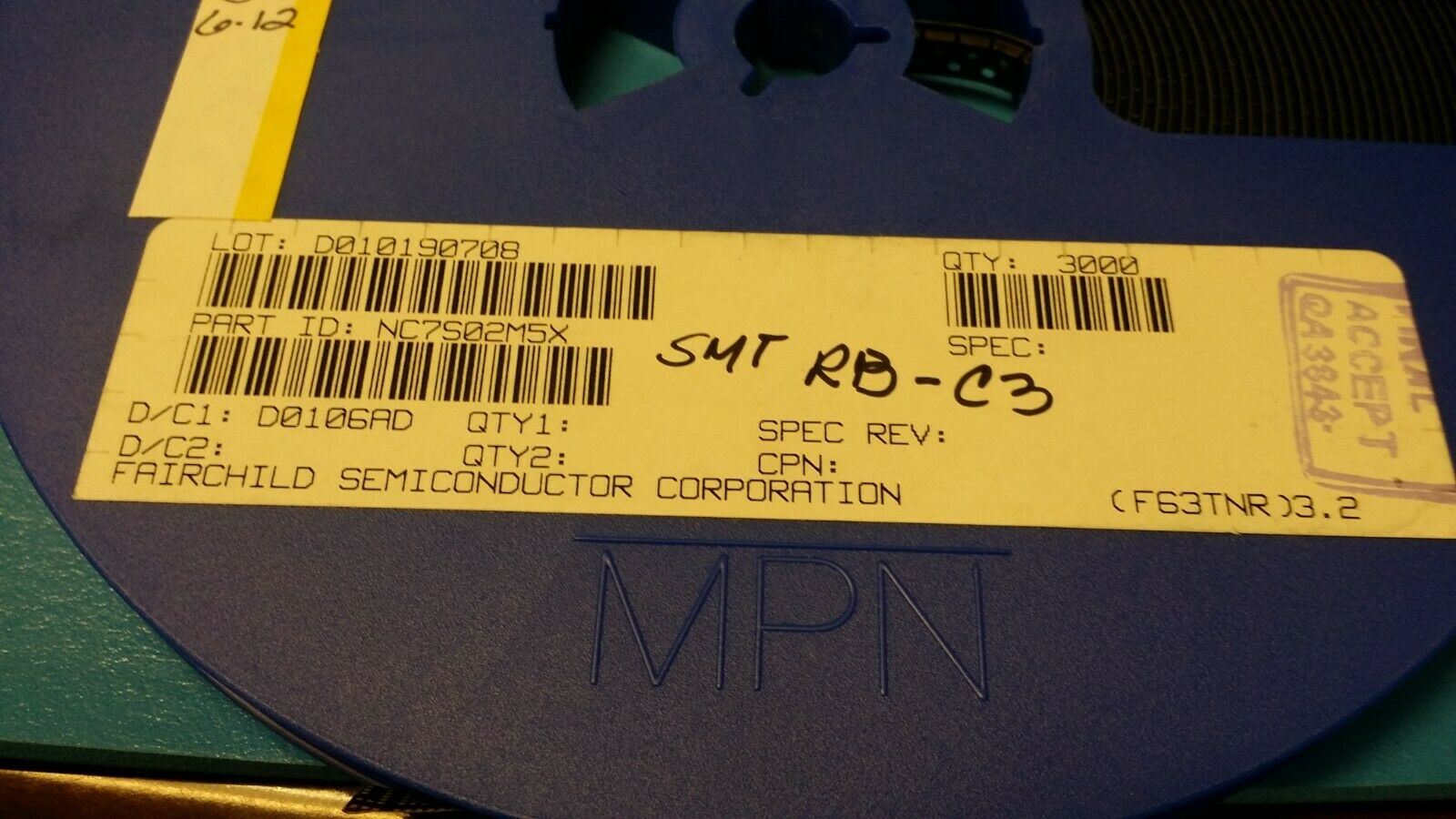

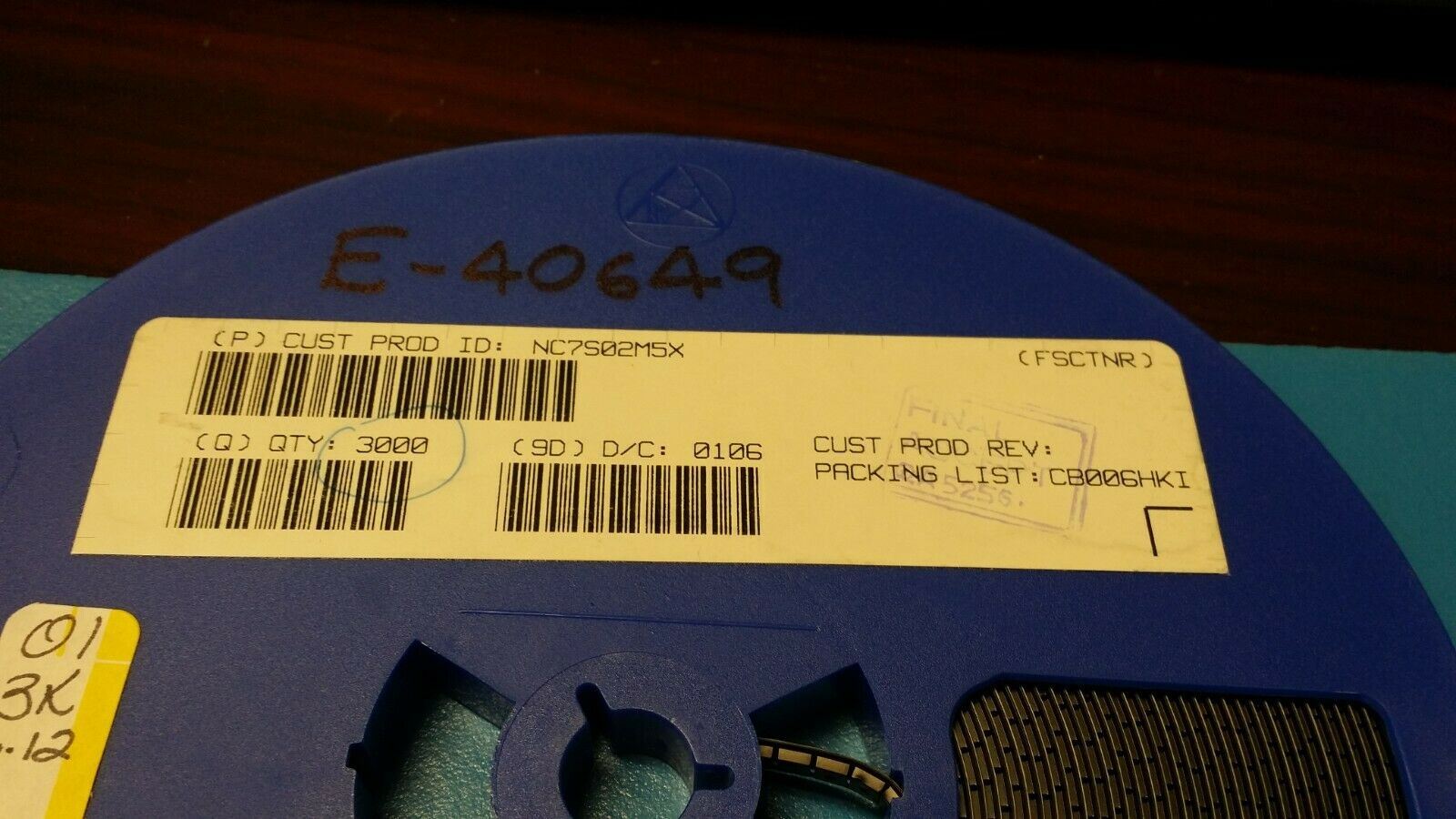

THIS LISTING IS FOR (25 PCS) OF NC7S02M5X BY FSC
NOR Gate IC 1 Channel SOT-23-5
Manufacturer: ON Semiconductor (Fairchild Semiconductor)
Product Category: Logic Gates
RoHS: NO
Product: Single-Function Gate
Logic Function: NOR
Logic Family: NC7S
Number of Gates: 1 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 2.6 mA
Low Level Output Current: 2.6 mA
Propagation Delay Time: 100 ns
Supply Voltage - Max: 6 V
Supply Voltage - Min: 2 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Mounting Style: SMD/SMT
Package / Case: SOT-23
Packaging: Cut Tape

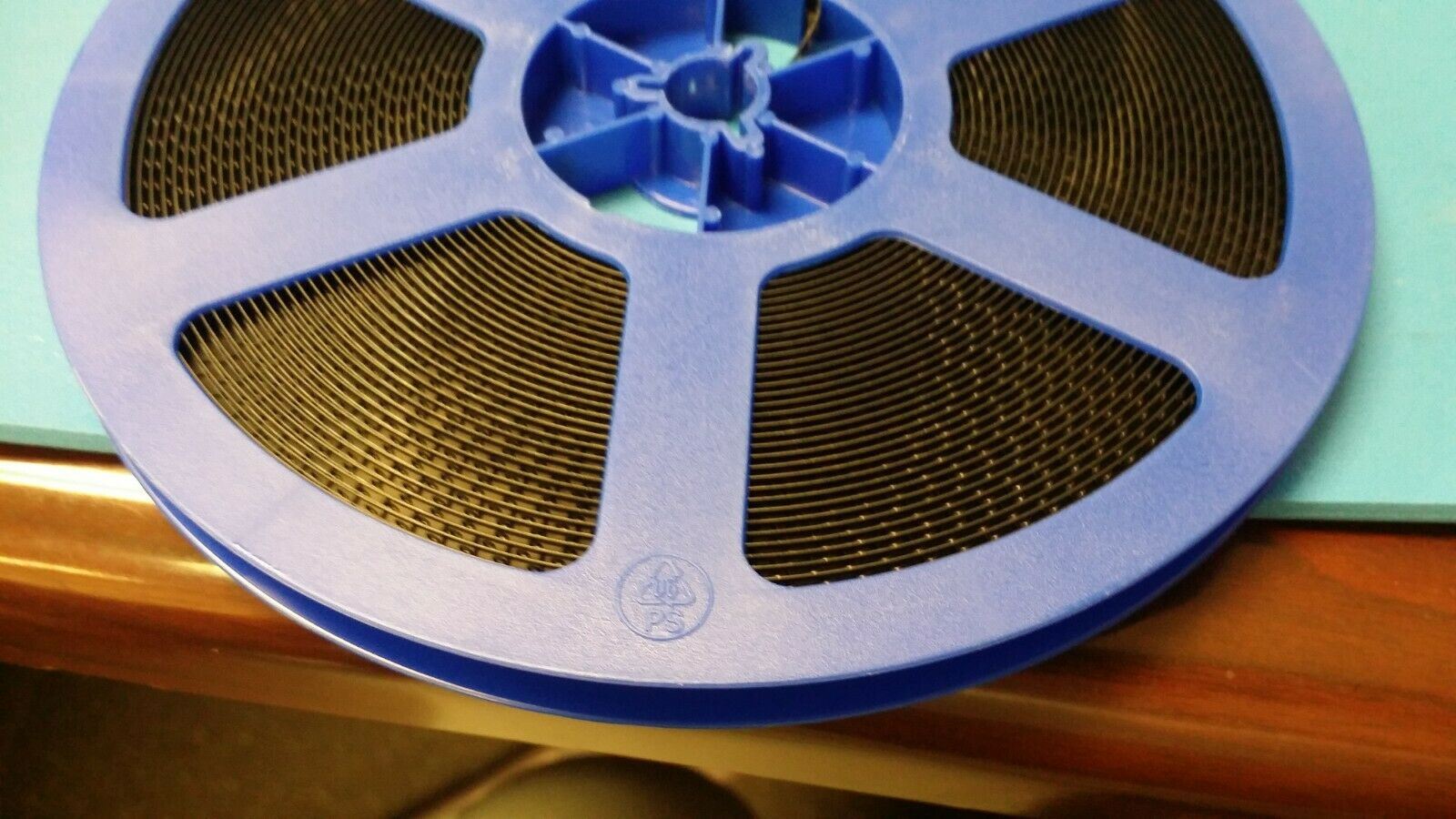

Packaging: Reel
Function: Gate
Height: 1.3 mm
Length: 3 mm
Series: NC7S02
Width: 1.7 mm
Brand: ON Semiconductor / Fairchild
Logic Type: 2-Input NOR
Operating Supply Voltage: 2.5 V, 3.3 V, 5 V
Product Type: Logic Gates
Factory Pack Quantity: 3000
Subcategory: Logic ICs
Tradename: TinyLogic
Part # Aliases: NC7S02M5X_NL
Unit Weight: 0.000282 oz
