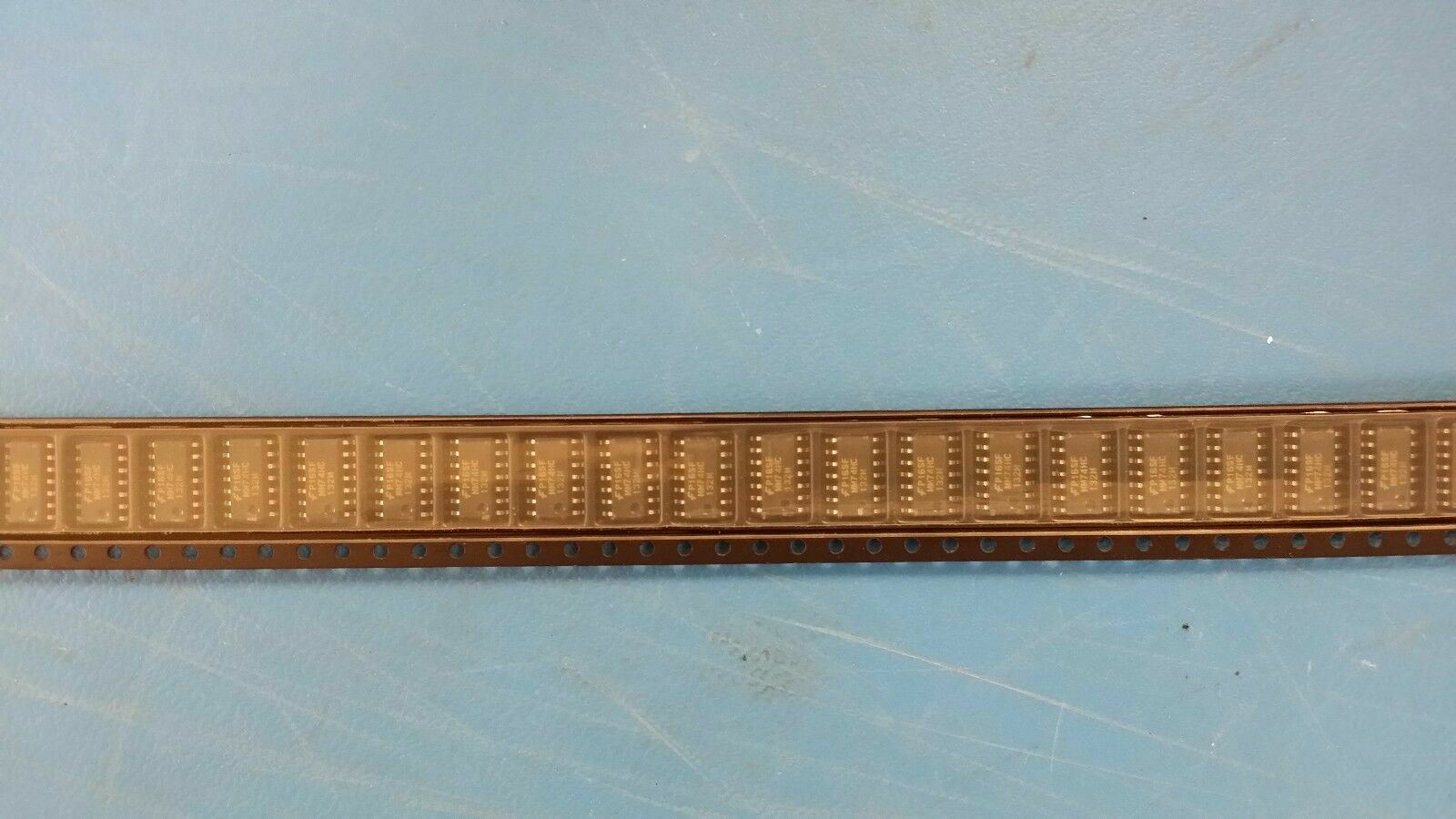

(25 PCS) MM74HC132M FSC NAND Gate 4-Element 2-IN CMOS 14-Pin SOIC
Tax included.

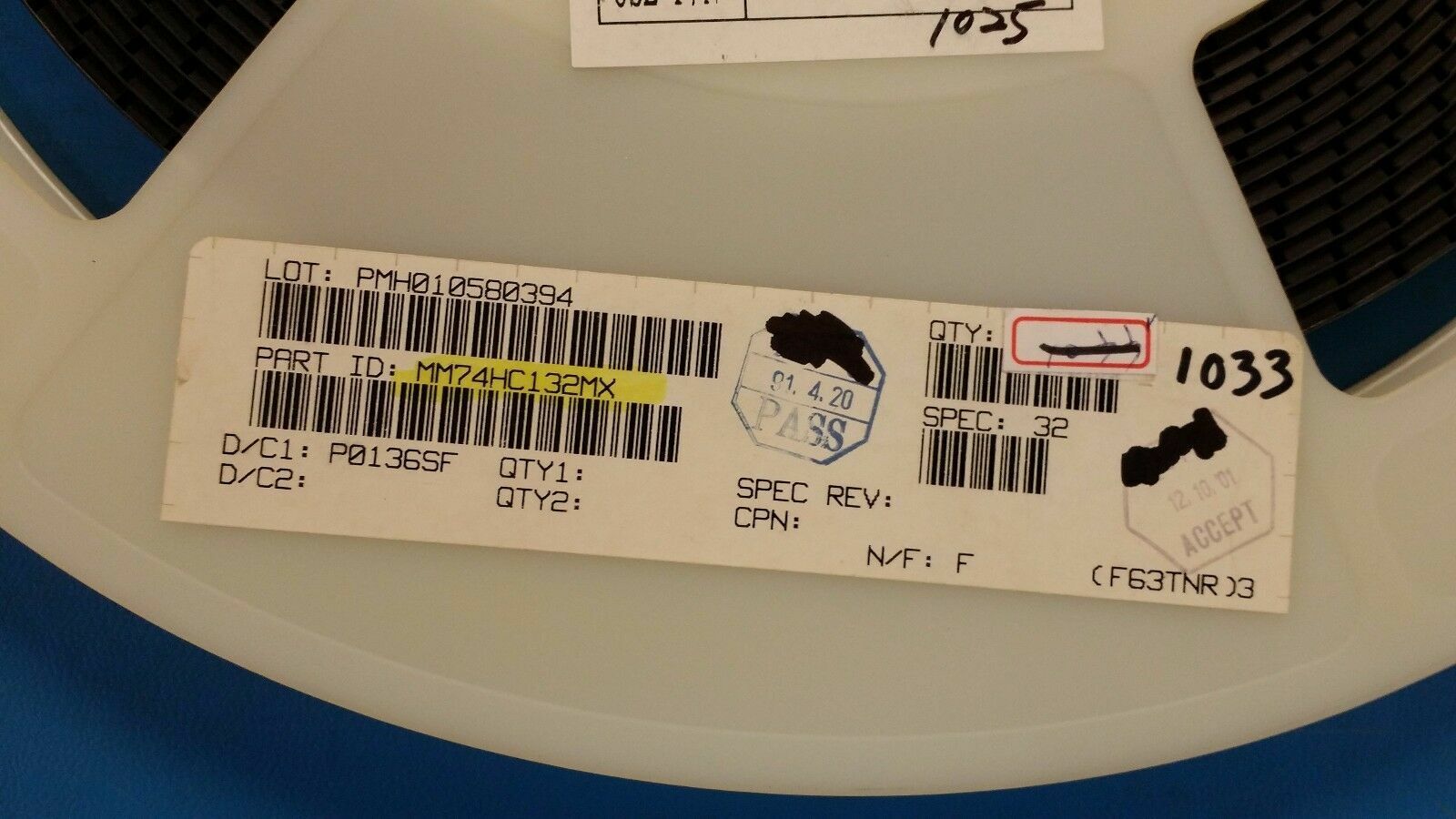

THIS LISTING IS FOR (25 PCS) OF MM74HC132M BY FSC
| Product Category: | Logic Gates | |
| Manufacturer: | Fairchild Semiconductor | |
| RoHS: | NO | |
| Product: | Single-Function Gate | |
| Logic Function: | NAND | |
| Logic Family: | 74HC | |
| Number of Gates: | 4 Gate | |
| Number of Input Lines: | 2 Input | |
| Number of Output Lines: | 1 Output | |
| High Level Output Current: | - 5.2 mA | |
| Low Level Output Current: | 5.2 mA | |
| Propagation Delay Time: | 125 ns | |
| Supply Voltage - Max: | 6 V | |
| Supply Voltage - Min: | 2 V | |
| Maximum Operating Temperature: | + 125 C | |
| Mounting Style: | SMD/SMT | |
| Package / Case: | SOIC-14 | |
| Packaging: | Bulk | |
| Brand: | Fairchild Semiconductor | |
| Function: | Schmitt Trigger | |
| Height: | 1.5 mm | |
| Input Type: | Schmitt Trigger | |
| Length: | 8.75 mm | |
| Logic Type: | 2-Input NAND | |
| Minimum Operating Temperature: | - 40 C | |
| Operating Supply Voltage: | 2.5 V, 3.3 V, 5 V |
