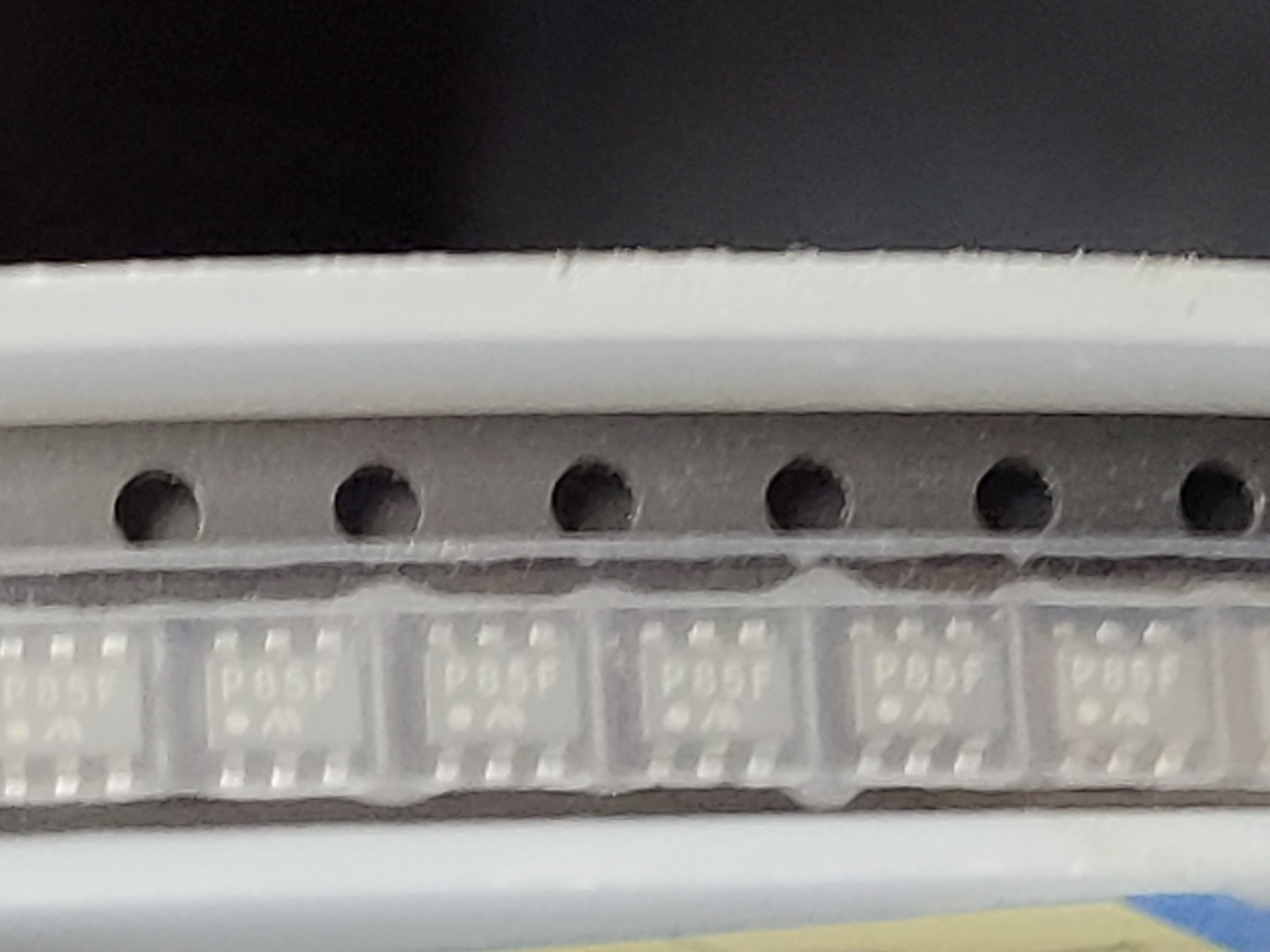

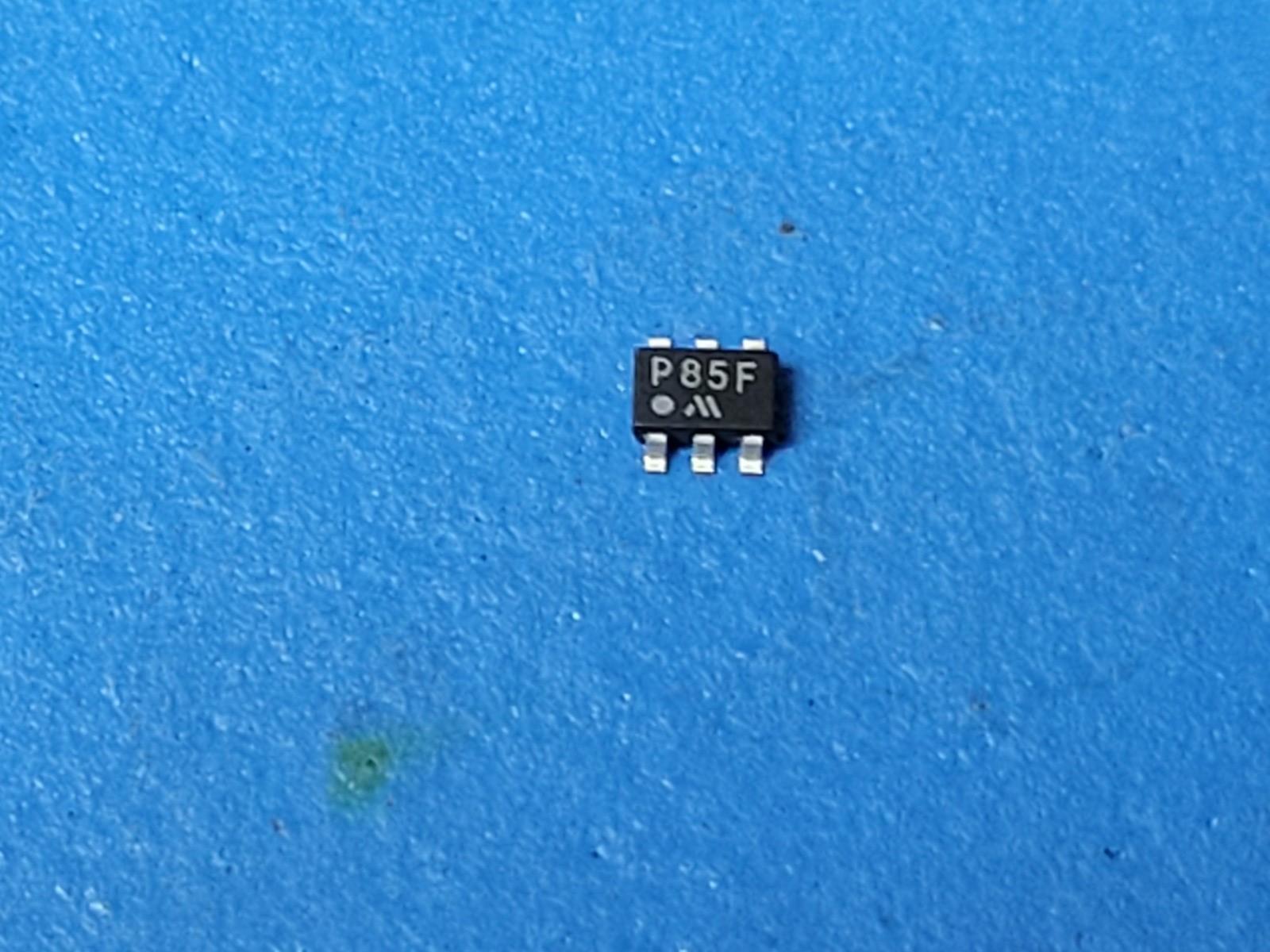

(25 PCS) MM1508-XNRE MITSUMI Audio/Video Switch, SOT-26 ROHS

Part #: MM1508XNRE

Other

Part Category: Multiplexers or Switches

Manufacturer: MITSUMI ELECTRIC CO LTD

Description: Audio/Video Switch, PDSO6

Status Transferred

Analog IC - Other Type AUDIO/VIDEO SWITCH

JESD-30 Code R-PDSO-G6

Number of Terminals 6

Operating Temperature-Max (Cel) 70

Operating Temperature-Min (Cel) -30

Package Body Material PLASTIC/EPOXY

Package Code TSOP

Package Equivalence Code TSOP6,.11,37

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, THIN PROFILE

DLA Qualification Not Qualified

Supply Voltage-Nom (V) 5.0000000000000000

Surface Mount YES

Temperature Grade OTHER

Terminal Form GULL WING

Terminal Pitch (mm) 0.950

Terminal Position DUAL

This IC extends the series of ICs for video/audio signal switching, with a 2-input 1-output single video switch, video signal/chroma signal 75Ω driver, and Y/C mixing circuit in one small package (SOT-26).
